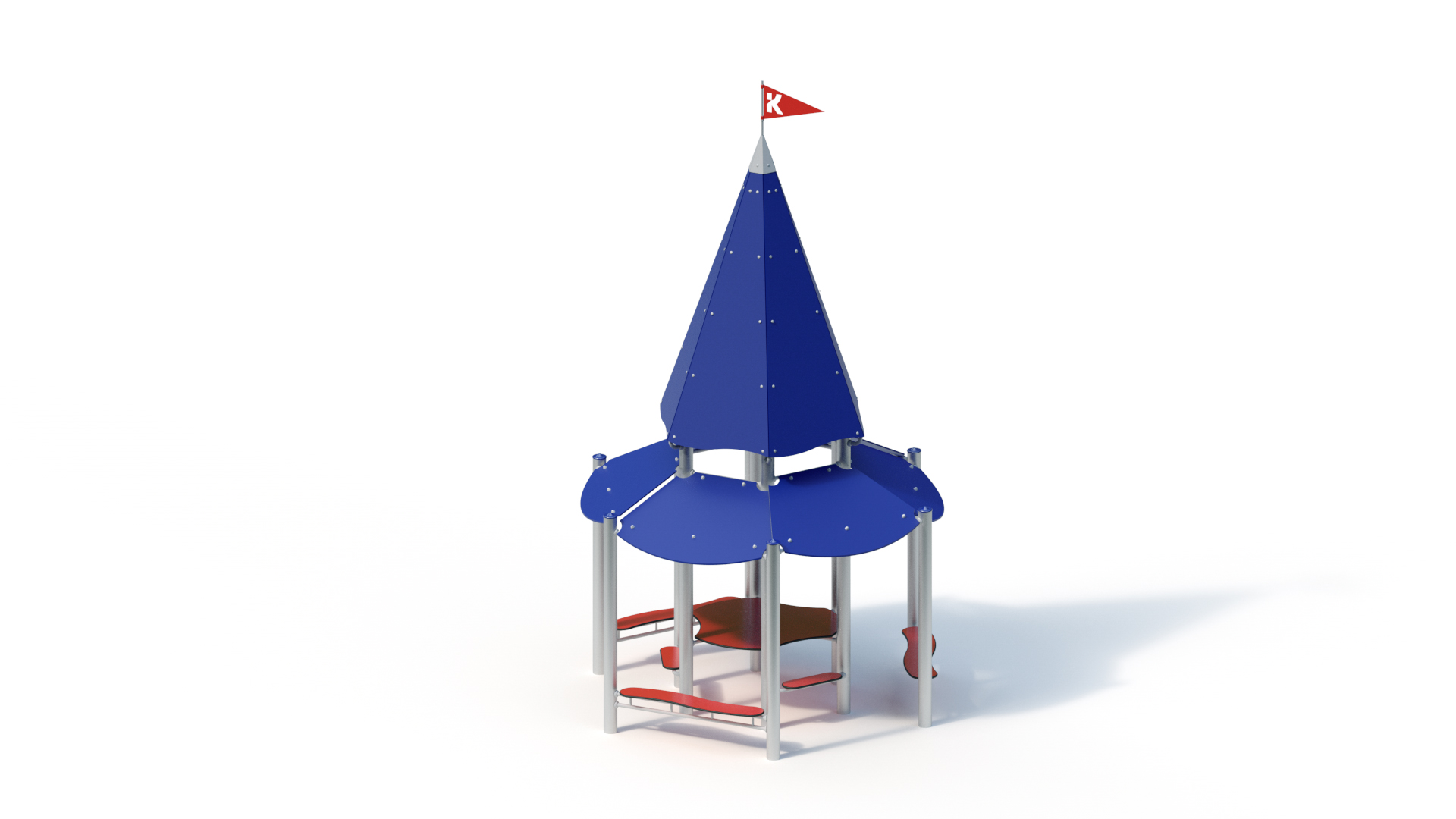

Meeting arbour

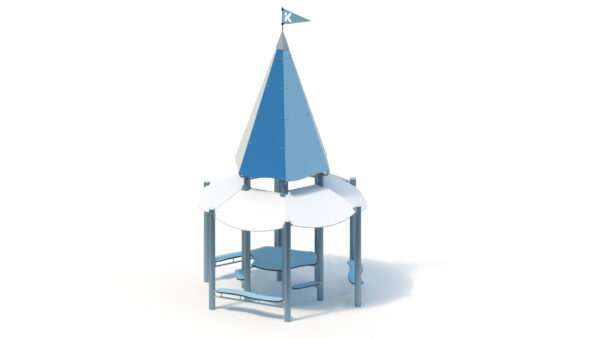

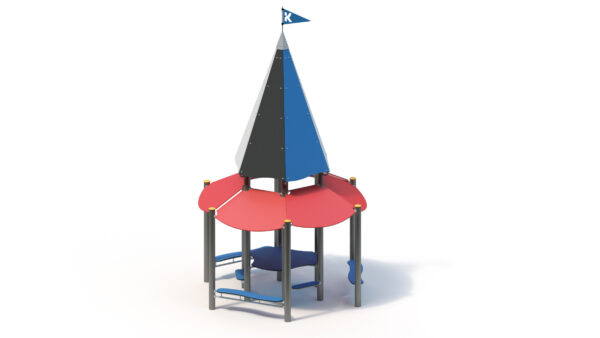

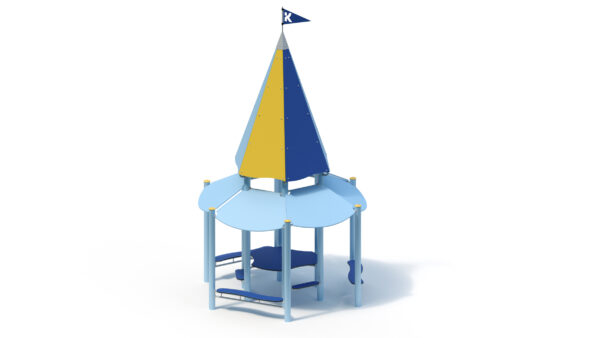

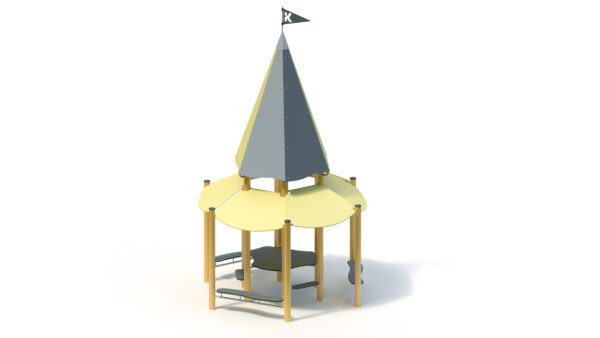

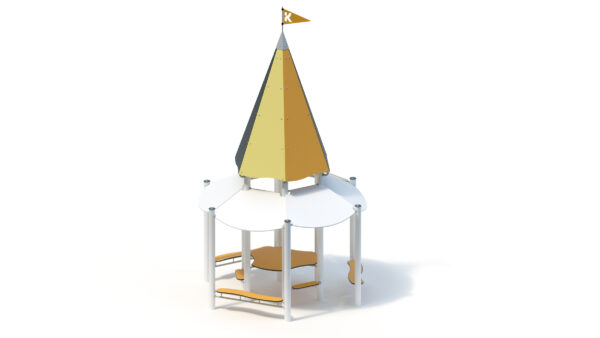

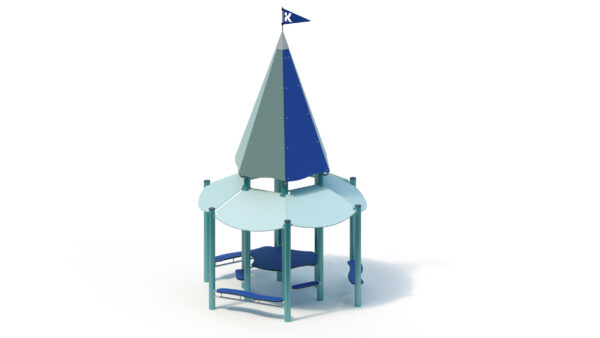

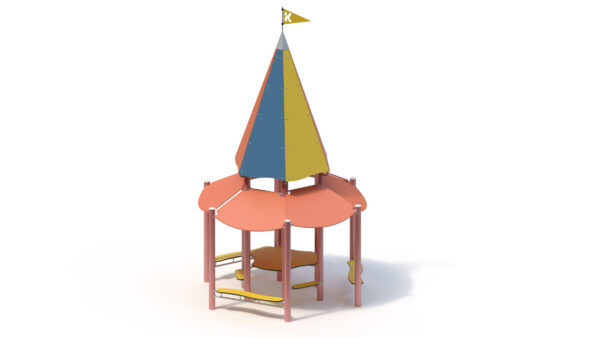

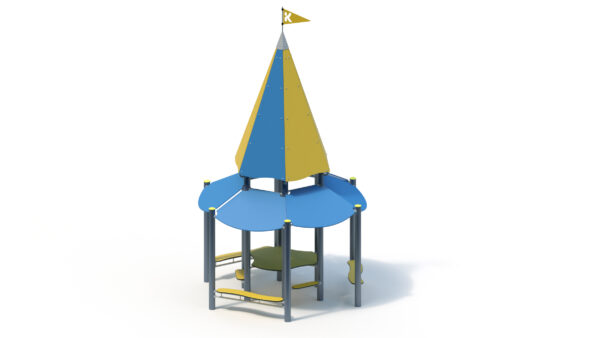

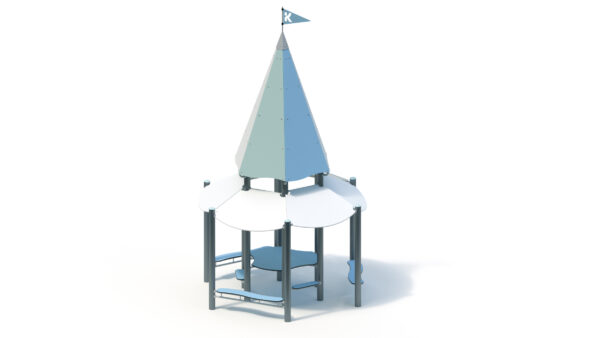

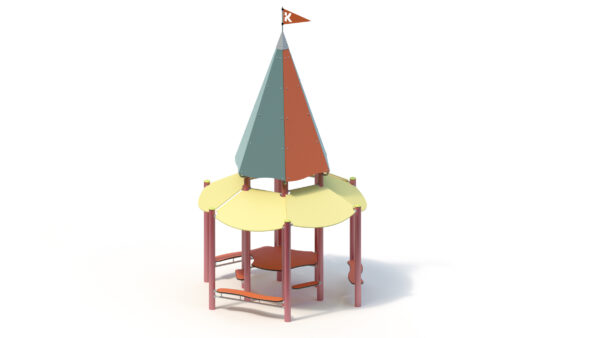

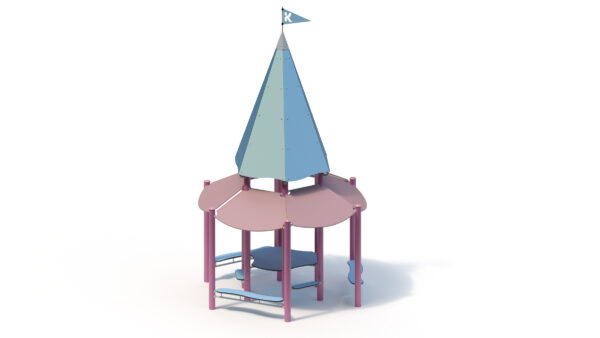

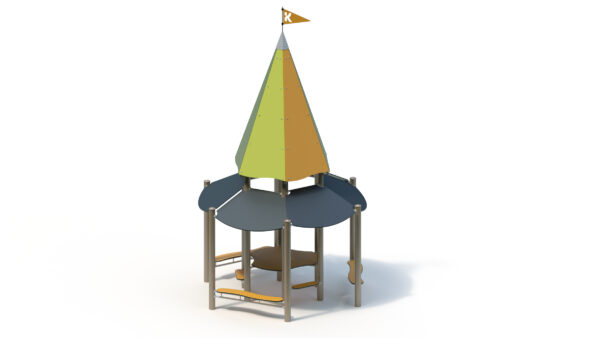

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 20 people |
| Activities ? | Social activity |
Technical data
| Minimum space length ? | 6,35 m |
|---|---|
| Minimum space width ? | 6,00 m |
| Minimum space height ? | 5,80 m |
| Equipment length ? | 3,35 m |
| Equipment width ? | 3,00 m |
| Equipment height ? | 5,80 m |
| Free-fall height ? | 0,75 m |
| Platform heights | - |
| Total weight ? | 1210.00 kg |
| Heaviest single part ? | 160.00 kg |
Assembly & Foundations
| Assembly time ? | 9,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 12 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

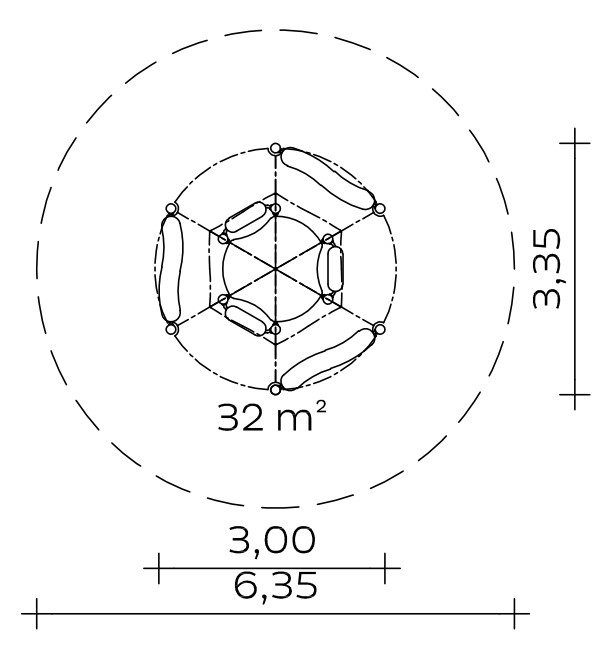

Floor area: 3.00 x 3.35 m
Minimum space: 6.00 x 6.35 m (32 m²)
Total height: 5.80 m
Seat height: 0.45 m
Table height: 0.75 m
Support post
Posts made of stainless steel tube Ø 12 cm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Table 6 x 0.80 m / made of highly weather-resistant HPL laminate, 20 mm/red, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Bench 2 / 0.80 m / made of highly weather-resistant HPL laminate, 20 mm/red
- Counter, 1.60 m, wave-shaped, made of highly weather-resistant HPL laminate, 20 mm/red
- Pitched roof, pitch 30° / 0.80 m x 1.60 m made of highly weather-resistant HPL laminate, 13 mm/royal blue. Attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm.
- Tower roof, pitch 72°, made of highly weather-resistant HPL laminate, 13 mm/royal blue. Attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm.
- Flag (smooth) for roof bonnet / red RAL 2002
Metal components: Stainless steel
Foundations (client-provided)
12 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 77 m³
Assembly time
2 fitters 9 hours each
(without foundations)+ lifting gear
Free fall height
0,75 m
Suitable for
All age groups,
public playgrounds etc.
Item number: 062220501
