Shelter

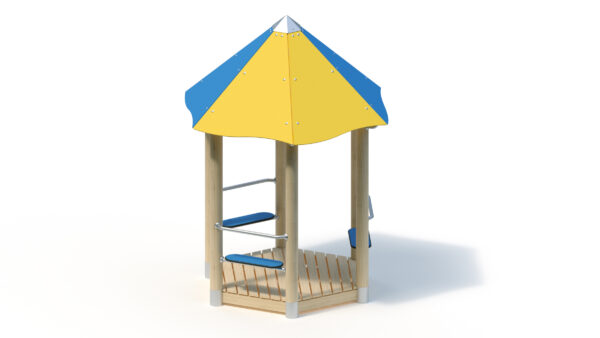

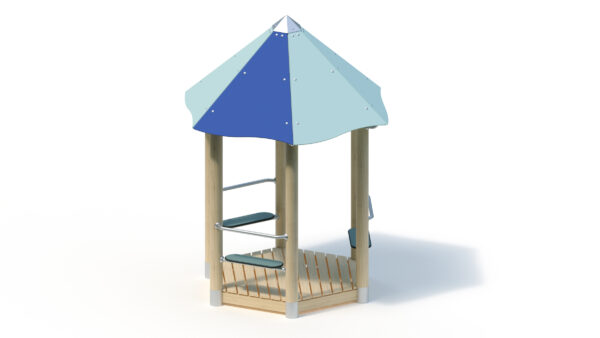

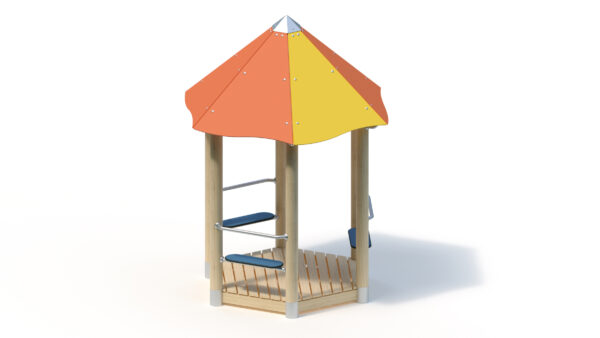

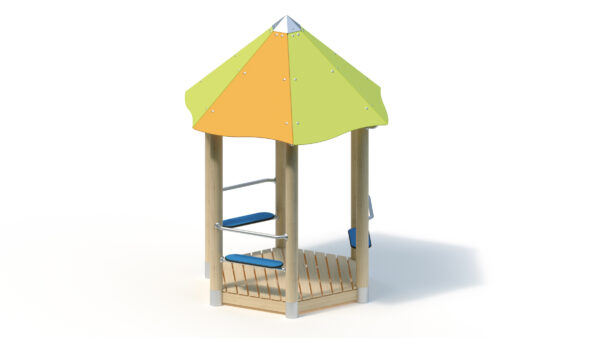

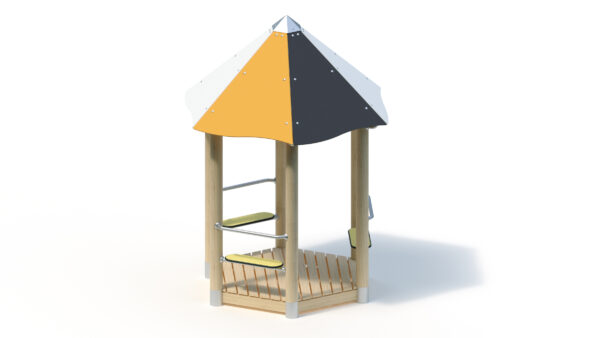

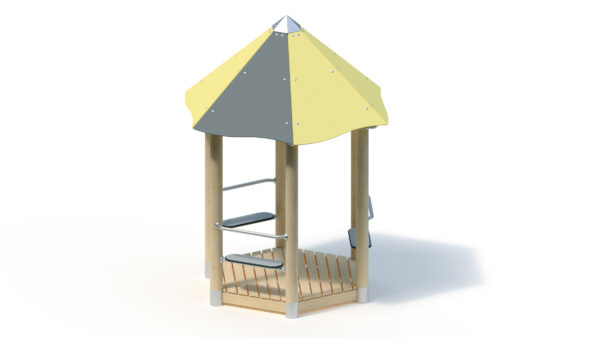

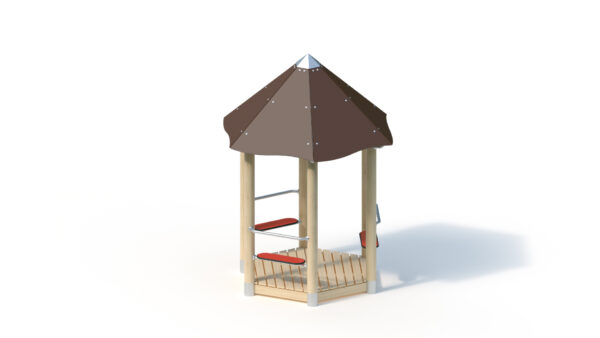

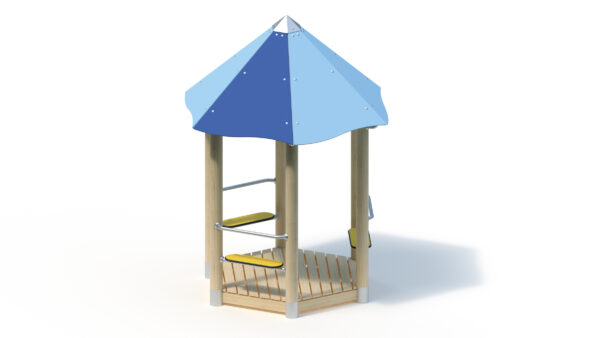

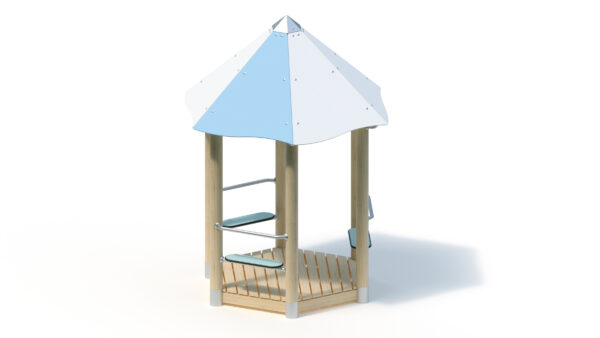

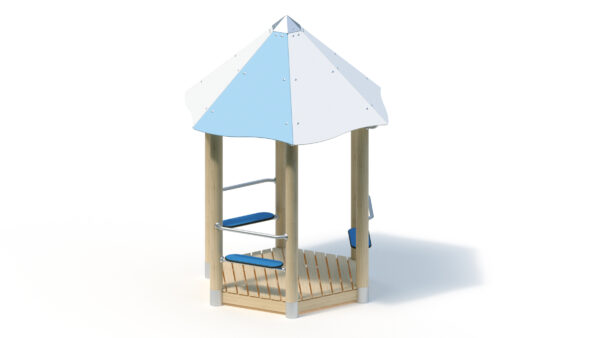

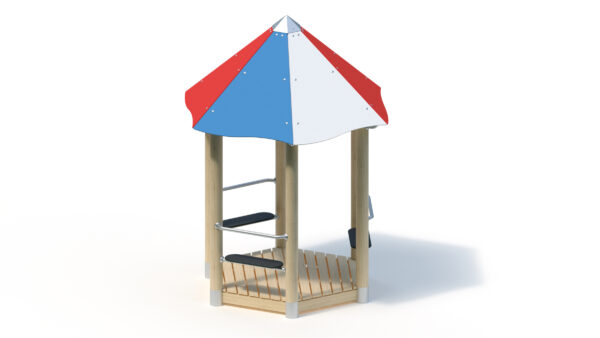

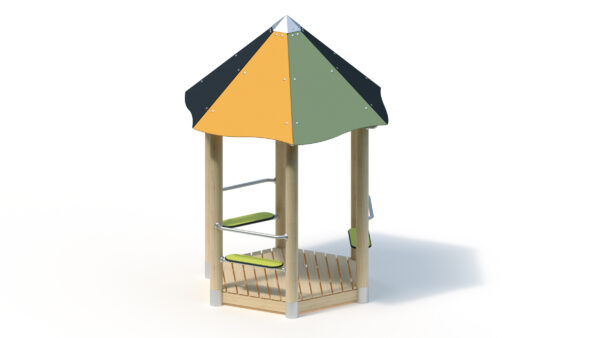

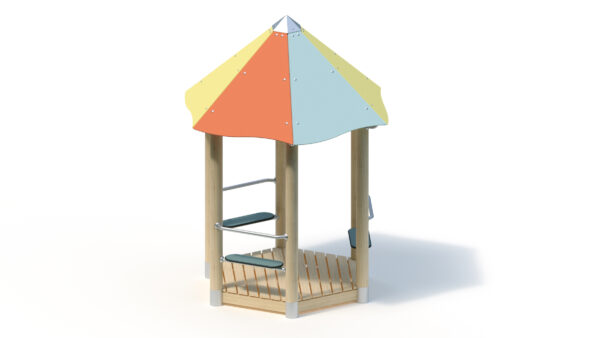

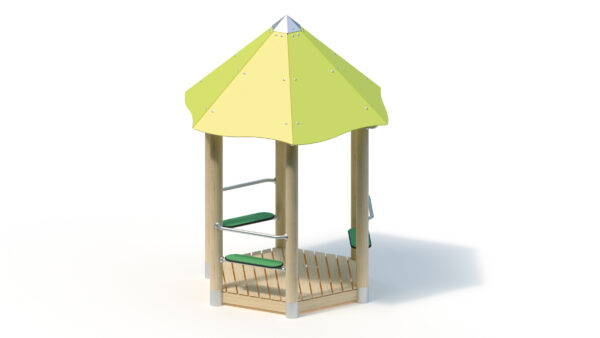

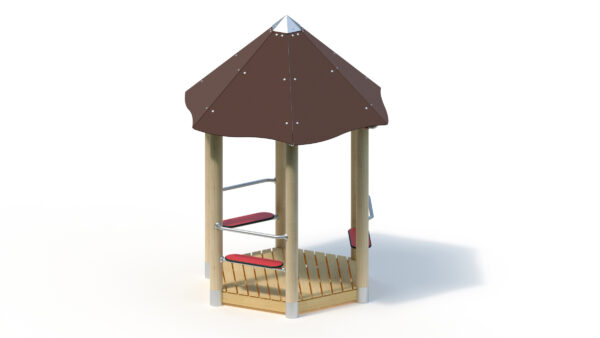

Variante wählen:
The most important information
| Altersgruppe ? | 1+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | - |
Technical data
| Gerätelänge ? | 2,15 m |
|---|---|
| Gerätebreite ? | 1,90 m |
| Gerätehöhe ? | 2,80 m |
| Freie Fallhöhe ? | 0,55 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 310.00 kg |
| Schwerstes Einzelteil ? | 65.00 kg |
| Mindestraumlänge ? | 5,20 m |
| Mindestraumbreite ? | 4,90 m |
| Mindestraumhöhe ? | 2,80 m |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | 040x040x040 |
Product Downloads
Product description
Technical data

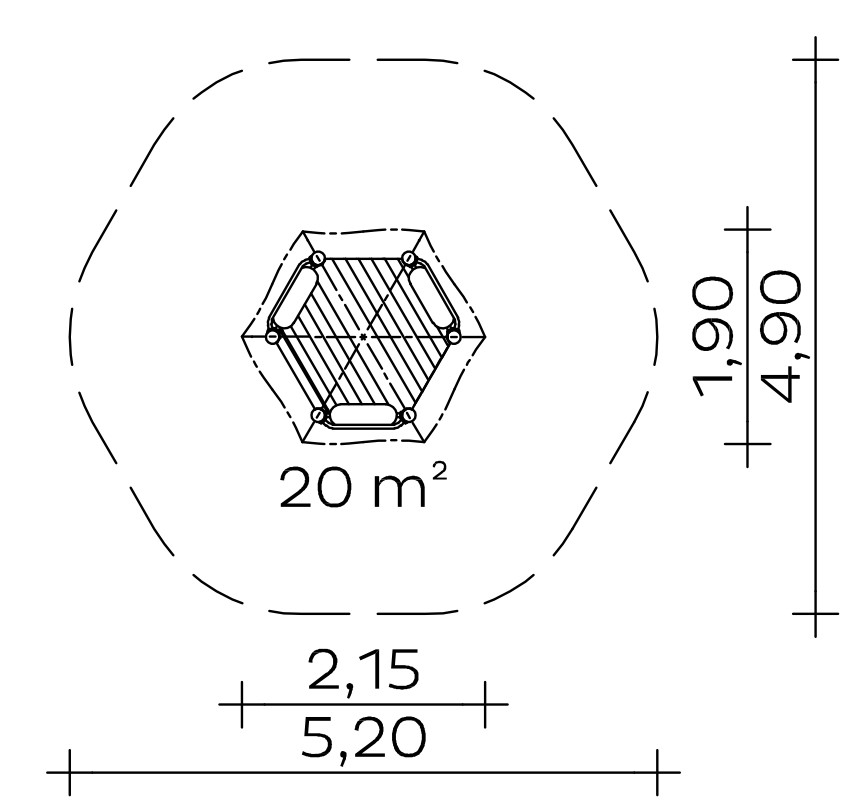

Floor area: 1.90 x 2.15 m
Minimum space: 4.90 x 5.20 m (20 m²)
Total height: 2.80 m
Seat height: 0.35 m
Platform height: 0.20 m
Weight: 65 kg heaviest individual part
310 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing made of stainless steel tube, Ø 33.7 x 2 mm, torsion-resistant
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat: made of coloured, highly weather-resistant HPL laminate, 20 mm
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Suitable for
All age groups,
public playgrounds etc.
Item number: 062168700
