Products
Hammock
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 6,10 m |
|---|---|
| Minimum space width ? | 3,85 m |
| Minimum space height ? | 1,45 m |
| Equipment length ? | 3,10 m |
| Equipment width ? | 0,85 m |
| Equipment height ? | 1,45 m |
| Free-fall height ? | 0,95 m |
| Platform heights | - |
| Total weight ? | 75.00 kg |
| Heaviest single part ? | 25.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.6m x 0.6m x 0.8m) |
Product Downloads
Product description
Technical data

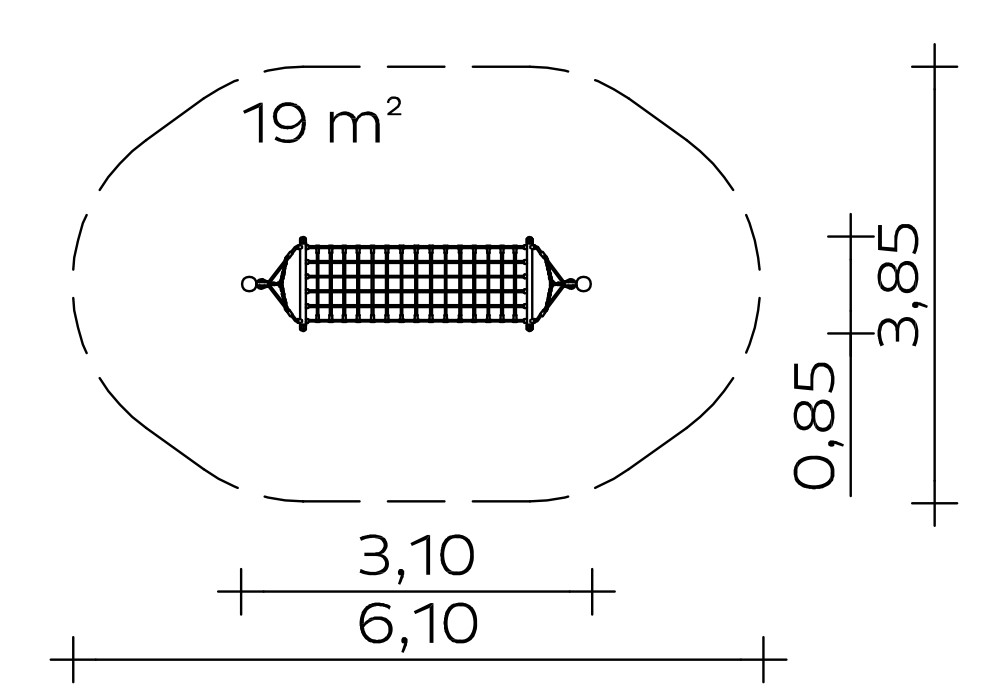

Total height: 1.45 m
Base area: 3.10 x 0.85 m
Minimum space: 6.10 x 3.85 m
Weight: 25 kg heaviest individual part
75 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps.
Attachments
- Hammock made of Hercules rope Ø 16 mm black with envelope protection, suspension on stainless steel uprights with stainless steel brackets made of tube Ø 30 x 2 mm
- The screw connections are secured against unauthorised loosening.
- The hammock is available in the following rope colours (at no extra charge): red, blue, green, black, yellow, silver-grey and natural.
Foundations (client-provided)
2 units 0.60 x 0.60 x 0.80 m
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,95 m
Suitable for
All age groups
Public playgrounds
Item number: 061100500
