Waved bench

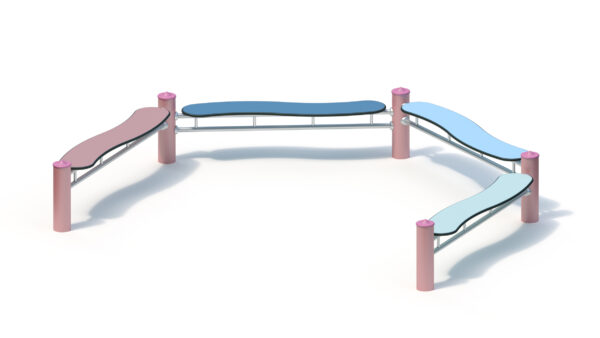

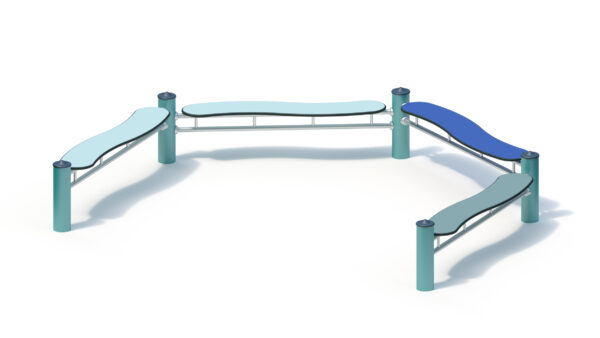

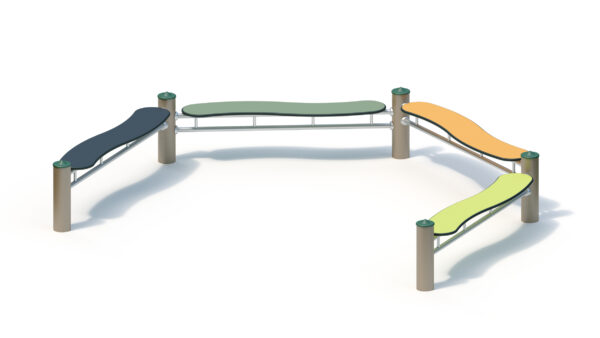

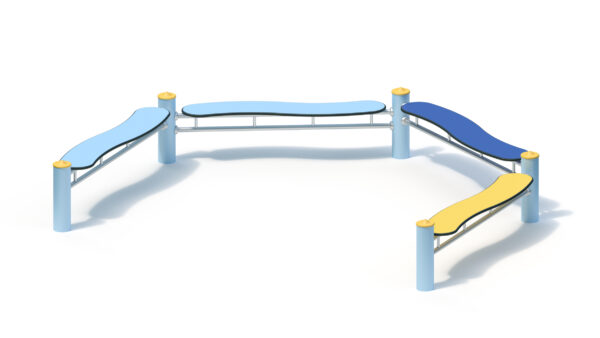

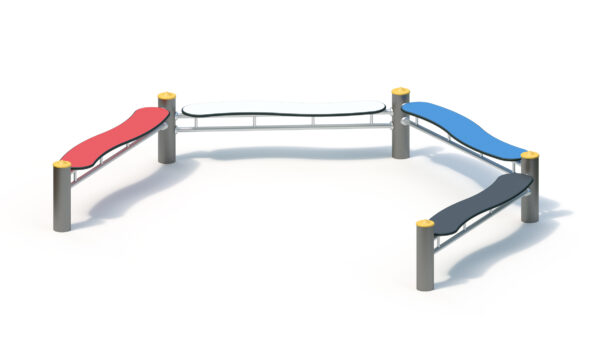

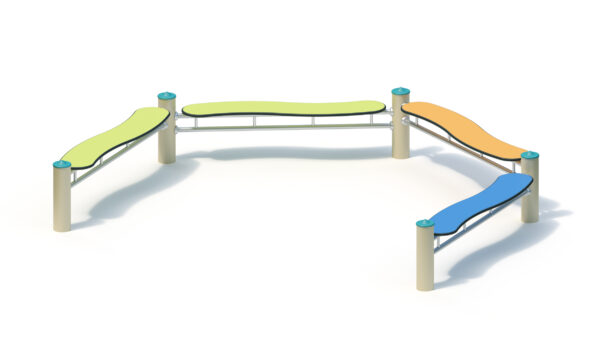

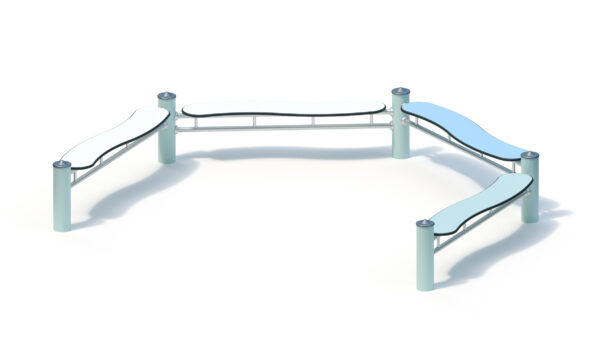

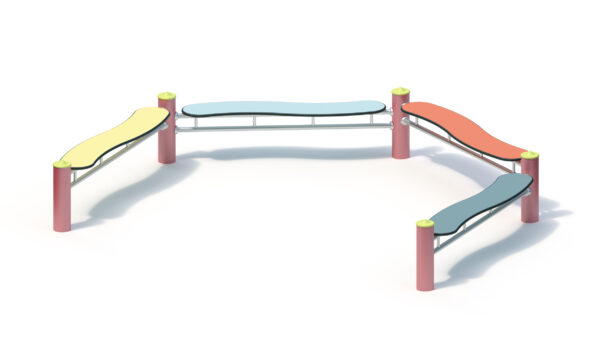

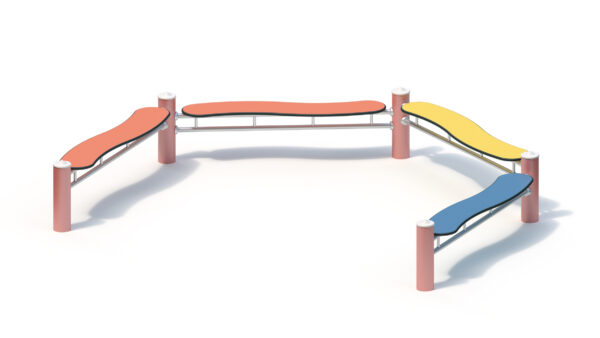

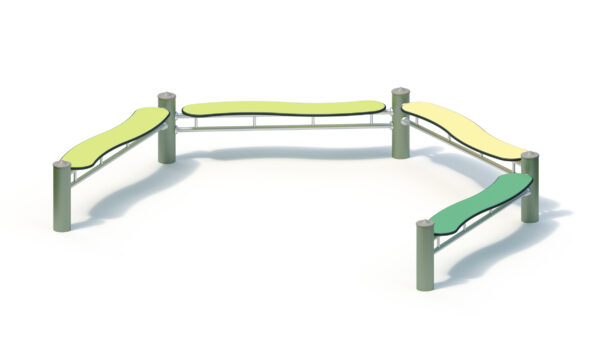

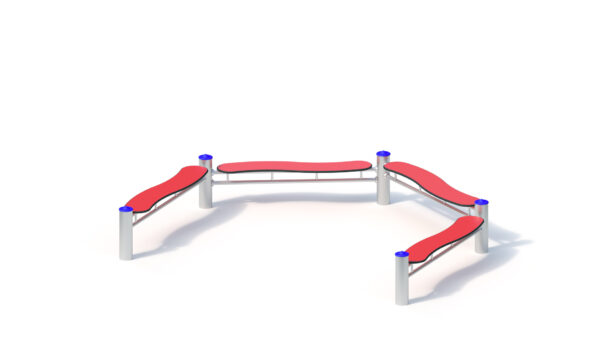

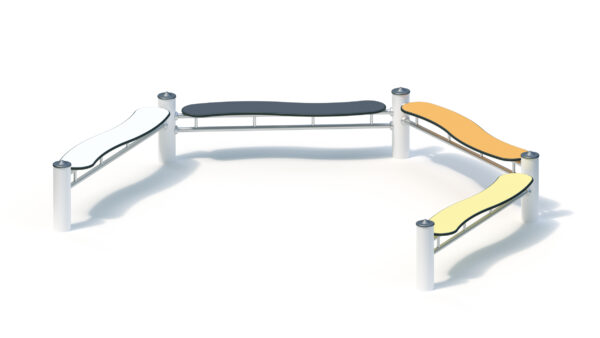

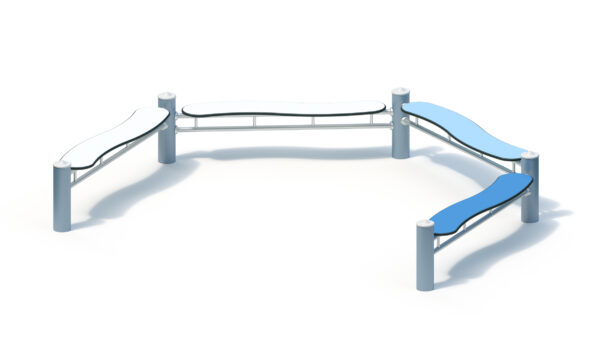

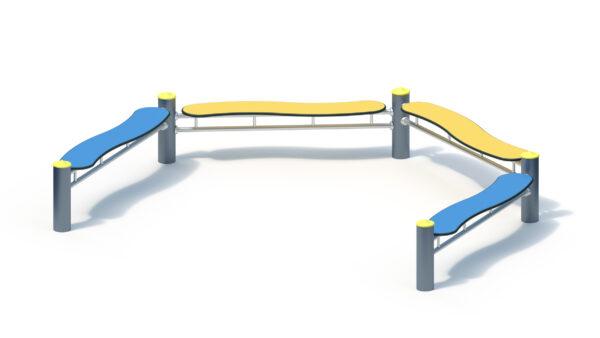

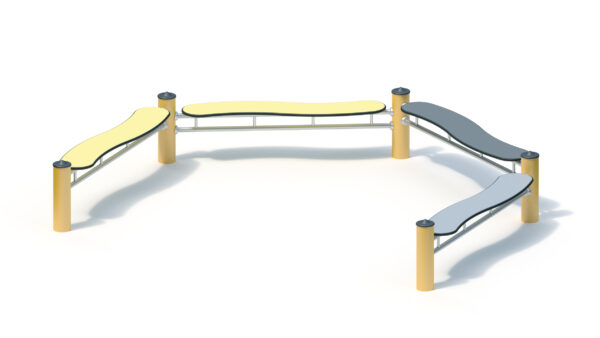

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 15 people |
| Activities ? | Social activity |
Technical data
| Minimum space length ? | 6,10 m |
|---|---|
| Minimum space width ? | 5,55 m |
| Minimum space height ? | 0,55 m |
| Equipment length ? | 3,10 m |
| Equipment width ? | 2,55 m |
| Equipment height ? | 0,55 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 100.00 kg |
| Heaviest single part ? | 15.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 5 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

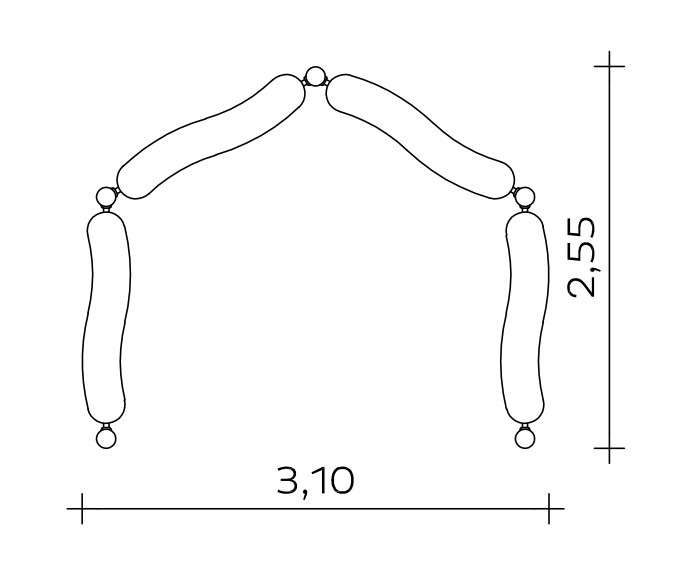

Floor area: 2.55 x 3.10 m
Seat height: 0.40/0.45 m
Weight: 15 kg heaviest individual part
100 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Bench top, wave-shaped, made of coloured, highly weather-resistant HPL laminate, 20 mm
Foundations (client-provided)
5 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.32 m³
Assembly time
1 fitter 1.5 hours
(without foundation)
Suitable for
All age groups
public playgrounds etc.
Item number: 060154500
