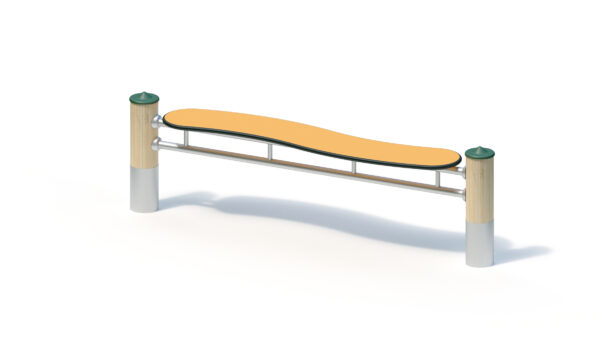

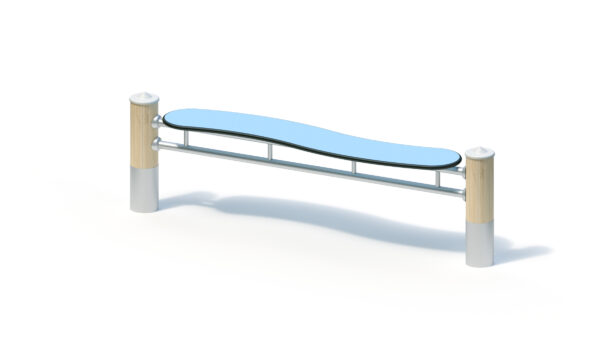

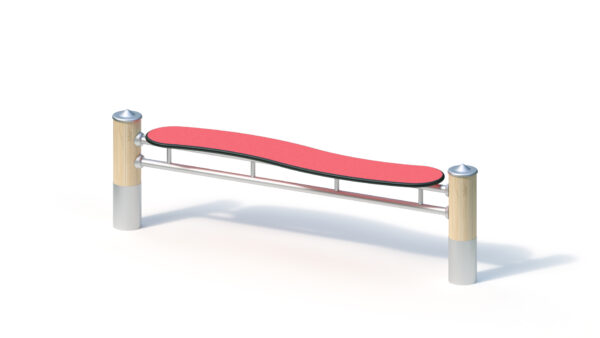

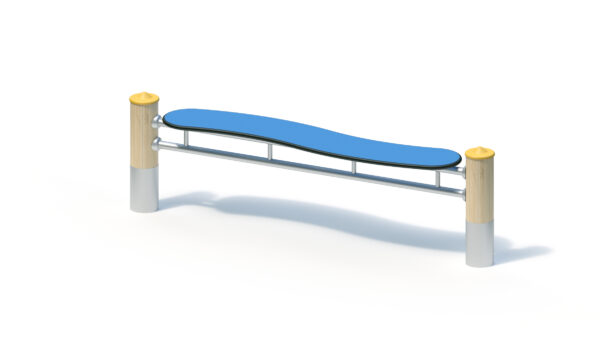

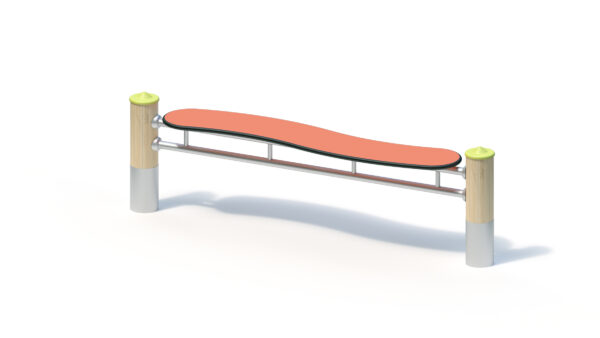

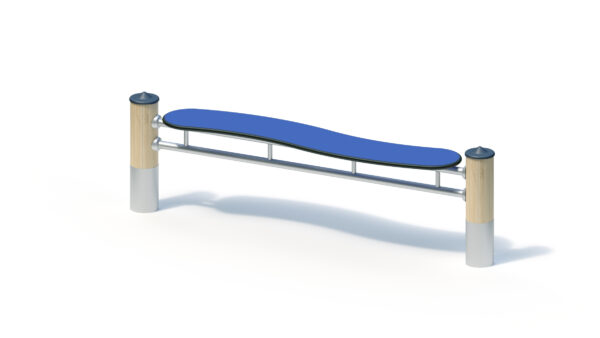

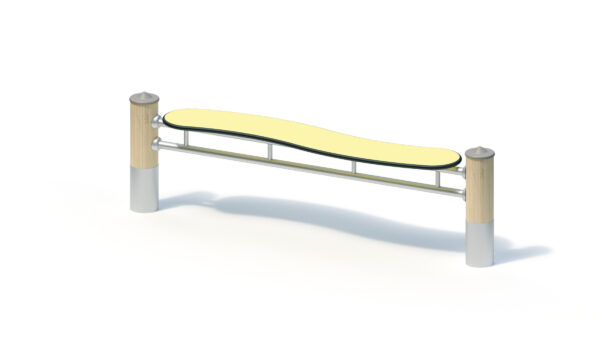

Waved bench

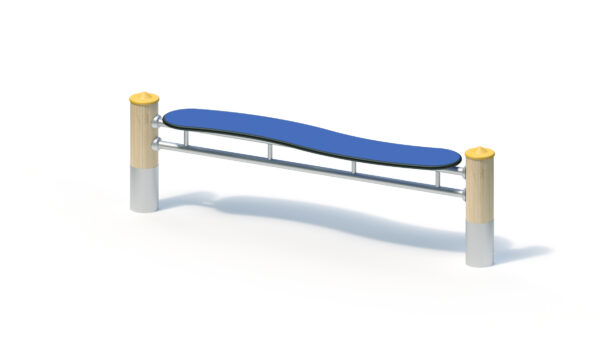

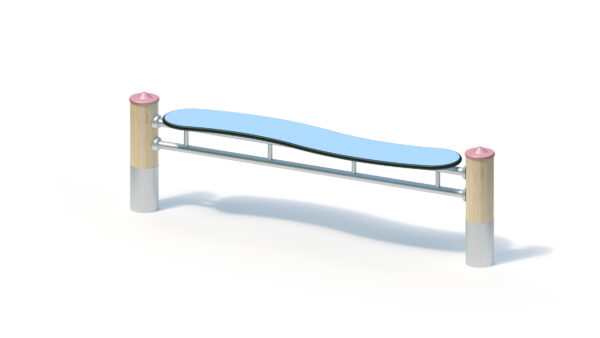

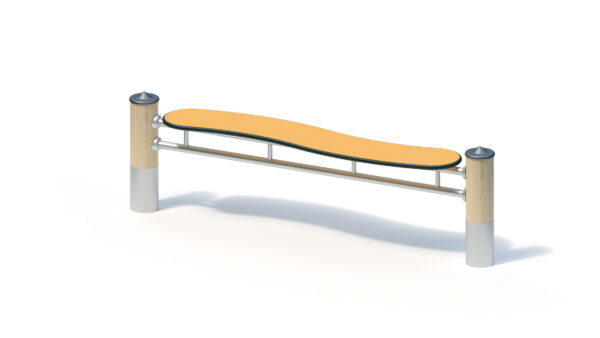

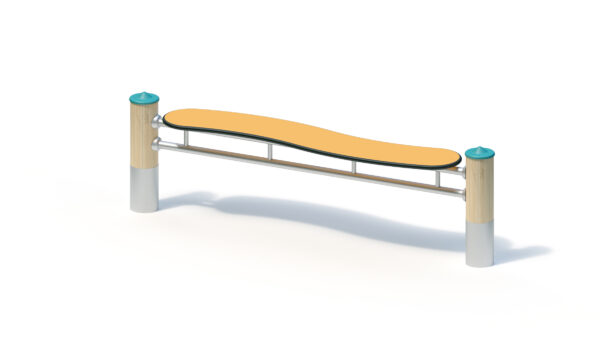

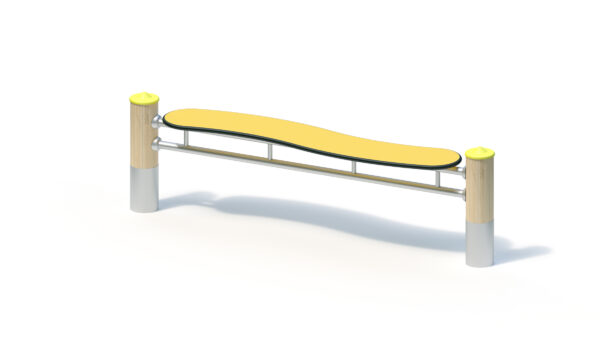

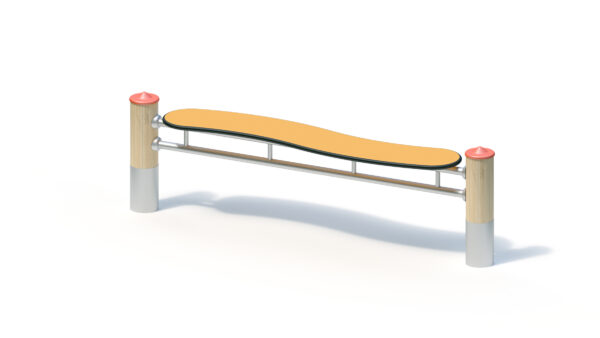

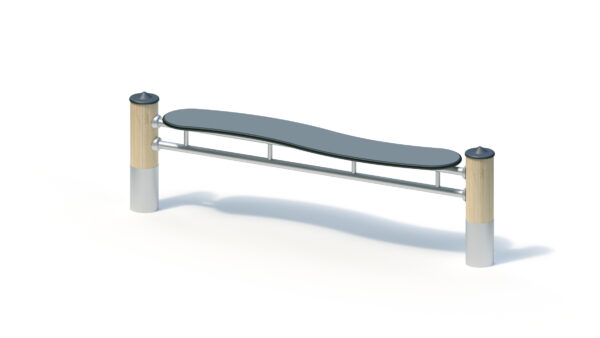

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Social activity |
Technical data
| Minimum space length ? | 4,75 m |
|---|---|
| Minimum space width ? | 3,35 m |
| Minimum space height ? | 0,55 m |
| Equipment length ? | 1,75 m |
| Equipment width ? | 0,35 m |
| Equipment height ? | 0,55 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 35.00 kg |
| Heaviest single part ? | 15.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.6m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

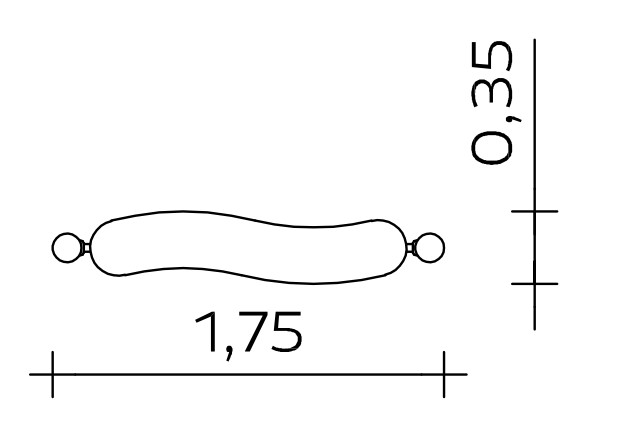

Base area: 0.35 x 1.75 m
Seat height: 0.45 m
Weight: 15 kg heaviest individual part
35 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Bench top, wave-shaped, made of coloured, highly weather-resistant HPL laminate, 20 mm
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 units 0.40 x 0.60 x 0.40 m
Concrete volume: 0.19 m³
Assembly time
1 fitter 0.5 hours
(without foundation)
Free fall height
0,45 m
Suitable for
all age groups
public playgrounds etc.
Item number: 060151700
