Flyerbars Part 2
Select variant:
The most important information
| Age group ? | 14+ |
|---|---|
| Areas of use ? | Calisthenics |
| Number of users ? | 6 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 7,95 m |
|---|---|
| Minimum space width ? | 6,40 m |
| Minimum space height ? | 2,65 m |
| Equipment length ? | 3,50 m |
| Equipment width ? | 1,95 m |
| Equipment height ? | 2,65 m |
| Free-fall height ? | 1,55 m |
| Platform heights | - |
| Total weight ? | 150.00 kg |
| Heaviest single part ? | 31.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 5 (0.5m x 0.5m x 0.4m) |
Product Downloads
Product description
Technical data

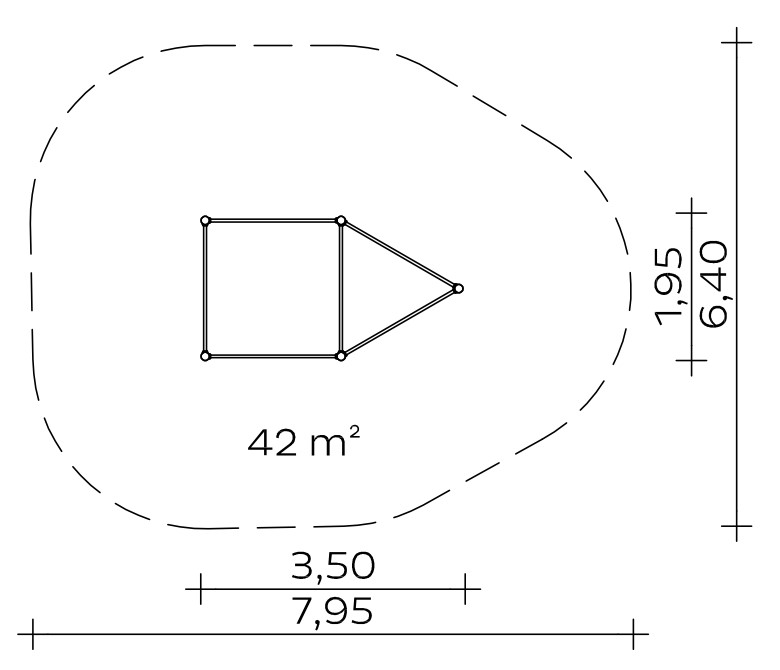

Equipment room: 3.50 x 1.95 x 2.65 m
Minimum space: 7.95 x 6.40 x 2.65 m
Impact area: 42 m²
Total height: 2.65 m
High bar heights: 2.00/2.05/2.50/2.55/2.60 m
Free fall height: 1.55 m
Weight: 31 kg heaviest individual part
150 kg in total

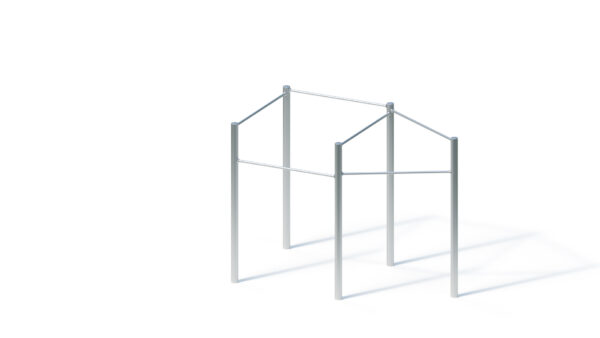

Jordansbars
Support post made of stainless steel tube Ø 114.3 x 3 mm
Horizontal bars made of stainless steel tube Ø 38 x 5 mm
This product is certified in accordance with the requirements of EN 16630 („Outdoor stationary fitness equipment“).
Fitness equipment of this type is not intended for installation on or in the immediate vicinity of children's playgrounds in accordance with the EN 1176 series of standards.
Foundations (client-provided)
5 pcs. 0.50 x 0.50 x 0.40 m
Concrete quantity: 0.5 m³
Assembly time
2 fitters 0.5 hours each
(without foundation)
Suitable for
Teenagers and adults
(minimum height 1.40 m)
Physical activities
Item number: 057608900
This Kaiser & Kühne product enables:
