The 3D model is for spatial reference only. The colours may not match the selected variant.

Climbing combination

SKU: 055480703 Category: Tag:

Select variant:

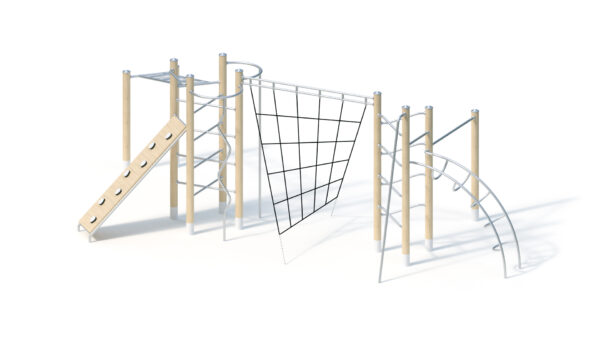

Classic
Classic
Aloha
Aloha
Beach
Beach
City
City
Coral
Coral
Ice Palace
Ice Palace
Jungle
Jungle
Mermaid
Mermaid
Climbing Rock midi
Climbing Rock midi

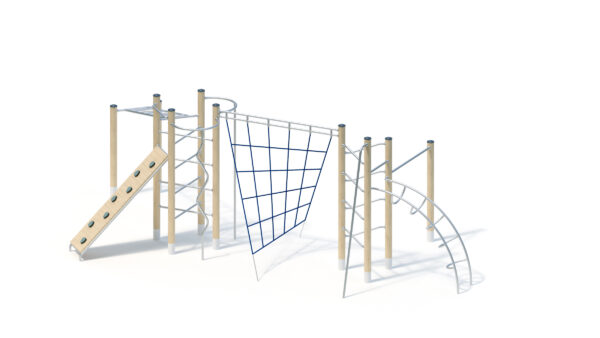

Ocean
Ocean

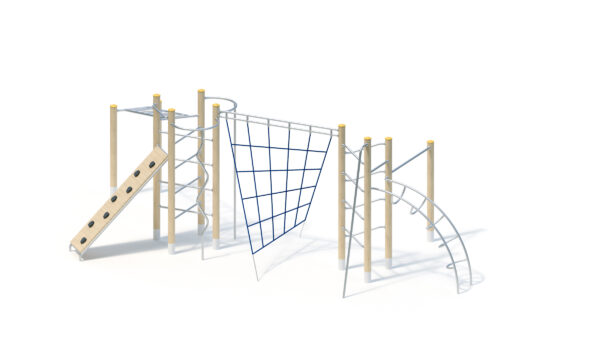

Pirate
Pirate

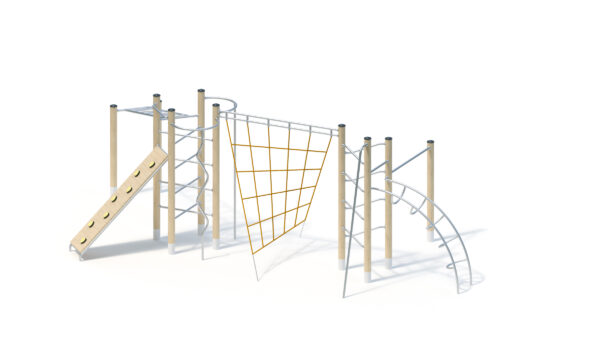

Safari
Safari

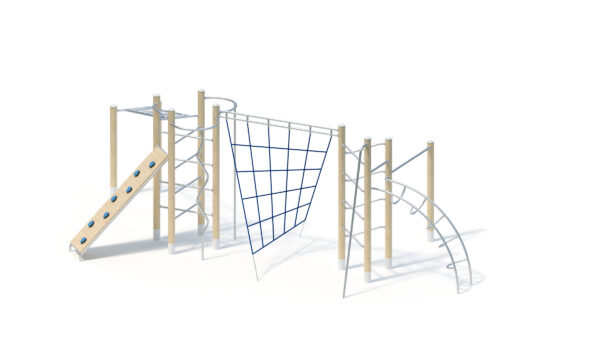

Sky
Sky

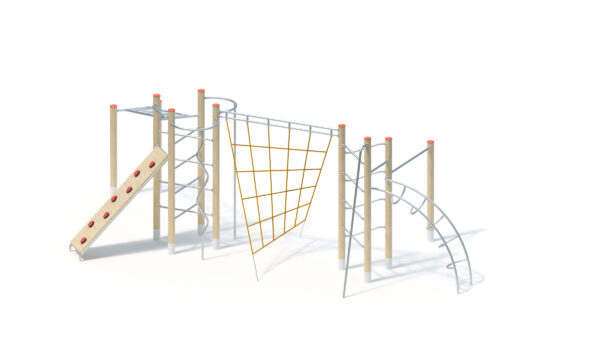

Sun
Sun
Sunny Day
Sunny Day
Sweden
Sweden
Please note the item number shown above when making your product enquiry, as it changes when you select a specific product variant (e.g. a different colour scheme). The last variant selected is automatically included in your enquiry.
SKU: 055480703 Category: Tag:

The most important information

:
;

Age group ?4+
Areas of use ?Public playgrounds
Number of users ?24 people
Activities ?Climbing, Physical activity

Technical data

:
;

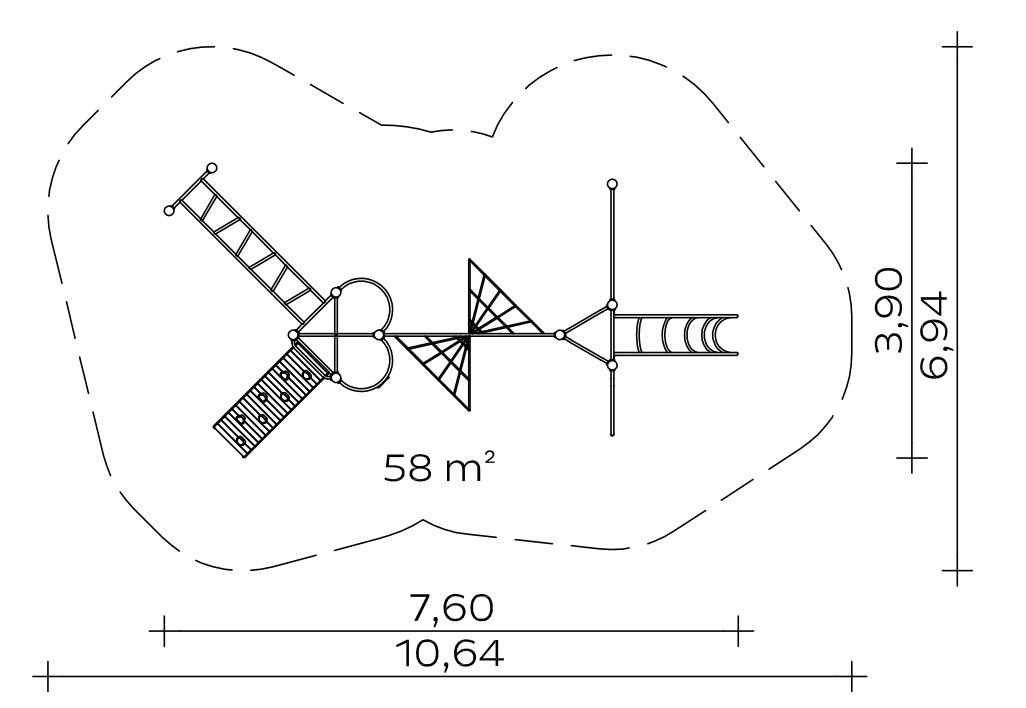

Minimum space length ?10,70 m
Minimum space width ?7,00 m
Minimum space height ?2,65 m
Equipment length ?7,60 m
Equipment width ?3,90 m
Equipment height ?2,65 m
Free-fall height ?2,55 m
Platform heights-
Total weight ?698.00 kg
Heaviest single part ?105.00 kg

Assembly & Foundations

:
;

Assembly time ?7,0 h
Number of fitters ?2 people
Lifting equipment required-
FoundationsQuantity: 7 (0.3m x 0.3m x 0.4m)
Quantity: 10 (0.4m x 0.4m x 0.4m)

Product description

:
;

Technical data
Total height: 2.63 m
Floor area: 3.90 x 7.60 m
Minimum space: 6.95 x 10.65 m
High bar height: 1.70 m

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.

Attachments
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Curved ladder made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rungs made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing net made of Hercules rope on stainless steel crossbar, twisted through 90°
- Inclined climbing pole made of stainless steel tube, Ø 38 x 2 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 x 2 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 x 2 mm, corrugated
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Inclined hanging ladder, made of stainless steel tube 38 x 2.5/33.7 x 2 mm

Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
7 units 0.30 x 0.30 x 0.40 m
10 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.89 m³

Assembly time
2 fitters 6 hours each
(without foundation)

Free fall height
2,52 m

Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities

Item number: 055480703
