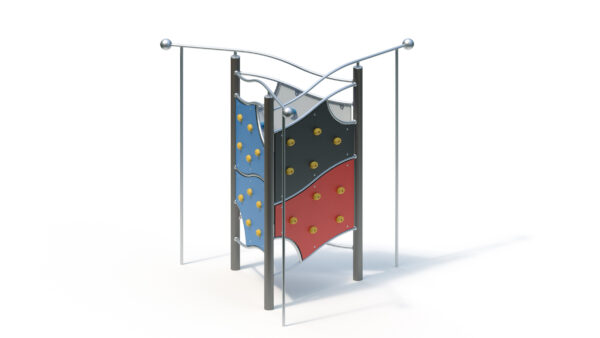

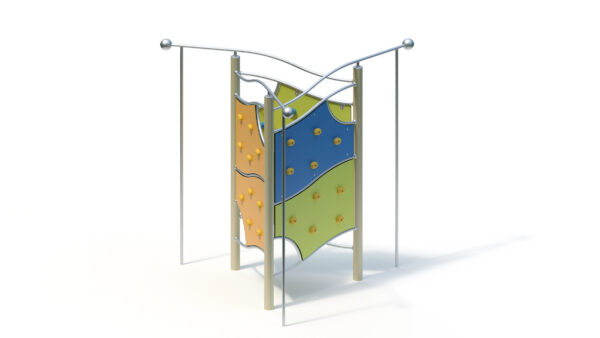

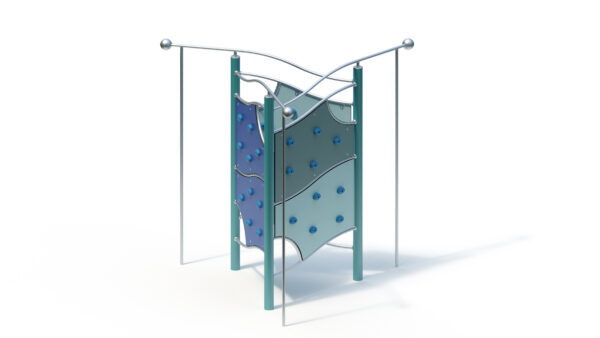

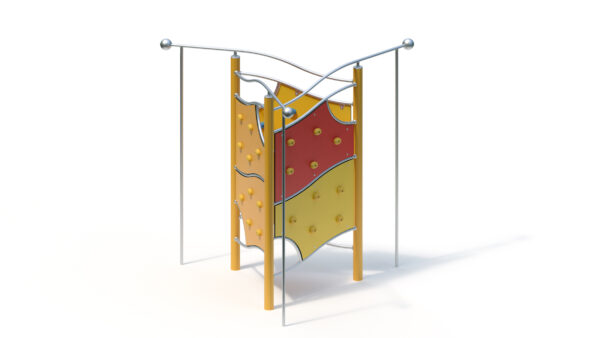

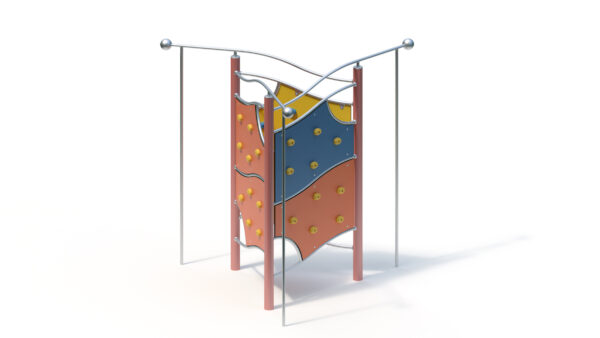

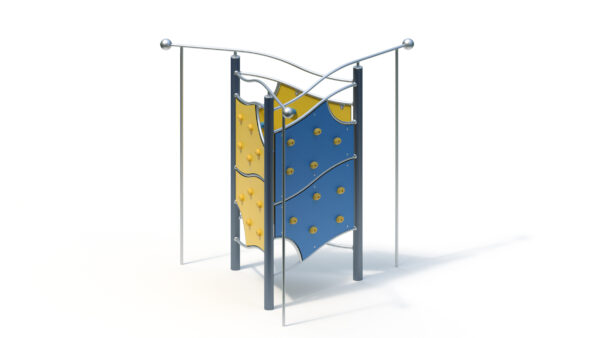

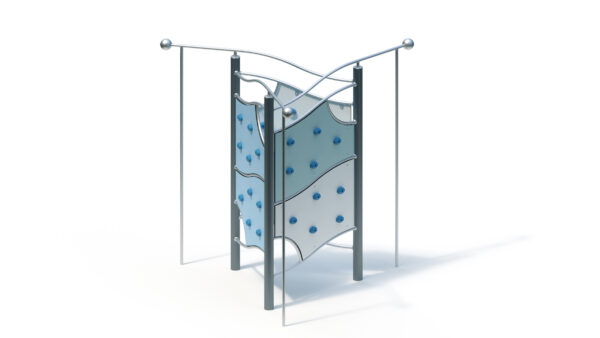

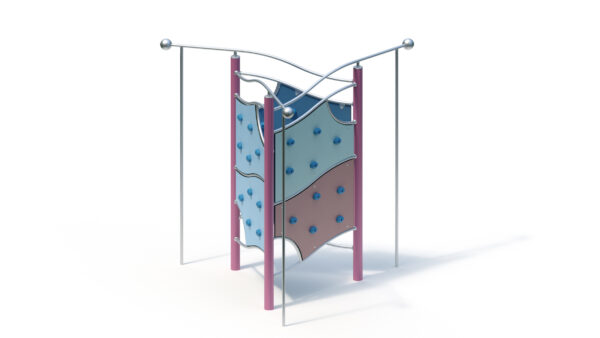

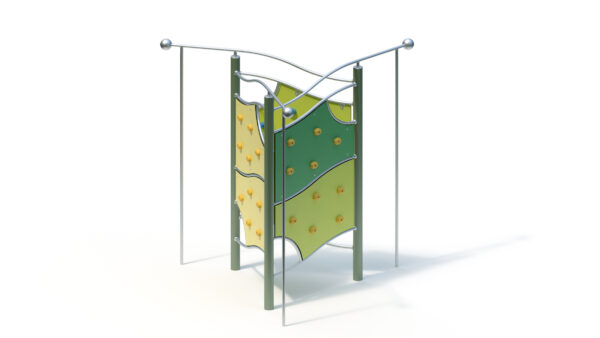

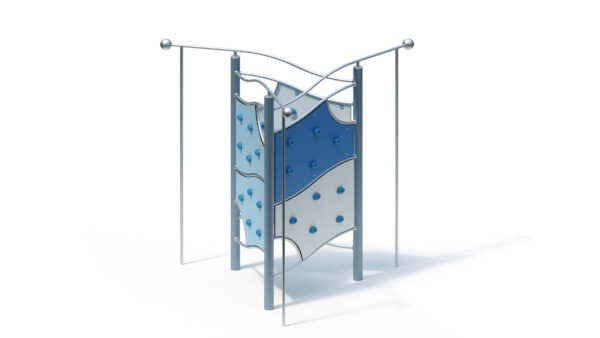

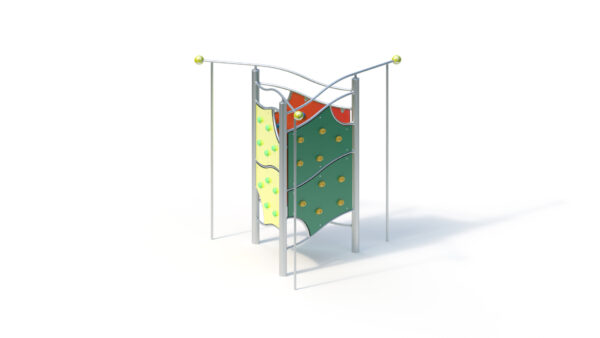

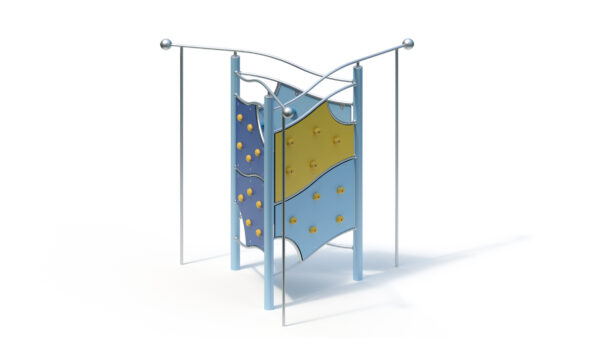

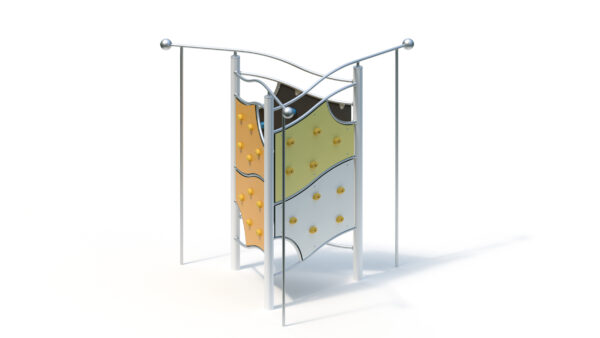

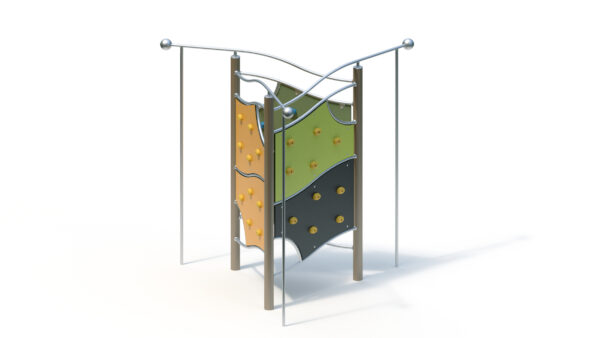

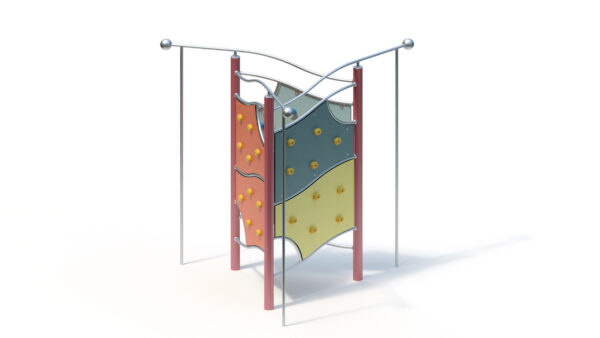

Triple climbing tower with climbing poles
Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 17 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Mindestraumlänge ? | 8,68 m |
|---|---|
| Mindestraumbreite ? | 8,68 m |
| Mindestraumhöhe ? | 3,00 m |
| Gerätelänge ? | 3,11 m |
| Gerätebreite ? | 3,10 m |
| Gerätehöhe ? | 3,00 m |
| Freie Fallhöhe ? | 3,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 450.00 kg |
| Schwerstes Einzelteil ? | 82.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (0.4m x 0.4m x 0.4m) Quantity: 3 (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data

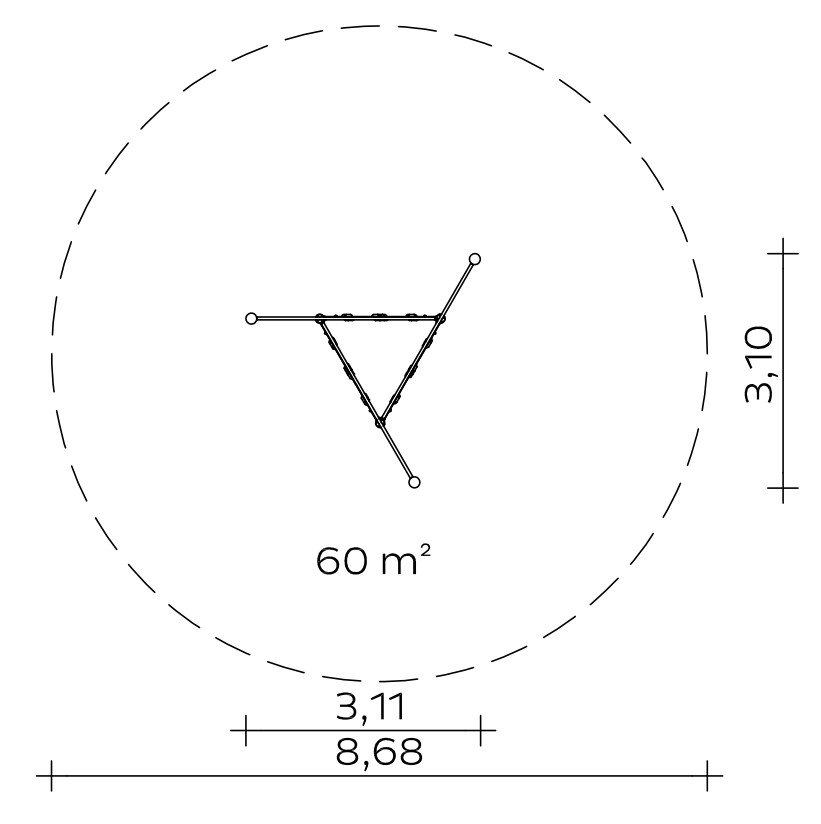

Floor area: 3.11 x 3.10 m
Minimum space: Ø 8.68 m (59.2 m²)
Total height: 3.00 m
Weight: 82 kg heaviest individual part
450 kg total
Support post
Support post made of stainless steel tube Ø 120 x 3 mm
Attachments
- Air conditioning rods made of stainless steel tube, Ø 38 x 3 mm
- Climbing wall panels, curved 1.60 m, made of highly weather-resistant HPL laminate, red, yellow and green, in a frame made of stainless steel tubing; with
Free climbing elements made of PE (difficulty level: easy/medium/difficult)
- Hollow sphere Ø 150 mm, powder-coated and stove-enamelled, yellow/RAL 1021
Metal components: Stainless steel. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
3 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
Concrete quantity: 0.30 m³
Assembly times
2 fitters 3 hours each
(without foundation)
Free fall height
3,00 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities
Item number: 055462500
