Climbing combination

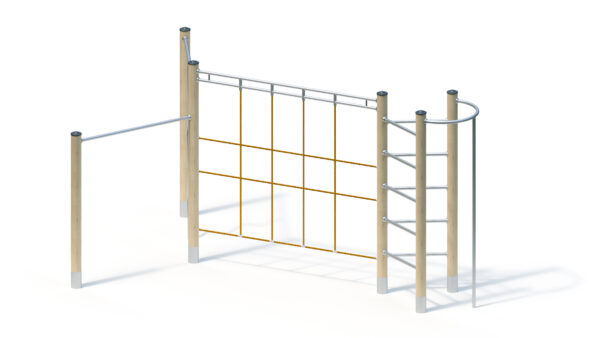

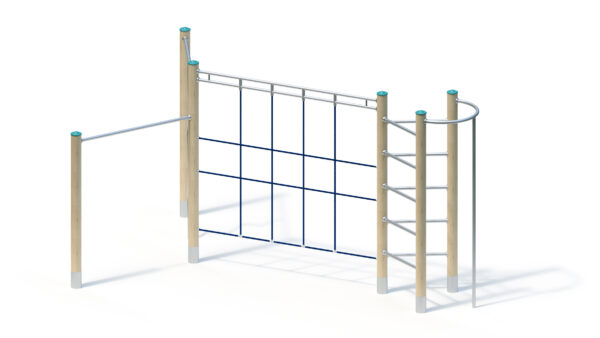

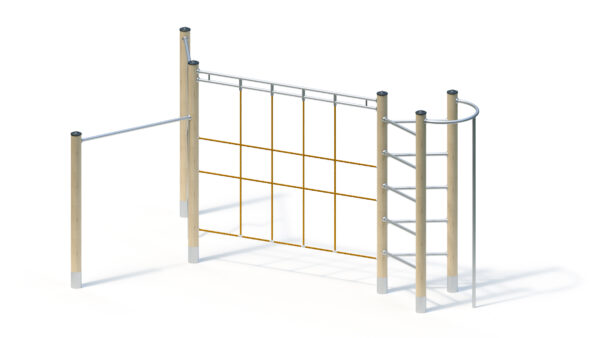

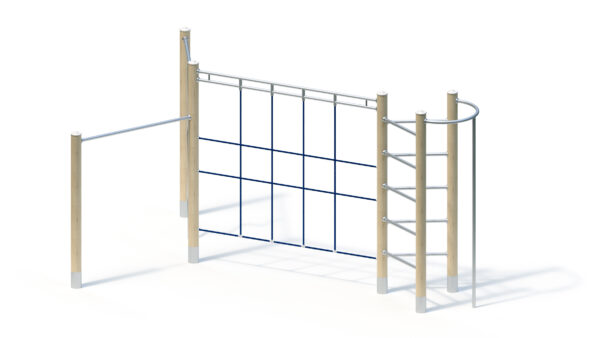

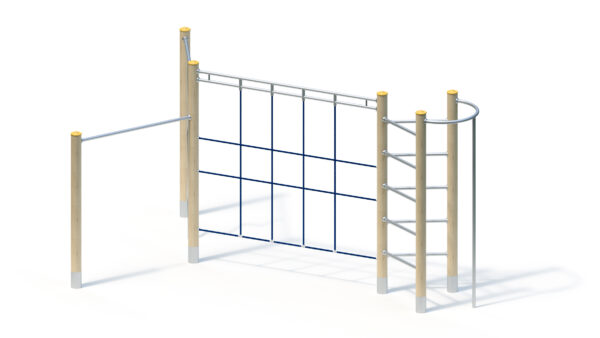

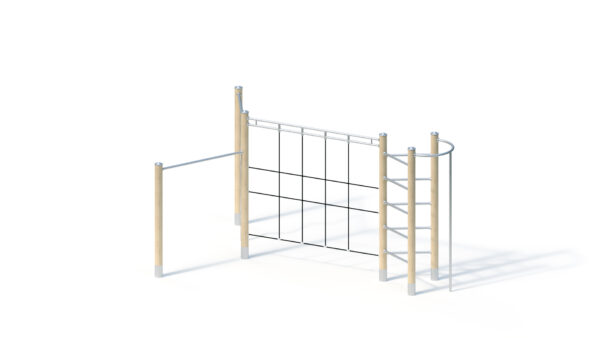

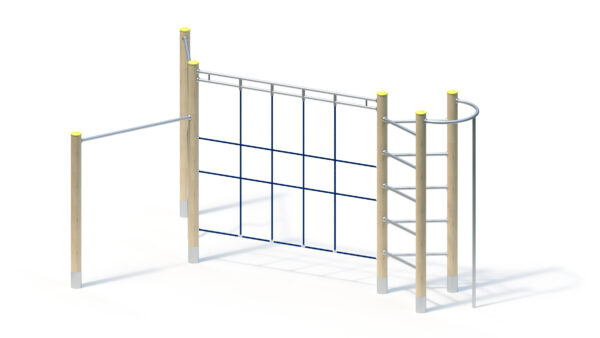

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 14 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Mindestraumlänge ? | 8,45 m |
|---|---|
| Mindestraumbreite ? | 6,55 m |
| Mindestraumhöhe ? | 2,45 m |
| Gerätelänge ? | 4,45 m |
| Gerätebreite ? | 2,90 m |
| Gerätehöhe ? | 2,45 m |
| Freie Fallhöhe ? | 2,35 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 240.00 kg |
| Schwerstes Einzelteil ? | 30.00 kg |
Assembly & Foundations
| Montagezeit ? | 4,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 6 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data

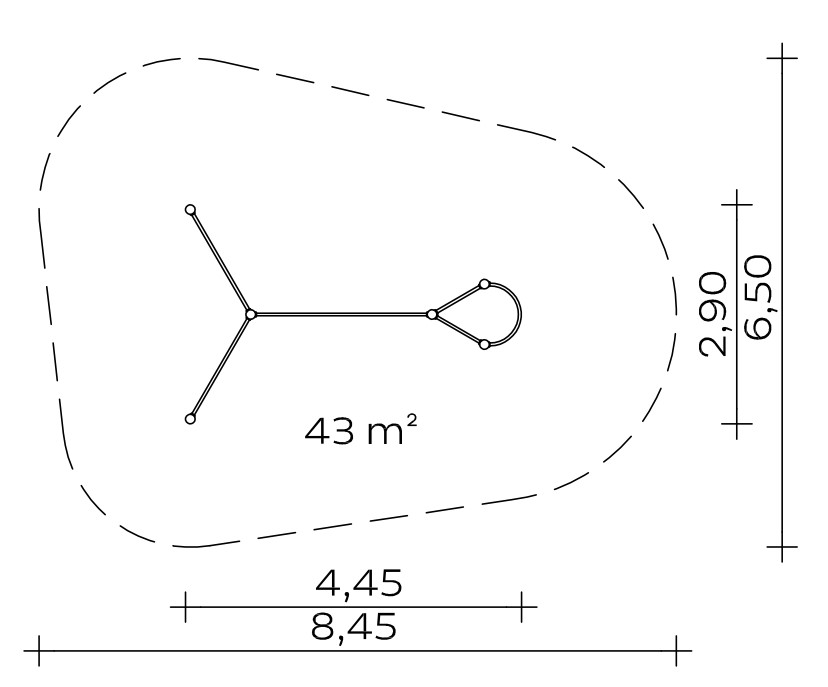

Floor area: 2.90 x 4.45 m
Minimum space: 6.50 x 8.45 m (43 m²)
Total height: 2.45 m
High bar height: 1.75 m
Weight: 30 kg heaviest individual part
240 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Climbing pole and climbing rungs made of stainless steel tube, Ø 38 mm
- Climbing net made of Hercules rope on stainless steel crossbar
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.60 m
Concrete volume: 0.65 m³
Assembly time
2 fitters 3.5 hours each
(without foundation)
Free fall height
2,35 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities.
Item number: 055411702
