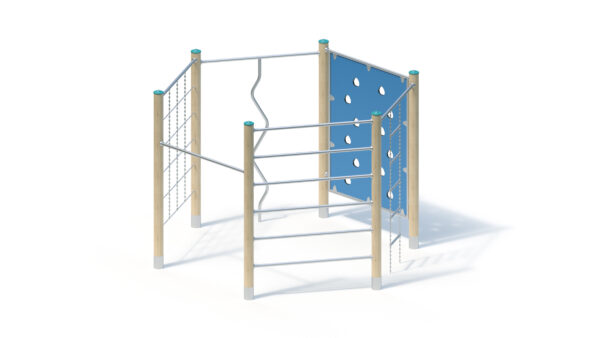

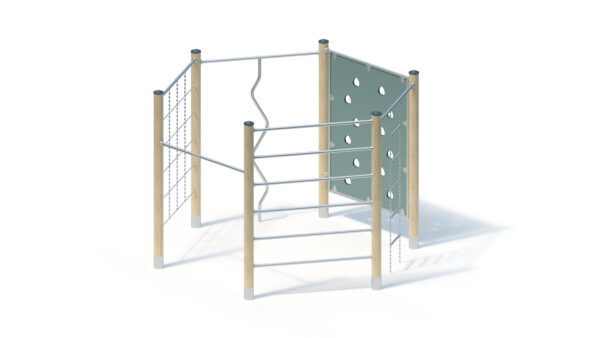

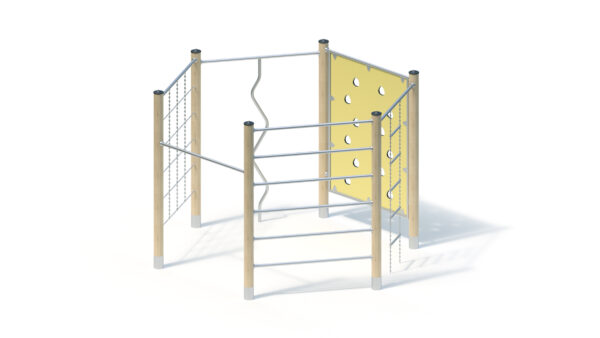

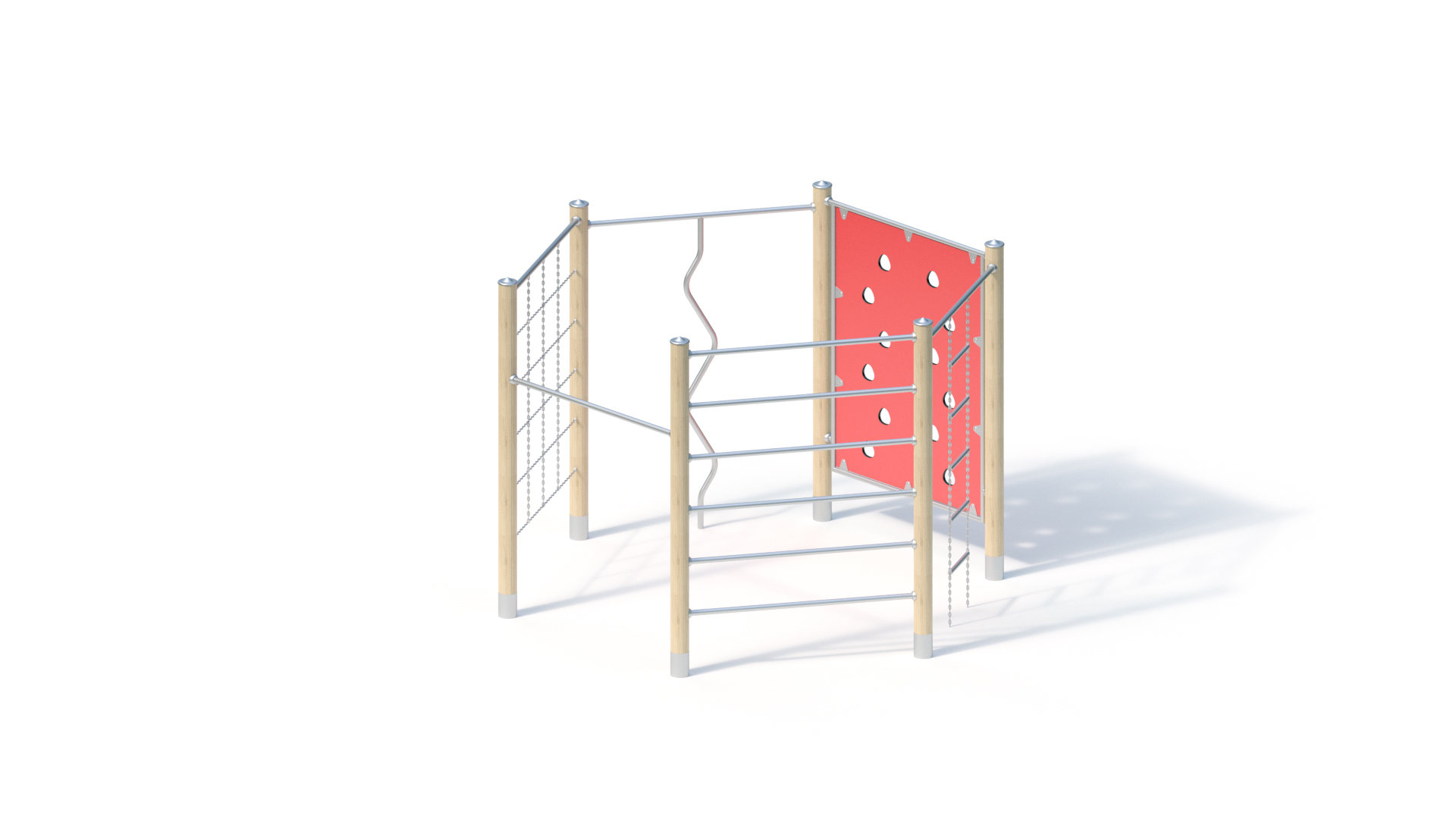

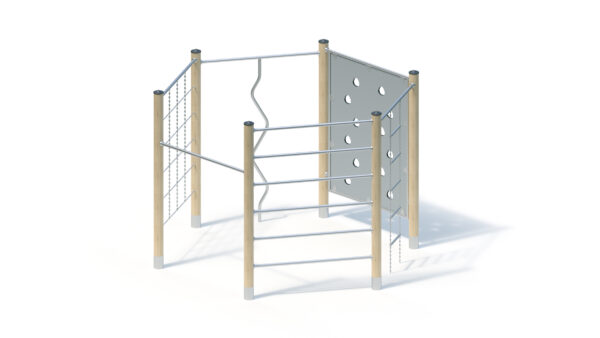

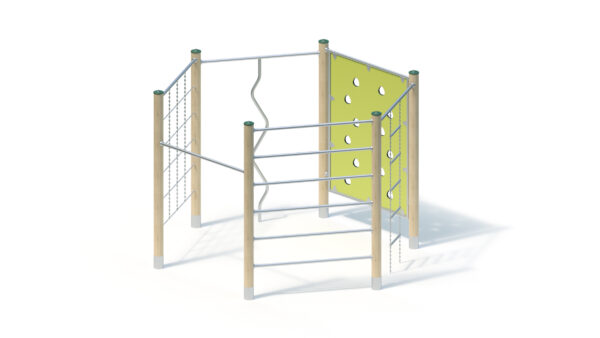

Hexagonal combination
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 14 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Gerätelänge ? | 3,35 m |
|---|---|
| Gerätebreite ? | 2,90 m |
| Gerätehöhe ? | 2,35 m |
| Freie Fallhöhe ? | 2,25 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 280.00 kg |
| Schwerstes Einzelteil ? | 55.00 kg |
| Mindestraumlänge ? | 7,35 m |
| Mindestraumbreite ? | 7,35 m |
| Mindestraumhöhe ? | 2,35 m |
Assembly & Foundations
| Montagezeit ? | 4,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 1x (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data
Floor area: 2.90 x 3.35 m
Minimum space: Ø 7.35 m (43 m²)
Total height: 2.35 m
High bar height: 1.65 m
Wall bar height: 2.20 m
Weight: 55 kg heaviest individual part
280 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Stainless steel tube horizontal bar, Ø 33.7 x 2.9 mm, torsion-resistant
- Climbing pole and climbing rungs made of stainless steel tube, Ø 38 mm
- Chain ladder with stainless steel rungs
- Climbing net made of stainless steel chains on stainless steel crossbeam
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, stainless steel tube frame, 12 climbing openings
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.42 m³
Assembly time
2 fitters 4 hours each
(without foundation)
Free fall height
2,25 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities.
Item number: 055365702
