Climbing combination

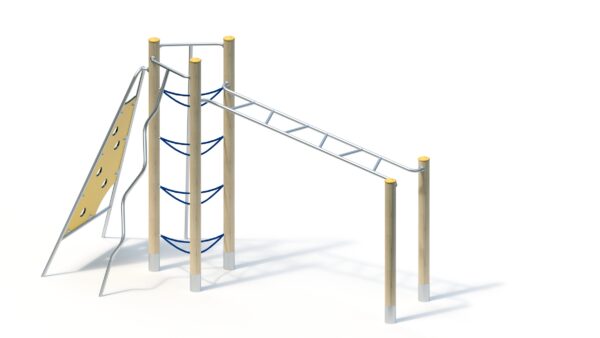

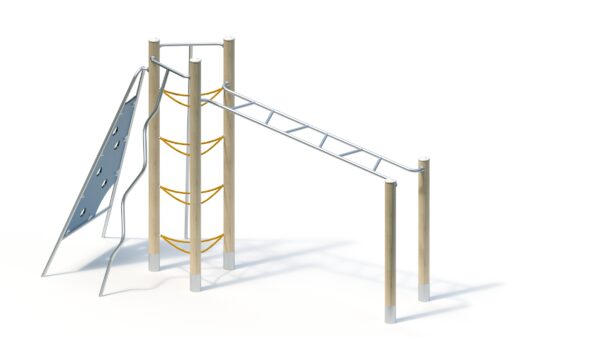

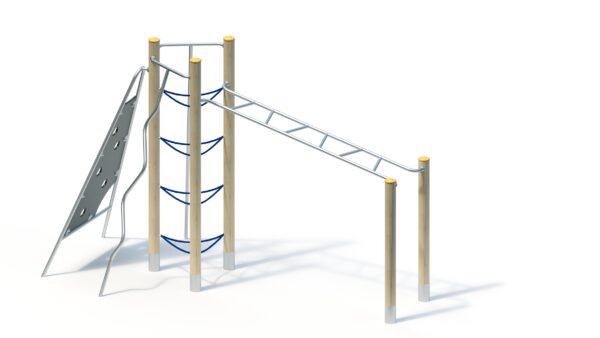

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 10 Personen |
| Aktivitäten ? | - |
Technical data
| Mindestraumlänge ? | 7,20 m |
|---|---|
| Mindestraumbreite ? | 5,55 m |
| Mindestraumhöhe ? | 2,65 m |
| Gerätelänge ? | 4,10 m |
| Gerätebreite ? | 2,15 m |
| Gerätehöhe ? | 2,65 m |
| Freie Fallhöhe ? | 2,52 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 180.00 kg |
| Schwerstes Einzelteil ? | 30.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.3m x 0.3m x 0.4m) Quantity: 5 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 2.65 m
Floor area: 2.15 x 4.10 m

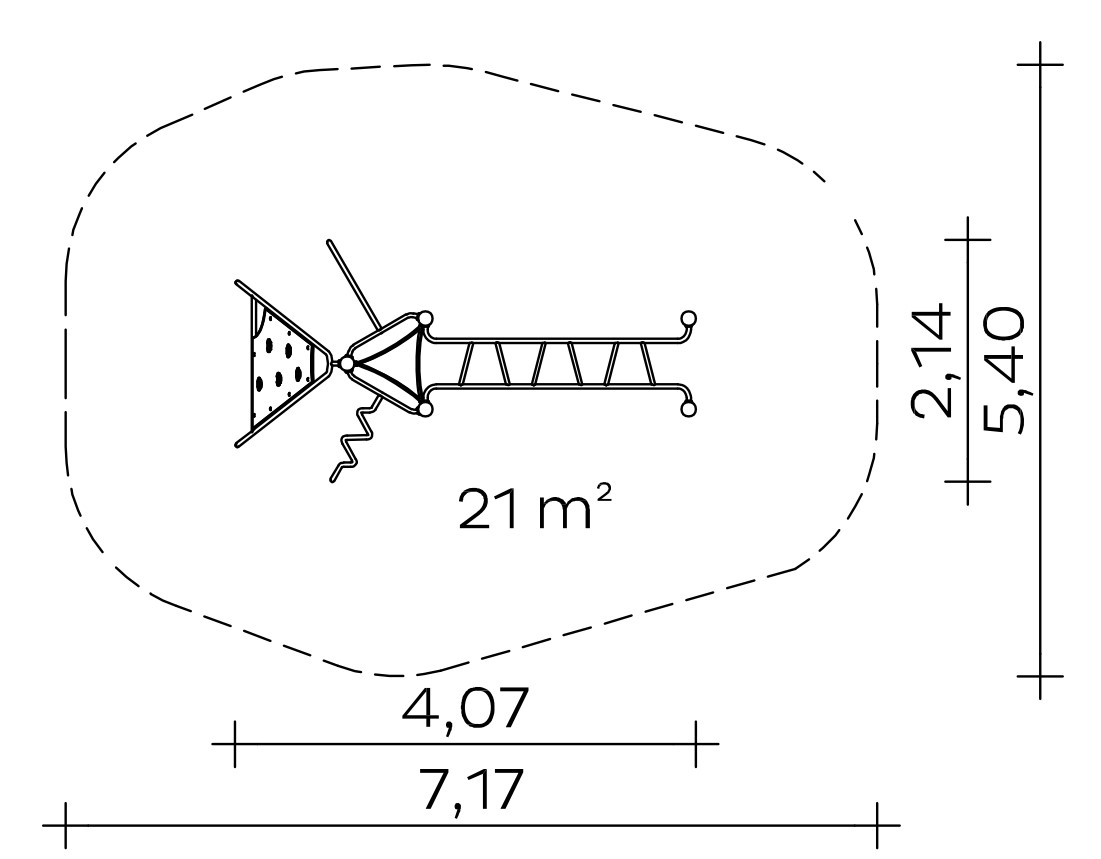

Minimum room size: 5.40 x 7.17 m (21 m²)
Weight: 30 kg heaviest individual part
180 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Climbing pole made of stainless steel tube, Ø 38 mm
- Hanging ladder made of stainless steel tube Ø 38 x 2.5 mm
- Climbing triangle made from Hercules rope, Ø 16 mm
- Triangular climbing wall made of highly weather-resistant HPL laminate, 20 mm. Frame made of stainless steel tube, climbing openings
Metal components: Stainless steel
Foundations (client-provided)
4 units 0.30 x 0.30 x 0.40 m
5 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.46 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
2,52 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities.
Item number: 055220704
