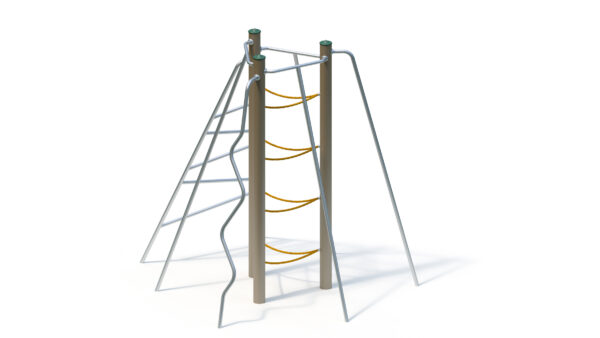

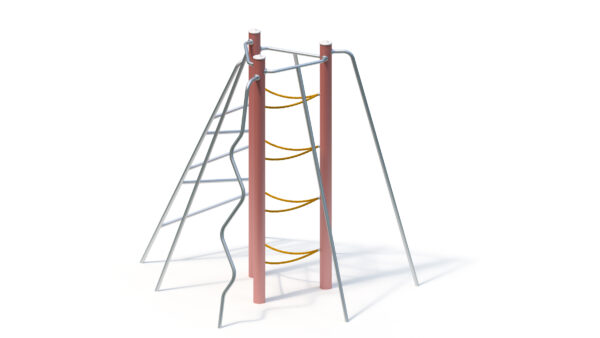

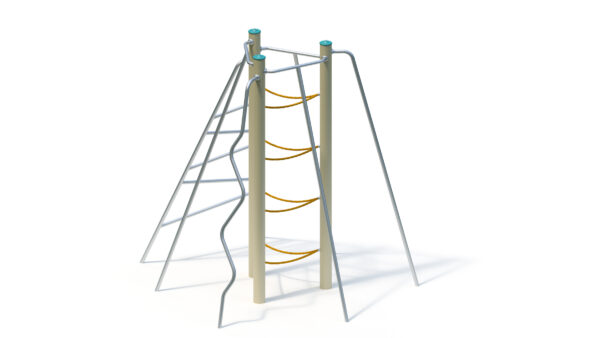

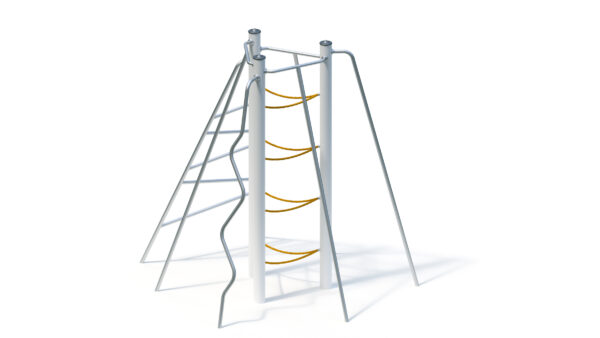

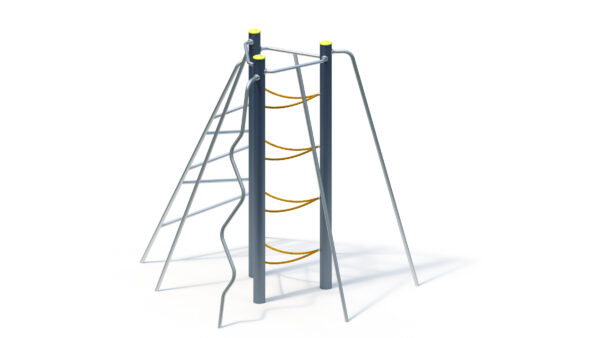

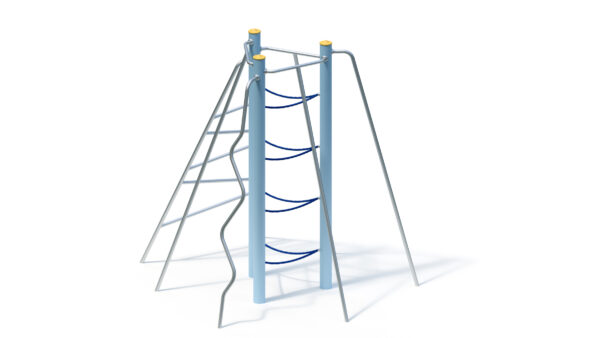

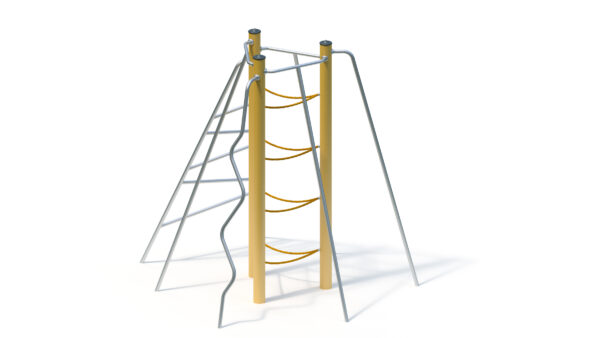

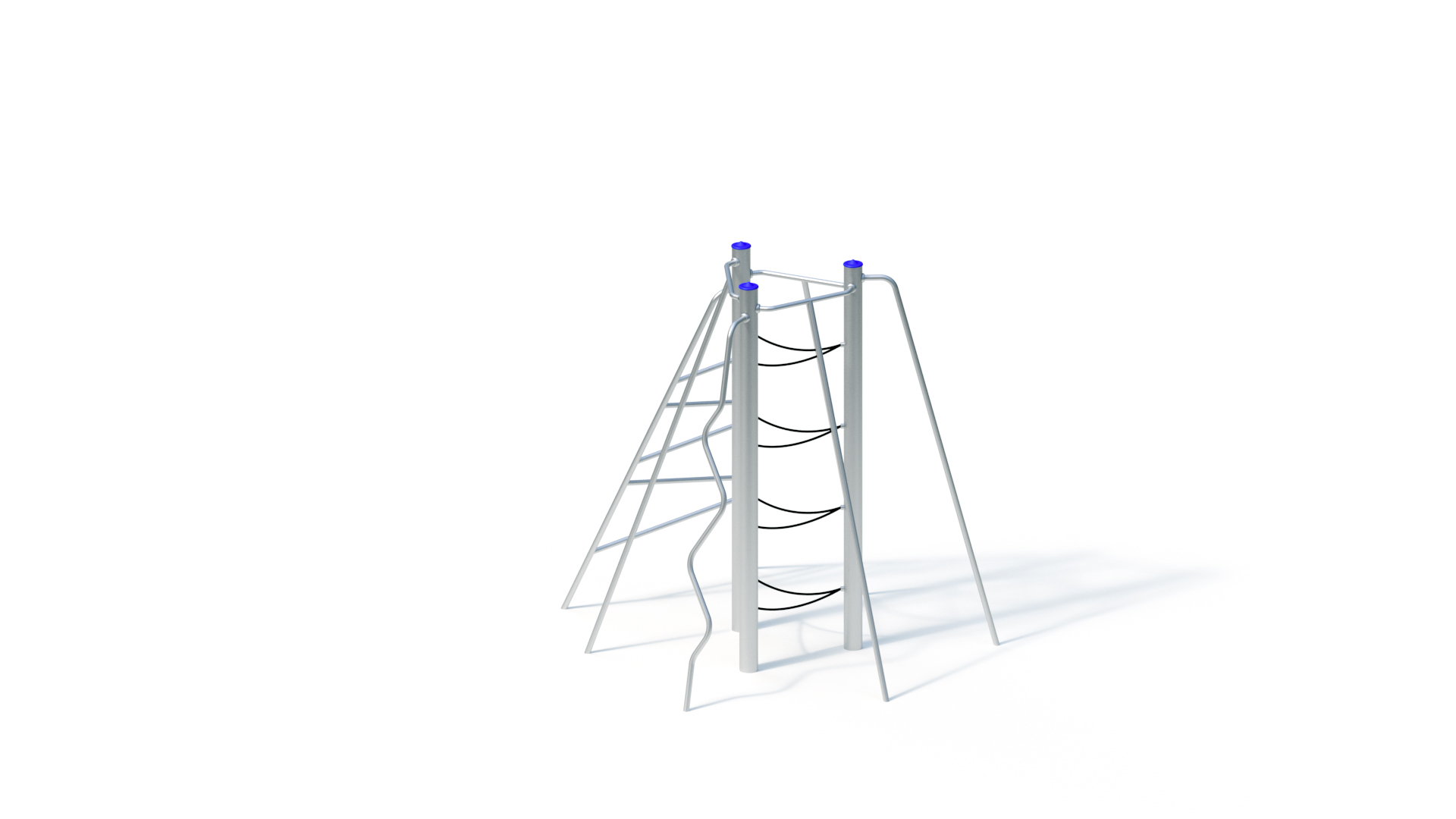

Climbing combination
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 9 persons |
| Activities ? | Climbing, Physical activity |
Technical data
| Device length ? | 2,85 m |
|---|---|
| Device width ? | 2,80 m |
| Device height ? | 2,65 m |
| Free fall height ? | 2,52 m |
| Platform heights | - |
| Total weight ? | 160.00 kg |
| Heaviest single item ? | 30.00 kg |
| Minimum room length ? | 6,25 m |
| Minimum room width ? | 6,25 m |
| Minimum room height ? | 2,65 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 030x030x040 |
Product Downloads
Product description
Technical data

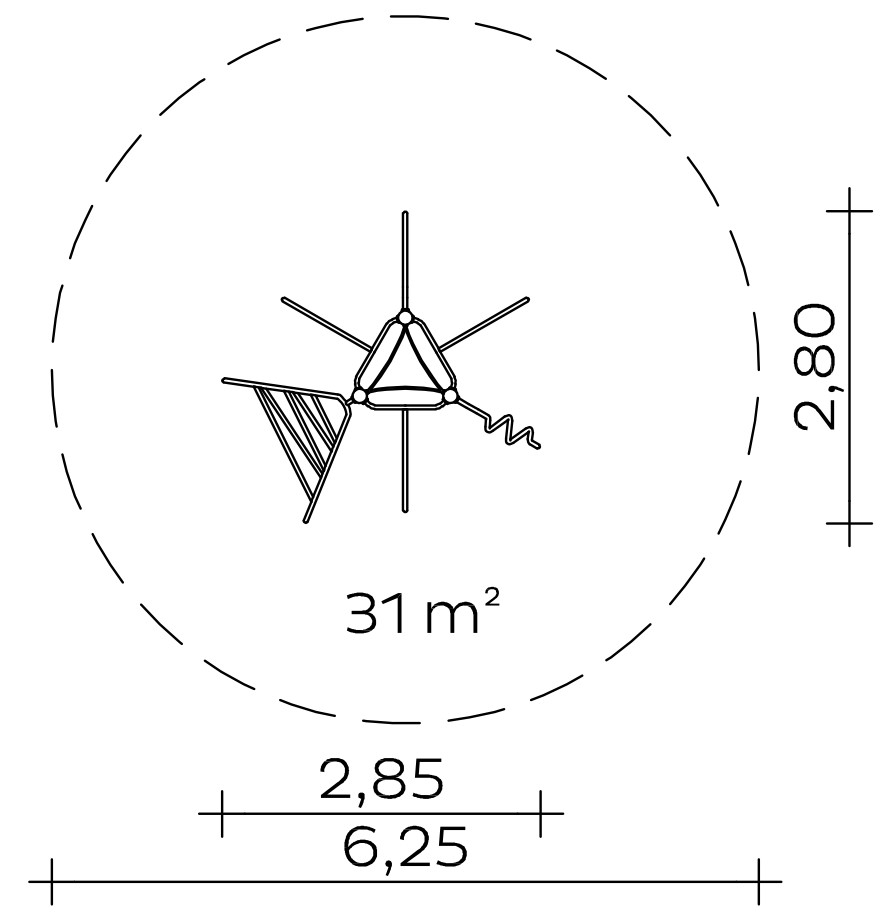

Total height: 2.65 m
Floor area: 2.80 x 2.85 m
Minimum space: Ø 6.25 m
Fall protection area: 31 m²
Weight: 30 kg heaviest individual part
160 kg in total
Support post
Posts made of stainless steel tube Ø 120 x 3 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Climbing pole angled made of stainless steel tube, Ø 38 mm
- Climbing pole, corrugated, stainless steel tube, Ø 38 mm
- Climbing net made from Hercules rope Ø 16 mm
- Triangular rung wall made of stainless steel tube, Ø 38 mm
Metal components: Stainless steel
Foundations (client-provided)
7 units 0.30 x 0.30 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.44 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
2,52 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities
Item number: 055210503
