Triple chin-up bars (0,90/1,30/1,70)

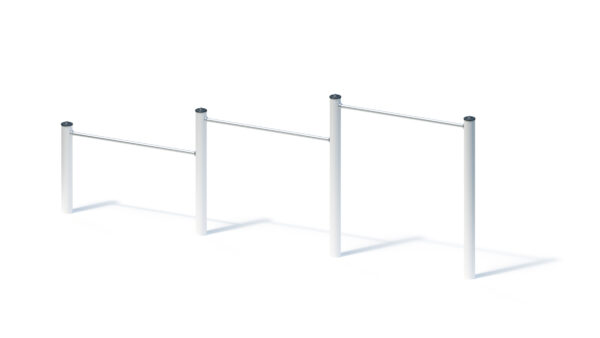

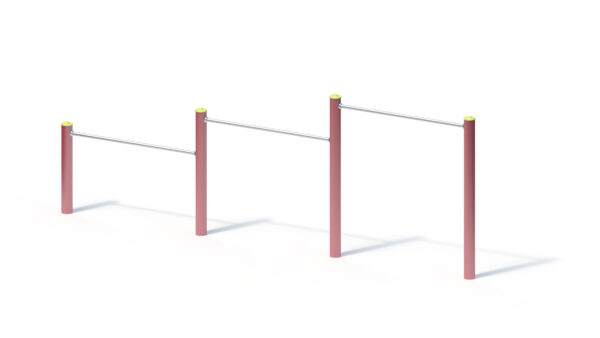

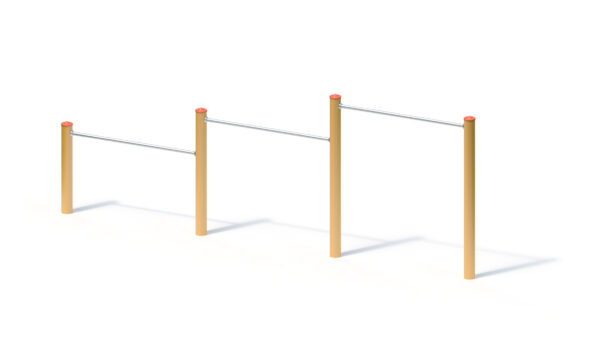

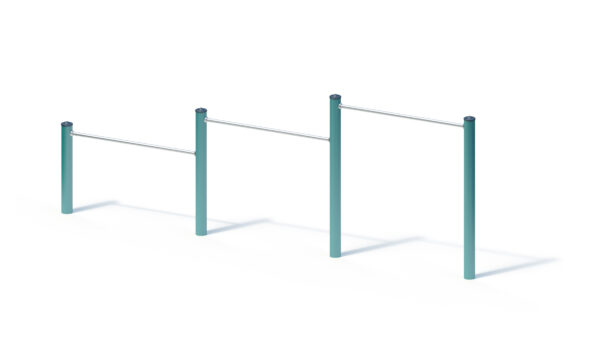

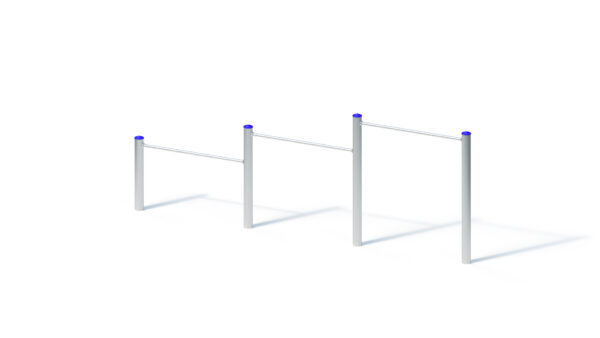

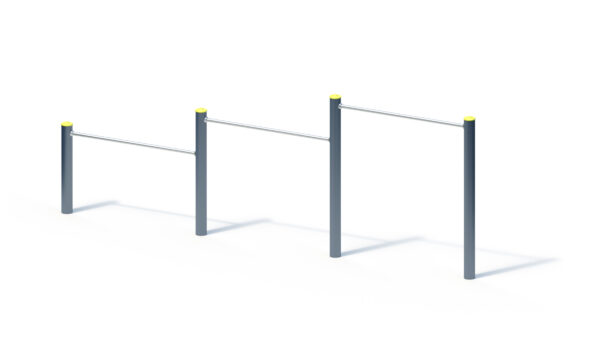

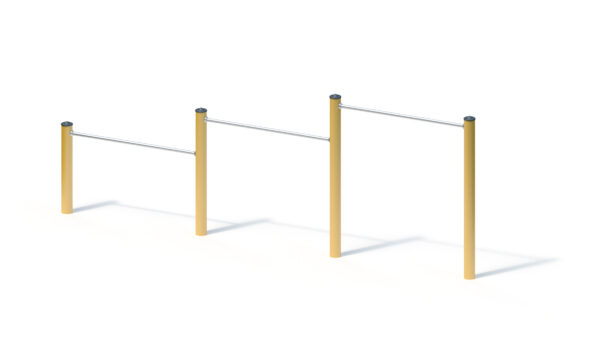

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 6 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 4,95 m |
|---|---|
| Device width ? | 0,00 m |
| Device height ? | 1,85 m |
| Free fall height ? | 1,72 m |
| Platform heights | - |
| Total weight ? | 87.00 kg |
| Heaviest single item ? | 22.00 kg |
| Minimum room length ? | 8,10 m |
| Minimum room width ? | 3,45 m |
| Minimum room height ? | 1,85 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required | - |
| Foundations | 060x050x050 |
Product Downloads
Product description
Technical data
Length: 4.95 m

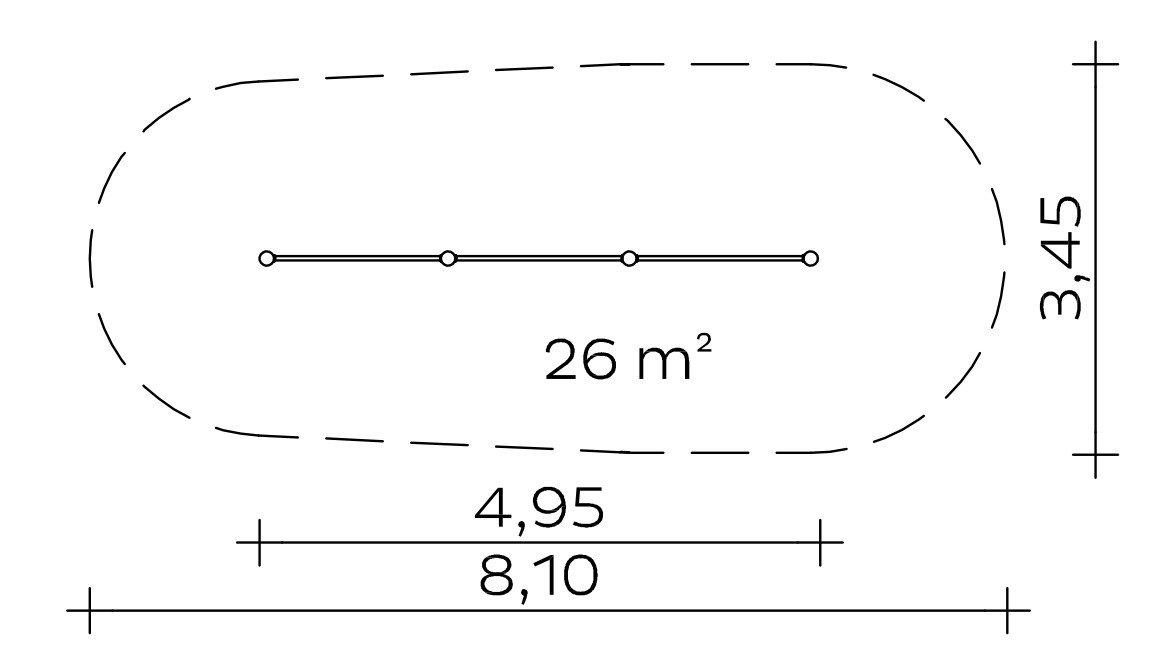

Minimum space: 8.10 x 3.45 m (26 m²)
Total height: 1.85 m
High bar height: 0.90 / 1.30 / 1.70 m
Weight: 22 kg heaviest individual part
87 kg in total
Support post
Support post made of stainless steel tube Ø 120 mm, wall thickness 3 mm, covered with non-detachable stainless steel post caps
Attachments
Horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel 1.4301
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 units 0.50 x 0.60 x 0.50 m
Concrete volume: 0.60 m³
Assembly time
1 fitter per 1 hour
(without foundation)
Free fall height
1,72 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053121500
