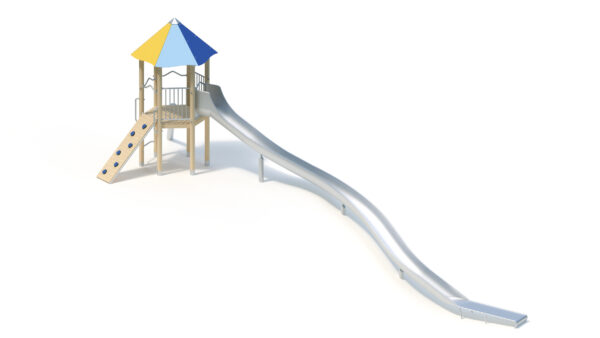

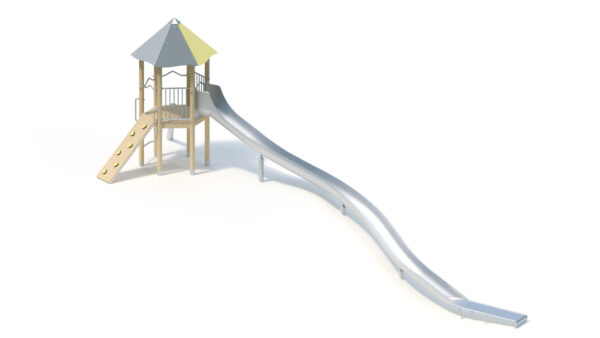

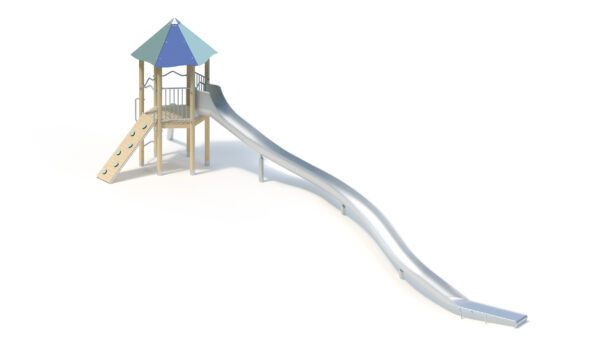

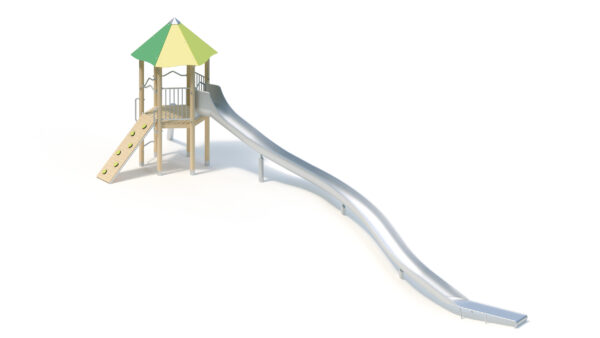

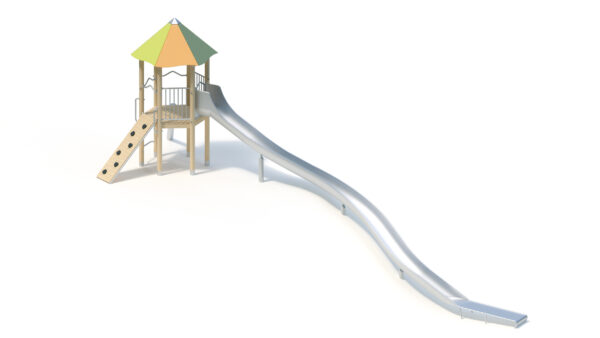

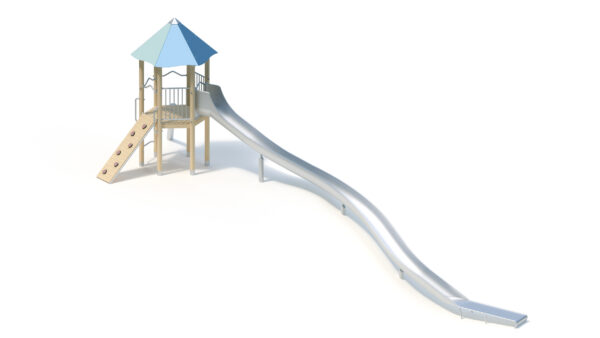

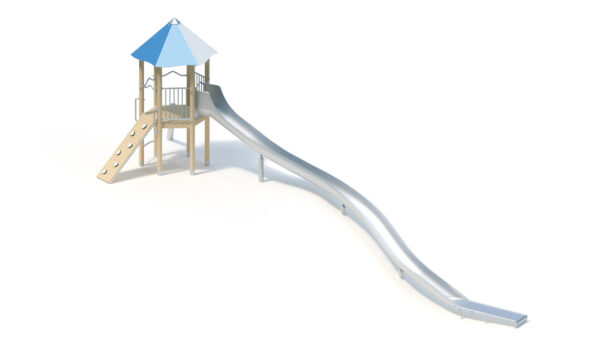

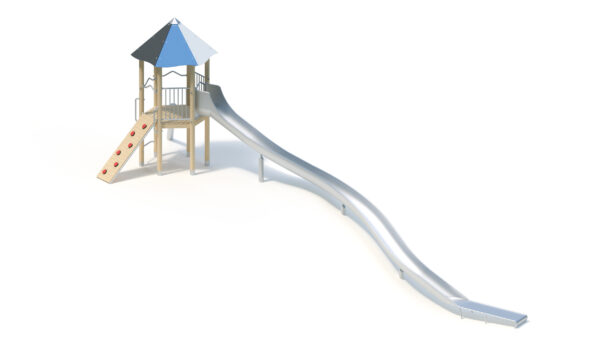

Technical data

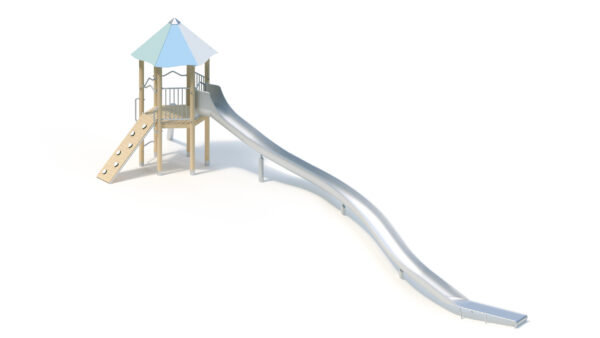

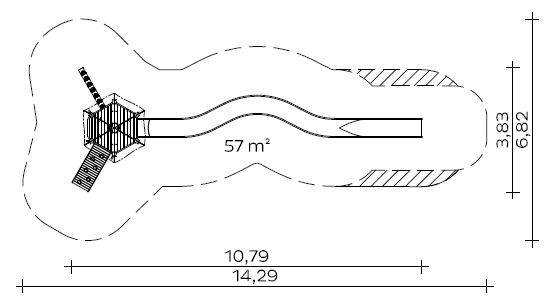

Floor area: 3.83 x 10.79 m
Minimum space: 6.82 x 14.29 m (57 m²)
Platform height: 1.40 m
Slide attachment height: 1.40 m
Seat height: 1.50 m
Slide mounting height above
Zero slide run-out: 4.00 m
(for hill height 2.60 m)
Slide inclination: 30°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Rungs (cranked) made of stainless steel tube, Ø 33.7 mm
- Climbing post made of stainless steel tube Ø 159 x 3 mm, tread surface made of profiled stainless steel sheet
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate panels, 20 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Edged stainless steel canopy for tent roof 6 x 45°, 1.5 mm

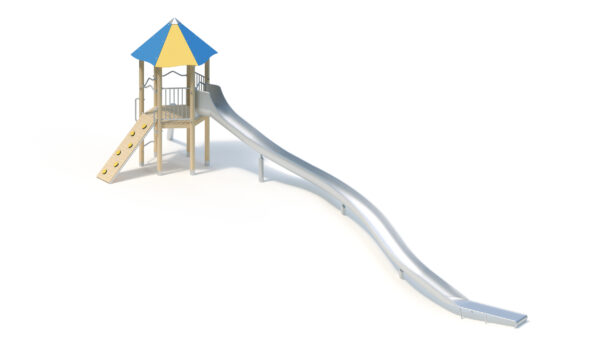

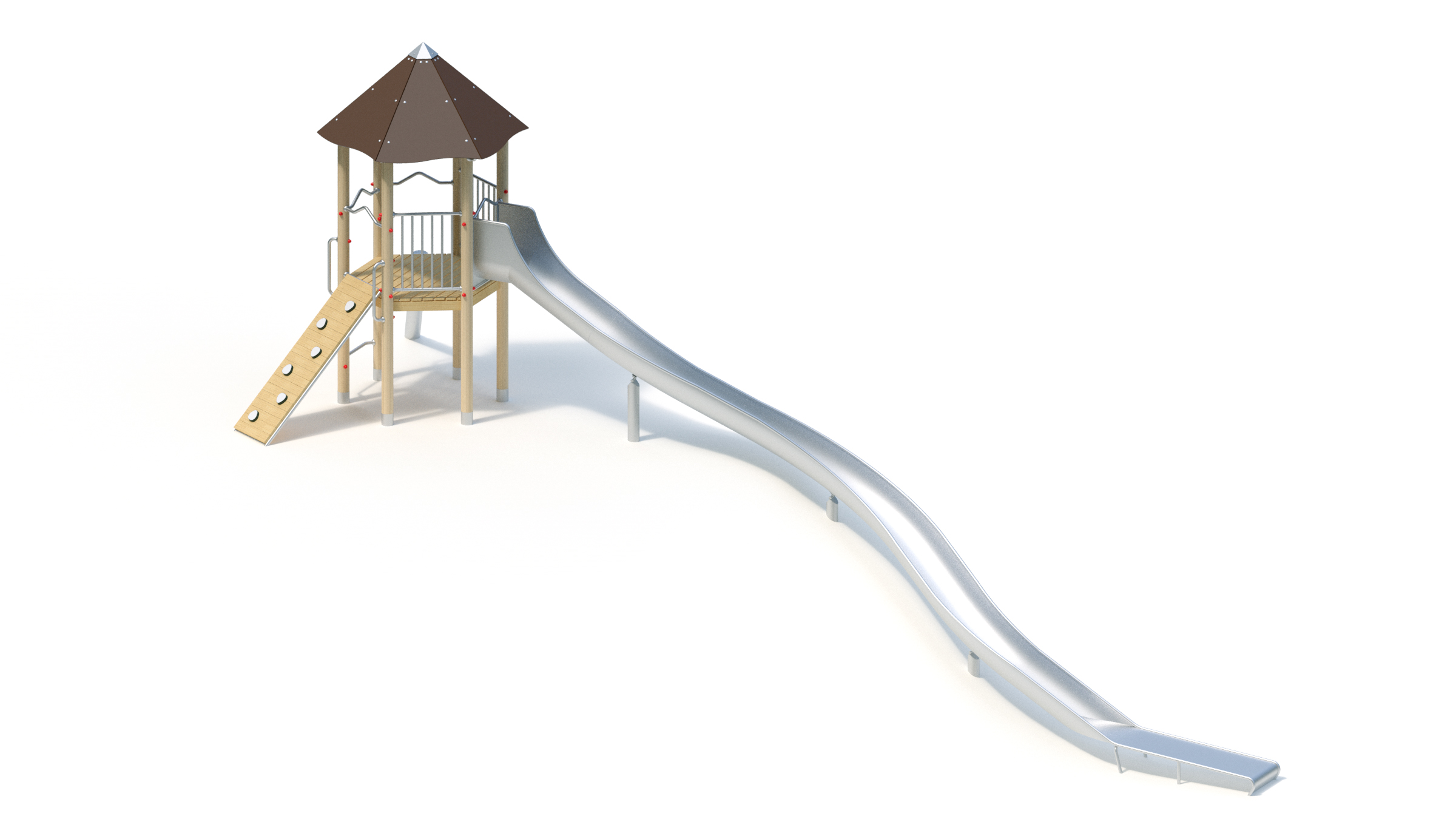

- Attachable trough slide, 0.60 m wide, particularly quiet due to trough shape, welded into a two-part slide for transport reasons, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section, three support posts for the curve areas, fastening flange on the outlet section, each made of stainless steel, incl. corresponding connecting flanges to facilitate assembly on site

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.60 m
1 piece 1.40 x 0.75 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m

Assembly time
3 fitters 7 hours each
(without foundation)

Free fall height
Platform: 1.40 m
Slide: Depending on the terrain, the free fall height and the extent of the impact area result from the vertical distance between the lower edge of the open slope slide area and the upper edge of the terrain.
The impact surface in the slip area must be fitted with a floor material that fulfils the requirements of Table 4 (see EN 1176-1). If a different material is to be used, its shock-absorbing properties must be verified by testing in accordance with EN 1177:2008. The floor surface surrounding the run-out section of the slide must fulfil the requirements for a critical fall height of at least 1000 mm (see EN 1176-3).

Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities

Item number: 041310700
