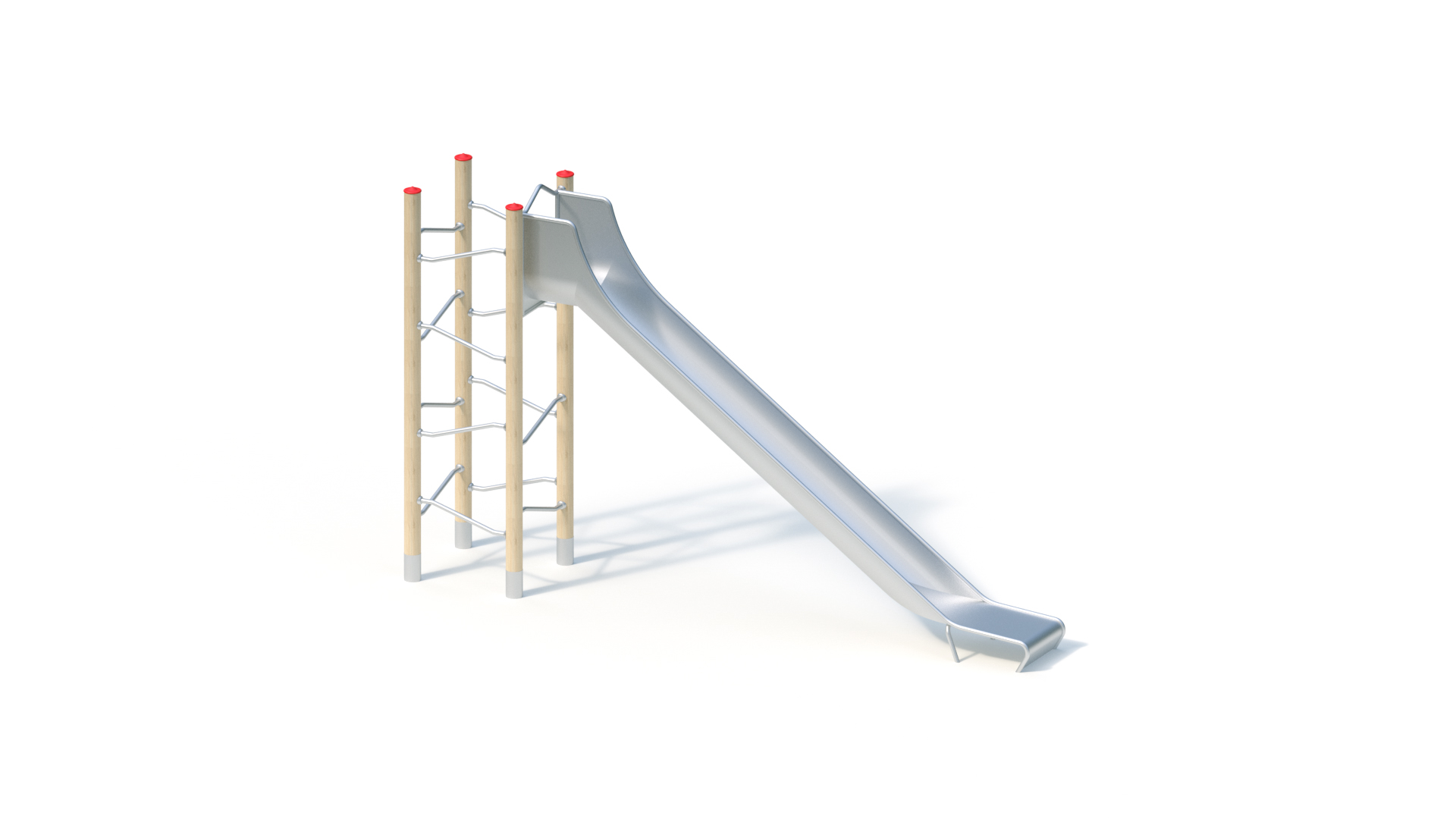

Combi slide (2,00)
Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 6 people |
| Activities ? | Climbing, Slide |
Technical data
| Minimum space length ? | 9,10 m |
|---|---|
| Minimum space width ? | 5,40 m |
| Minimum space height ? | 3,00 m |
| Equipment length ? | 4,90 m |
| Equipment width ? | 0,95 m |
| Equipment height ? | 2,95 m |
| Free-fall height ? | 2,60 m |
| Platform heights | - |
| Total weight ? | 275.00 kg |
| Heaviest single part ? | 125.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 2.95 m
Floor area: 0.95 x 4.90 m

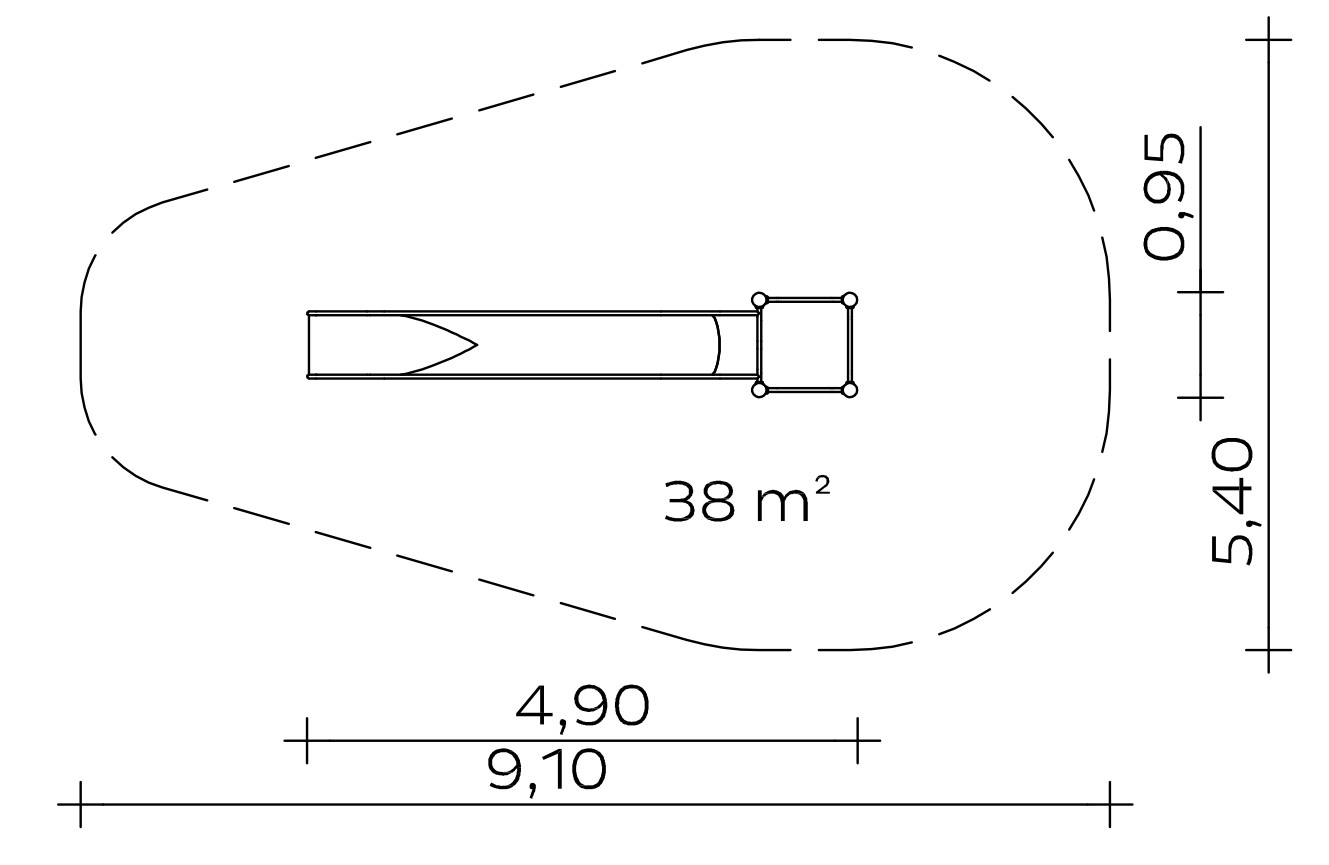

Minimum space: 5.40 x 9.10 m (38 m²)
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 2.5 hours each
(without foundation)
Free fall height
2,60 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Item number: 041162700
