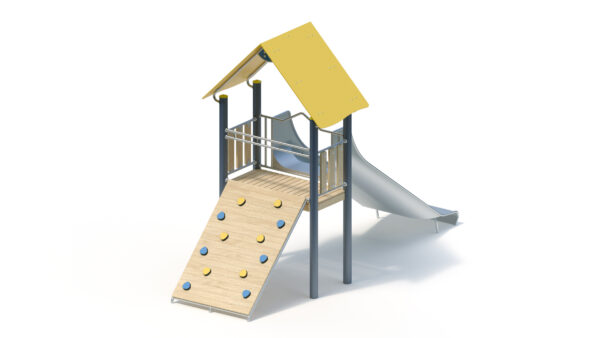

Combi slide (1,40)

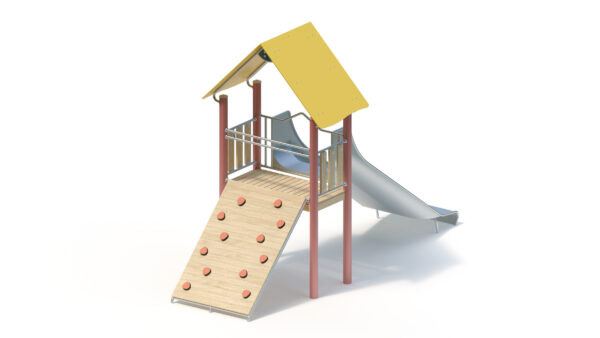

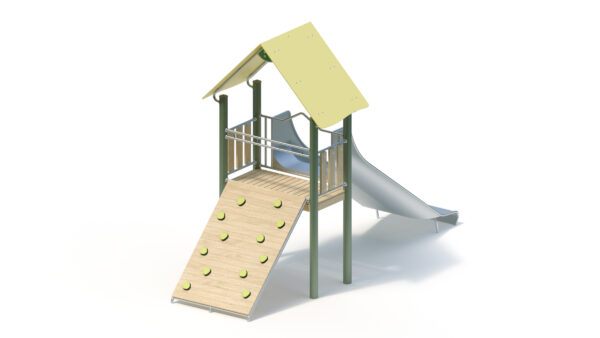

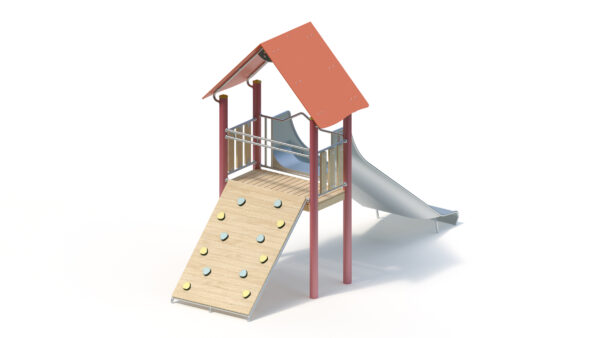

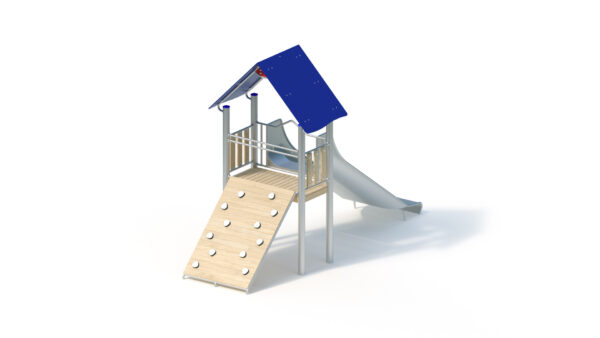

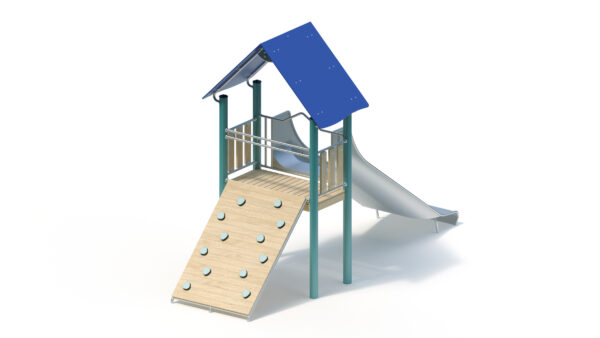

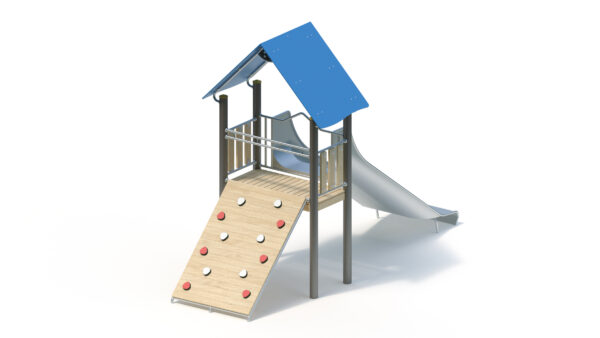

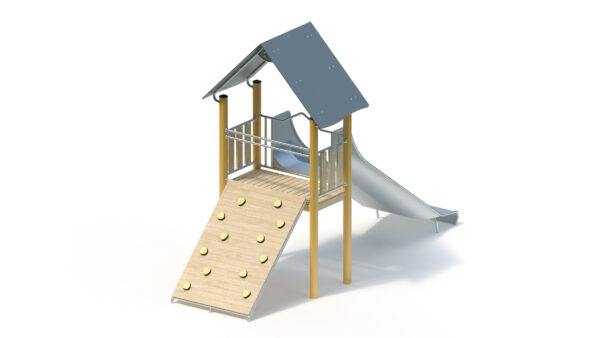

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 9 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Gerätelänge ? | 5,24 m |
|---|---|
| Gerätebreite ? | 2,16 m |
| Gerätehöhe ? | 3,71 m |
| Freie Fallhöhe ? | 1,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 545.00 kg |
| Schwerstes Einzelteil ? | 135.00 kg |
| Mindestraumlänge ? | 8,72 m |
| Mindestraumbreite ? | 4,72 m |
| Mindestraumhöhe ? | 3,71 m |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 4 (0.4m x 0.4m x 0.4m) Quantity: 1x (1.25m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

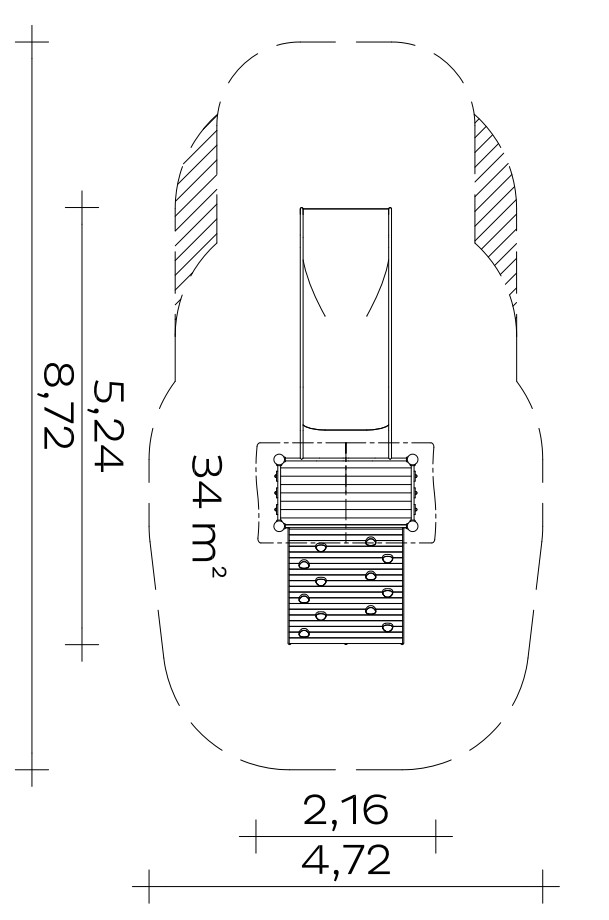

Total height: 3.71 m
Floor area: 2.16 x 5.24 m
Minimum space: 4.72 x 8.72 m (34 m²)
Platform height: 1.40 m
Slide attachment height: 1.40 m
Seat height: 1.50 m
Slide inclination: 36°
Slide width: 1.10 m
Sliding plate thickness: 2.5 mm
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
4 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
Concrete volume: 0.56 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,50 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 041154500
