The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

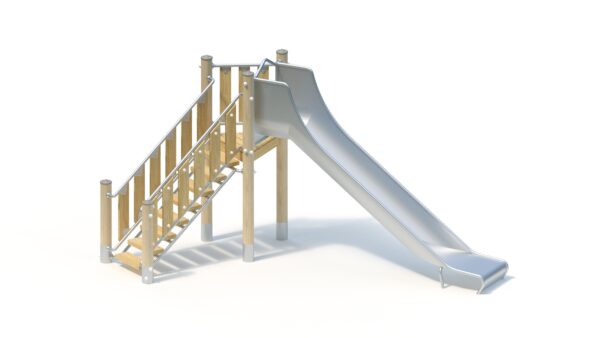

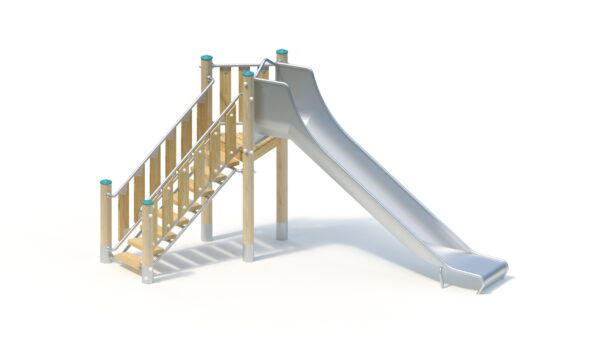

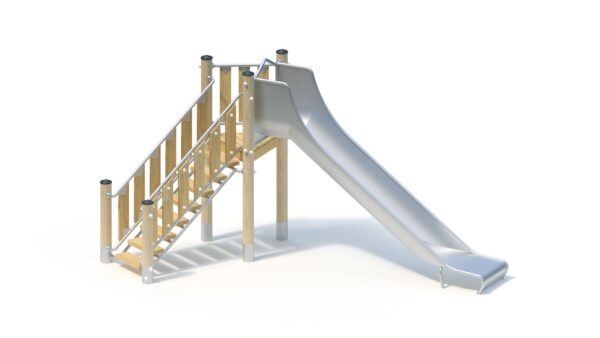

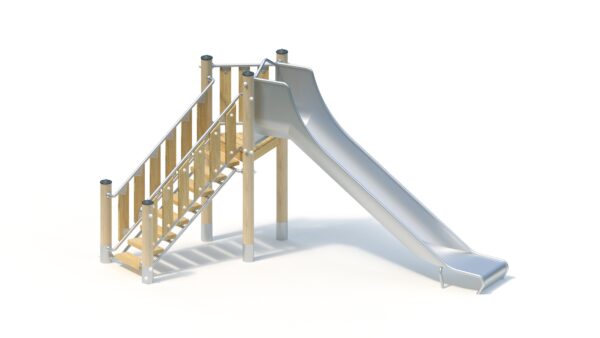

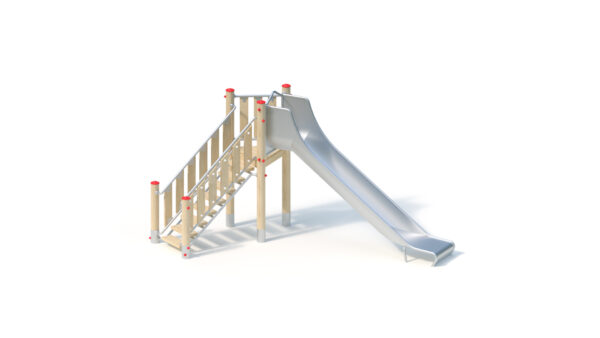

Combi slide (1,20)
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 5 persons |
| Activities ? | Physical activity, Slide |
Technical data
| Device length ? | 4,15 m |
|---|---|
| Device width ? | 2,05 m |
| Device height ? | 2,15 m |
| Free fall height ? | 1,30 m |
| Platform heights | - |
| Total weight ? | 370.00 kg |
| Heaviest single item ? | 90.00 kg |
| Minimum room length ? | 7,65 m |
| Minimum room width ? | 5,05 m |
| Minimum room height ? | 2,20 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 2.15 m
Floor area: 2.05 x 4.15 m
Minimum space: 5.05 x 7.65 m (28 m²)
Platform height: 1.20 m
Slide attachment height: 1.20 m
Seat height: 1.30 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Tubular base made of stainless steel for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Wooden balustrade made of robinia, 120 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia wood, fixed between stainless steel tubes Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
5 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.44 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
1,30 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 041148700
