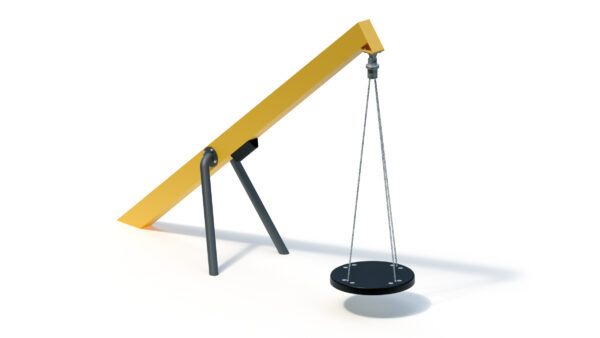

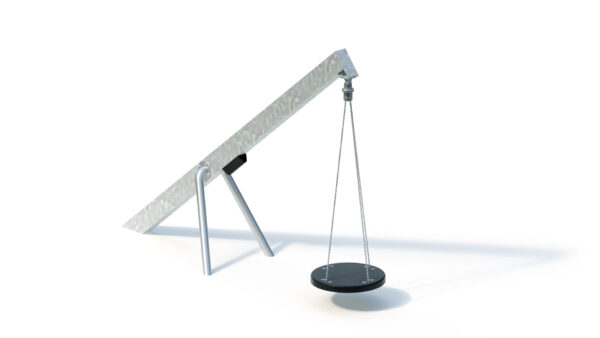

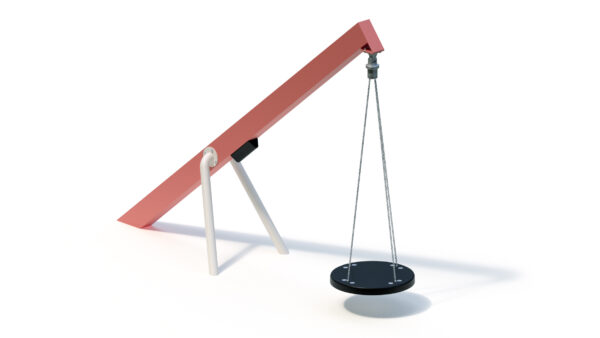

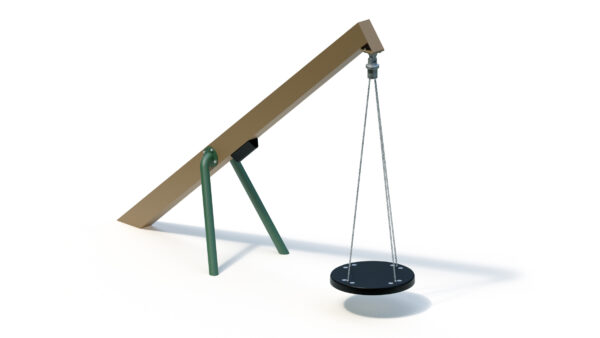

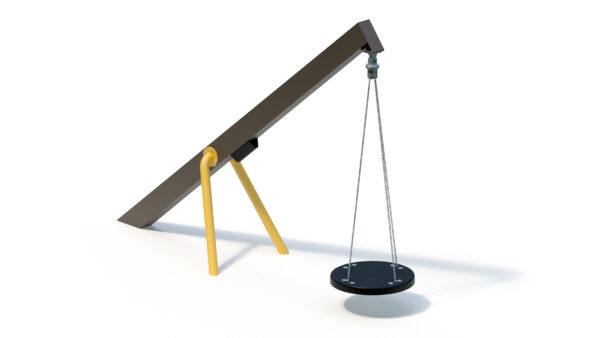

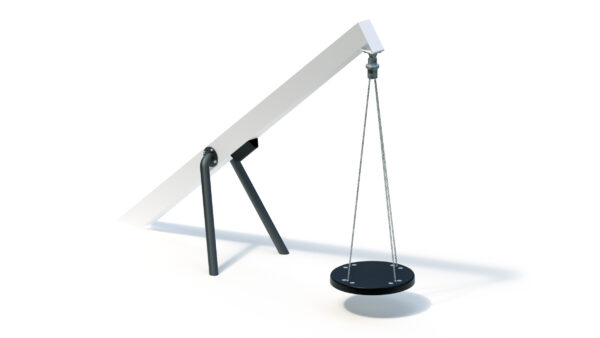

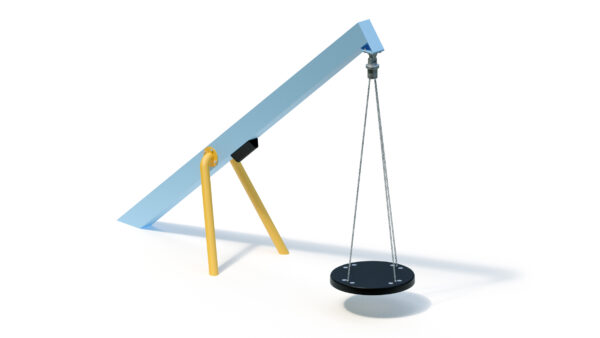

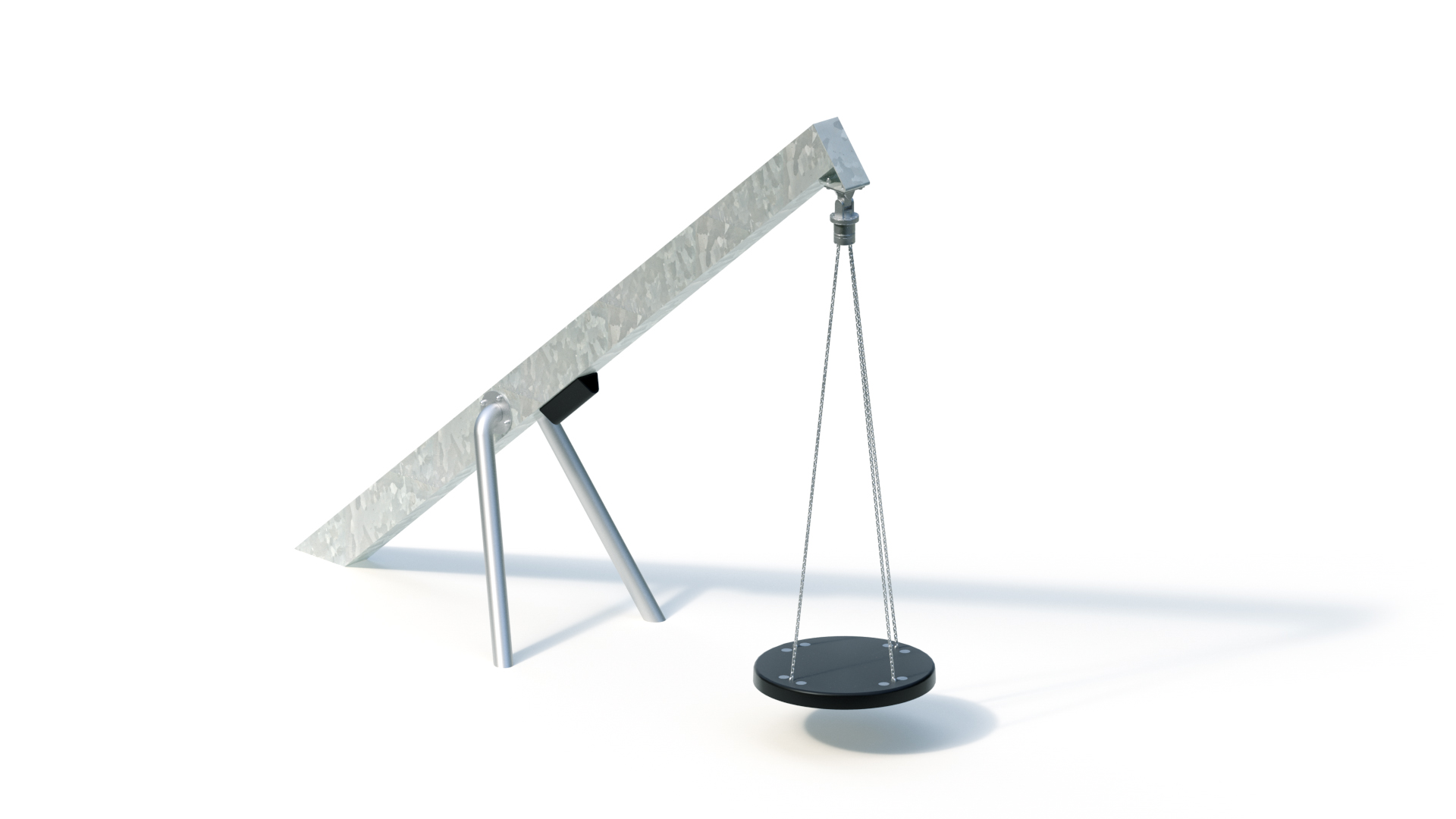

Single point swing (platform Sutcliffe)

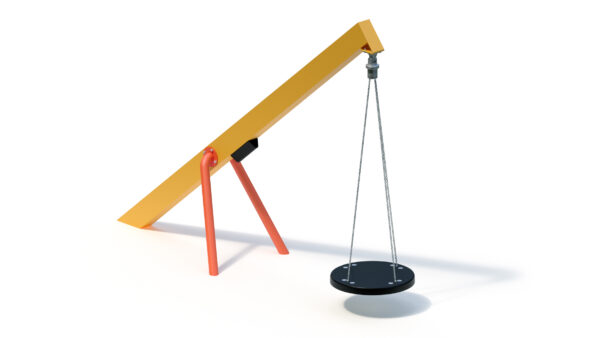

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 5 Personen |
| Aktivitäten ? | Physical activity, Swinging |
Technical data
| Mindestraumlänge ? | 9,16 m |
|---|---|
| Mindestraumbreite ? | 9,16 m |
| Mindestraumhöhe ? | 3,63 m |
| Gerätelänge ? | 4,79 m |
| Gerätebreite ? | 1,42 m |
| Gerätehöhe ? | 3,63 m |
| Freie Fallhöhe ? | 2,30 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 450.00 kg |
| Schwerstes Einzelteil ? | 245.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 3 (0.9m x 0.9m x 0.9m) |
Product Downloads
Product description
Technical data

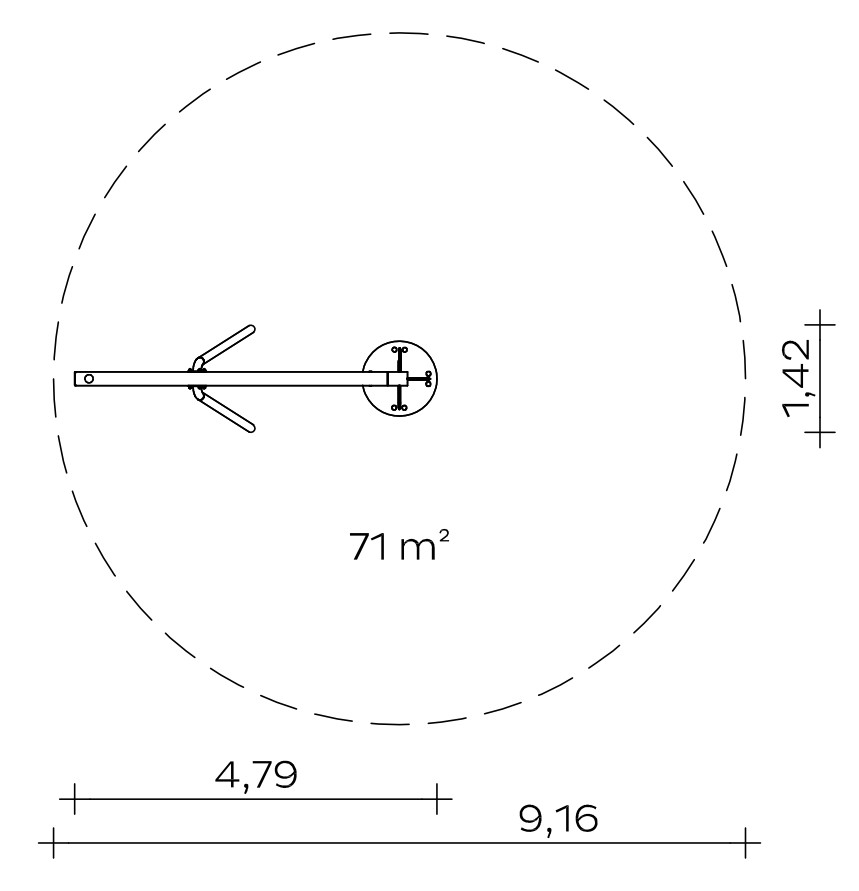

Floor area: 1.42 x 4.79 m
Minimum space: Ø 9.16 m (71 m²)
Swing height: 3.30 m
Weight: 245 kg heaviest individual part
450 kg in total
- Robust swing frame made of hot-dip galvanised round steel tubes (Ø 108 x 6.3 mm) and rectangular steel tubes (260 x 180 x 6 mm)
- Special universal joint with swivel (developed for this special purpose by Kaiser & Kühne, TÜV-tested)
- Rubber swing platform Ø 1.00 m, shock-absorbing, with shape-stabilising polyethylene core plate and chain suspension consisting of stainless steel chains Ø 7 mm, flat base surface
Foundations (client-provided)
3 units 0.90 x 0.90 x 0.90 m
Concrete volume: 2.19 m³
Assembly time
2 fitters 2 hours each, plus lifting gear
(without foundation)
Free fall height
2,30 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
Physical activities
Item number: 040710004
