Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

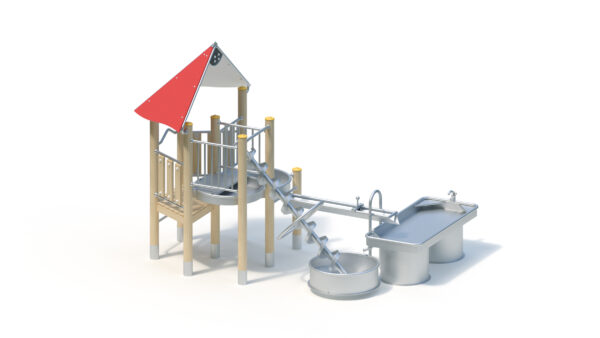

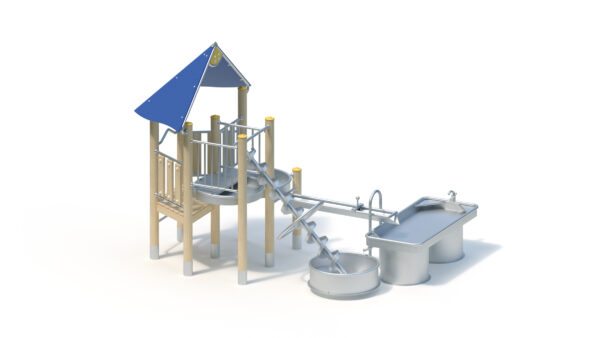

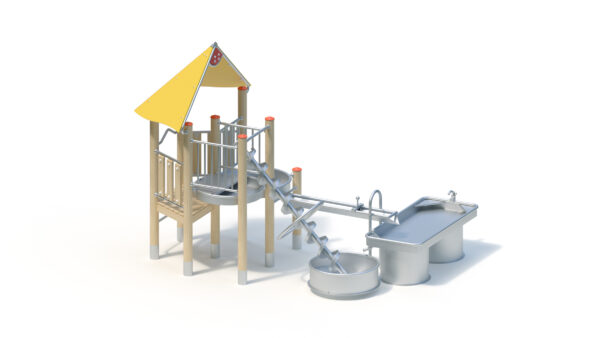

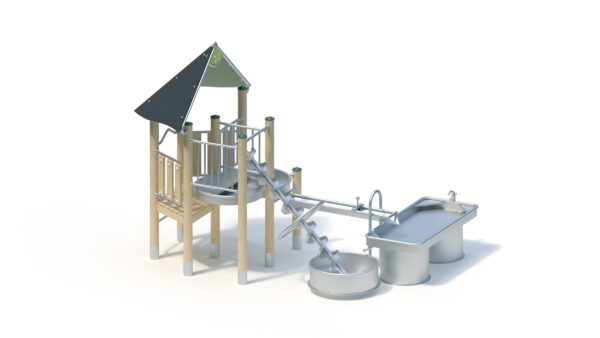

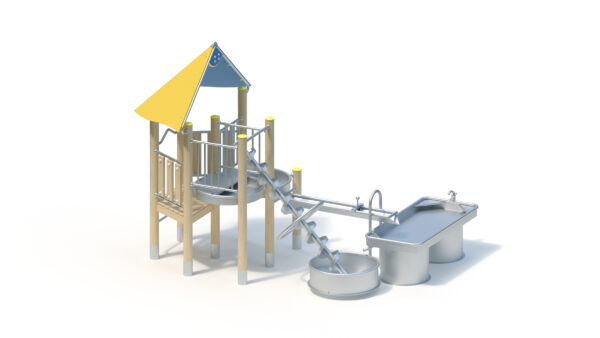

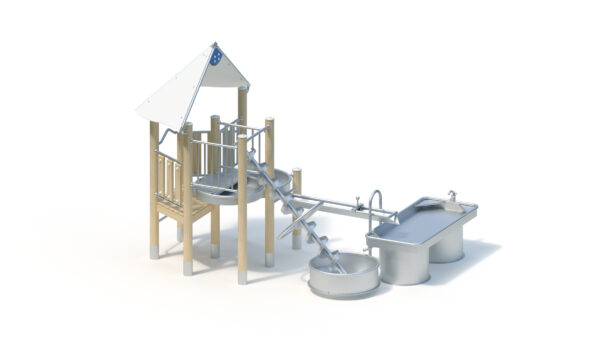

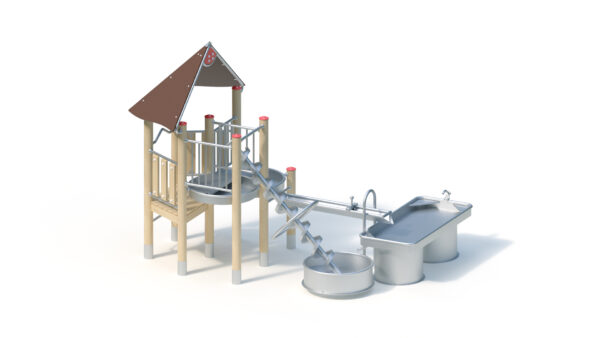

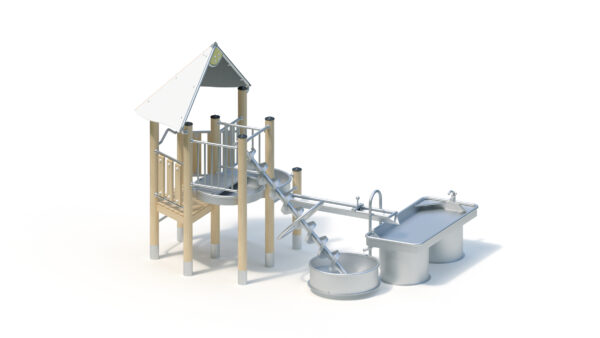

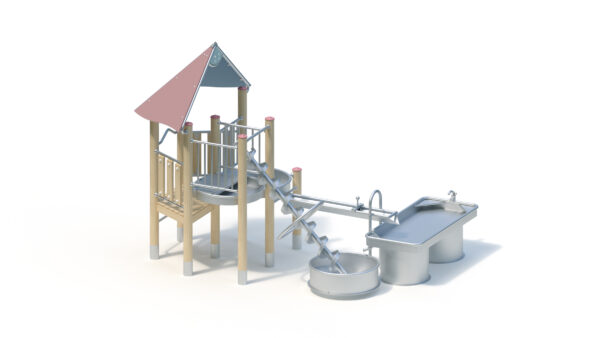

Water play structure
Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | supervised playgrounds |
| Benutzeranzahl ? | 16 Personen |
| Aktivitäten ? | Manual activity |
Technical data
| Gerätelänge ? | 3,95 m |
|---|---|
| Gerätebreite ? | 2,80 m |
| Gerätehöhe ? | 3,00 m |
| Freie Fallhöhe ? | 1,20 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 560.00 kg |
| Schwerstes Einzelteil ? | 105.00 kg |
| Mindestraumlänge ? | 6,95 m |
| Mindestraumbreite ? | 6,00 m |
| Mindestraumhöhe ? | 3,00 m |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 8 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.5m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data

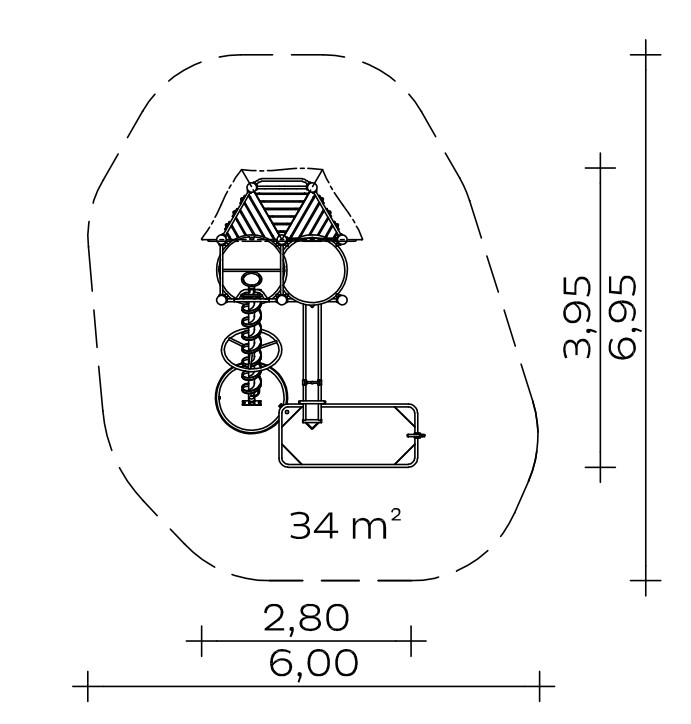

Floor area: 2.80 x 3.95 m
Minimum space: 6.00 x 6.95 m (34 m²)
Total height: 3.00 m
Platform height: 0.80/1.20 m
Weight:105 kg heaviest individual part
560 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Half tent roof, inclination 45°, made of highly weather-resistant HPL laminate (brown), 13 mm, attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
Conveyor basin solitary RS 120
Welded stainless steel construction with mounting device for the base bearing of the water spiral, water inlet directly below or above the pipe ring, sheet thickness: 2 mm / pipe Ø 33.7 mm.
Matching ring foundation (15168) for anchoring to the flange ring and moulded stones (15169) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Water spiral (2.00) Handwheel drive and top turntable
Spiral length: 2.00 m
Outer diameter: 0.25 m
Welded stainless steel construction with roller bearings, screw-on foot bearing.
Collecting basin modular RS120
Welded stainless steel construction for water absorption with a water drain pipe, sheet thickness: 2 mm / pipe Ø 33.7 mm.
Water spout article no. 0-33125-000
Welded stainless steel construction, clamping part for attaching to pipe Ø 38 mm, with connection element suitable for connecting a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
Water table (0,50)
Base area: 0.84 x 1.84 m
Total height: 0.65 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 4 shelves. Sheet thickness: 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundations (15165) for anchoring to the flange ring and moulded bricks (15170) for bricking up and levelling height differences can be supplied at an extra charge.
Water channel 1.60 m
Welded stainless steel construction. Sheet thickness: 2 mm / pipe Ø 38 mm. With 1 connection for ES/RS posts, with stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.
Including freely positionable storage flap, stainless steel handle, rubber blade with fabric insert.
Patio tray with 1 drain
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with a water drain pipe, sheet thickness: 2 mm / pipe Ø 33.7 mm.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.50 x 0.50 x 0.50 m
Concrete volume: 0.7 m³
Assembly time
2 fitters 3 hours each
(without foundation, without water connection)
Free fall height
1,20 m
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034352701
