Water play structure
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | supervised playgrounds |
| Benutzeranzahl ? | 12 Personen |
| Aktivitäten ? | Manual activity |
Technical data
| Mindestraumlänge ? | 5,50 m |
|---|---|
| Mindestraumbreite ? | 5,20 m |
| Mindestraumhöhe ? | 1,10 m |
| Gerätelänge ? | 2,50 m |
| Gerätebreite ? | 2,20 m |
| Gerätehöhe ? | 1,10 m |
| Freie Fallhöhe ? | 0,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 147.00 kg |
| Schwerstes Einzelteil ? | 50.00 kg |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (0.5m x 0.5m x 0.5m) Quantity: 1 (0.7m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data
Total height: 1.10 m

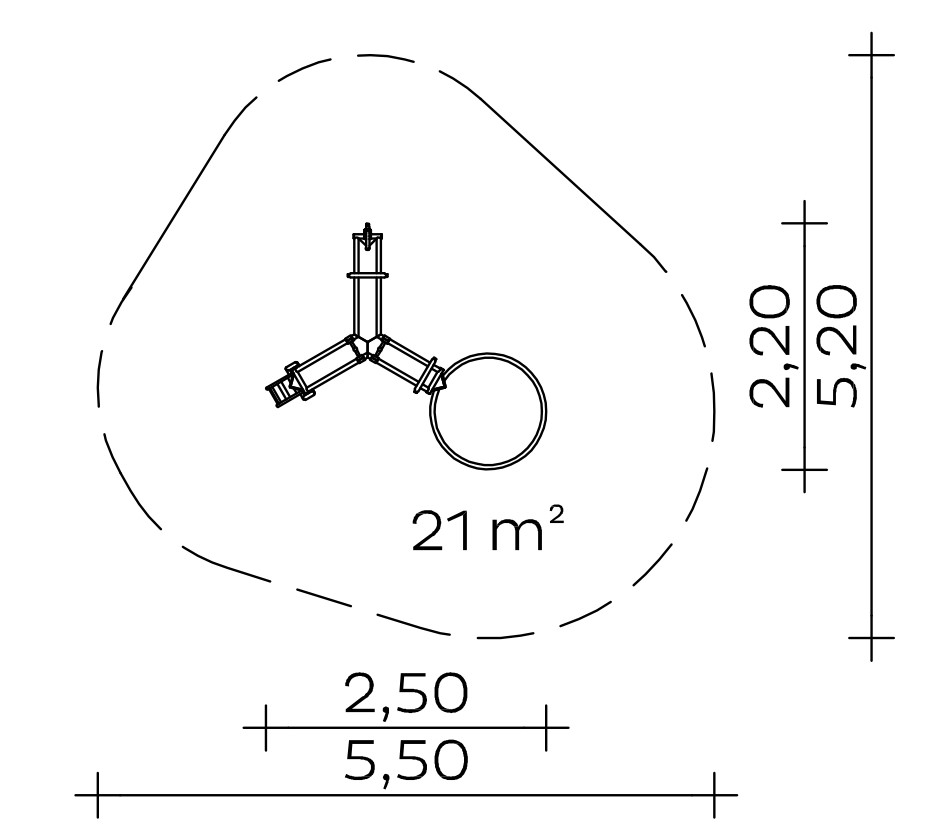

Base area: 2.50 x 2.20 m
Minimum space: 5.50 x 5.20 m (21 m²)
Weight: 50 kg heaviest individual part
147 kg in total
Water spout article no. 0-33125-000
Welded stainless steel construction, clamping part for fastening to Ø 38 mm holder pipe, with connection element suitable for connecting a garden hose with 1/2″ or 3/4″ hose section. (e.g. Gardena® or comparable).
Y-channel
Y-shaped water channel with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm
Stowage flap, 2 pieces
Storage flap for K&K water channels, freely positionable, stainless steel handle, rubber blade with fabric insert
Water wheel Ø 0.60 m
Water wheel consisting of 12 blades, folded flat at the front and enclosed by side walls. Wheel bearing with roller bearings, sheet thickness min. 2 mm, with support, tube Ø 38 mm, prepared to accommodate the water channel.
Mud plate (0.50) Article no. 0-33451-000
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Foundations (client-provided)
2 pcs. 0.50 x 0.50 x 0.50 m
1 piece 0.50 x 0.70 x 0.50 m
Concrete volume: 0.43 m³
Assembly time
2 fitters 1 hour each
(without foundation, without water connection)
Free fall height
0,50 m
Suitable for
Children from 2 years,
supervised playgrounds etc.,
Manual activities
Item number: 034034001
