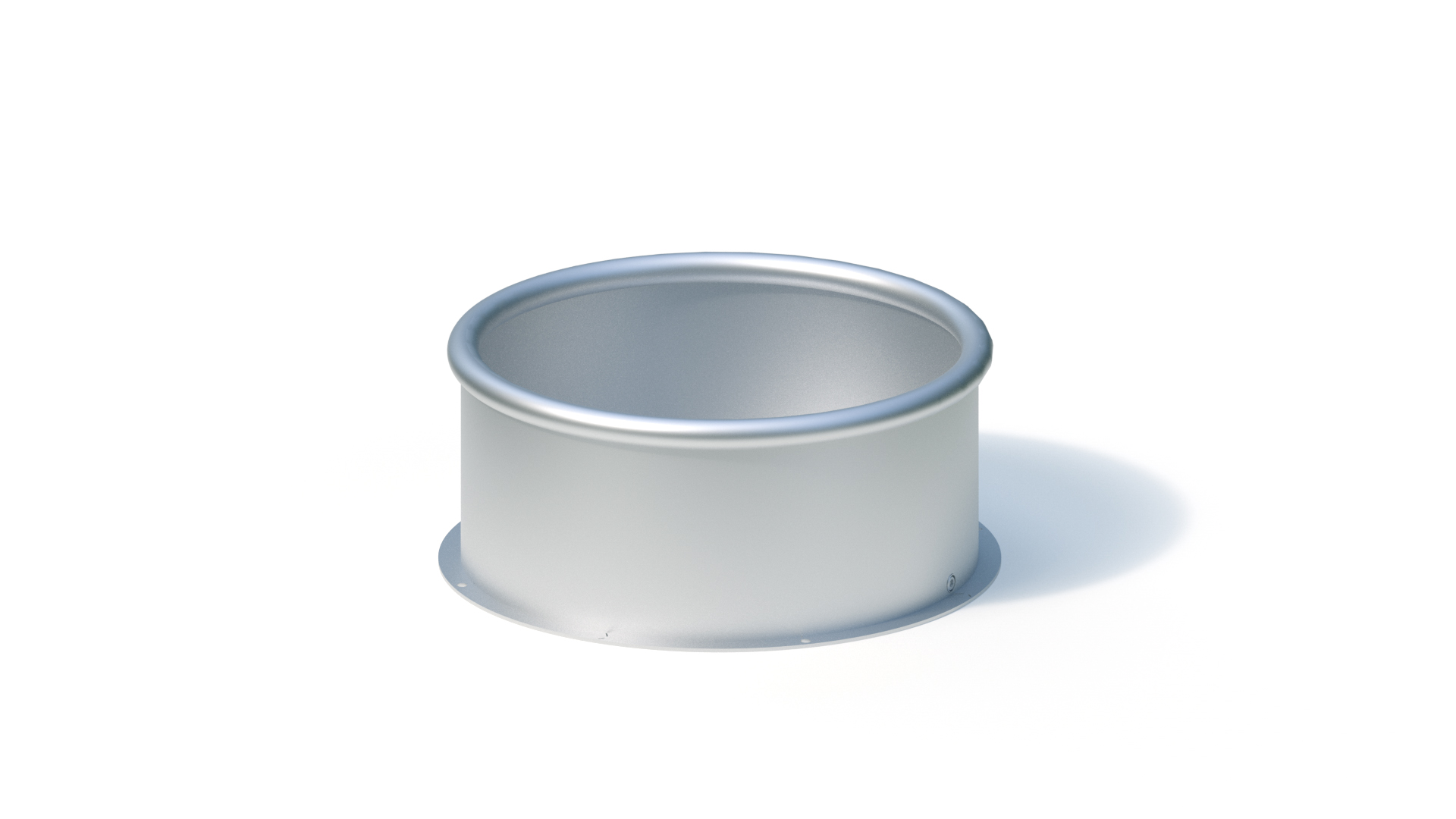

Solitary bottom basin (without screw pump)
The most important information
:
;
| Age group ? | - |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 0 people |
| Activities ? | Manual activity |
Technical data
:
;
| Minimum space length ? | 3,76 m |
|---|---|
| Minimum space width ? | 3,76 m |
| Minimum space height ? | 0,29 m |
| Equipment length ? | 0,76 m |
| Equipment width ? | 0,76 m |
| Equipment height ? | 0,29 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 30.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | - |
Product Downloads
:
;
Product description
:
;

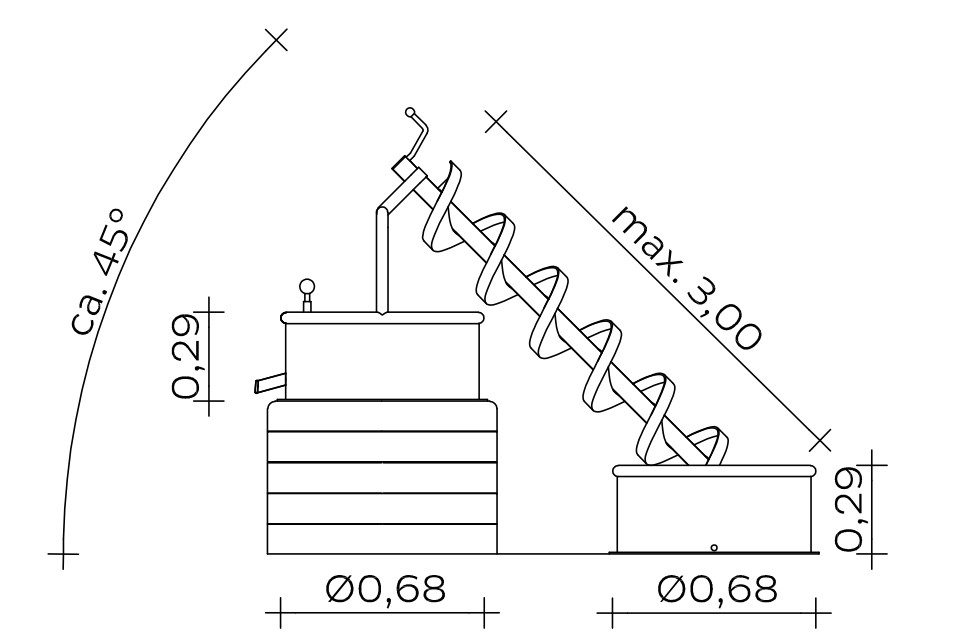

Pool height: 0.29 m
Weight: 30 kg in total
Welded stainless steel construction with mounting device for the base bearing of the water spiral, with drain hole.
Water inlet directly below or e.g. with a water channel above the pipe ring.
Sheet thickness: min. 2 mm / tube Ø 38 mm.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Assembly time
is delivered in one piece
Item number: 033215001
