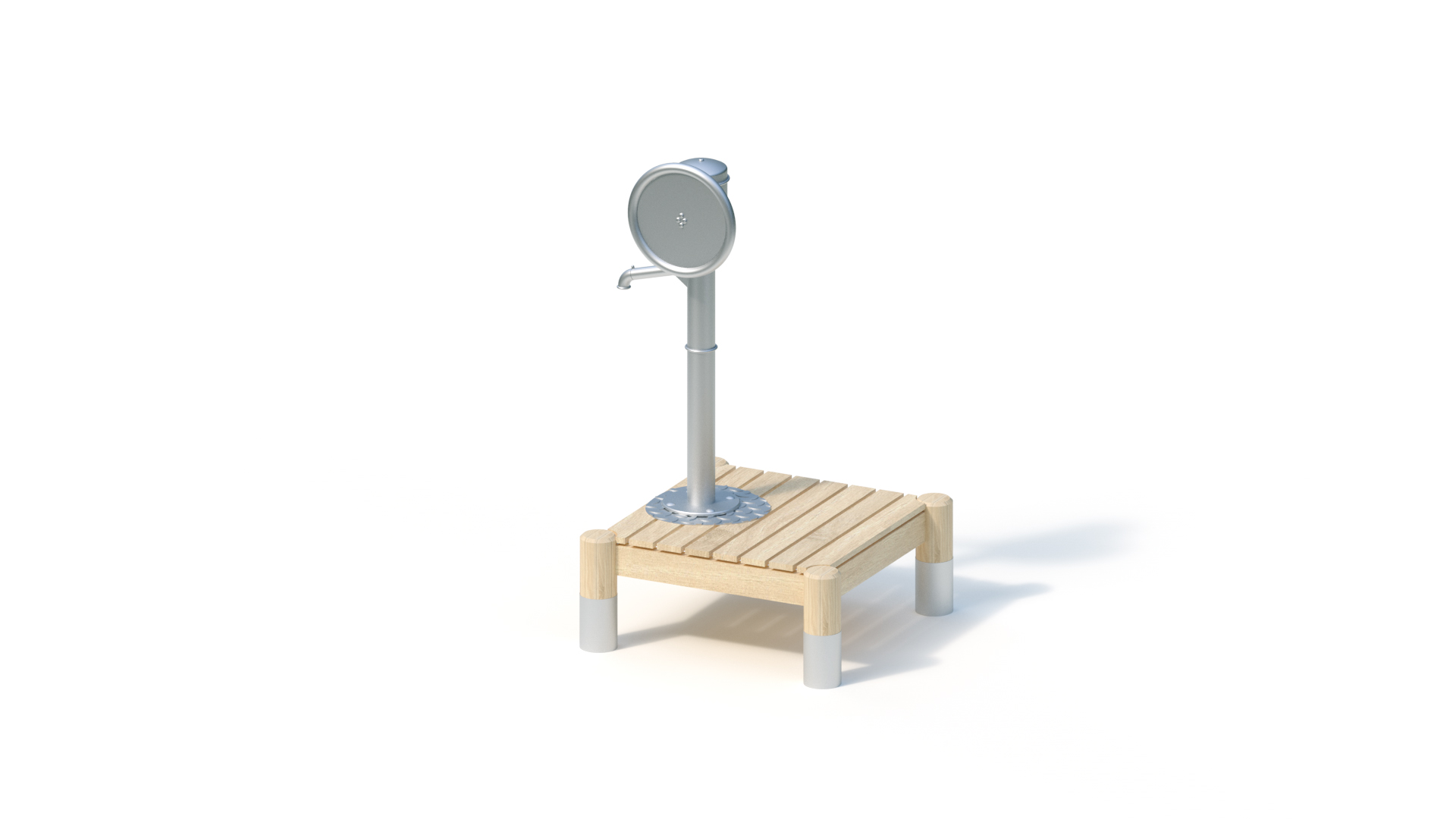

Platform for water pump with handwheel
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 2 persons |
| Activities ? | - |
Technical data
| Device length ? | 0,95 m |
|---|---|
| Device width ? | 1,00 m |
| Device height ? | 1,57 m |
| Free fall height ? | 0,40 m |
| Platform heights | - |
| Total weight ? | 100.00 kg |
| Heaviest single item ? | 35.00 kg |
| Minimum room length ? | 3,95 m |
| Minimum room width ? | 4,00 m |
| Minimum room height ? | 1,57 m |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

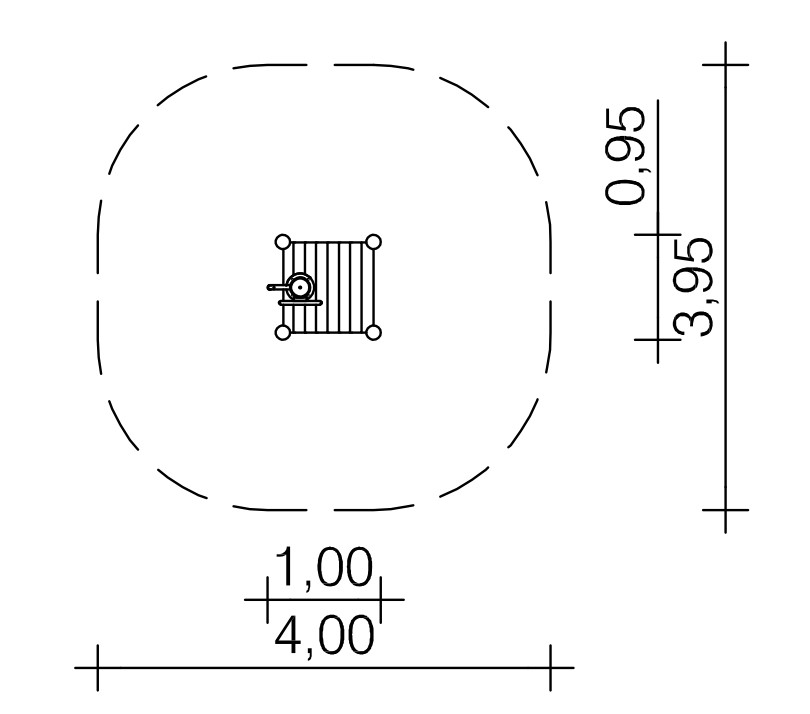

Base area: 0.95 x 1.00 m
Minimum space: 3.95 x 4.00 m
Total height: 1.57 m
Platform height: 0.40 m
Weight: 45 kg heaviest individual part
110 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of 30 mm thick boards and 45 x 100 mm squared timber joists all round. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with claw-shaped tips and a continuous bolt connection. Profiled stainless steel sheet.
Water pump
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with handwheel must be removed, e.g. during the frost period.
Sealing cover (wintering plateҩ for the remaining pump base is supplied
Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (art. no. 0-33190-000) is required.
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne-play.com.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
0,40 m
Item number: 033151702
