Water dispenser including winter season cover
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 3,40 m |
|---|---|
| Minimum space width ? | 3,40 m |
| Minimum space height ? | 1,13 m |
| Equipment length ? | 0,40 m |
| Equipment width ? | 0,40 m |
| Equipment height ? | 1,13 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 25.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | - |
Product Downloads
Product description
Technical data

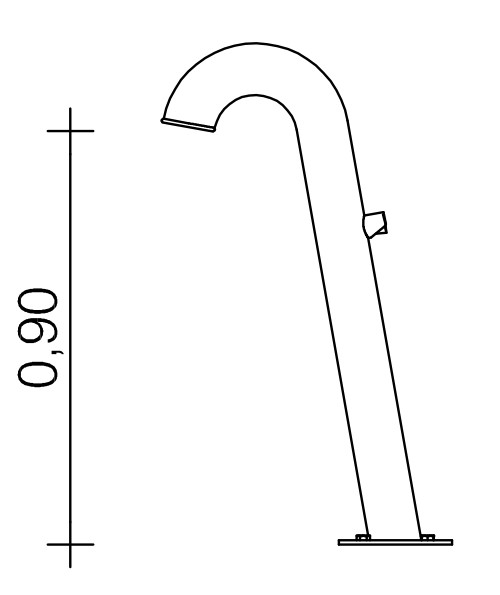

Height: 1.13 m
Outlet height: 0.90 m
Weight: 25 kg in total
Stainless steel construction with solenoid valve for direct connection (3/4 inch) to a pressurised water pipe (equal to or larger than 1/2 inch or equal to or larger than DN 15).
Control unit consisting of control module, waterproof sealed 6V battery and piezo push-button.
Factory setting for a hygiene flush (12 hours after last operation).
Wintering plate included.
Note: Depending on the cleanliness of the water (suspended solids, dirt particles, etc.), we recommend fitting a fine filter (e.g. K&K item no. 3990039) to prevent the solenoid valve from becoming contaminated and thus prevent malfunctions.
The water tap should be installed and connected by a specialised installation company.
Item number: 033119003
