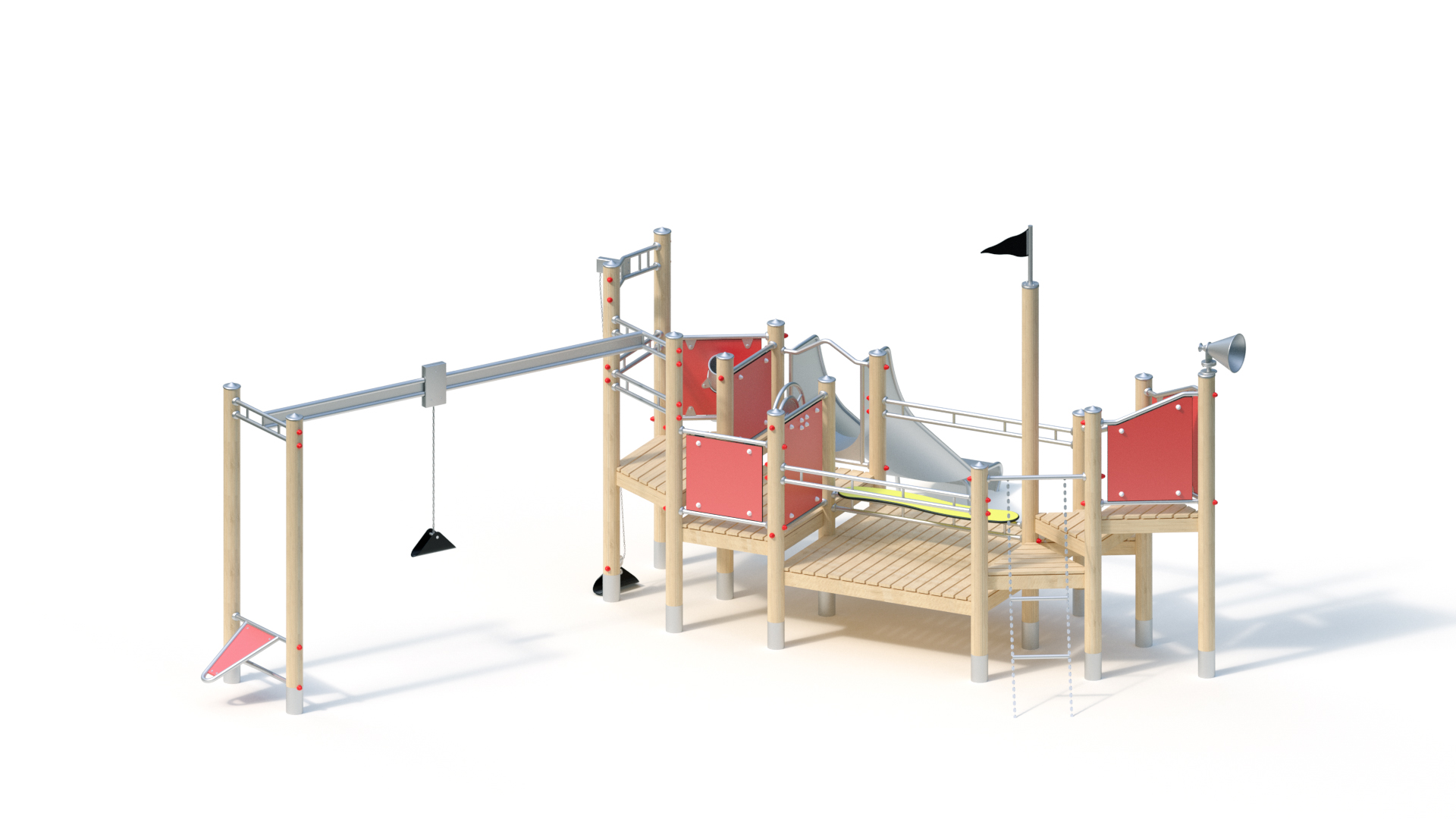

Sand play ship

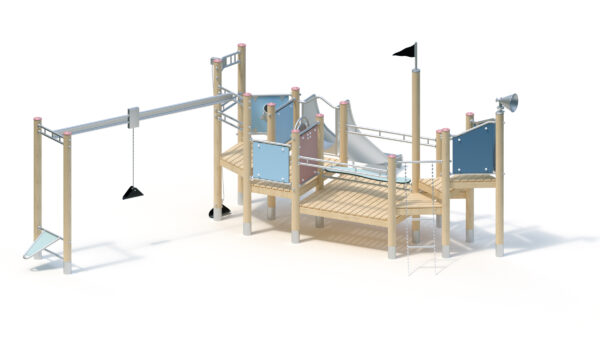

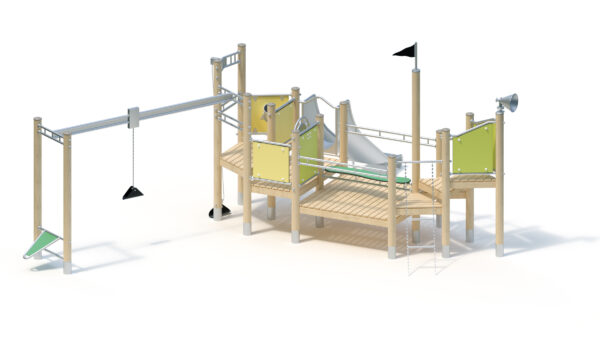

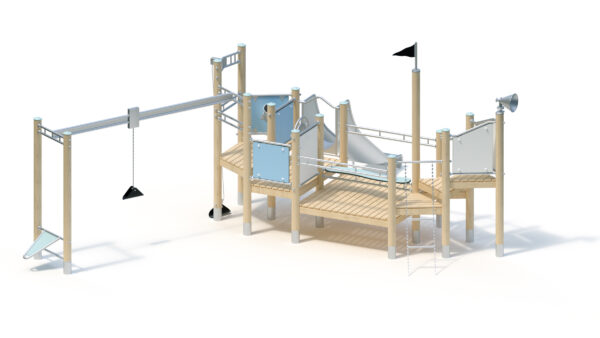

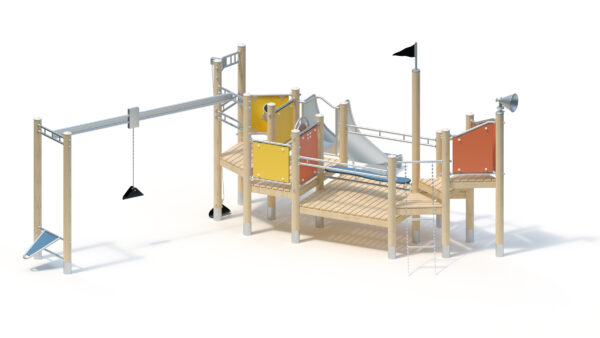

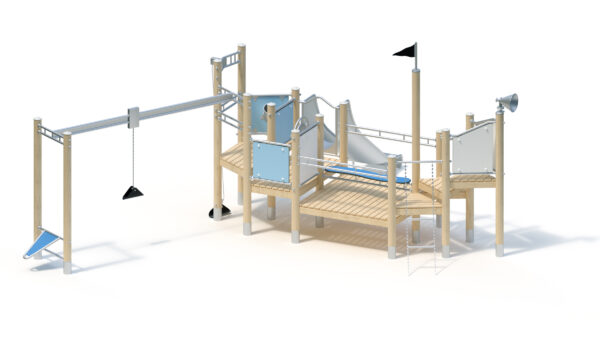

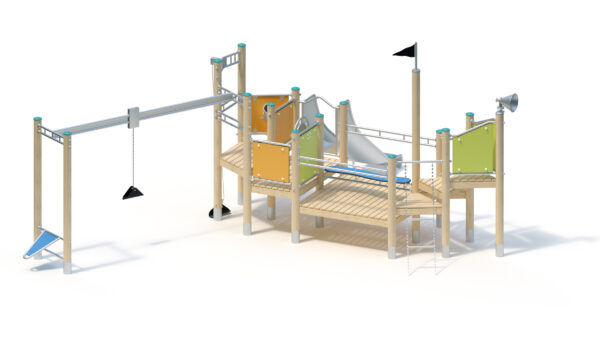

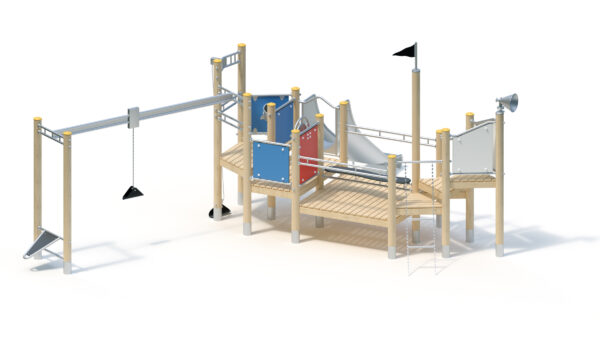

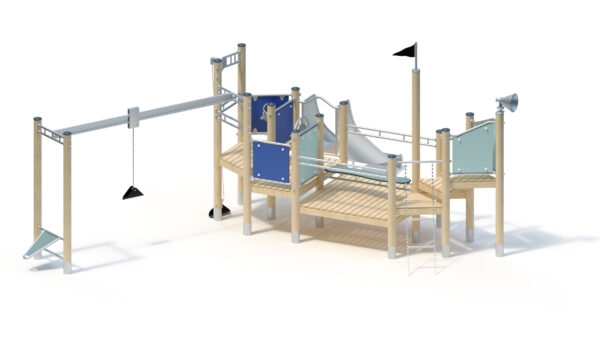

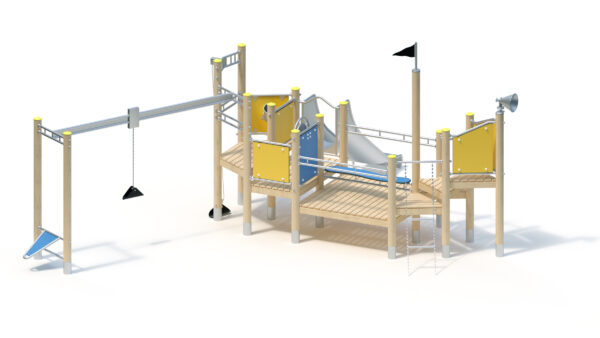

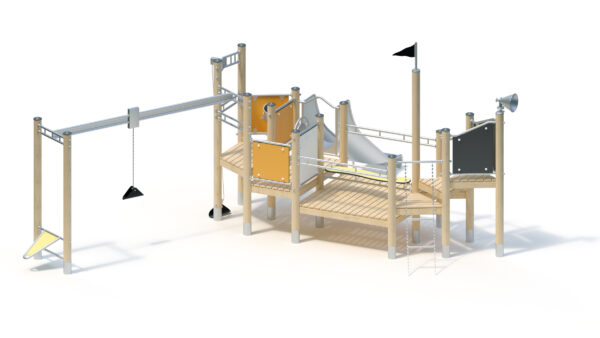

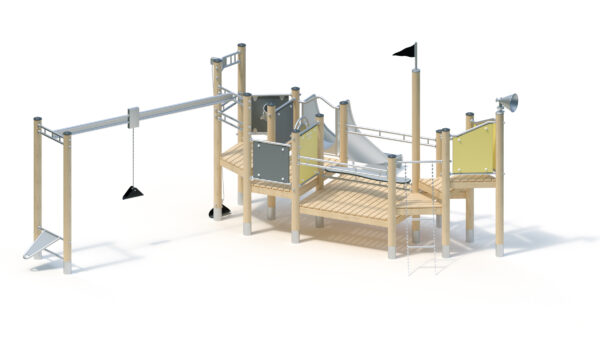

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 23 Personen |
| Aktivitäten ? | Manual activity, Slide, Social activity |
Technical data
| Mindestraumlänge ? | 10,35 m |
|---|---|
| Mindestraumbreite ? | 9,40 m |
| Mindestraumhöhe ? | 3,15 m |
| Gerätelänge ? | 6,85 m |
| Gerätebreite ? | 6,40 m |
| Gerätehöhe ? | 3,15 m |
| Freie Fallhöhe ? | 1,20 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 850.00 kg |
| Schwerstes Einzelteil ? | 75.00 kg |
Assembly & Foundations
| Montagezeit ? | 8,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 16 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

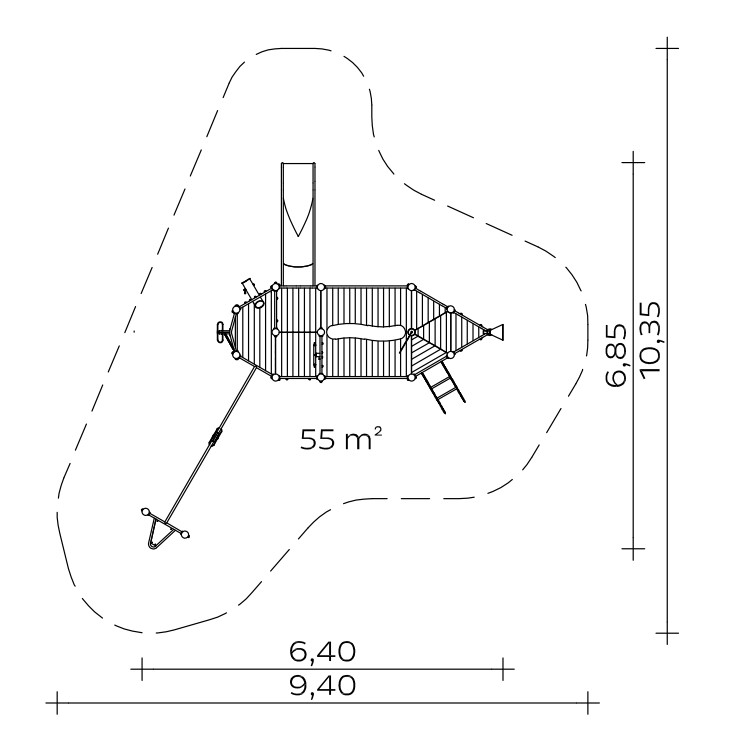

Floor area: 6.40 x 6.85 m
Minimum space: 9.40 x 10.35 m (55 m²)
Total height: 3.15 m
Platform height: 0.60 to 1.20 m
Slide attachment height: 0.80 m
Seat height: 0.90 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Panel balustrade made of coloured, highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Chain ladder with stainless steel rungs
- Megaphone horizontally rotatable 360
- Steering wheel: rotatable with locking mechanism
- Pouring tube wall made of coloured, highly weather-resistant HPL laminate with sand pouring tube including shut-off flap
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Stainless steel transport rail with sand transport trolley
- Sand slide made of stainless steel tubing with coloured, highly weather-resistant HPL laminate panel
- Counter, wave-shaped, made of coloured, highly weather-resistant HPL laminate, 20 mm
- Rubber flag with fabric insert for attachment to the stand post
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
16 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.14 m³
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
1,20 m
Suitable for
Children aged 5 and over,
Public playgrounds
Social/manual activities
Item number: 031650704
