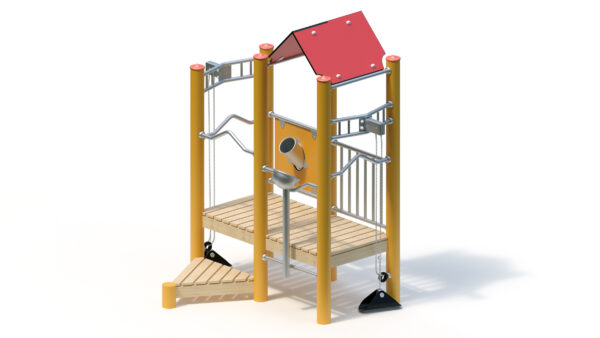

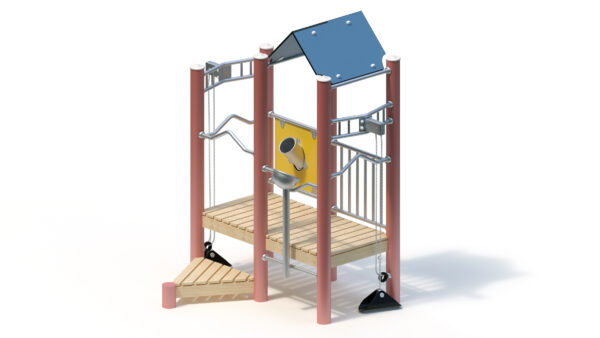

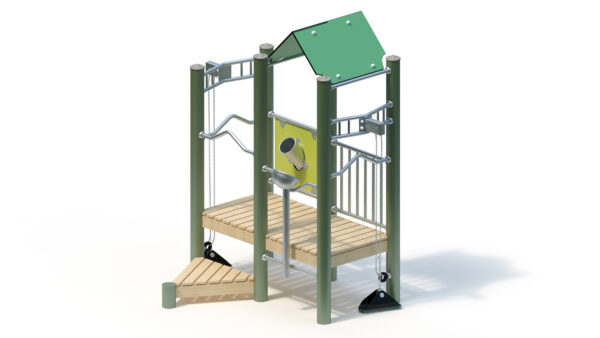

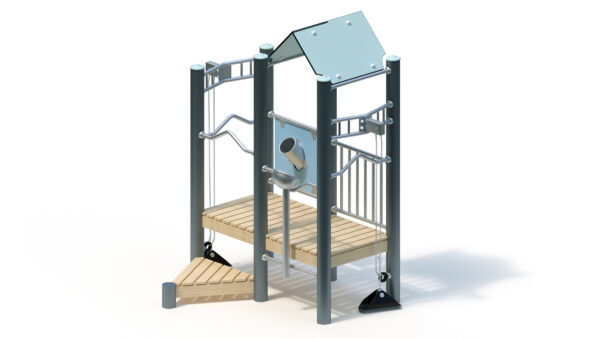

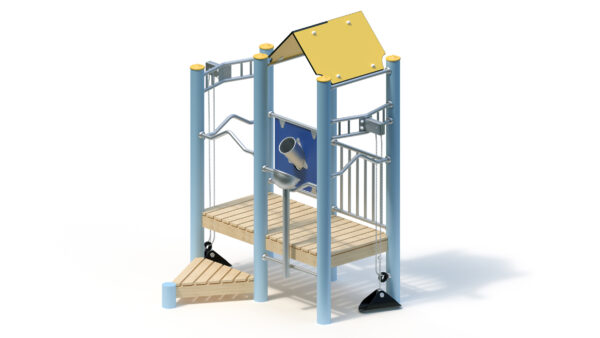

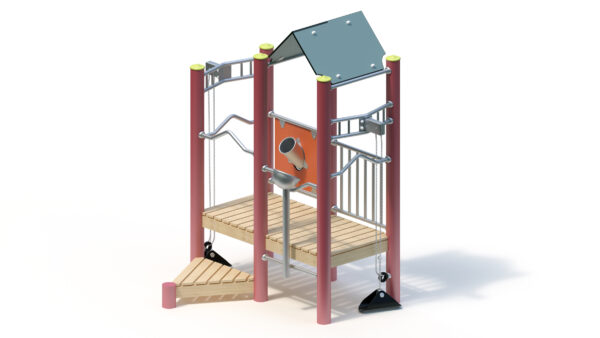

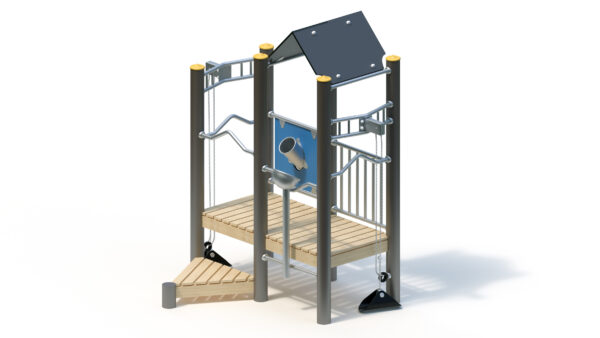

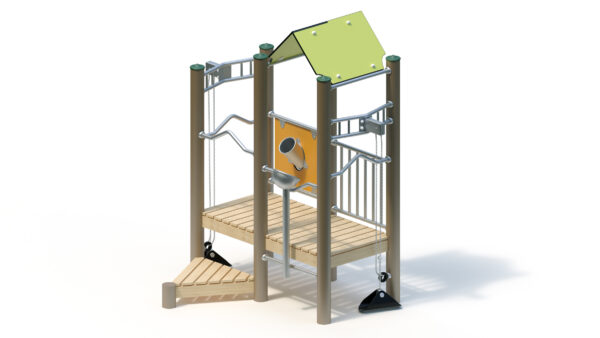

The 3D model is for spatial reference only. The colours may not match the selected variant.
Sandworks

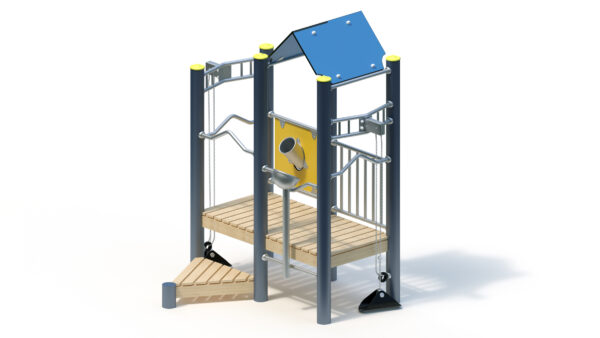

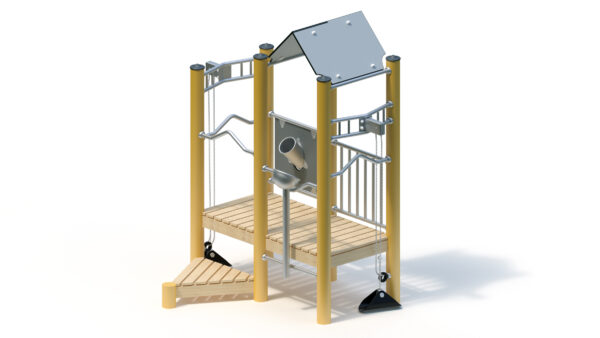

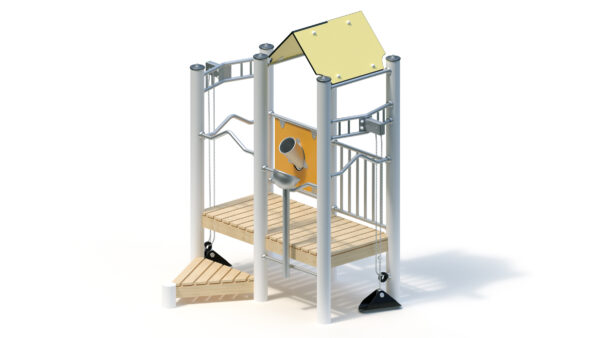

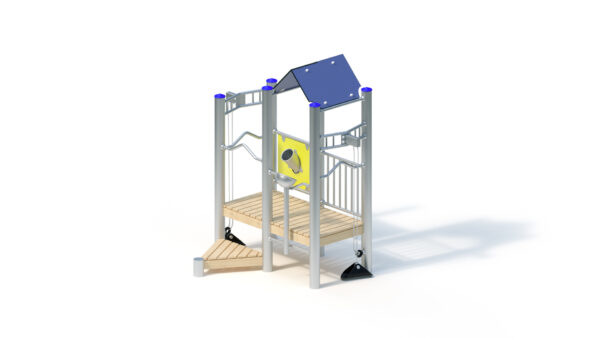

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 12 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 5,25 m |
|---|---|
| Minimum space width ? | 4,95 m |
| Minimum space height ? | 2,50 m |
| Equipment length ? | 2,35 m |
| Equipment width ? | 1,95 m |
| Equipment height ? | 2,50 m |
| Free-fall height ? | 0,60 m |
| Platform heights | - |
| Total weight ? | 290.00 kg |
| Heaviest single part ? | 30.00 kg |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 7 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

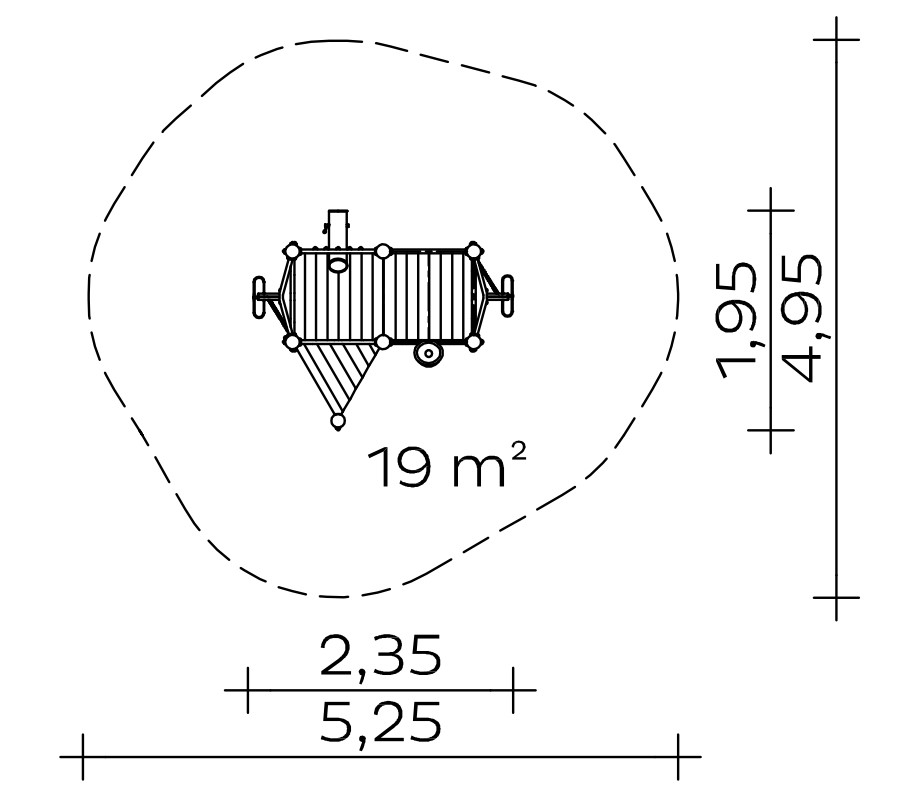

Floor area: 1.95 x 2.35 m
Minimum space: 4.95 x 5.25 m (19 m²)
Platform heights: 0.20/0.60 m
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Pouring tube wall made of HPL laminate with sand pouring tube including shut-off damper, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Stainless steel sand pouring pipe
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
7 units 0.40 x 0.40 x 0.40 m
Concrete volume: 0.45 m³
Assembly time
2 fitters 3.5 hours each
(without foundation)
Free fall height
0,60 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Manual activities
Item number: 031330501
