Sandworks

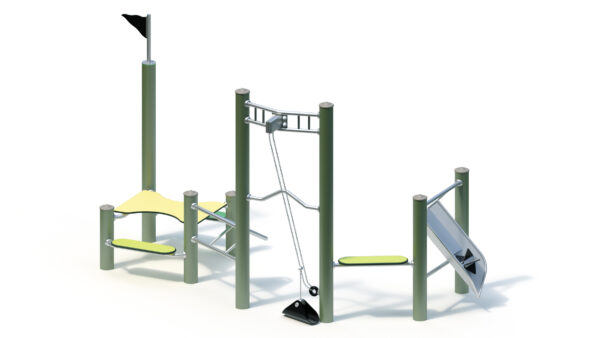

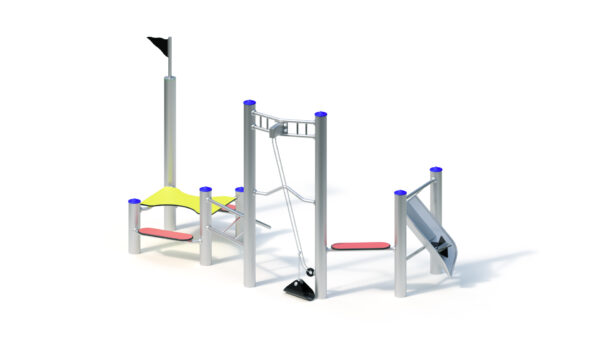

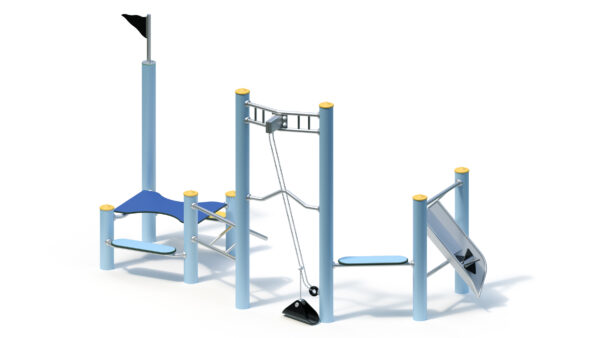

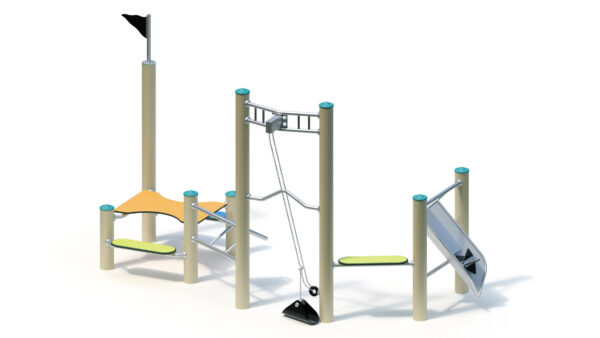

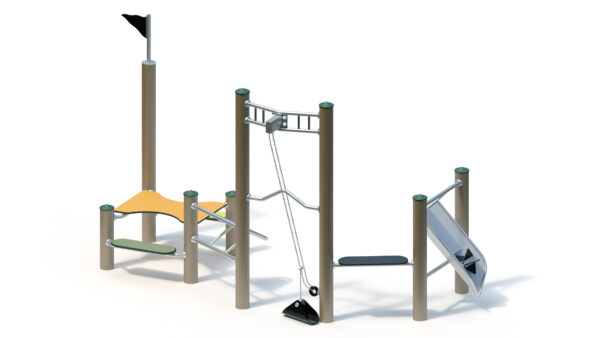

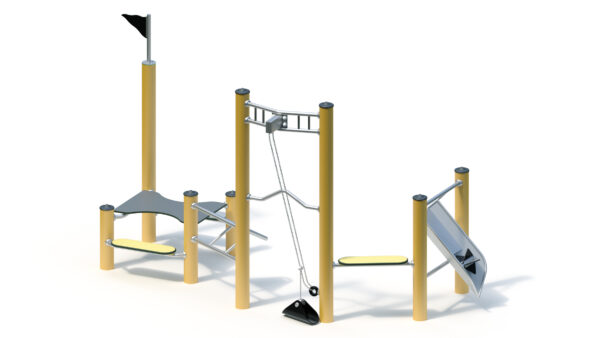

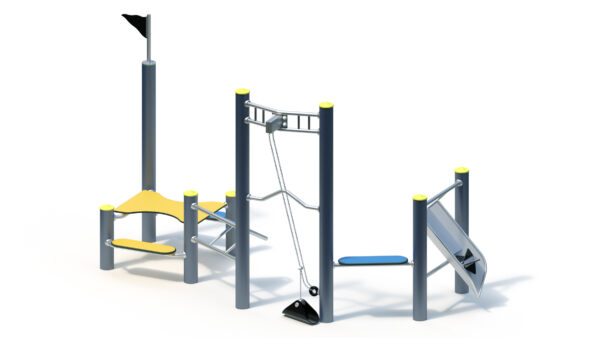

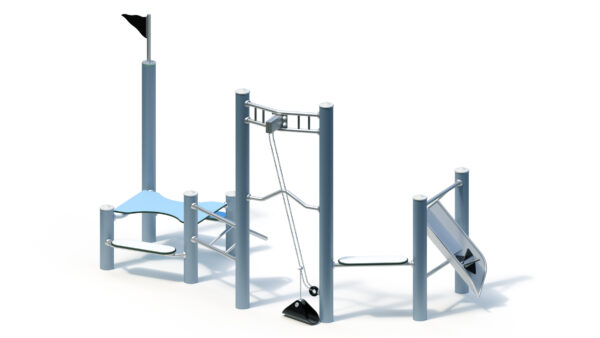

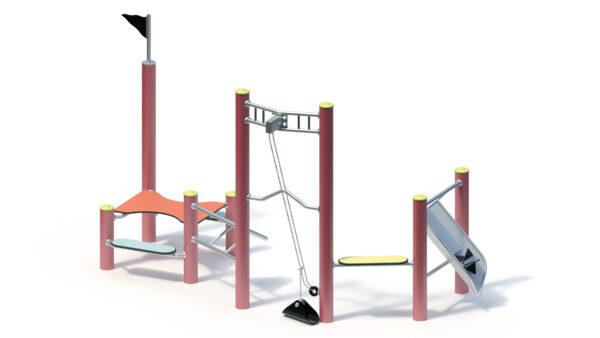

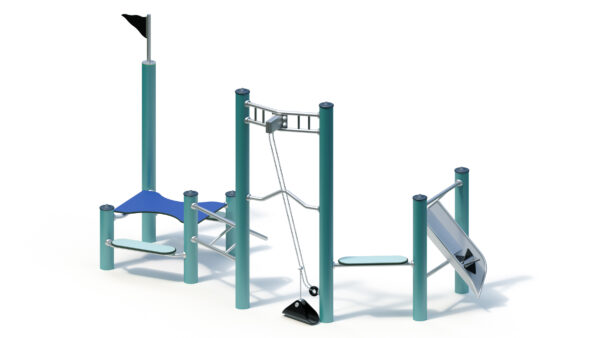

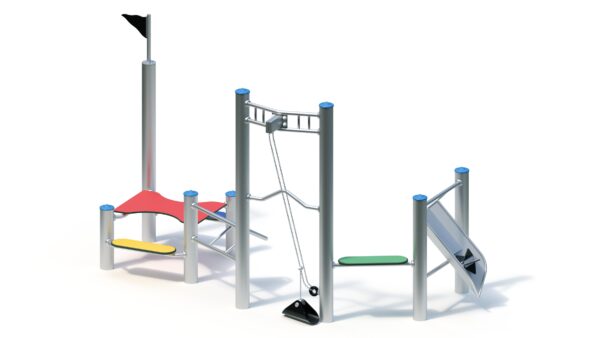

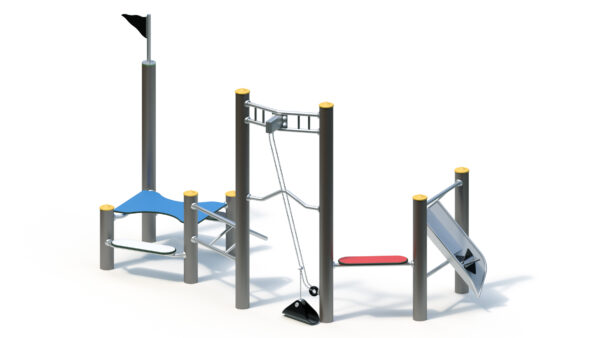

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 11 people |
| Activities ? | Manual activity, Social activity |
Technical data
| Minimum space length ? | 6,75 m |
|---|---|
| Minimum space width ? | 4,75 m |
| Minimum space height ? | 2,05 m |
| Equipment length ? | 3,75 m |
| Equipment width ? | 1,75 m |
| Equipment height ? | 2,05 m |
| Free-fall height ? | 0,60 m |
| Platform heights | - |
| Total weight ? | 205.00 kg |
| Heaviest single part ? | 25.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 8 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

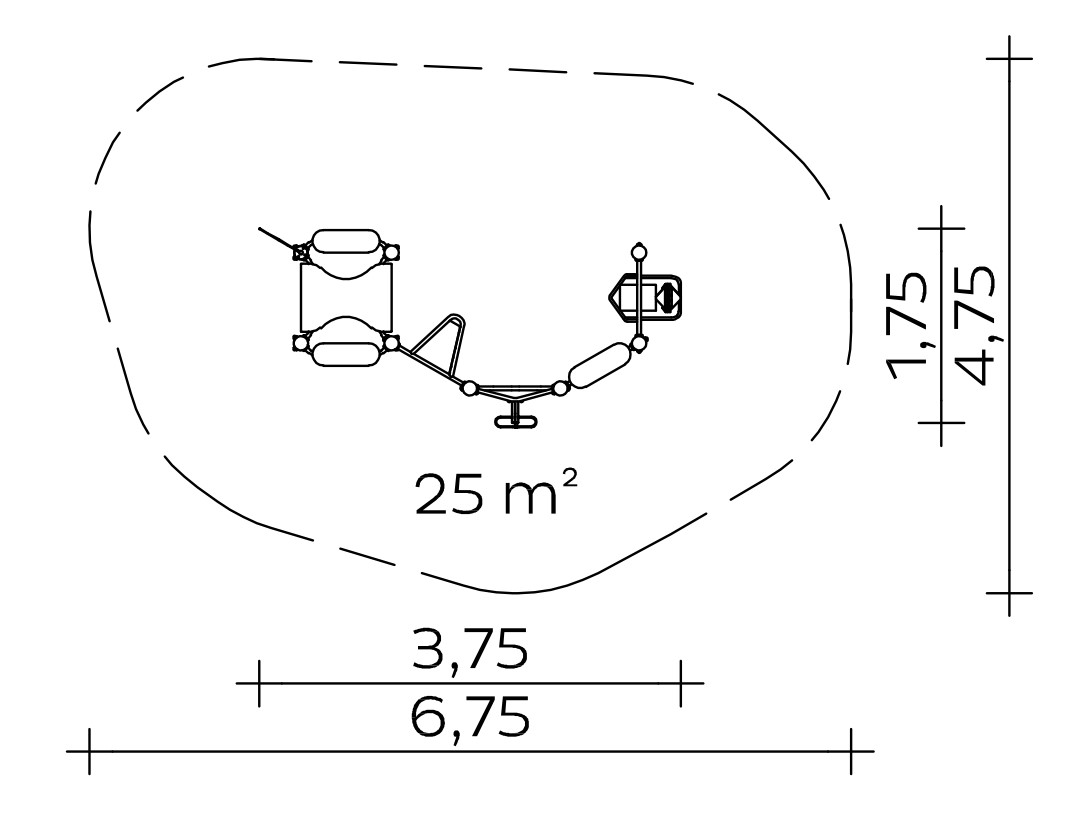

Floor area: 1.75 x 3.75 m
Minimum space: 4.75 x 6.75 m (25 m²)
Total height: 2.05 m
Weight: 25 kg heaviest individual part
205 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Rubber flag with fabric insert for attachment to the stand post
- Seat: made of highly weather-resistant HPL laminate (red), 20 mm
- Table: made of highly weather-resistant HPL laminate (yellow), 15 mm
- Sand slide made of stainless steel tube with HPL laminate panel (red)
- Step channel with rubber sand wheel with fabric insert
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
Metal components: Stainless steel.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.51 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
0,60 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Social/manual activities
Item number: 031318501
