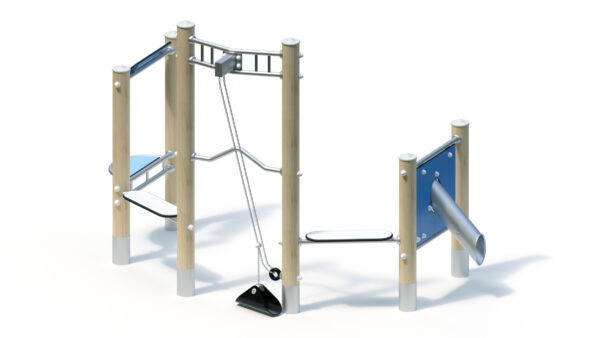

Sandworks

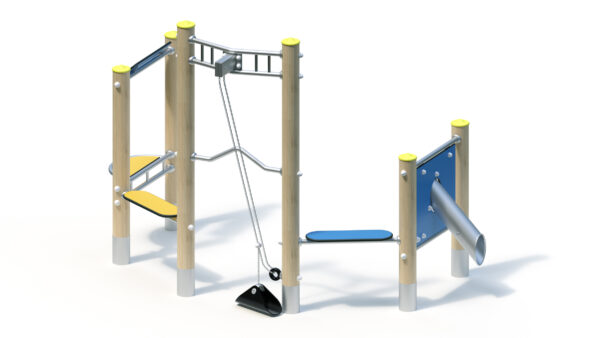

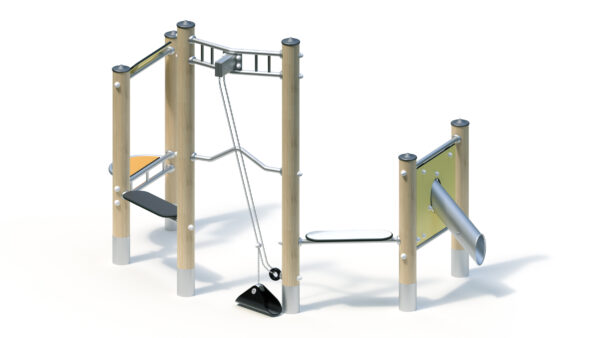

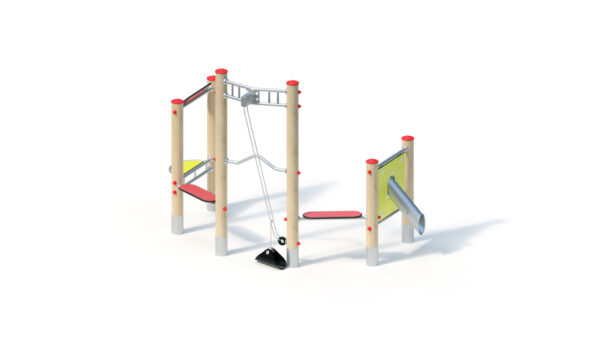

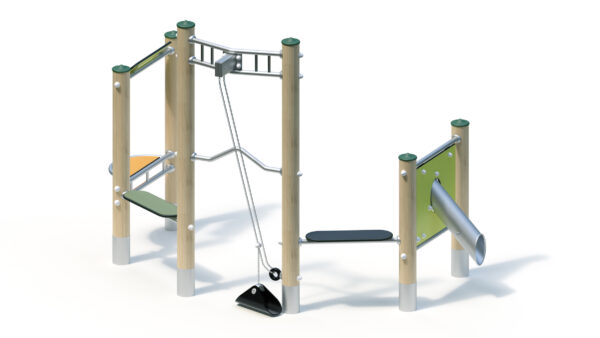

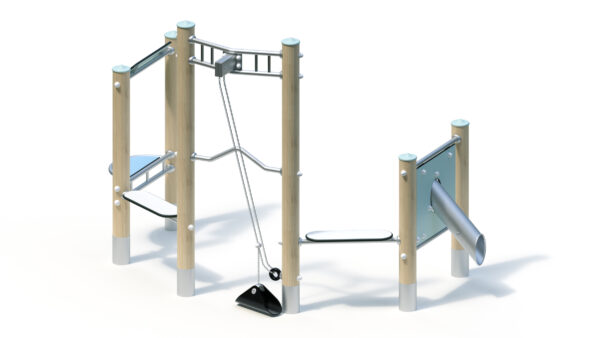

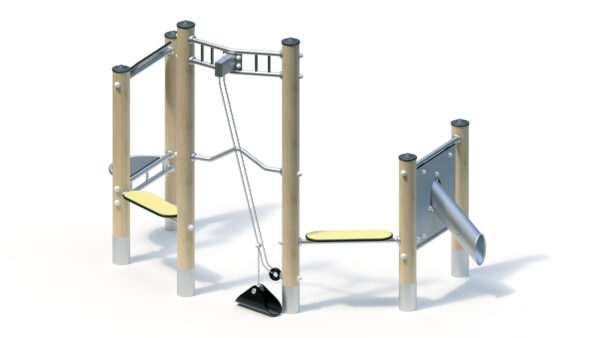

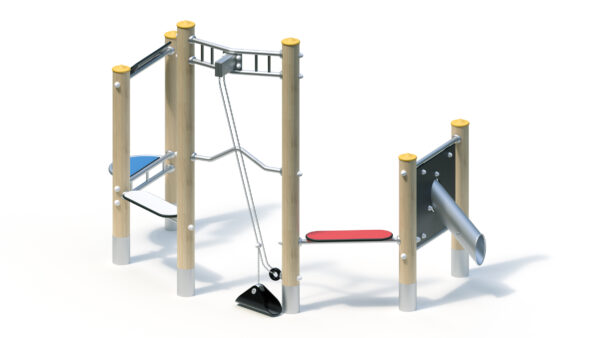

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 9 people |
| Activities ? | Manual activity, Social activity |
Technical data
| Minimum space length ? | 5,85 m |
|---|---|
| Minimum space width ? | 4,60 m |
| Minimum space height ? | 2,00 m |
| Equipment length ? | 2,85 m |
| Equipment width ? | 1,60 m |
| Equipment height ? | 2,00 m |
| Free-fall height ? | 0,60 m |
| Platform heights | - |
| Total weight ? | 170.00 kg |
| Heaviest single part ? | 25.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 6 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

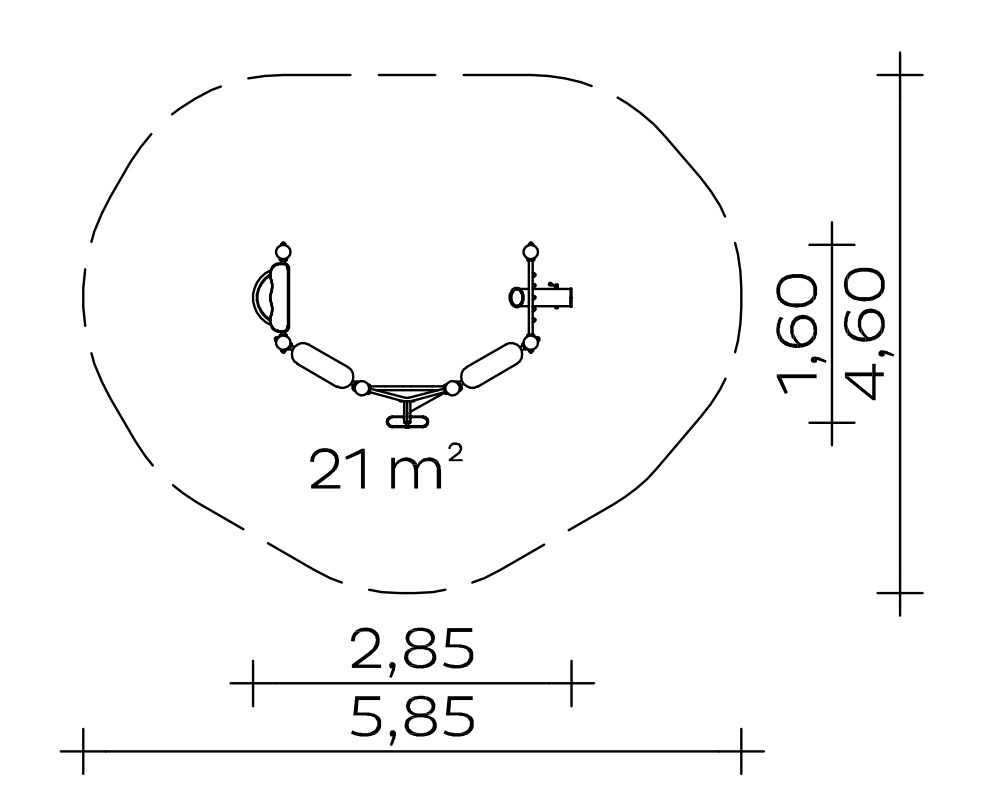

Floor area: 1.60 x 2.85 m
Minimum space: 4.60 x 5.85 m (21 m²)
Total height: 2.00 m
Weight: 25 kg heaviest individual part
170 kg in total
Support post
Posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps (blood orange/RAL 2002) made of stainless steel.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Pouring tube wall made of highly weather-resistant HPL laminate (lemon) with sand pouring tube including shut-off flap, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Table/awning made of highly weather-resistant HPL laminate 15 mm (lemon/poppy)
- Seat made of highly weather-resistant HPL laminate, 20 mm (poppy)
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps (red).
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
0,60 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Social / manual activities
Item number: 031310701
