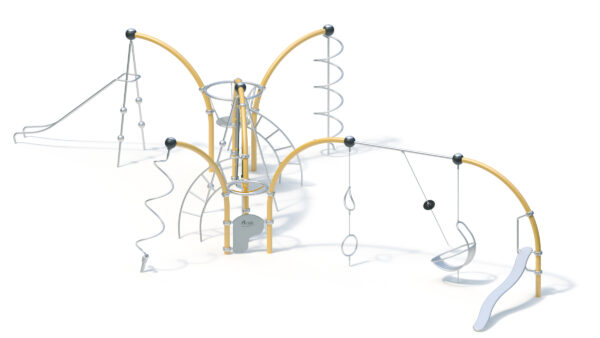

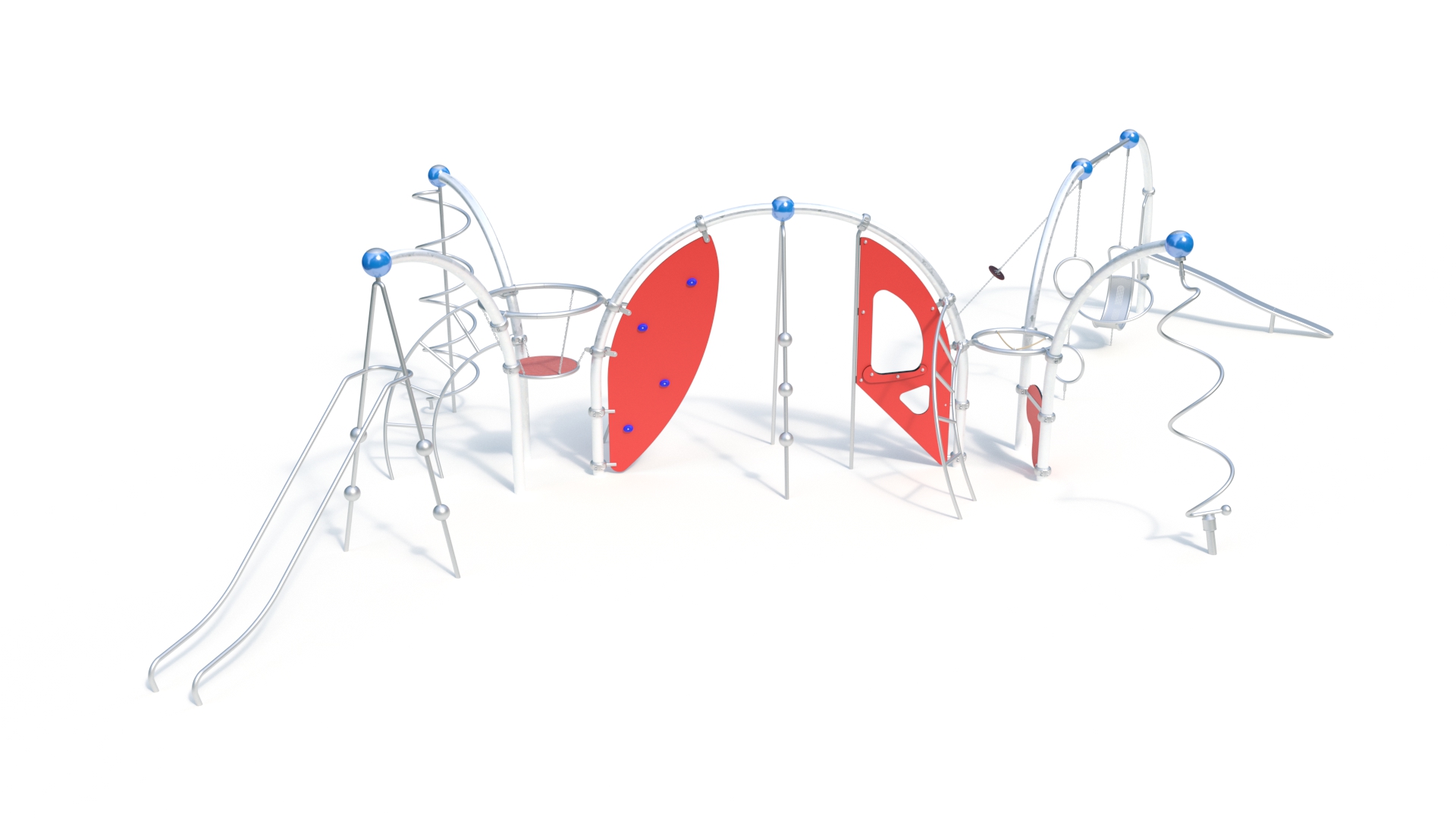

Actio 481

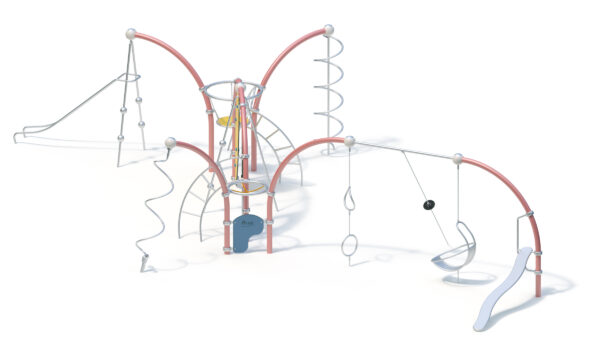

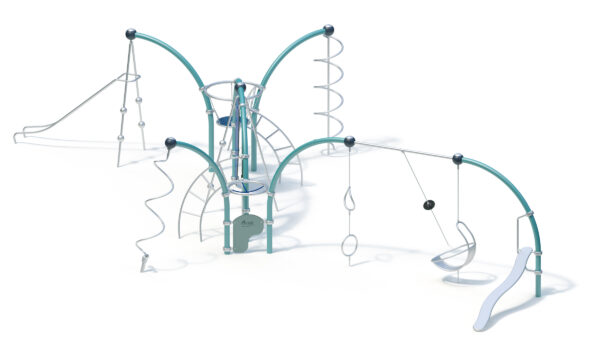

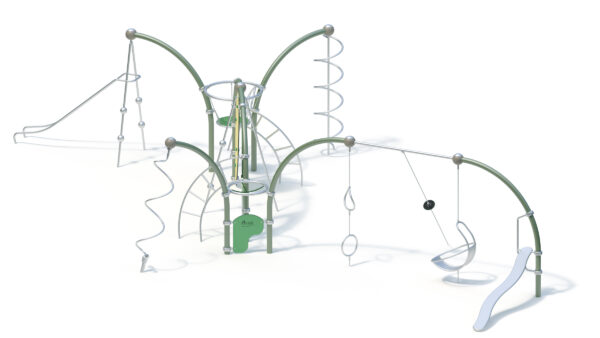

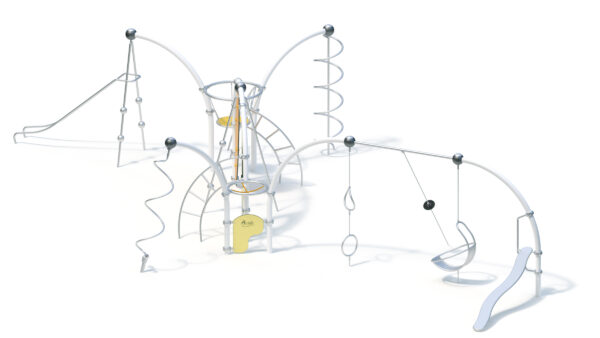

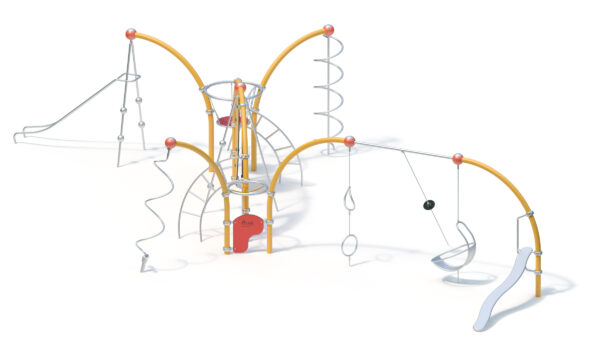

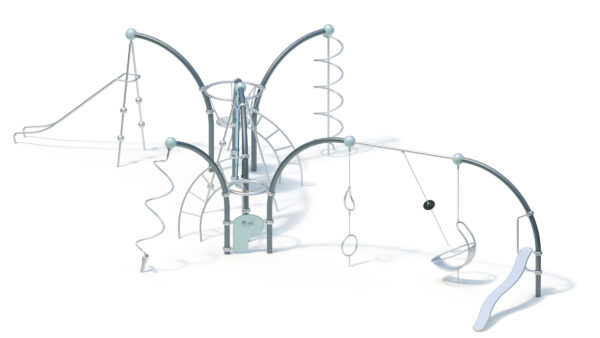

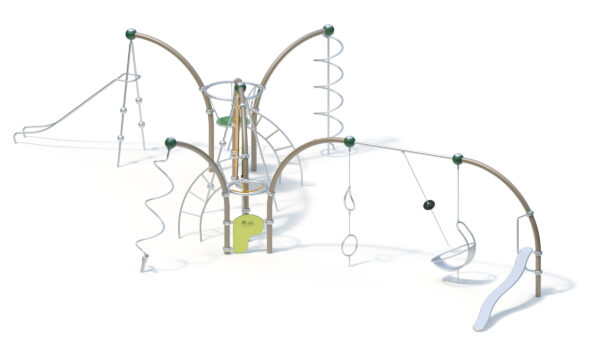

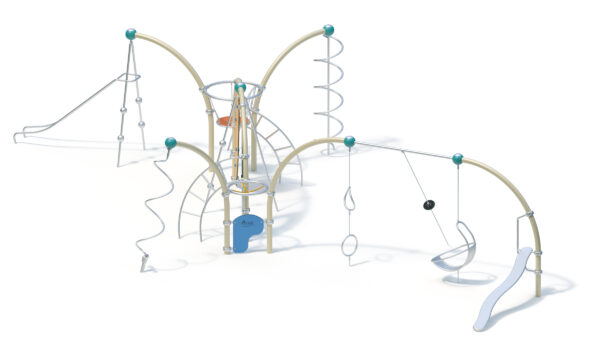

Select variant:
The most important information
| Age group ? | 6+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 34 persons |
| Activities ? | Physical activity, Climbing, Slide, Social activity |
Technical data
| Device length ? | 13,20 m |
|---|---|
| Device width ? | 10,64 m |
| Device height ? | 2.93 m |
| Free fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 1185.00 kg |
| Heaviest single item ? | 67.00 kg |
| Minimum room length ? | 16,10 m |
| Minimum room width ? | 13,63 m |
| Minimum room height ? | 2.93 m |
Assembly & Foundations
| Assembly time ? | 9,0 h |
|---|---|
| Number of fitters ? | 3 persons |
| Lifting gear required | - |
| Foundations | 130x050x050 |
Product Downloads
Product description
Technical data

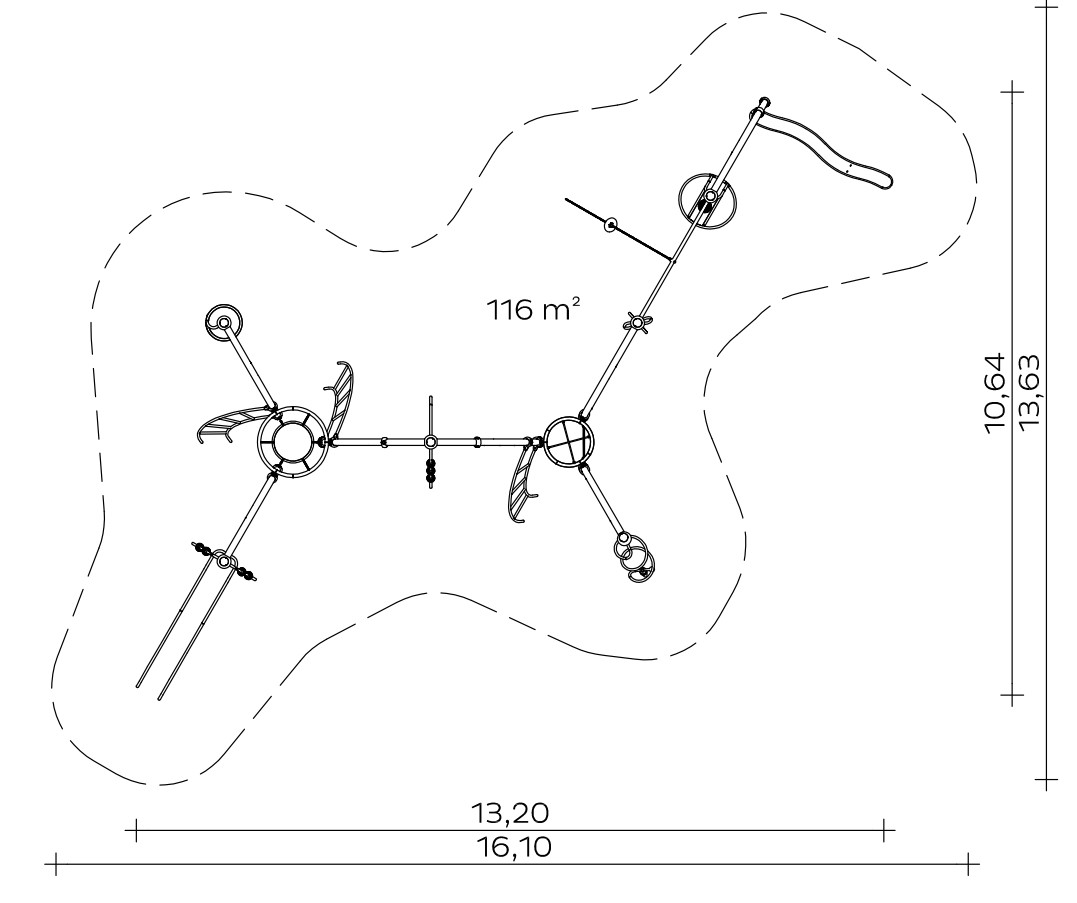

Equipment room: 13.20 x 10.64 x 2.93 m
Minimum space: 16.10 x 13.63 x 2.93 m
Impact area: 116 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
1185 kg in total
Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Big Tornado
- Welded, spiral-shaped construction made of stainless steel tube with knurled base
- Roller bearings at the bottom and top: protected against interference and dirt
- Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
Chill Wall
- Climbing wall made of highly weather-resistant HPL laminate colour red similar to RAL 2002, 20 mm.
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations
Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Monkey Rings
– Stainless steel ring combination Ø 38 mm – 1x flat/1x spatially twisted
– Suspension and connection with 7 mm stainless steel chains and swivel
– independently rotatable
– top: screw-on connection to Actio construction element
– below: deflection limited by chain with anchored and screwed ground connection
Monkey Slide
- Welded, partially bolted construction made of stainless steel tube Ø 42.4 mm
- Spherical stainless steel access elements
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Spring Slide
- Welded construction made of stainless steel tube Ø 42.4 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Climbing Wall
- Climbing wall made of highly weather-resistant HPL laminate, colour red similar to RAL 2002, 20 mm, with free climbing elements on both sides
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations
Chill Disc
- Bearing-mounted stainless steel construction with a highly weather-resistant HPL laminate colour red similar to RAL 2002
- Suspension on 7 mm stainless steel chain
– top: screw-on connection to Actio construction element
– below: deflection limited by chain with anchored and screwed ground connection
Chill Seat
- Seat frame made of welded stainless steel tube construction
- Seat made of stainless steel sheet with perforated pattern
- Suspension on 7 mm stainless steel chain and swivel
– top: screw-on connection to Actio construction element
– below: deflection limited by chain with anchored and screwed ground connection
Glider
-Stainless steel sliding surface
- Above: Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations
Meeting Point
- Welded construction made of stainless steel tube Ø 60.3 mm with Hercules rope cross made of Ø16 mm Hercules rope with 6-strand steel core
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)
Wobble Disc
- Welded construction made of stainless steel tube Ø 60.3 mm with 6 mm chains
- Non-slip standing surface made of EPDM
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Number of components for optional powder coating
5 pipe bends 90°
1 pipe bend 75°
22 pcs. Aluminium clamp Ø 114 mm
6 pcs. Aluminium clamp to Ø 114 mm
Foundations (client-provided)
6 pcs. 1.30 x 0.50 x 0.50 m
1 piece 1.80 x 0.50 x 0.50 m
4 units 0.90 x 0.40 x 0.50 m
10 pcs. 0.60 x 0.60 x 0.50 m
Concrete volume: 4.95 m³
Assembly time
3 fitters 9 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027481001
