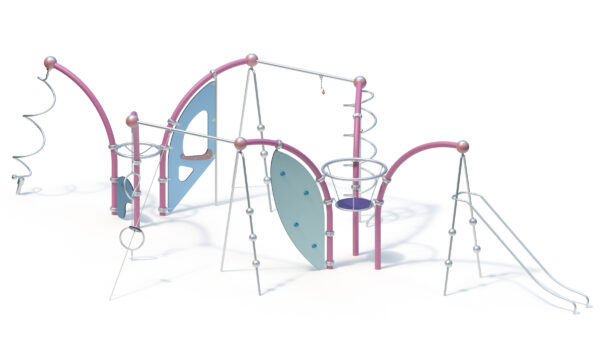

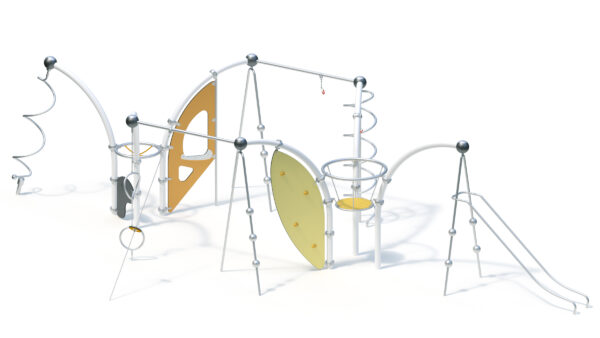

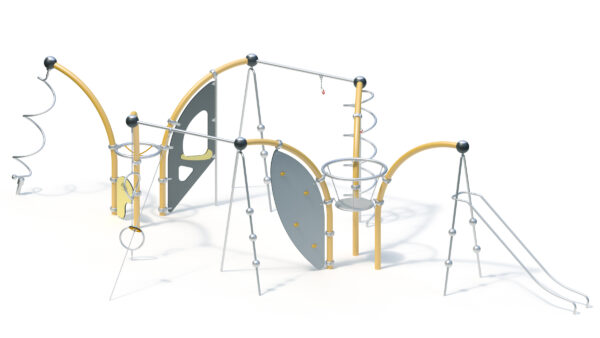

Technical data

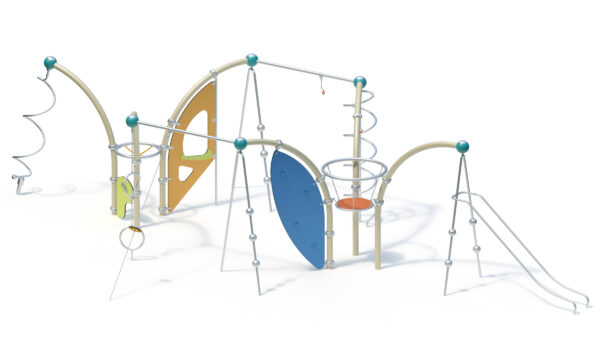

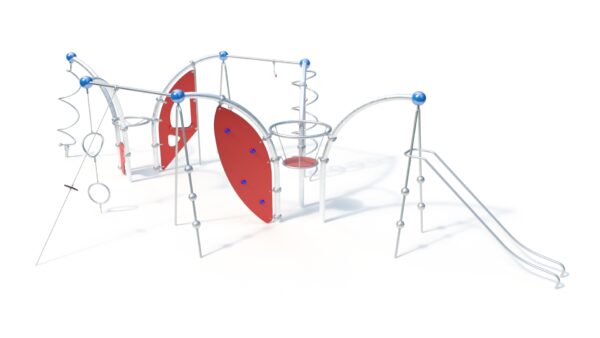

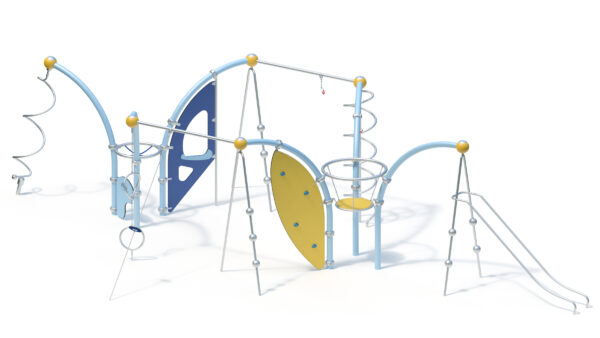

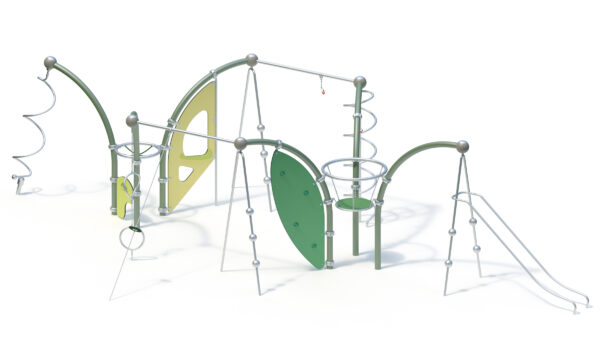

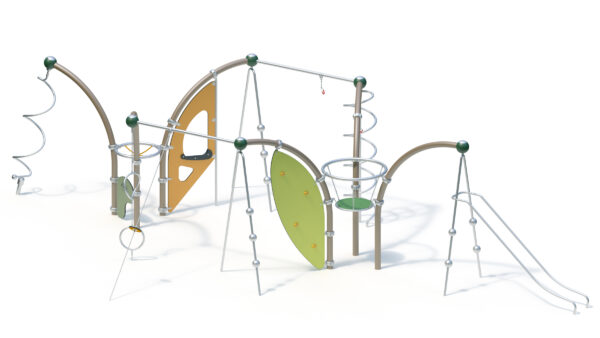

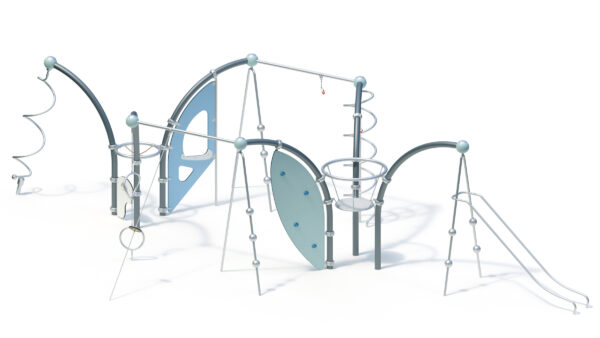

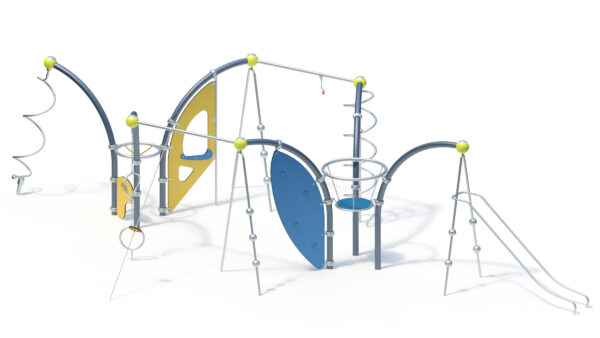

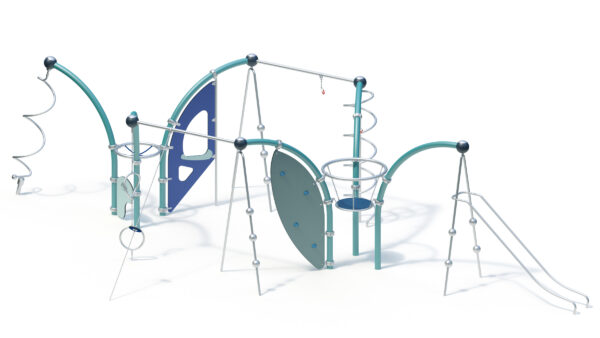

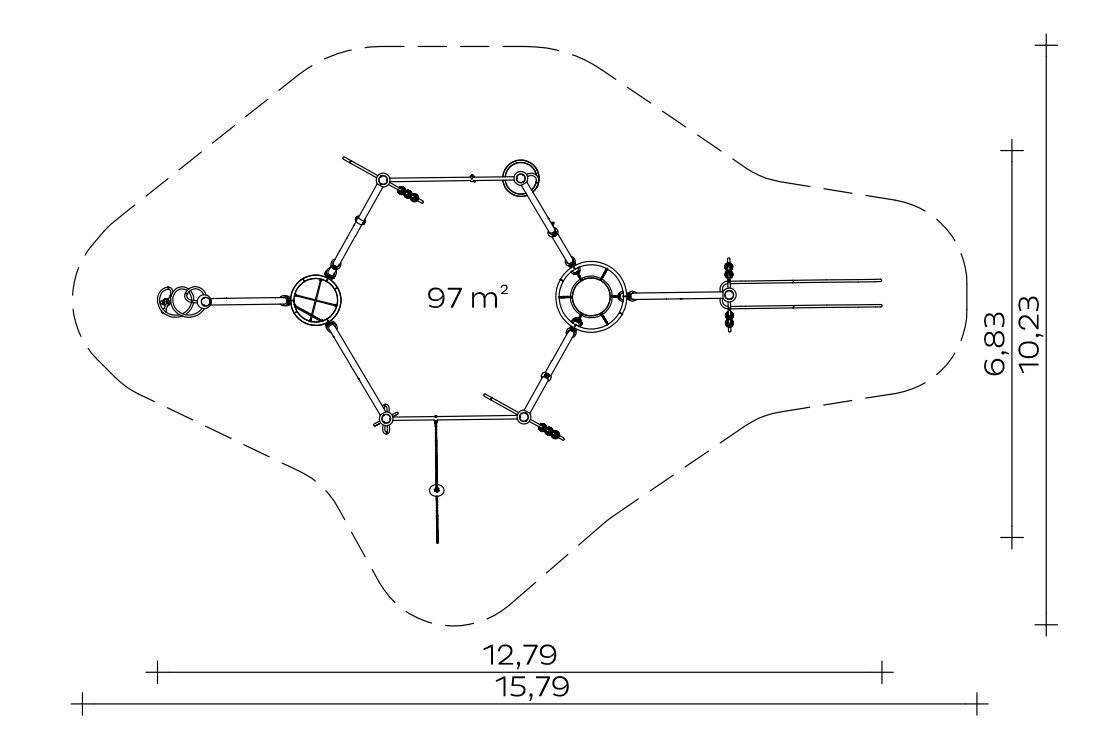

Floor area: 6.83 x 12.79 m
Minimum space: 10.23 x 15.79 m
Impact area: 97 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
1091 kg in total

Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Big Tornado
- Welded, spiral-shaped construction made of stainless steel tube with knurled base
- Roller bearings at the bottom and top: protected against interference and dirt
- Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete

Chill Wall
- Climbing wall made of highly weather-resistant HPL laminate colour red similar to RAL 2002, 20 mm.
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations

Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Monkey Rings
– Stainless steel ring combination Ø 38 mm – 1x flat/1x spatially twisted
– Suspension and connection with 7 mm stainless steel chains and swivel
– independently rotatable
– top: screw-on connection to Actio construction element
– below: deflection limited by chain with anchored and screwed ground connection

Monkey Slide
- Welded, partially bolted construction made of stainless steel tube Ø 42.4 mm
- Spherical stainless steel access elements
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Spring Slide
- Welded construction made of stainless steel tube Ø 42.4 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Climbing Wall
- Climbing wall made of highly weather-resistant HPL laminate, colour red similar to RAL 2002, 20 mm, with free climbing elements on both sides
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations

Hanging handle
- Stainless steel hanging handle with rubberised grip surface and Ø 6 mm chain
- Above: Connection to Actio construction element via aluminium clip (optionally powder-coated in RAL colour of choice)

Chill Disc
- Bearing-mounted stainless steel construction with a highly weather-resistant HPL laminate colour red similar to RAL 2002
- Suspension on 7 mm stainless steel chain
– top: screw-on connection to Actio construction element
– below: deflection limited by chain with anchored and screwed ground connection

Meeting Point
- Welded construction made of stainless steel tube Ø 60.3 mm with Hercules rope cross made of Ø16 mm Hercules rope with 6-strand steel core
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)

Wobble Disc
- Welded construction made of stainless steel tube Ø 60.3 mm with 6 mm chains
- Non-slip standing surface made of EPDM
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)

Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)

Number of components for optional powder coating
5 pipe bends 90°
1 pipe bend 75°
20 pcs. Aluminium clamp Ø 114 mm

Foundations (client-provided)
6 pcs. 1.30 x 0.50 x 0.50 m
1 piece 0.90 x 0.40 x 0.50 m
11 units 0.60 x 0.60 x 0.50 m
Concrete volume: 4.20 m³

Assembly time
3 fitters 9 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027461001
