Actio 307

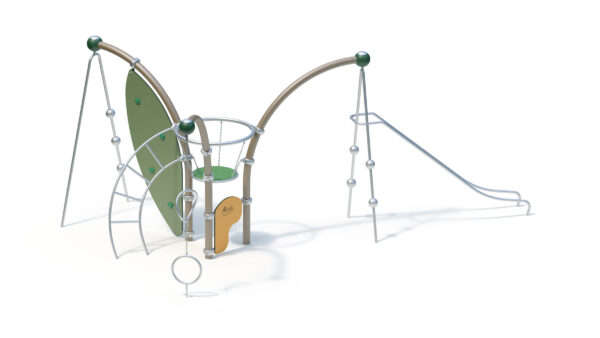

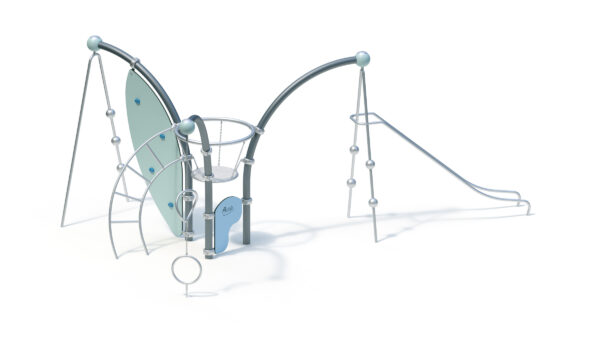

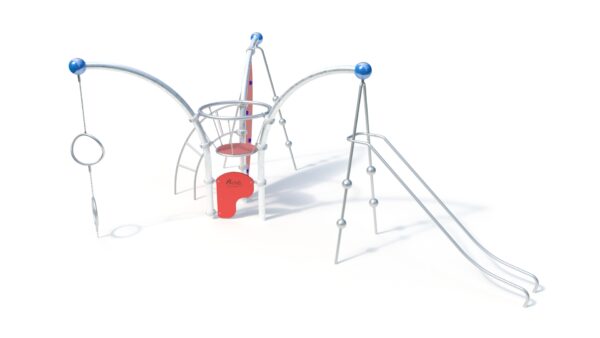

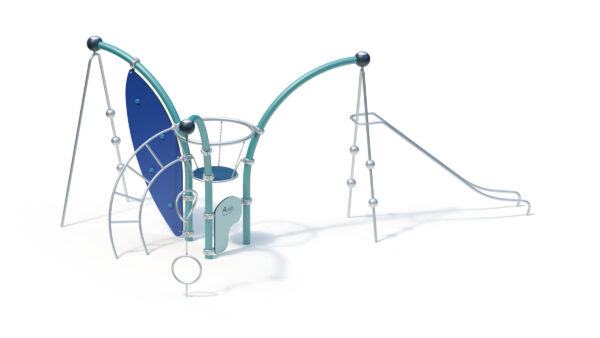

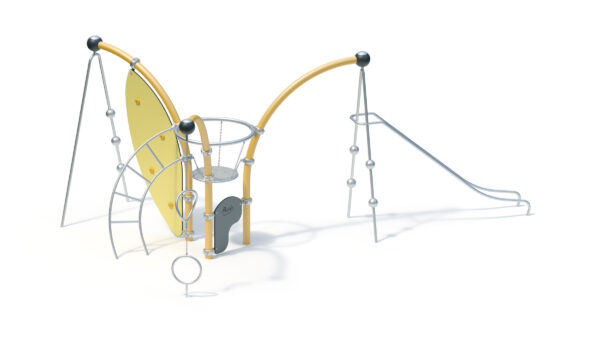

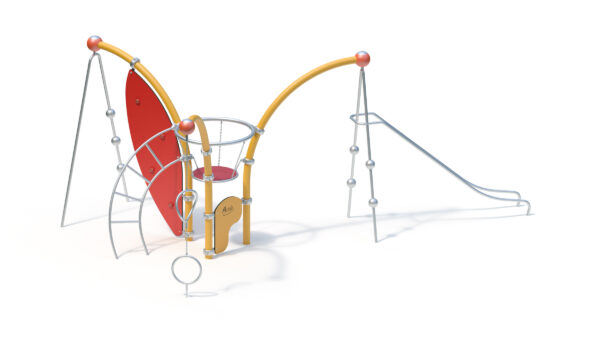

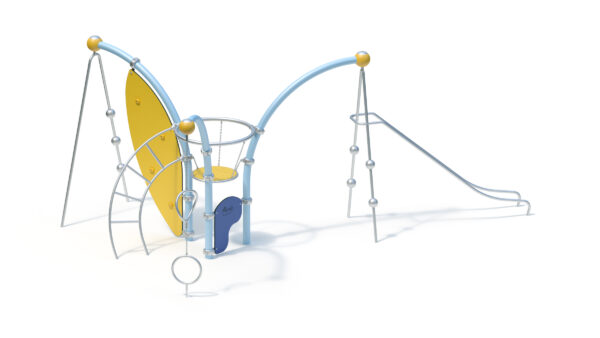

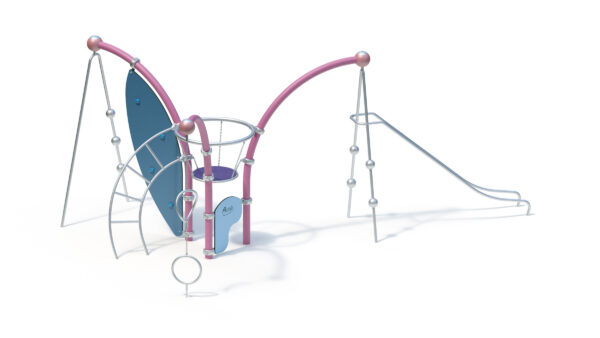

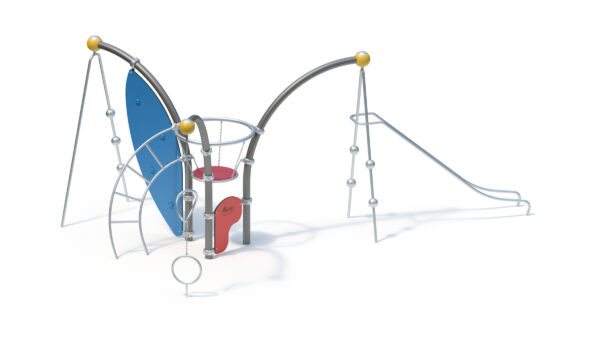

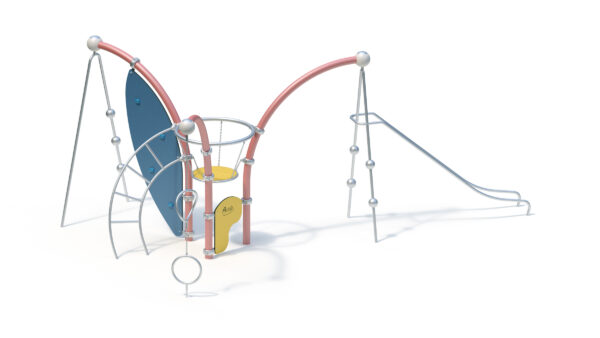

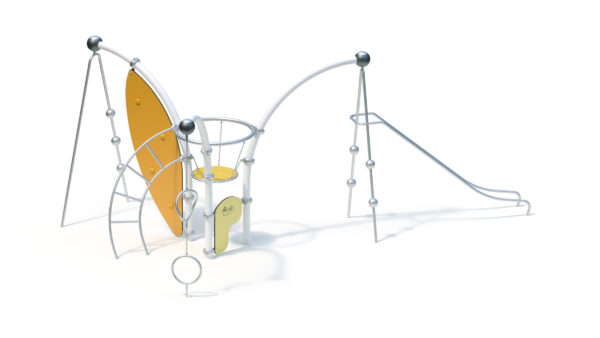

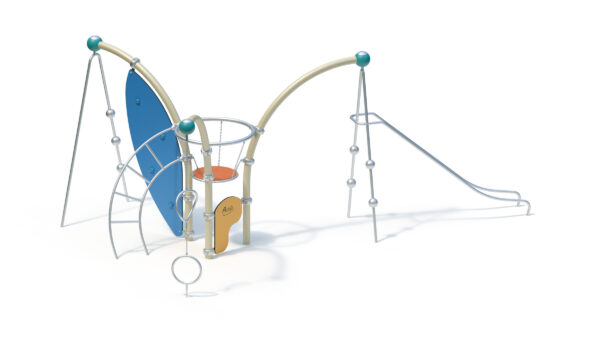

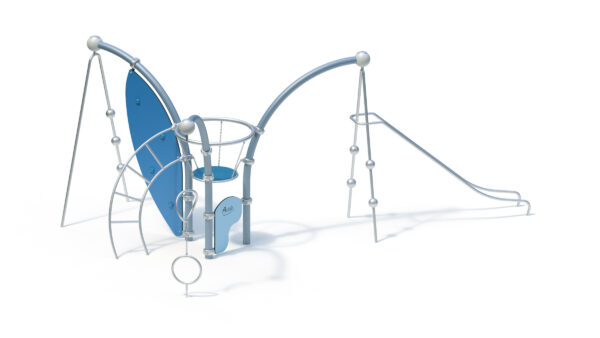

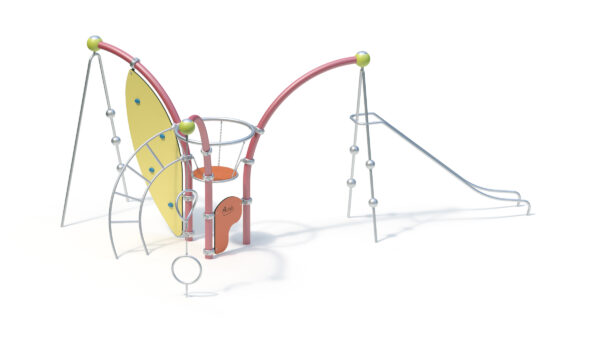

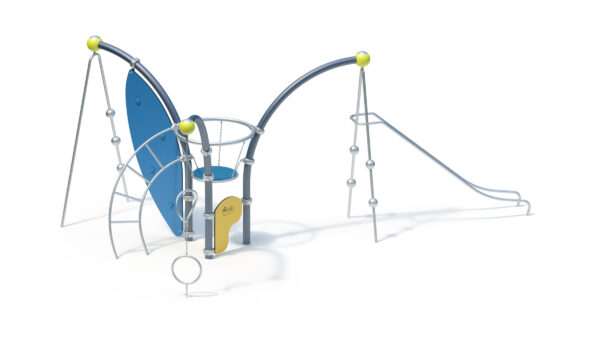

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 16 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 10,47 m |
|---|---|
| Minimum space width ? | 8,19 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 7,08 m |
| Equipment width ? | 5,44 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 498.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 5,0 h |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | - |
| Foundations | Quantity: 3 (1.3m x 0.5m x 0.5m) Quantity: 2 (0.9m x 0.4m x 0.5m) Quantity: 5 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

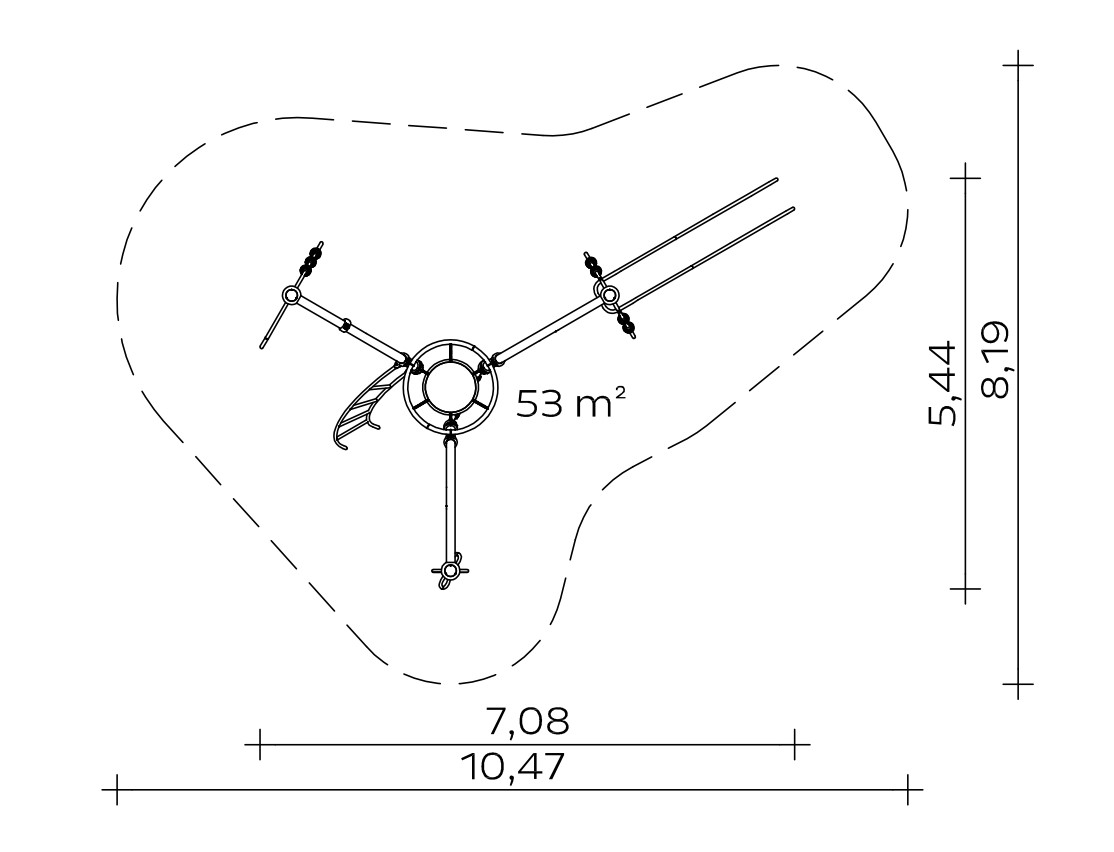

Equipment room: 7.08 x 5.44 x 2.93 m
Minimum space: 10.47 x 8.19 x 2.93 m
Impact area: 53 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
498 kg in total
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Monkey Slide
- Welded, partially bolted construction made of stainless steel tube Ø 42.4 mm
- Spherical stainless steel access elements
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Monkey Rings
- Ring combination made of stainless steel tube Ø 108 mm - 1x flat/1x spatially twisted
– Suspension and connection with 7 mm stainless steel chains and swivel
– independently rotatable
– top: screw-on connection to Actio construction element
– below: deflection limited by chain with anchored and screwed ground connection
Climbing Wall
- Climbing wall made of highly weather-resistant HPL laminate, colour red similar to RAL 2002, 20 mm, with free climbing elements on both sides
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations
Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Wobble Disc
- Welded construction made of stainless steel tube Ø 60.3 mm with 6 mm chains
- Non-slip standing surface made of EPDM
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Number of components for optional powder coating
3 pipe bends 90°
12 pcs. Aluminium clamp Ø 114 mm
Foundations (client-provided)
3 pcs. 1.30 x 0.50 x 0.50 m
2 pcs. 0.90 x 0.40 x 0.50 m
5 pcs. 0.60 x 0.60 x 0.50 m
Concrete volume: 2.30 m³
Assembly time
3 fitters 5 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027307001
