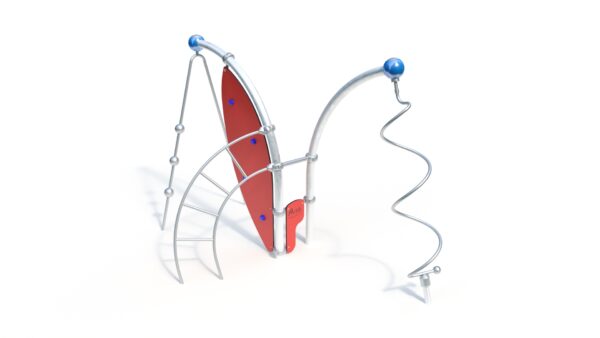

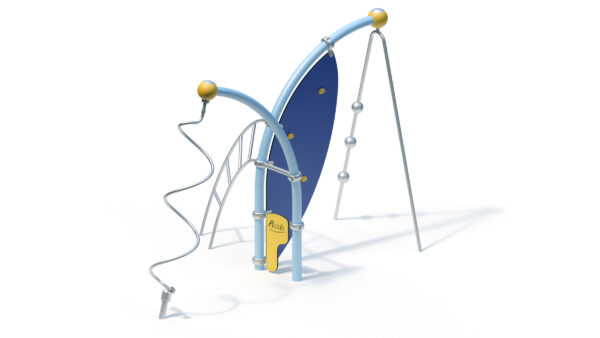

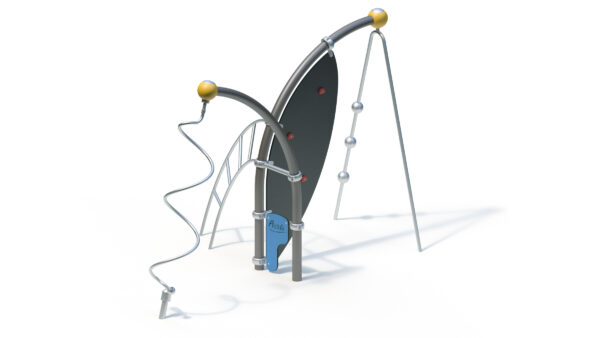

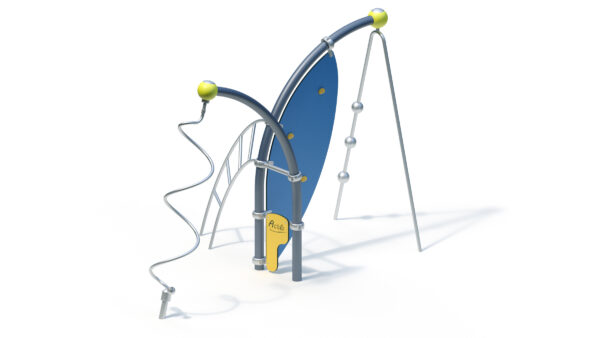

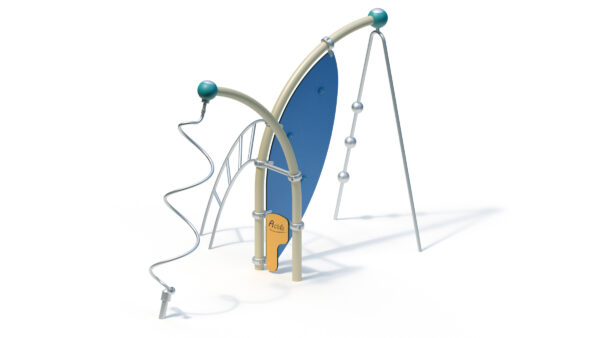

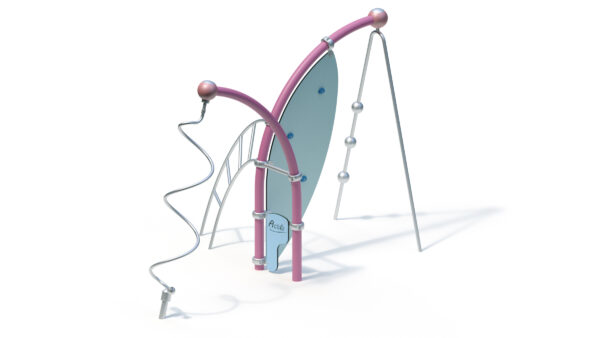

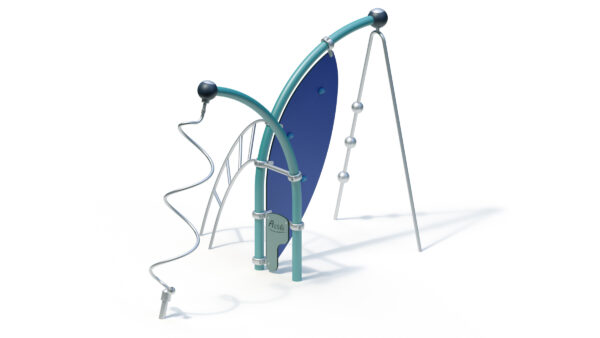

Technical data

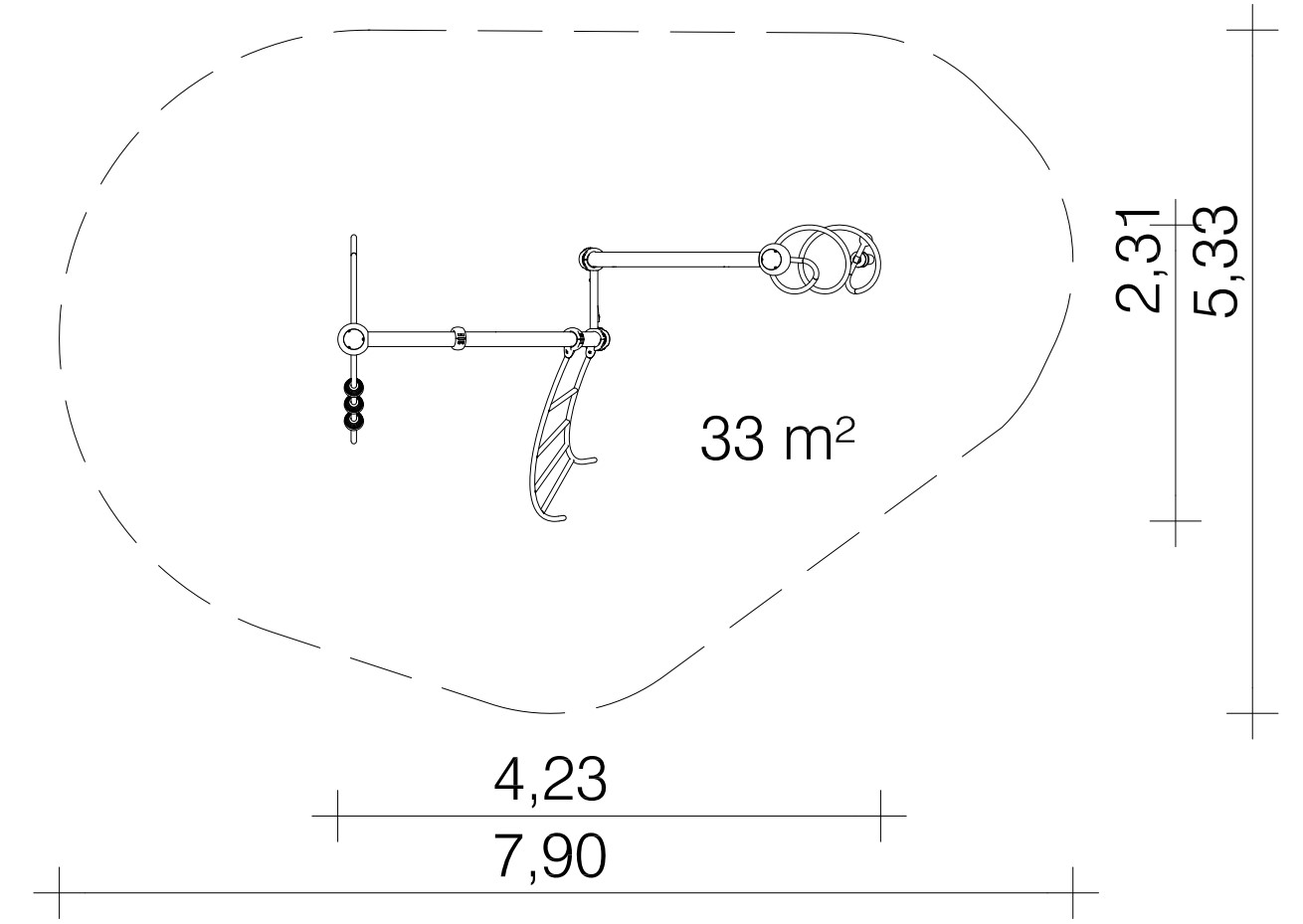

Equipment room: 4.23 x 2.31 x 2.93 m
Minimum space: 7.90 x 5.33 x 2.93 m
Impact area: 33 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
305 kg in total

Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Big Tornado
- Welded, spiral-shaped construction made of stainless steel tube with knurled base
- Roller bearings at the bottom and top: protected against interference and dirt
- Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete

Climbing Wall
- Climbing wall made of highly weather-resistant HPL laminate, colour red similar to RAL 2002, 20 mm, with free climbing elements on both sides
- Above: Connection to Actio construction element using aluminium clip (optionally powder-coated in RAL colour of choice) and a welded construction made of stainless steel tube Ø 38
– below: Fixation by site foundations

Climbing Pipe
- Welded construction made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations

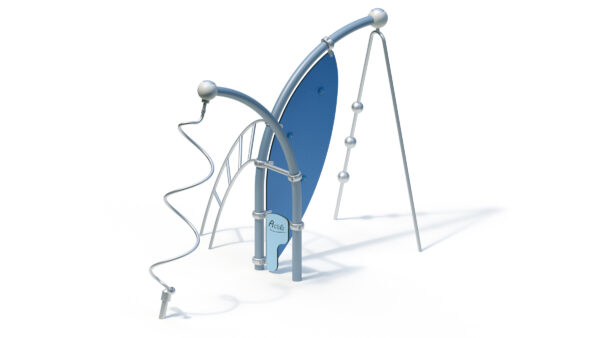

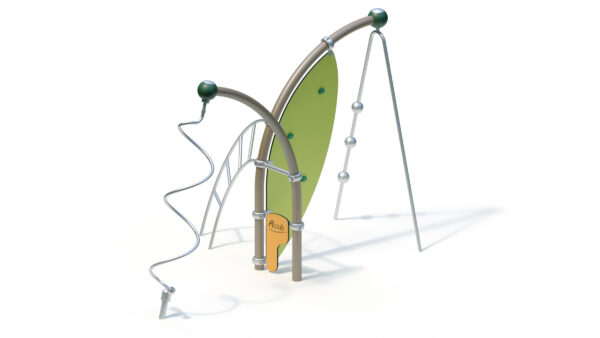

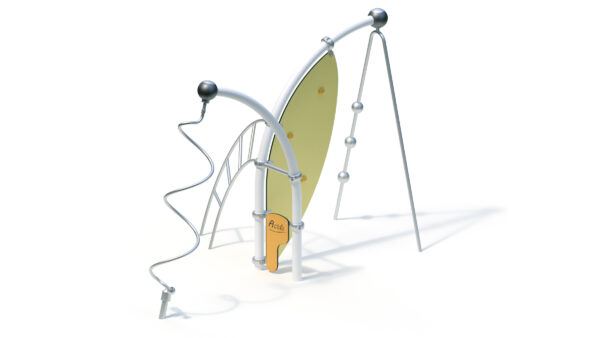

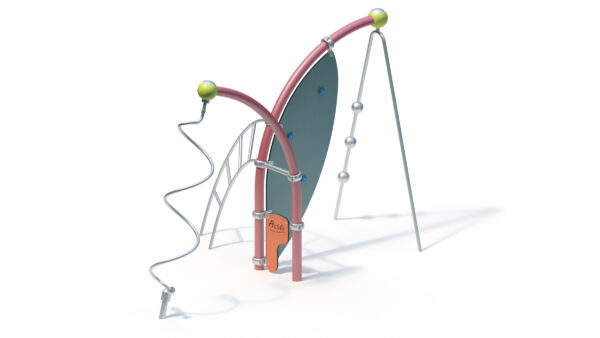

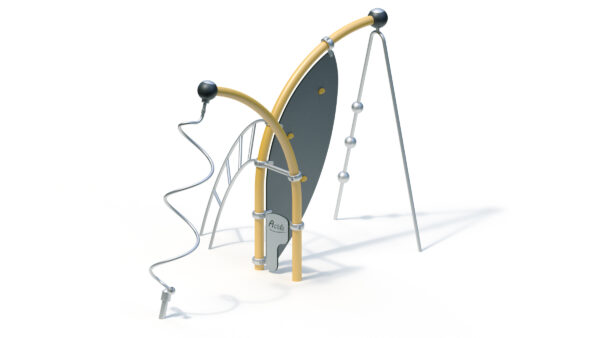

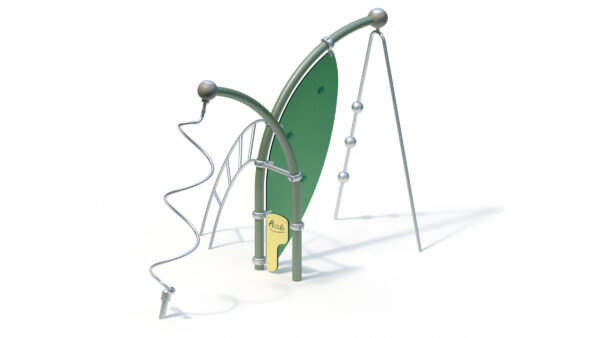

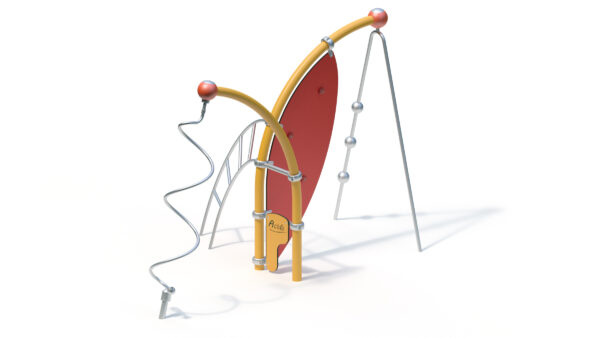

Number of components for optional powder coating
1 pc. 90° pipe elbow
1 pipe bend 75°
6 pcs. Aluminium clamp Ø 114 mm

Foundations (client-provided)
1 piece 1.70 x 1.00 x 0.50 m
1 piece 0.90 x 0.40 x 0.50 m
3 units 0.60 x 0.60 x 0.50 m
Concrete volume: 1.60 m³

Assembly time
2 fitters 4 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027237001
