Actio 125

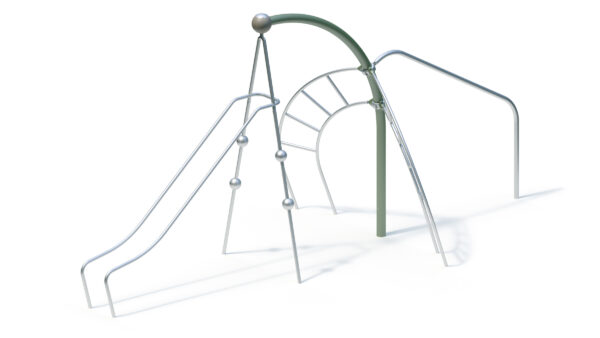

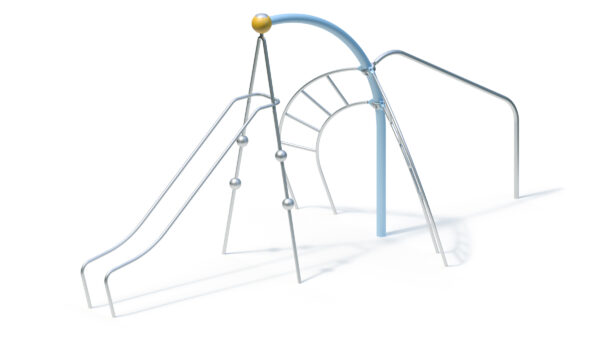

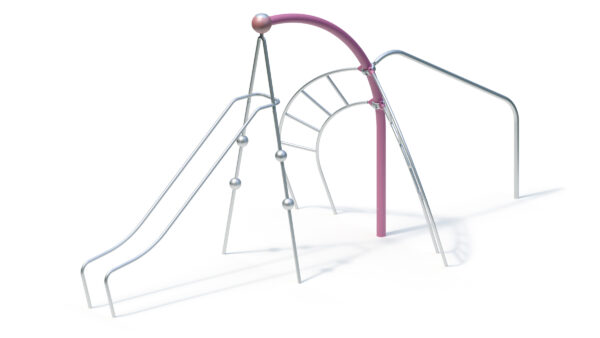

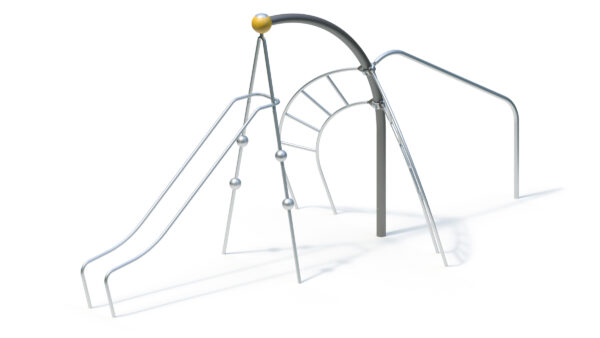

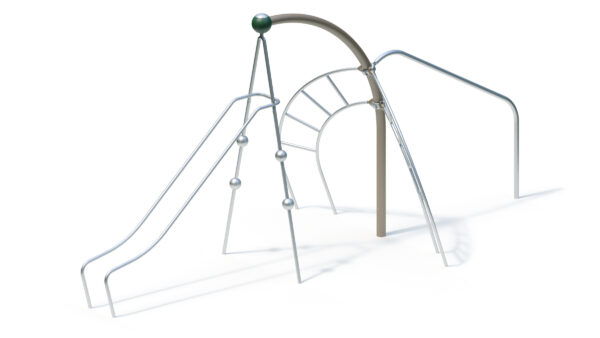

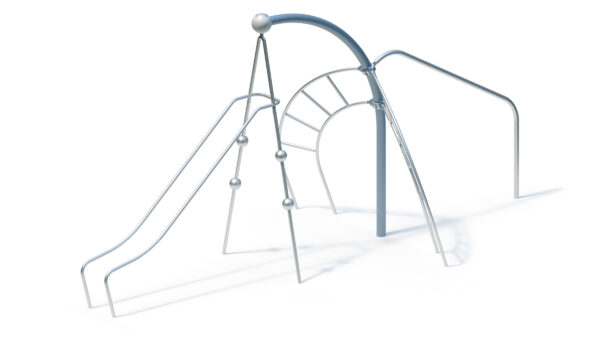

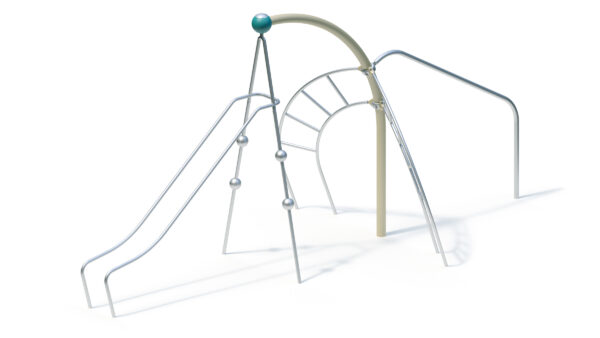

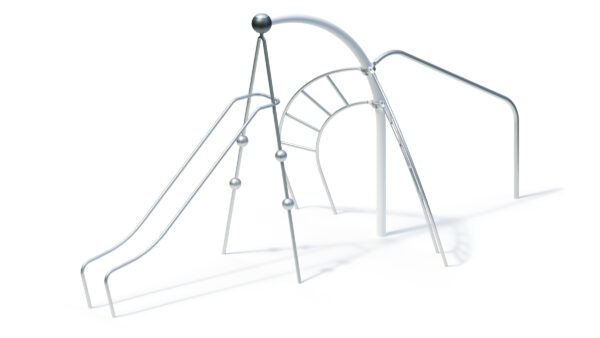

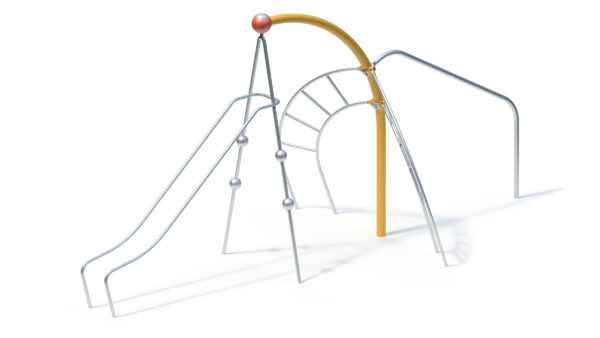

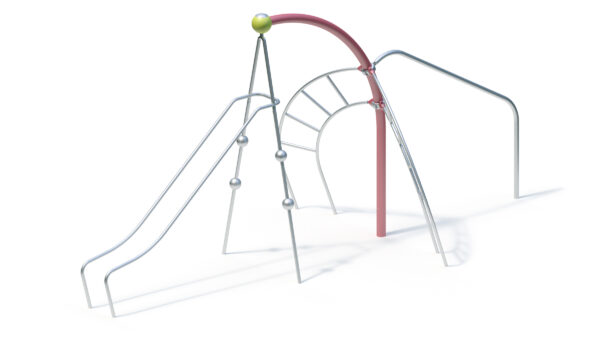

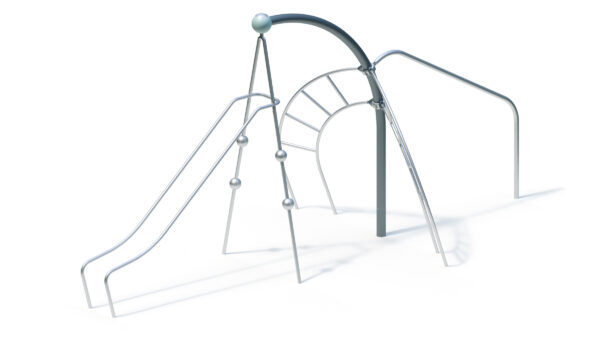

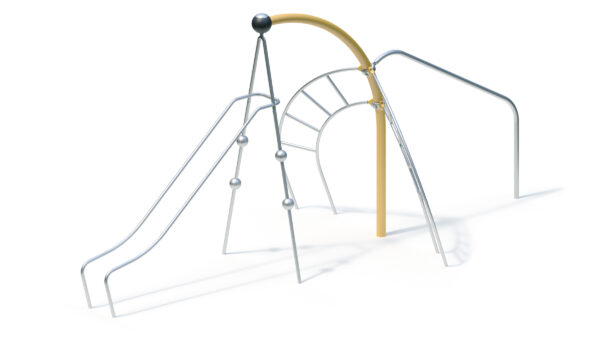

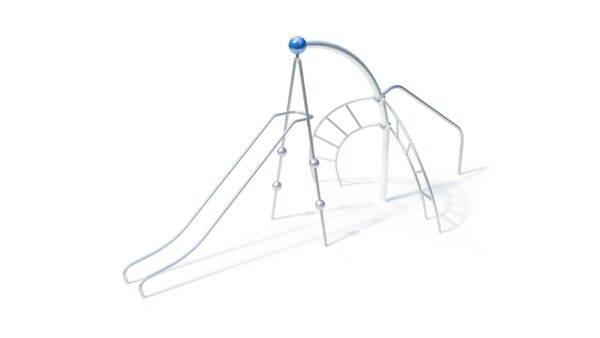

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 10 people |
| Activities ? | Balance, Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 9,81 m |
|---|---|
| Minimum space width ? | 5,97 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 6,80 m |
| Equipment width ? | 2,83 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 1,99 m |
| Platform heights | - |
| Total weight ? | 182.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (1.3m x 0.5m x 0.5m) Quantity: 1 (0.9m x 0.4m x 0.5m) Quantity: 3 (0.6m x 0.6m x 0.5m) Quantity: 2 (0.7m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

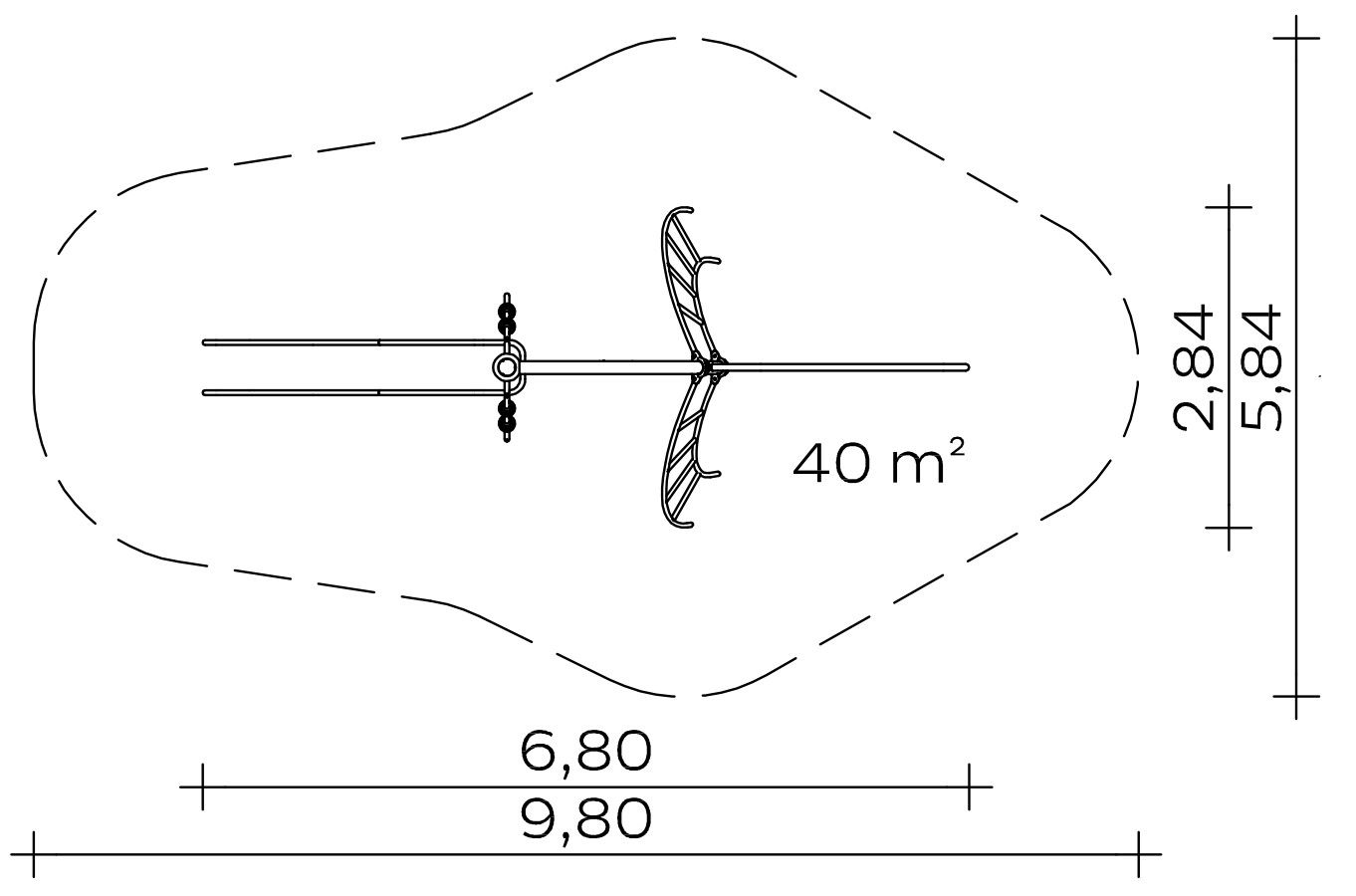

Equipment room: 6.80 x 2.83 x 2.93 m
Minimum space: 9.81 x 5.97 x 2.93 m
Impact area: 40 m²
Total height: 2.93 m
Free fall height: 1.99 m
Weight: 67 kg heaviest individual part
182 kg in total
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Monkey Slide
- Welded, partially bolted construction made of stainless steel tube Ø 42.4 mm
- Spherical stainless steel access elements
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Pipe Slide
– Welded construction from stainless steel tube Ø 60.3 mm
– Connection to Actio construction element using an aluminium clamp (optional powder-coated in a RAL colour of your choice)
– below: Foundation with on-site footing
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Number of components for optional powder coating
1 pc. 90° pipe elbow
2 pcs. Aluminium clamp on Ø 114 mm
Foundations (client-provided)
1 piece. 1.30 x 0.50 x 0.50 m
1 piece 0.90 x 0.40 x 0.50 m
2 units 0.70 x 0.60 x 0.50 m
3 units 0.60 x 0.60 x 0.50 m
Concrete volume: 1.47 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 027125001
