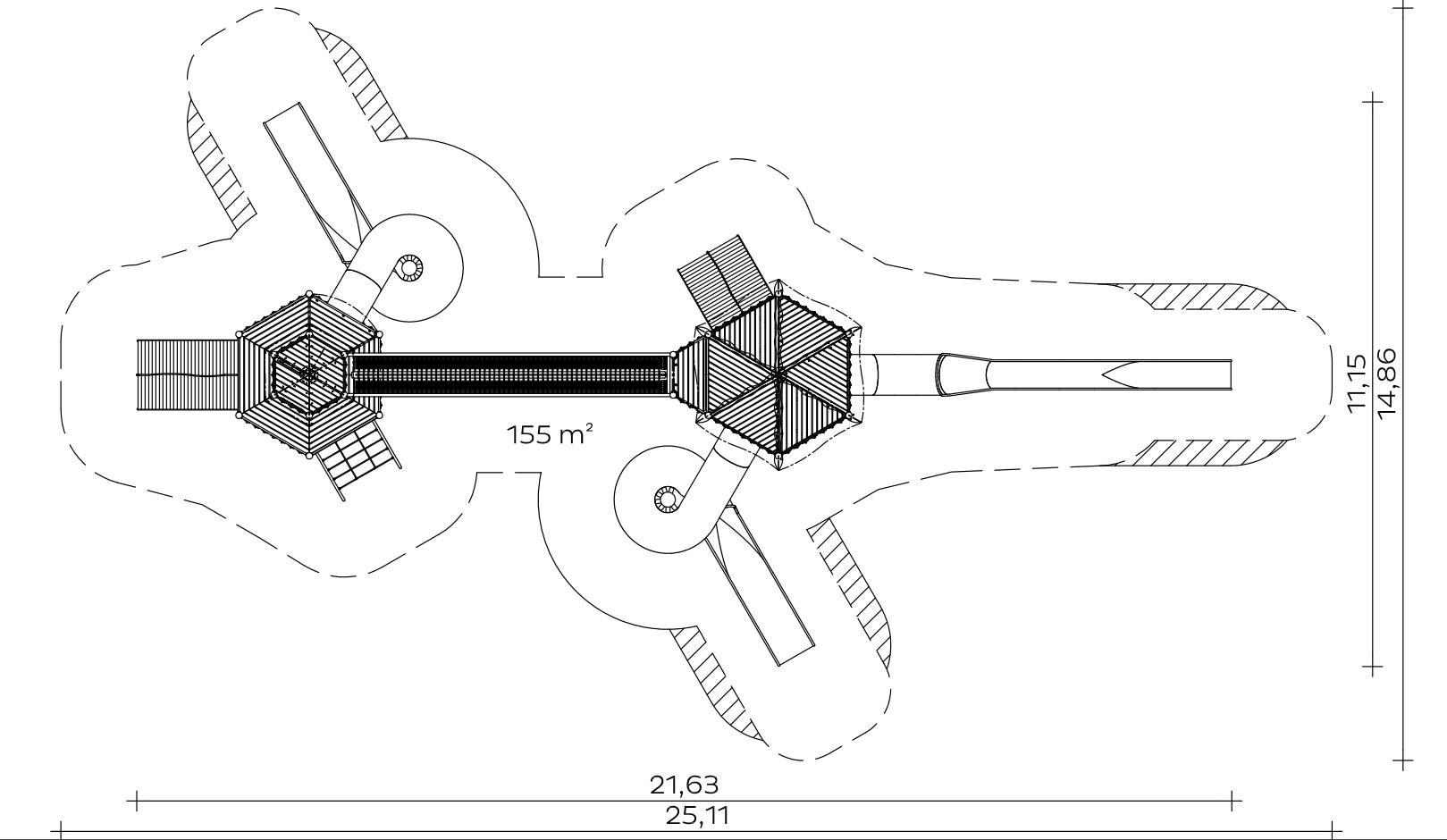

Support post
Stainless steel posts, Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.

Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm, from 1.50 m height with additional crossbar, 30 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Railing made of stainless steel tube, Ø 33.7 x 2 mm, non-rotating
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, non-rotating
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Harvester net made of Hercules rope on stainless steel frame Ø 16 mm
- Tower roof, pitch 72°, made of highly weather-resistant coloured HPL laminate, 13 mm
- Stainless steel canopy with mounting for wind chimes, edged for tower roof 6 x 72°, 1.5 mm, wind chimes pre-assembled at the factory
- Trapezoidal monopitch roof, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, including stainless steel edge cover (colour powder-coated)
- Edged stainless steel canopy for tent roof 6 x 45°, 1.5 mm
- Safety attachment for parapet tube, made of stainless steel tube Ø 20 x 2 mm, to prevent head catching points between the upper edge of the parapet and the inner roof surface
- Tunnel spiral chute 30°/’38° made of stainless steel, 2.5 mm, particularly quiet due to tunnel shape, welded into a three-part chute spiral around a centre pylon for transport reasons, spiral 300° to the right, incl. corresponding connecting flanges for assembly on site
- Tunnel slope slide 30°, installation height 3.00 m, straight course, slide segments made of stainless steel, particularly quiet due to tunnel or trough shape, welded into a one-piece slide, with connection for a support post
- Stainless steel support post Ø 120 mm, with plug-in base
- Push rod made of stainless steel tube Ø 48.3 x 2.6, non-rotating
- Jungle bridge consisting of:
- Tamping rope Ø 125 mm, steel core as step rope
- Side nets and roof net made of Hercules rope Ø 16 mm, mesh size approx. 100 x 130 mm
- Connecting the rope crossing points with stainless steel wire rope clips
- Connection to mounting frame with pressed forks or eyebolts
- Ladder ascent made of stainless steel tube Ø 38 x 2 mm, rung height 500 mm, glass bead blasted, for subsequent attachment to platform floors or for foundation in the ground
- Prefabricated concrete foundation, rounded edges, two M12 threaded dowels

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

Item number: 025460500
