The 3D model is for spatial reference only. The colours may not match the selected variant.
Play structure

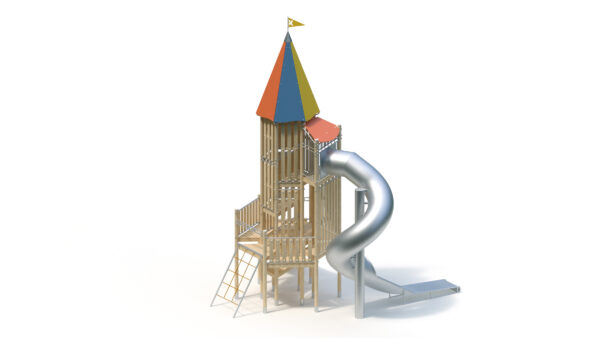

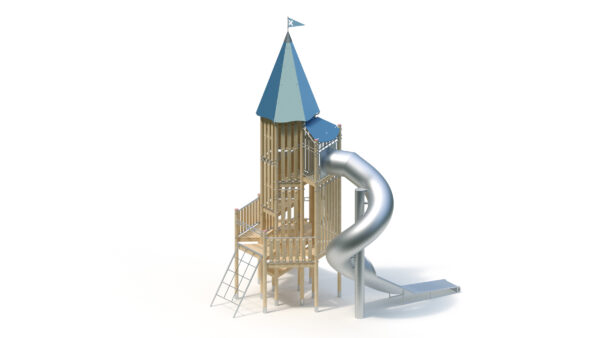

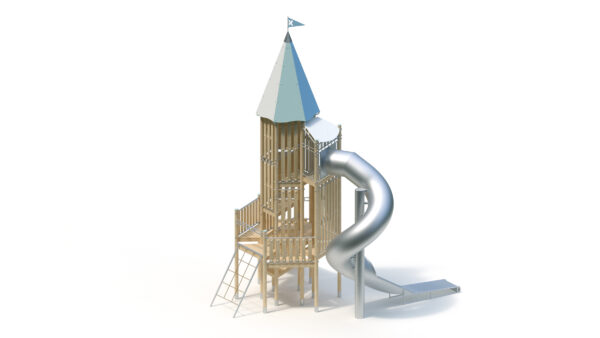

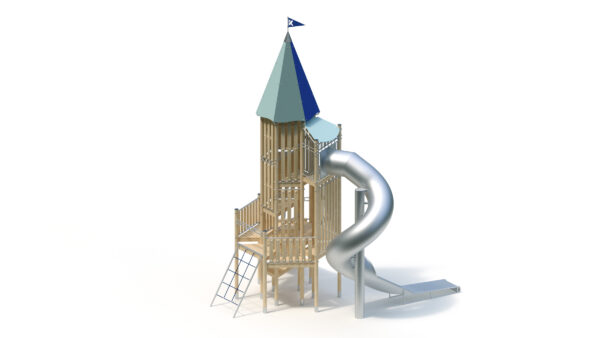

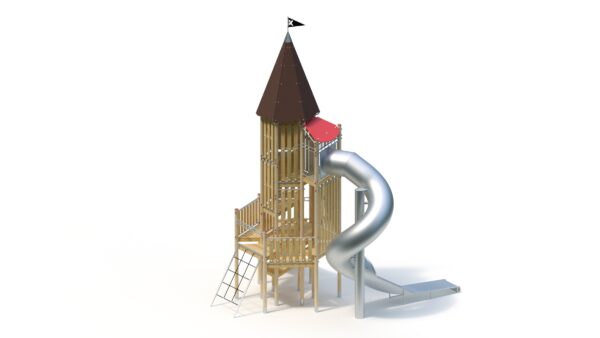

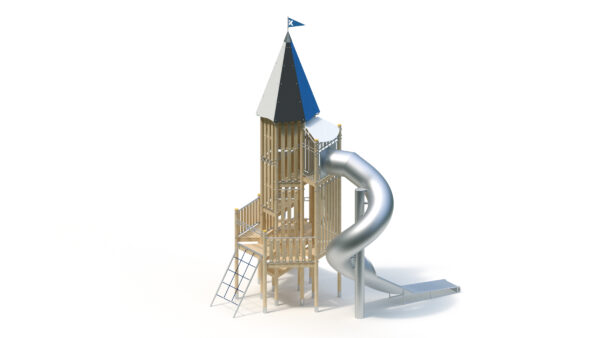

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 29 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 9,65 m |
|---|---|
| Minimum space width ? | 9,15 m |
| Minimum space height ? | 9,35 m |
| Equipment length ? | 6,65 m |
| Equipment width ? | 5,80 m |
| Equipment height ? | 9,35 m |
| Free-fall height ? | 2,00 m |
| Platform heights | - |
| Total weight ? | 3080.00 kg |
| Heaviest single part ? | 845.00 kg |
Assembly & Foundations
| Assembly time ? | 16,0 h |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 12 (0.5m x 0.5m x 0.6m) Quantity: 1 (0.8m x 0.8m x 1m) Quantity: 3 (1m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

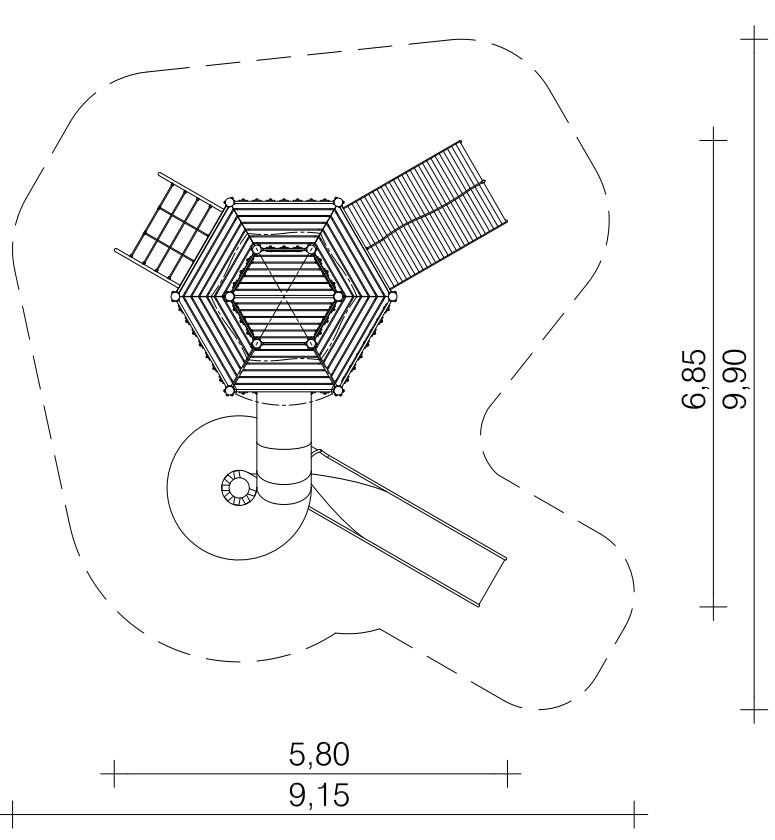

Floor area: approx. 5.80 x 6.85 m
Minimum space: approx. 9.15 x 9.90 m
Total height: 9.35 m
Platform height: 1.00 to 4.20 m
Seat height: 4.30 m
Support post
Posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps (blood orange/RAL 2002) made of stainless steel.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope Ø 18 mm (black)
- Harvester net made of Hercules rope on stainless steel frame Ø 16 mm (black)
- Climbing rung made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
- Tower roof, pitch 72°, made of highly weather-resistant HPL laminate (coffee bean), 13 mm, round eaves, with rotating flag with logo (blood orange/RAL 2002)
- Trapezoidal monopitch roof, made of highly weather-resistant HPL laminate (coffee bean), 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
Tunnel spiral slide
Mounting height: 4.20 m
Seat height: 4.30 m
Slide inclination: 30°/38°
Turning (right): 300°
Tunnel diameter: 0.80 m
Sliding plate thickness: 2.5 mm
Slide segments made of stainless steel, particularly quiet due to the tunnel shape, welded together to form a three-part slide coiled around a centre pylon for transport reasons, including corresponding connecting flanges to facilitate assembly on site.
Course: Turn 300° right
The robinia wood is coated with a water-repellent, breathable protective coatingSlide segments made of stainless steel, particularly quiet thanks to the tunnel shape. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps (red).
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
12 pcs. 0.50 x 0.50 x 0.60 m
1 piece 0.80 x 0.80 x 1.00 m
3 pcs. 1.00 x 0.40 x 0.40 m
Concrete volume: 3.03 m³
The foundation sizes specified in this offer correspond to the static requirements for medium-dissolvable soil types with a permissible soil pressure of at least σR,d = 100 kN/m². In the case of deviating soil conditions and installation in areas with high wind loads (deviating from German wind zone 2, corresponds to vref = 25.0 m/s) or high snow loads (deviating from German snow load zone 2, corresponds to sk ≥0.85 kN/m²), technical modifications to the construction of the product may be necessary (e.g. insertion of cross bracing). This will result in additional costs and an extension of the specified delivery time.
At the Client's request, Kaiser & Kühne may commission a recognised engineering firm to carry out the necessary structural calculations. The resulting costs shall be borne by the Client. The required evidence of the local conditions shall be provided by the Client.
Assembly time
3 fitters 10 hours each, plus lifting gear
(without foundation)
Free fall height
2,00 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 025300702
