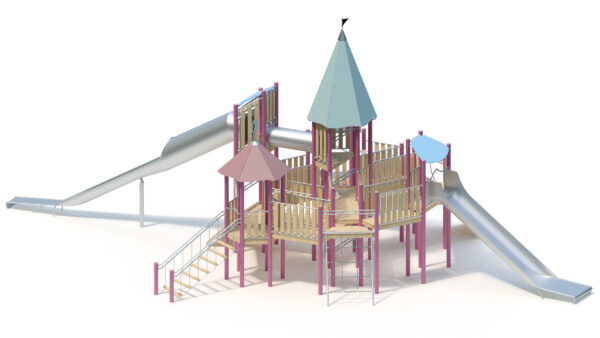

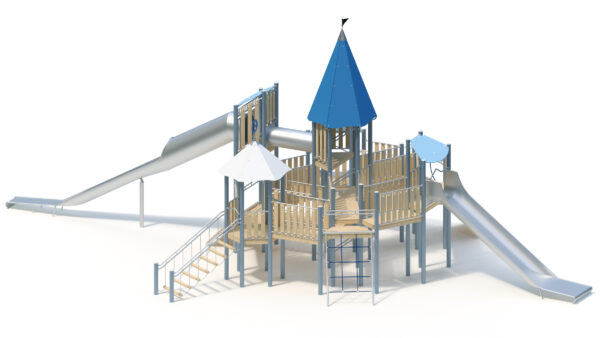

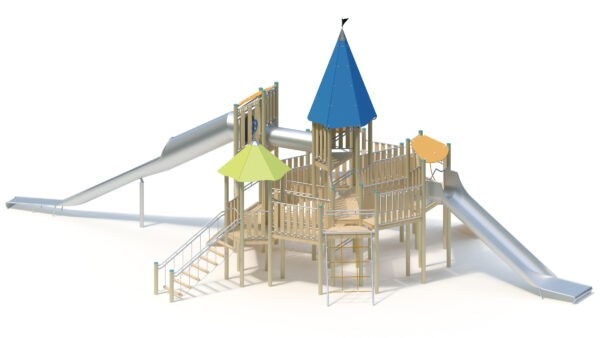

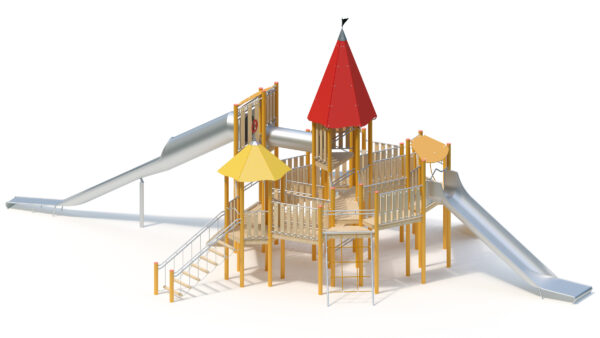

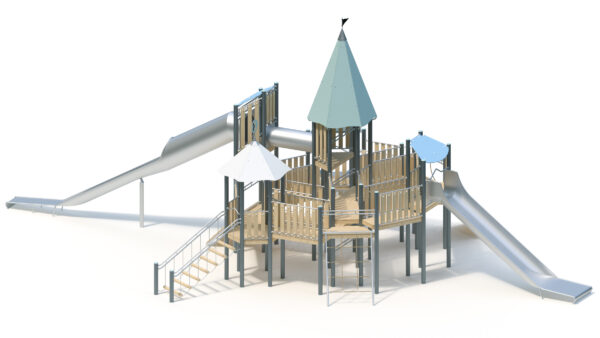

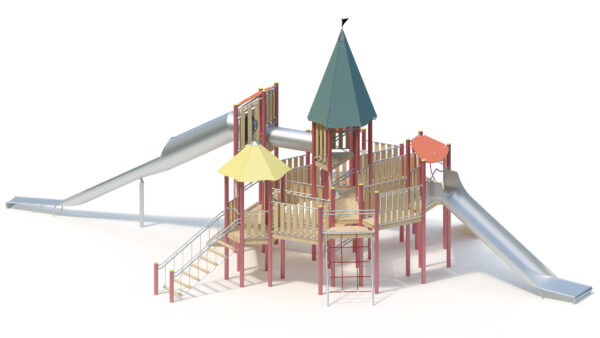

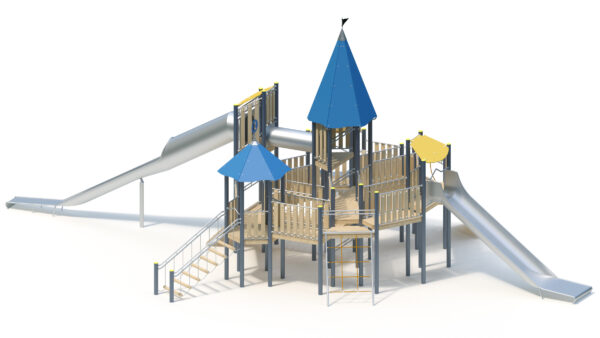

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

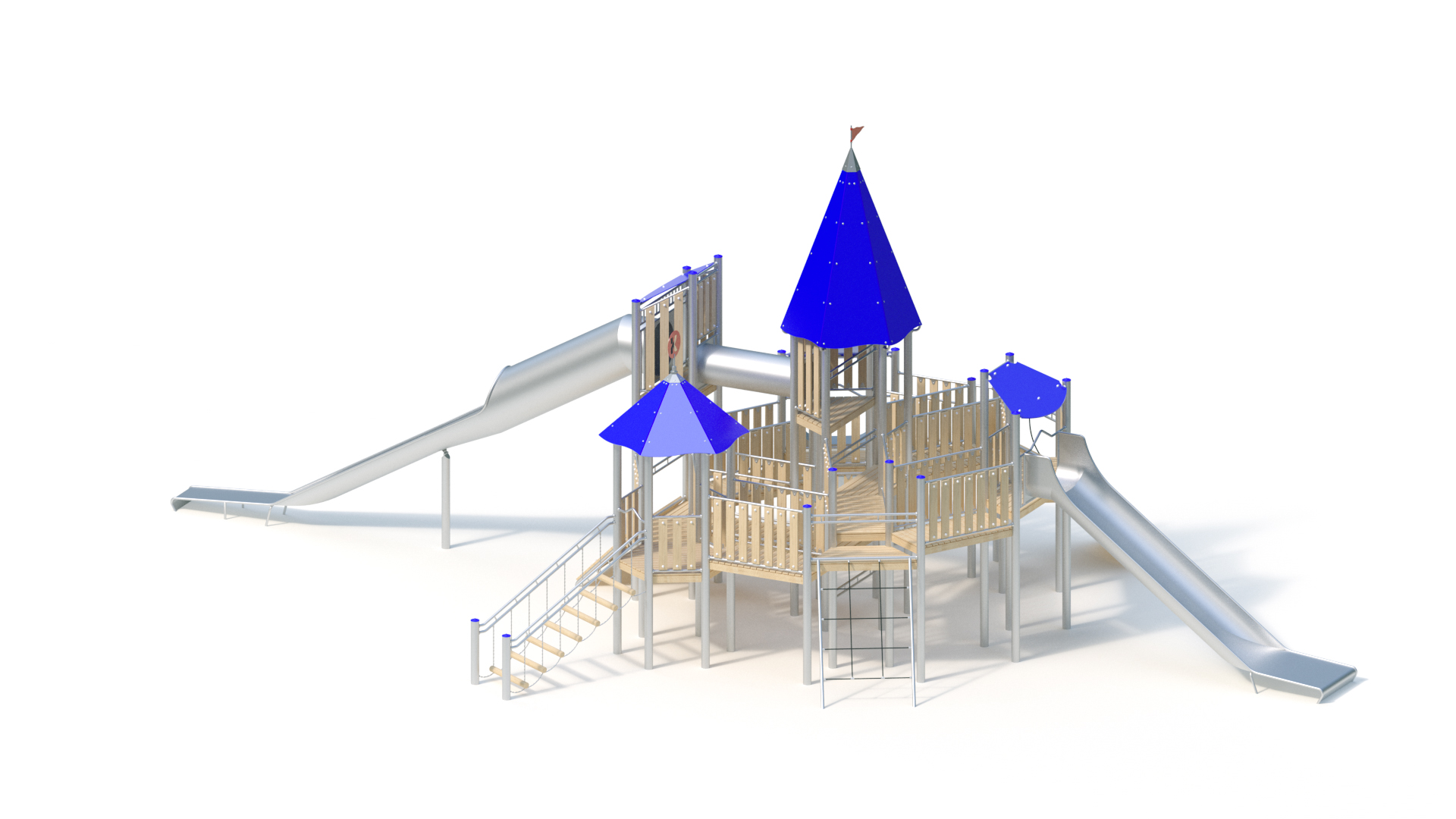

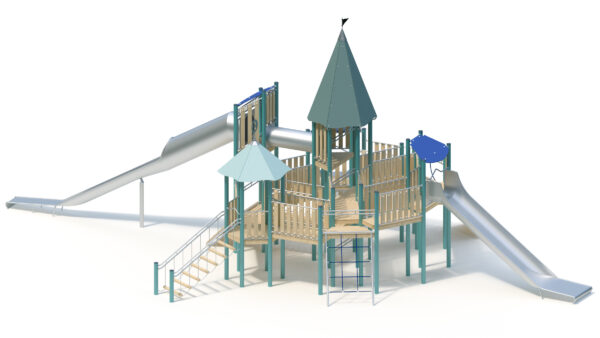

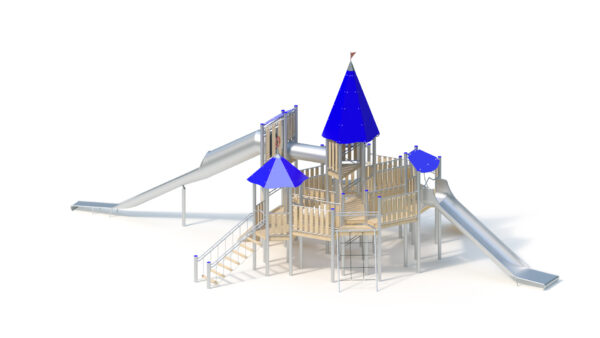

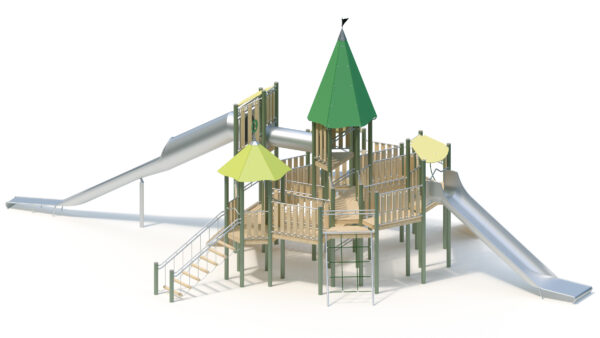

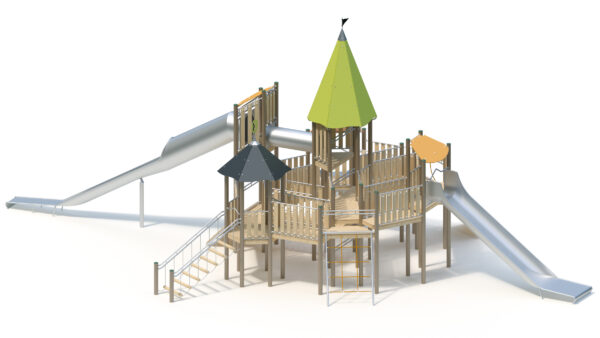

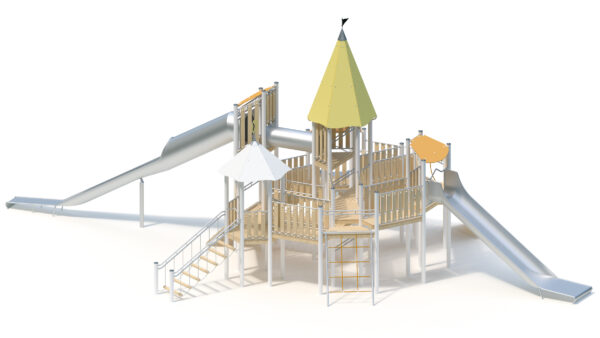

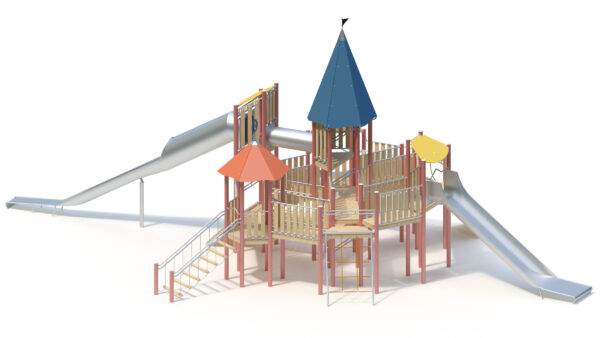

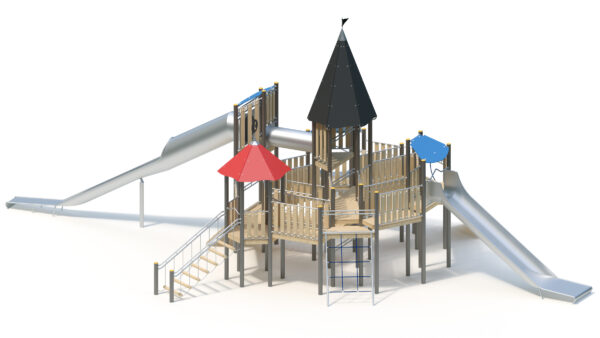

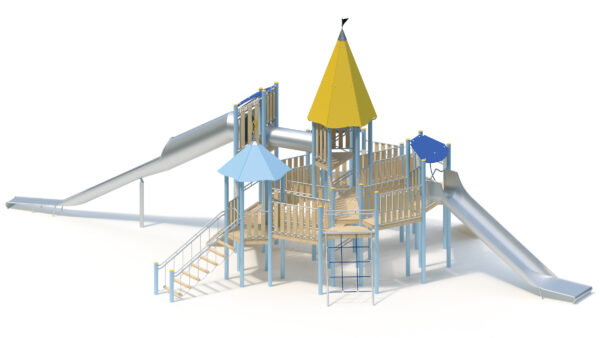

Play castle
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 56 persons |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Device length ? | 18,30 m |
|---|---|
| Device width ? | 11,00 m |
| Device height ? | 7,30 m |
| Free fall height ? | 2,30 m |
| Platform heights | - |
| Total weight ? | 4750.00 kg |
| Heaviest single item ? | 340.00 kg |
| Minimum room length ? | 22,30 m |
| Minimum room width ? | 14,40 m |
| Minimum room height ? | 7,30 m |
Assembly & Foundations
| Assembly time ? | 25,0 h |
|---|---|
| Number of fitters ? | 4 persons |
| Lifting gear required | Yes |
| Foundations | 030x030x040 |
Product Downloads
Product description
Technical data

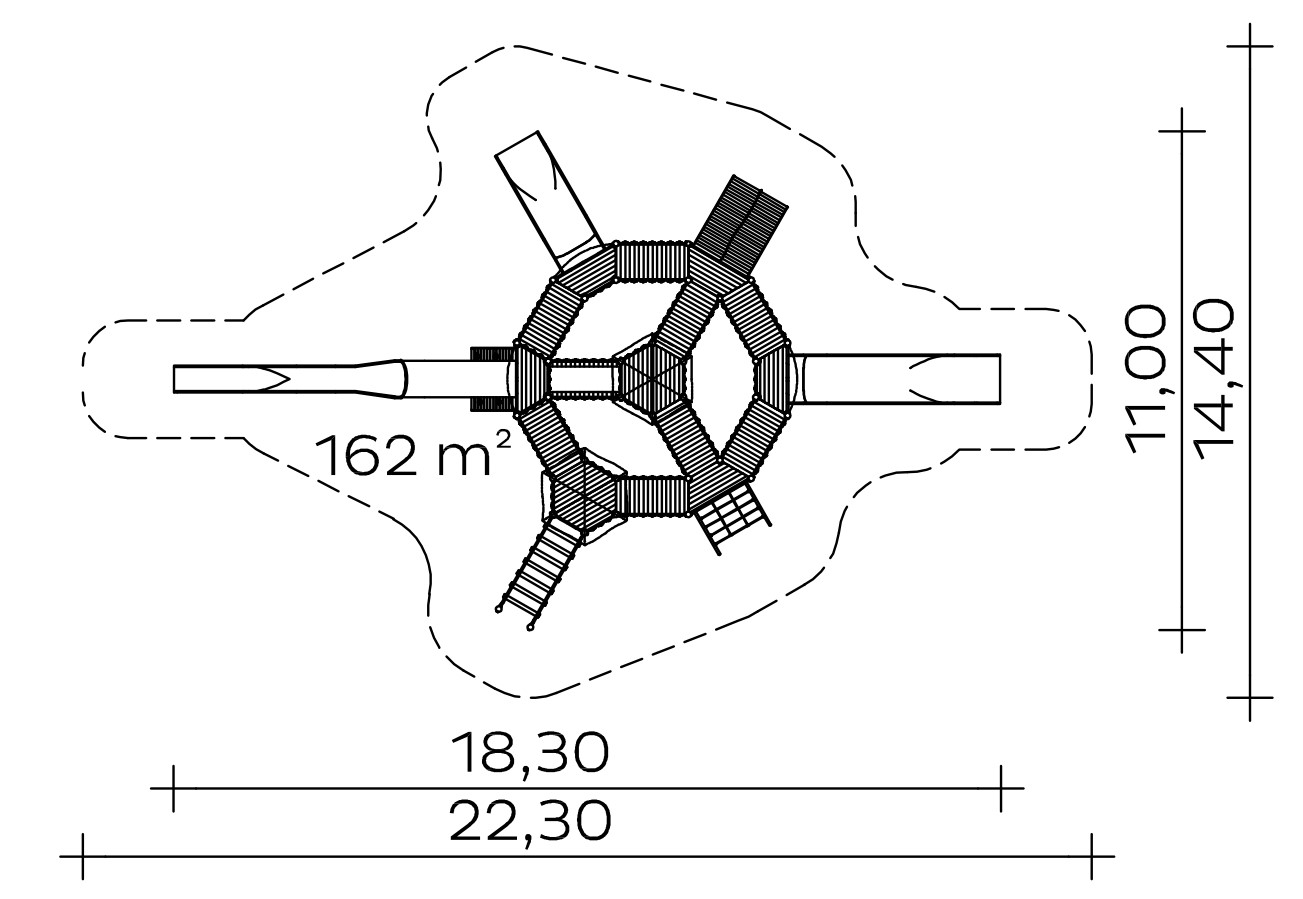

Floor area: 11.00 x 18.30 m
Minimum space: 14.40 x 22.30 m (162 m²)
Total height: 7.30 m
Platform height: 1.00 to 3.00 m
Seat height: 1.50/2.30/3.10 m
Weights: 340 kg heaviest individual part
4750 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Wooden balustrades made of robinia, 120 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Boarding net made of Hercules rope on stainless steel crossbar
- Climbing wall made of robinia wood 95 x 30 mm, with attached climbing elements made of HPL laminate board
- Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Wobbly staircase on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Trapezoidal monopitch roof, pitch 30°, made of highly weather-resistant HPL laminate (blue), 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tower roof, pitch 72°, made of highly weather-resistant HPL laminate (blue), 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, with tower flag (red/RAL 2002)
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate (brown), 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm with wind chimes made of stainless steel construction (red/RAL 2002)
- K&K add-on wide slide 1.40 m
Sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
Mounting height: 1.40 m
Seat height: 1.50 m
Slide inclination: 36°
Slide width: 1.10 m
One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the trough shape.
- K&K add-on wide slide 2.20 m
Sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
Mounting height: 2.20 m
Seat height: 2.30 m
Slide inclination: 36°
Sliding plate thickness: 2.5 mm
Slide width: 1.10 m
One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the trough shape.
- K&K tunnel slope slide 30°
Mounting height: 3.00 m
Seat height: 3.10 m
Slide inclination: 30°
Slide width: 0.60/0.80 m
Sliding plate thickness: 2.5 mm
Stainless steel slide segments welded together to form a one-piece slide with a particularly low-noise tunnel or trough shape.
Course: straight
Including K&K slope slide support post, stainless steel mounting flange.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
6 pcs. 0.30 x 0.30 x 0.40 m
34 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 1.40 x 0.75 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
1 piece 0.90 x 1.25 x 0.40 m
Concrete volume: 3.56 m³
Assembly time
4 fitters 25 hours each, plus lifting gear
(without foundation)
Free fall height
2,30 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 023840500
