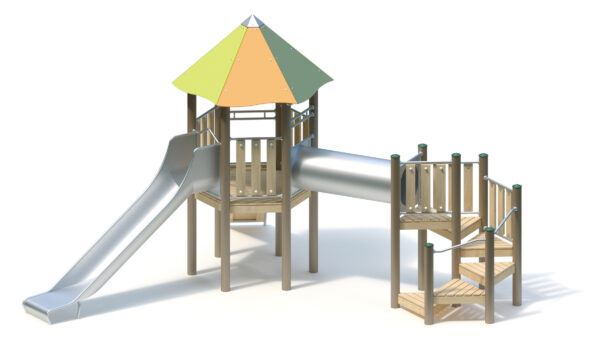

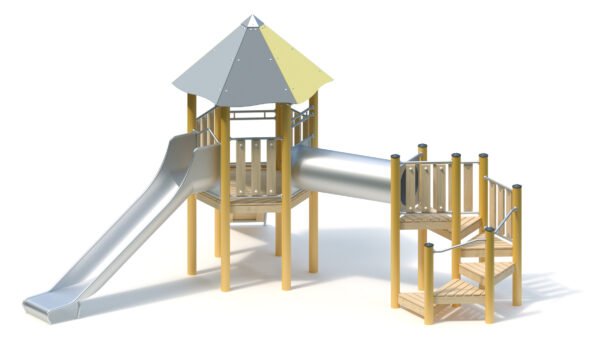

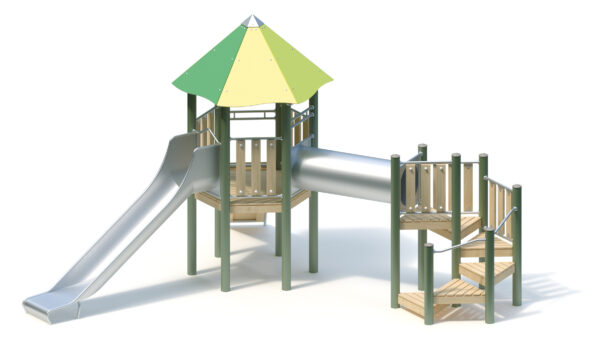

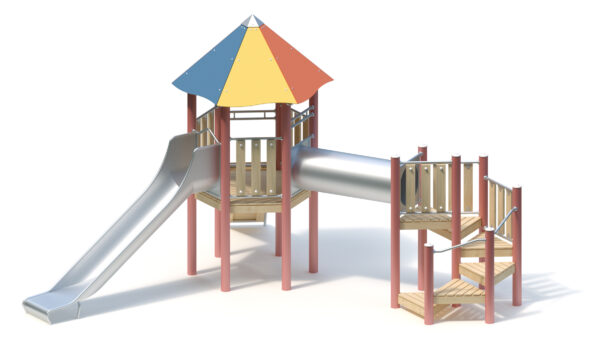

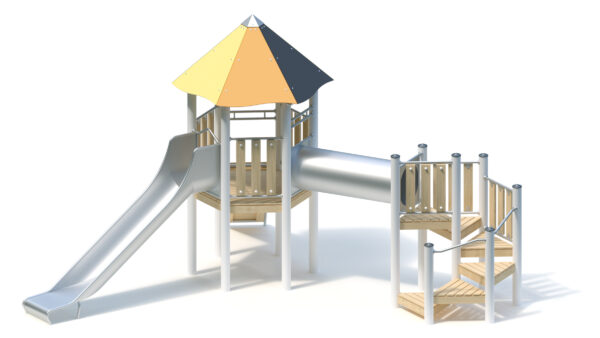

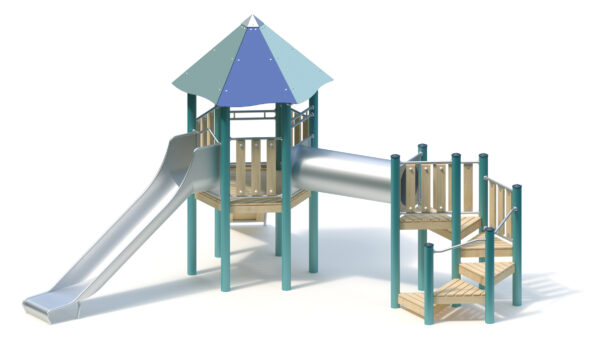

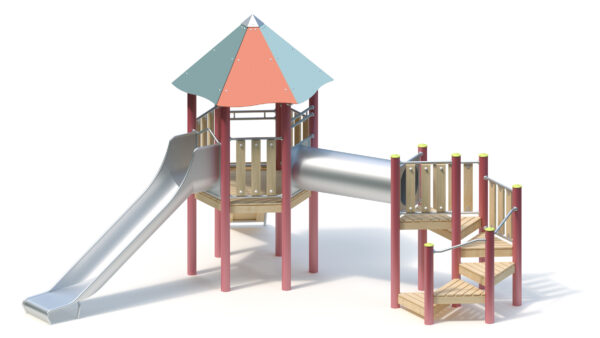

The 3D model is for spatial reference only. The colours may not match the selected variant.

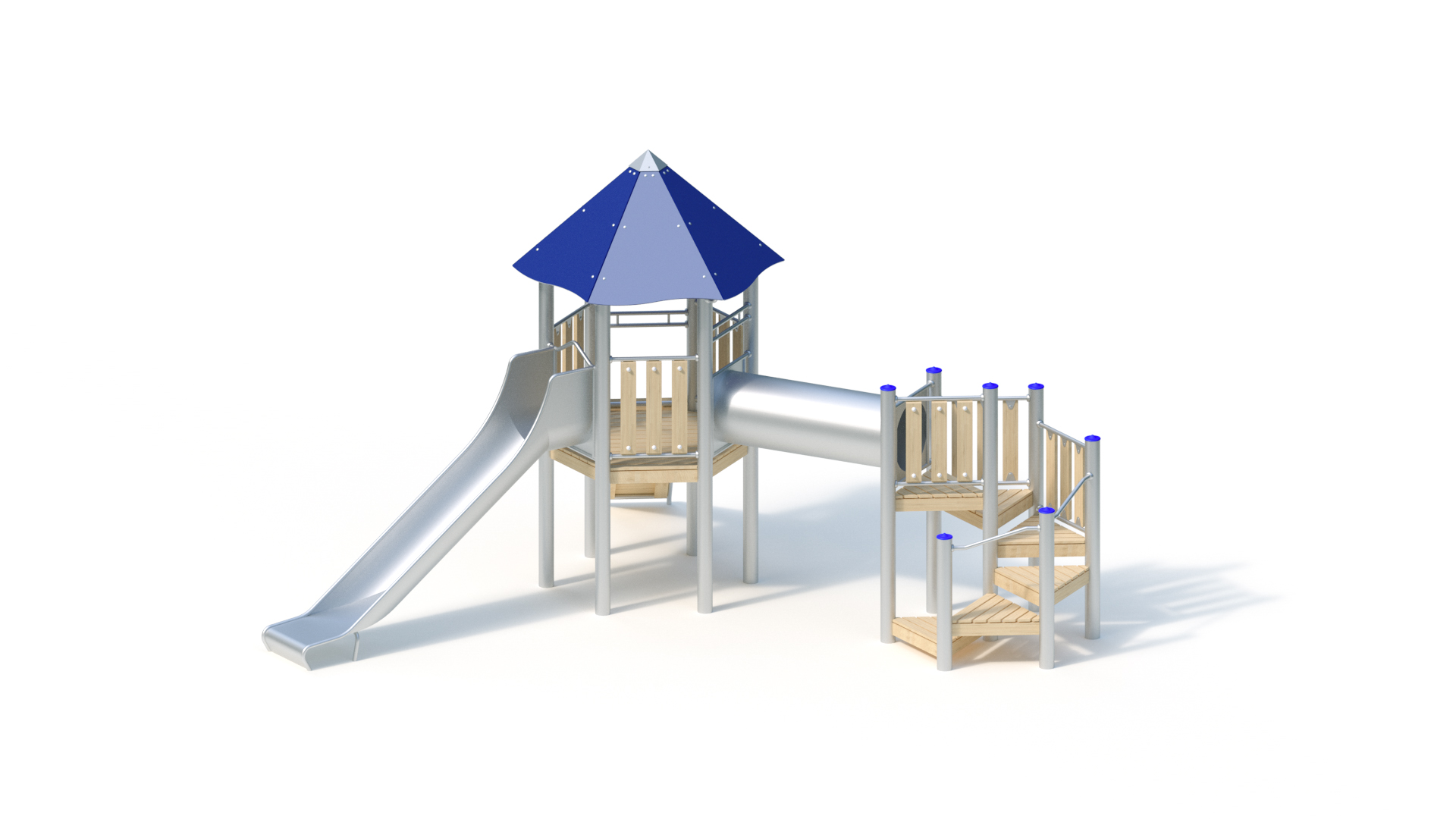

Play structure

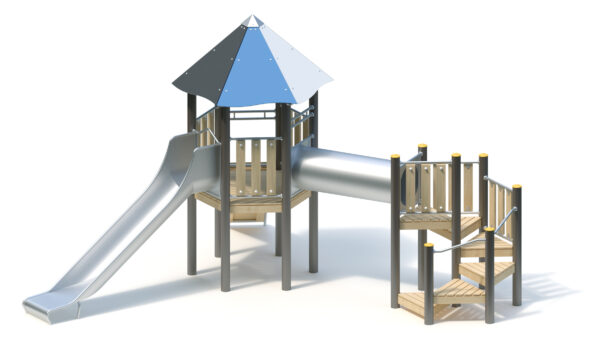

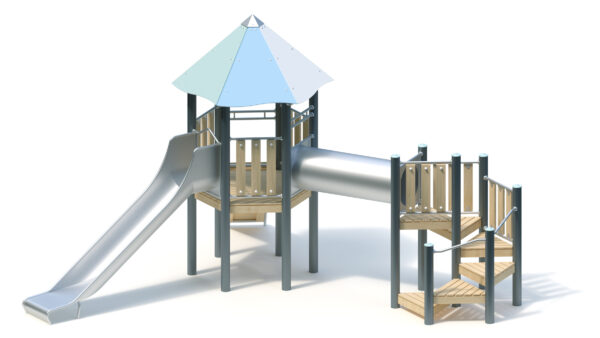

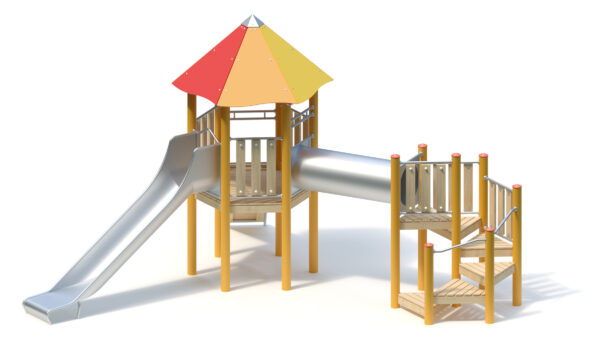

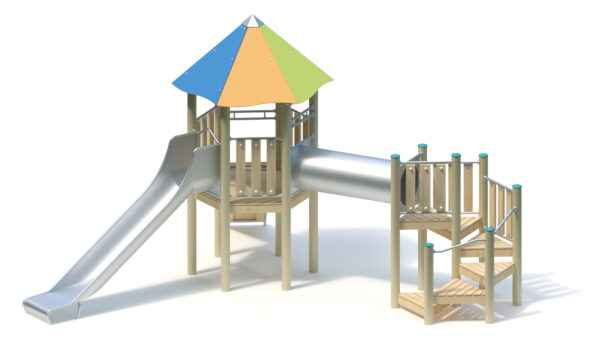

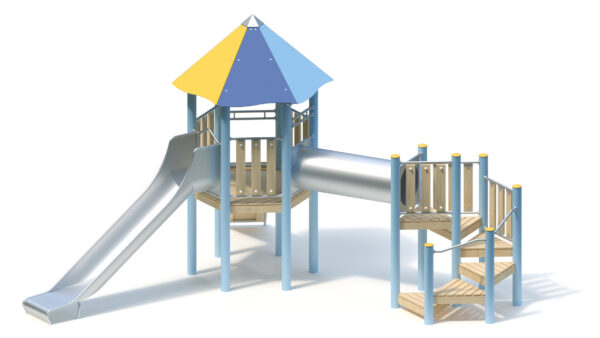

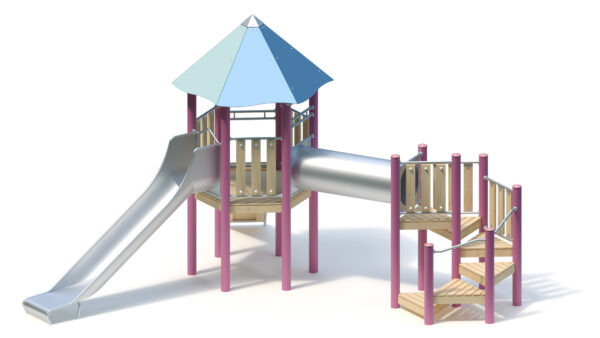

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 13 people |
| Activities ? | Physical activity, Slide |
Technical data
| Minimum space length ? | 8,90 m |
|---|---|
| Minimum space width ? | 8,30 m |
| Minimum space height ? | 3,60 m |
| Equipment length ? | 5,70 m |
| Equipment width ? | 4,90 m |
| Equipment height ? | 3,60 m |
| Free-fall height ? | 1,90 m |
| Platform heights | - |
| Total weight ? | 830.00 kg |
| Heaviest single part ? | 85.00 kg |
Assembly & Foundations
| Assembly time ? | 11,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 13 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

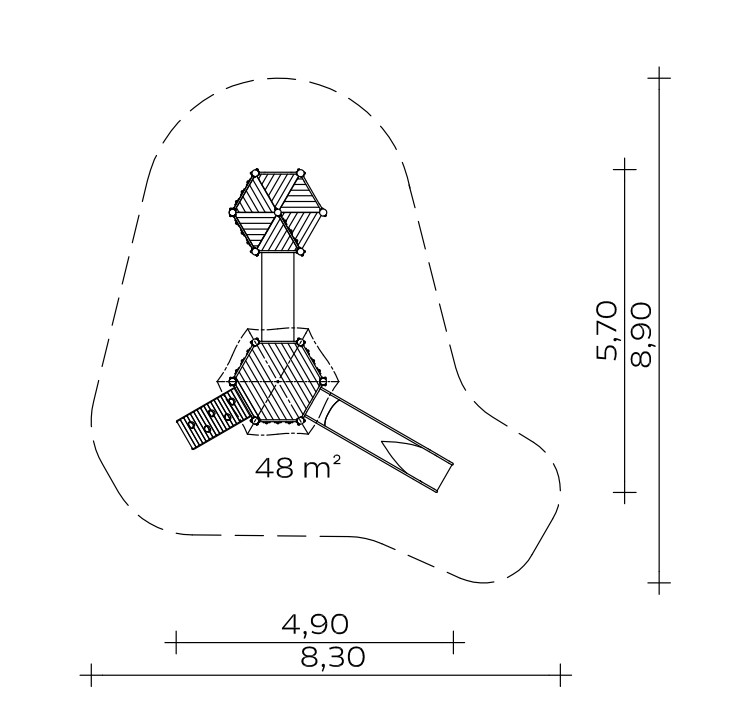

Floor area: 4.90 x 5.70 m
Minimum space: 8.30 x 8.90 x 3.60 m (48 m²)
Total height: 3.60 m
Platform heights: 0.20/0.40/0.60/0.80/1.00/1.20 m
Slide seat height: 1.30 m
Weight: 85 kg heaviest individual part
830 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wooden balustrade made of robinia, 120 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm, for stepped platform floors
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to stainless steel tube roof frame
Ø 33.7 x 2 mm
- Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate, 20 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
13 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.02 m³
Assembly time
2 fitters 11 hours each
(without foundations), plus lifting gear
Free fall height
1,90 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities
Item number: 021637501
