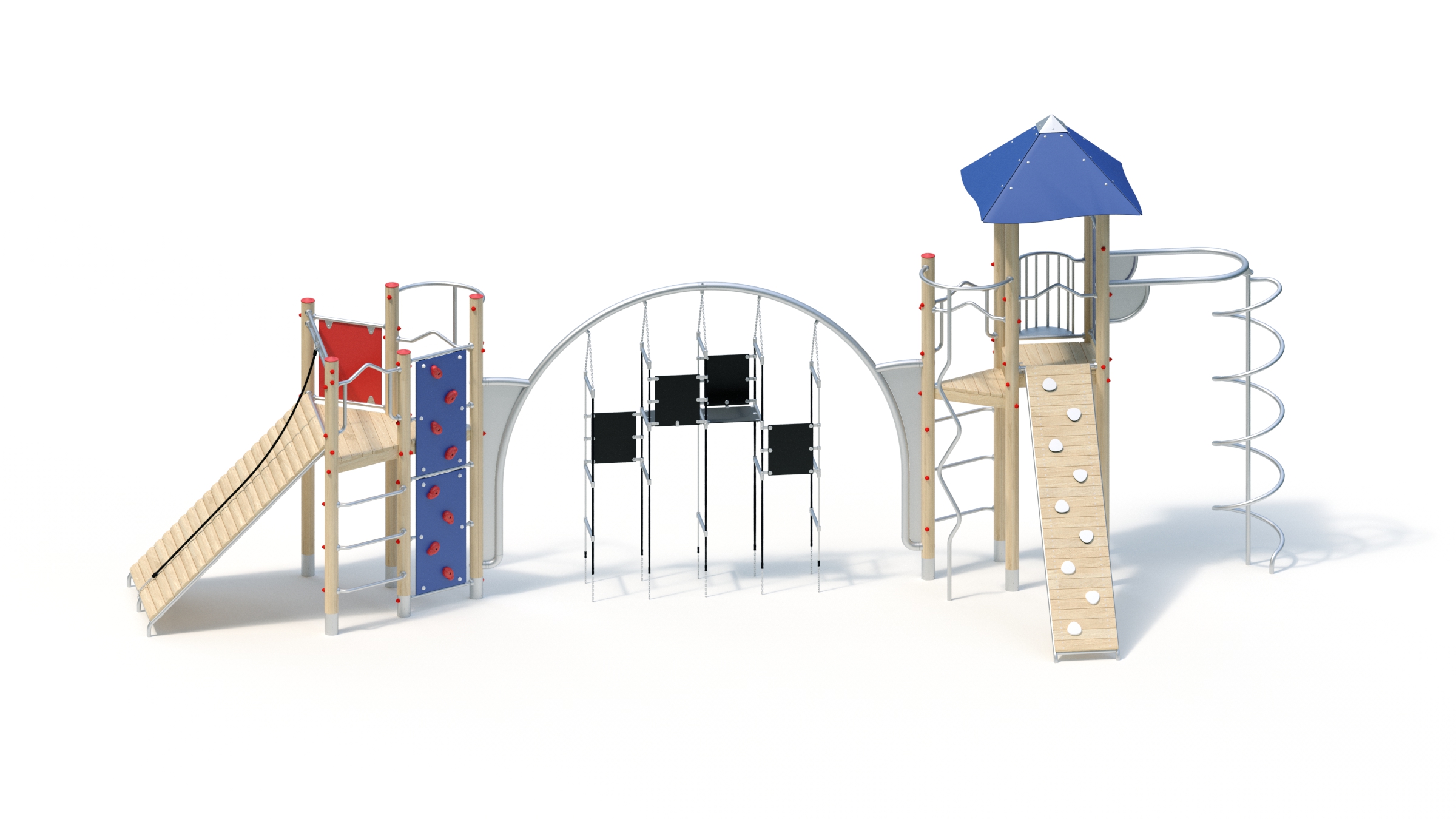

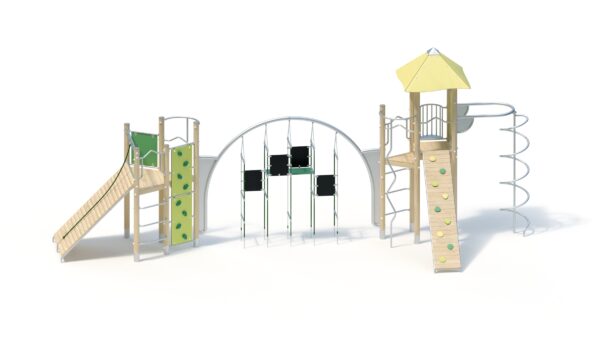

Technical data

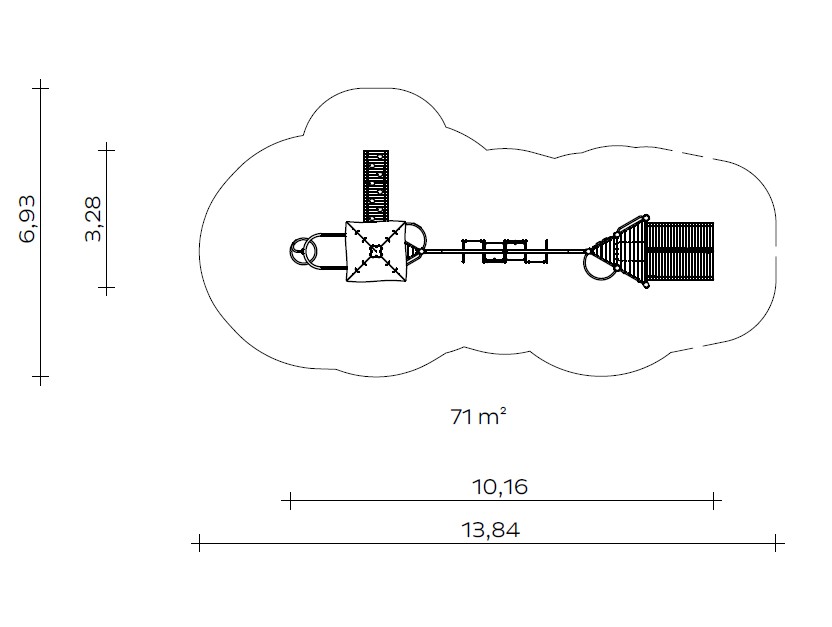

Total height: 4.26 m
Floor area: 3.28 x 10.16 m
Impact area: 6.93 x 13.84 m ( 71m²)
Platform height: 1.60 / 1.80 / 2.00 m

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.

Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
- Stainless steel spring slide Ø 42.4 mm on stainless steel pipe bend Ø 60.3 x 3 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm, corrugated
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, fastened between stainless steel tubes, with free climbing elements attached on one side
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope.
- Balcony parapet made of stainless steel tube
- Panel balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm, round window opening Ø 260 mm with polycarbonate pane
- Panel balustrade made of coloured, highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Climbing Cube with stainless steel tube bend element Ø 76.1×3.6 mm, polypropylene rope net with galvanised steel insert Ø 16 mm, rubber mats 8 mm and stainless steel chain fasteners Ø 7 mm.

General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations
10 pcs. 0.40 x 0.40 x 0.40 m
7 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.60 x 0.60 x 0.40 m

Assembly time
2 fitters 8 hours each, plus lifting gear
(without foundation)

Free fall height
2.84m

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

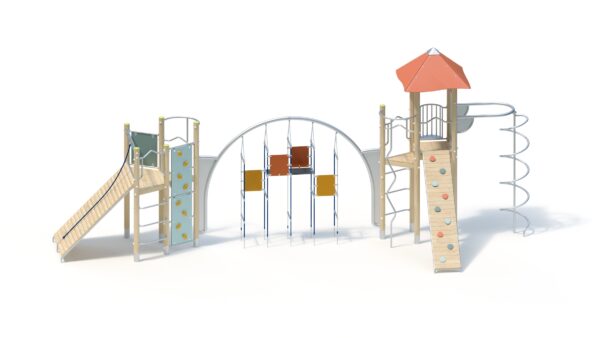

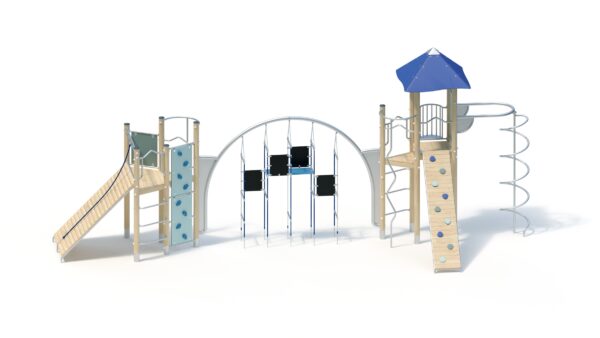

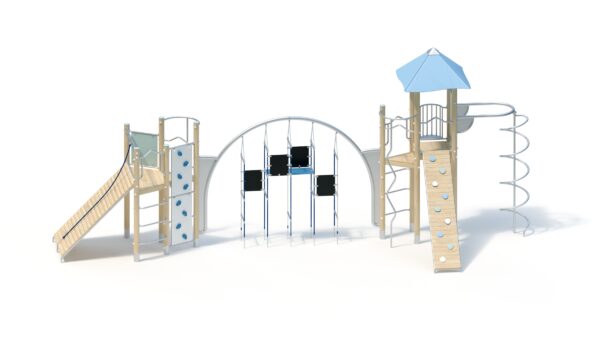

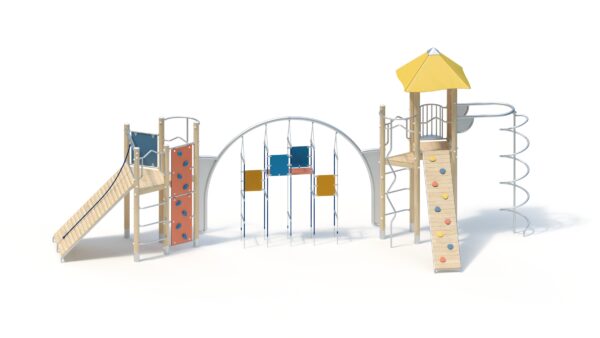

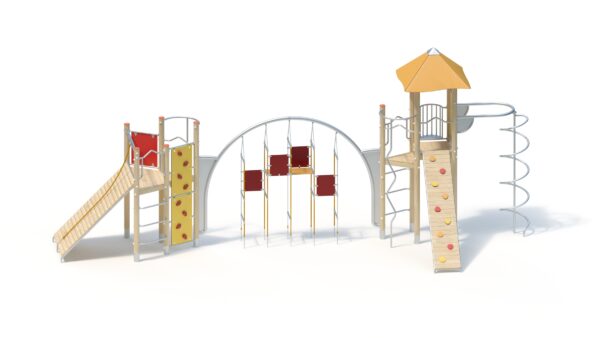

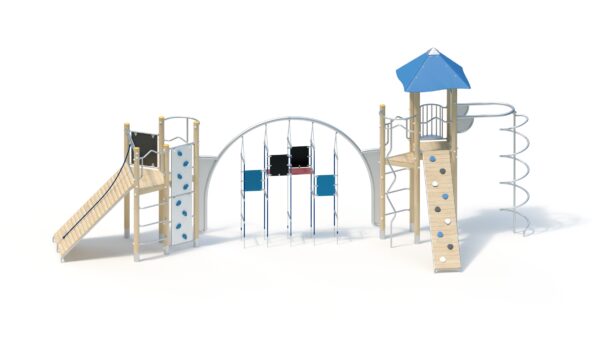

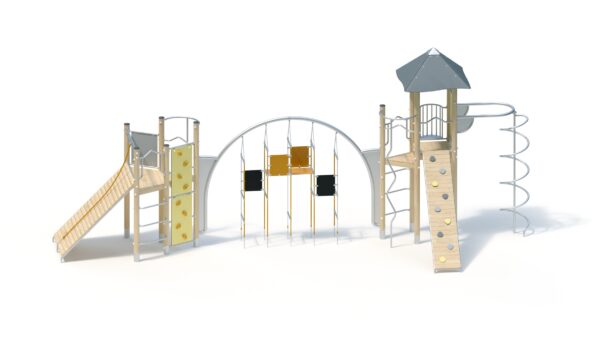

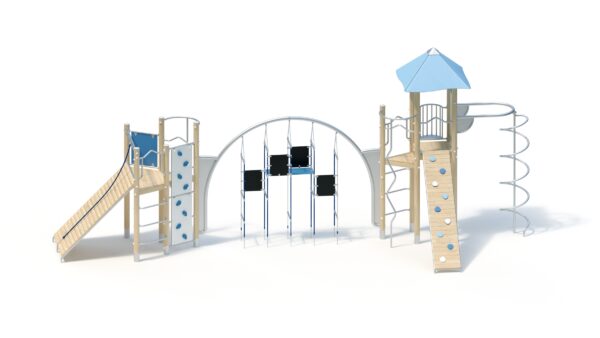

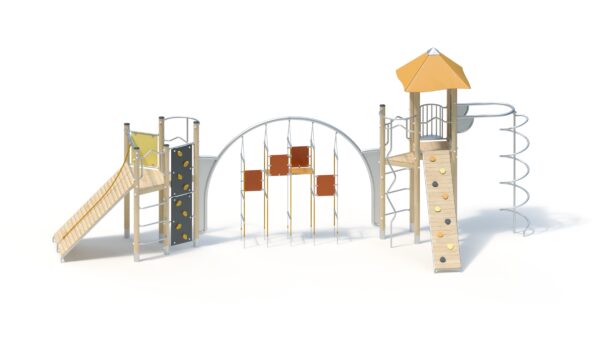

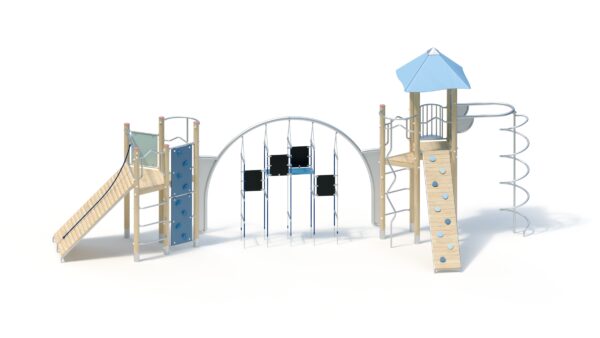

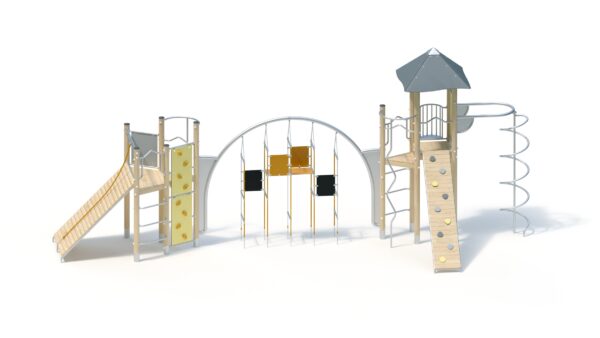

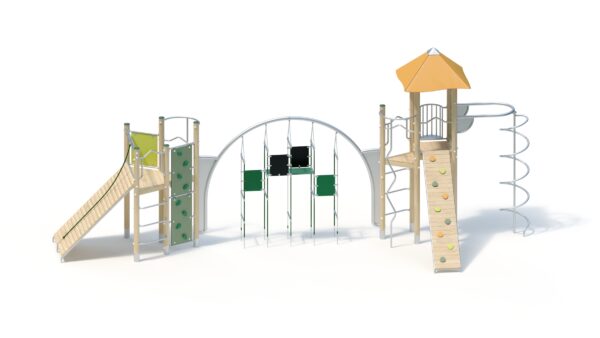

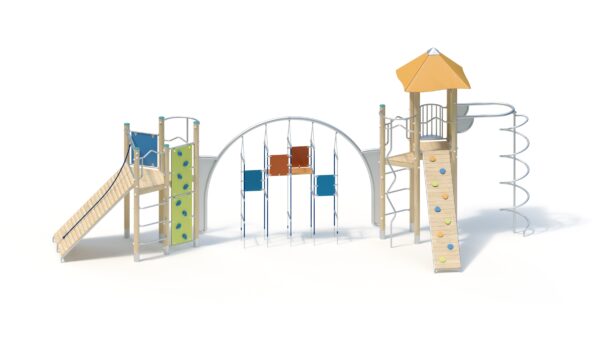

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L755000070
