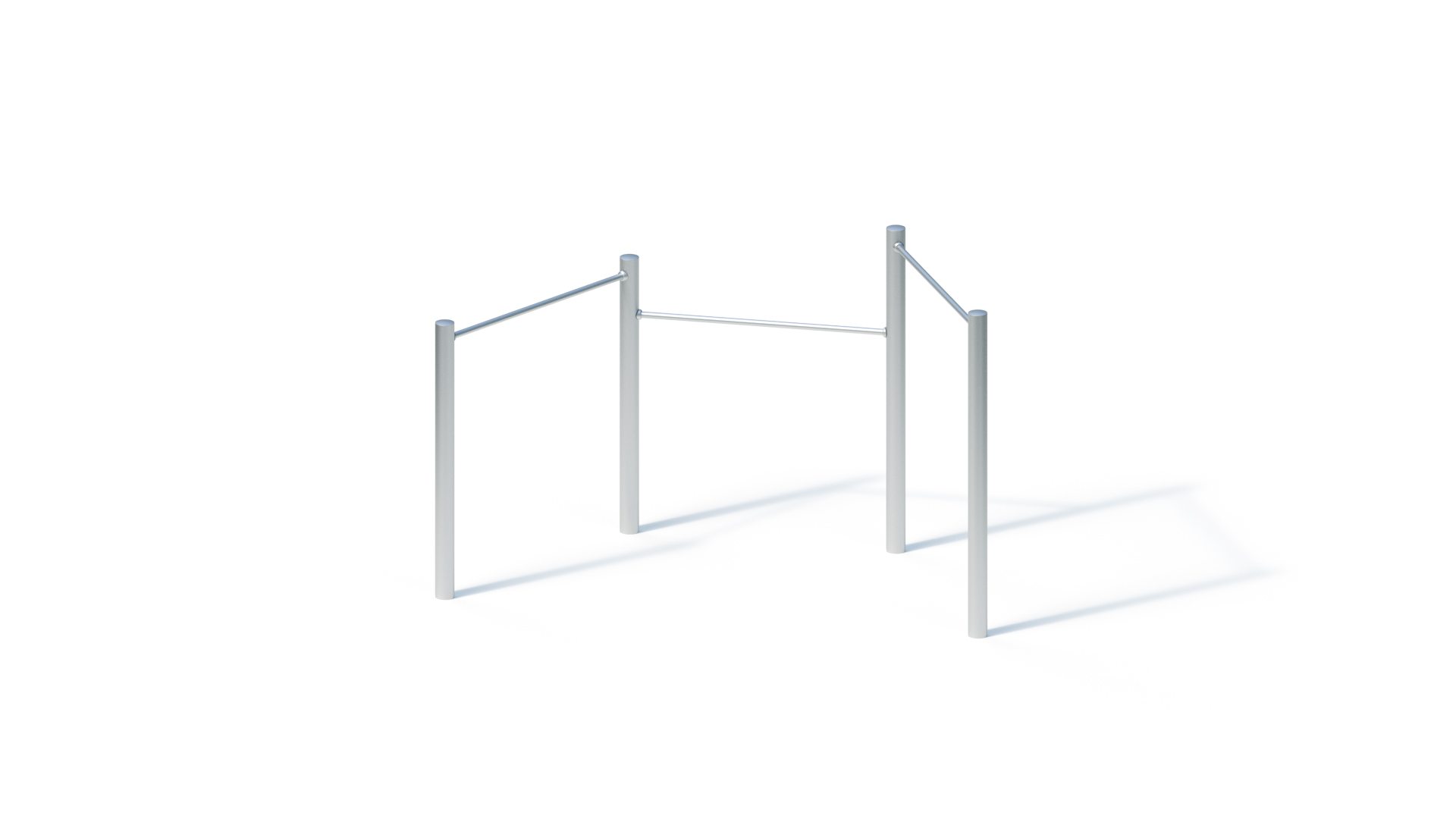

Triple chin-up bars, angled at 60°
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 6 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 6,67 m |
|---|---|
| Minimum space width ? | 5,06 m |
| Minimum space height ? | 2,01 m |
| Equipment length ? | 3,31 m |
| Equipment width ? | 1,50 m |
| Equipment height ? | 2,01 m |
| Free-fall height ? | 1,92 m |
| Platform heights | - |
| Total weight ? | 100.00 kg |
| Heaviest single part ? | 25.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.5m x 0.5m x 0.6m) |
Product Downloads
Product description
Technical data

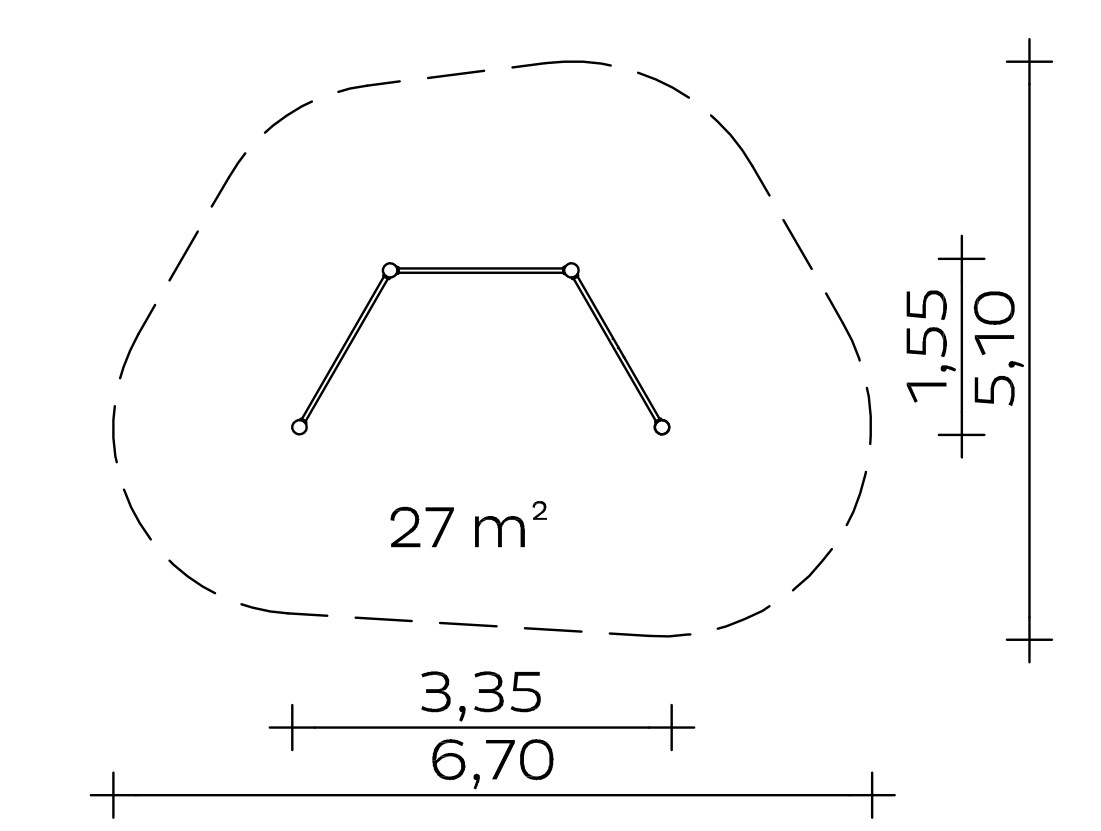

Floor area: 3.35 x 1.55 m
Minimum space: 6.70 x 5.10 m (27 m²)
Total height: 2.05 m
High bar height: 1.60/1.35/1.90 m
Weight: 25 kg heaviest individual part
100 kg in total
Support post
Support post made of stainless steel tube Ø 114 mm, wall thickness 3 mm, covered with welded stainless steel caps.
Attachments
Horizontal bars made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 units 0.50 x 0.60 x 0.50 m
Concrete volume: 0.60 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
1,92 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053127901
