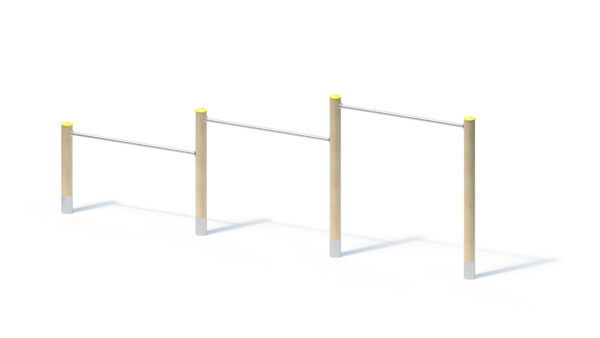

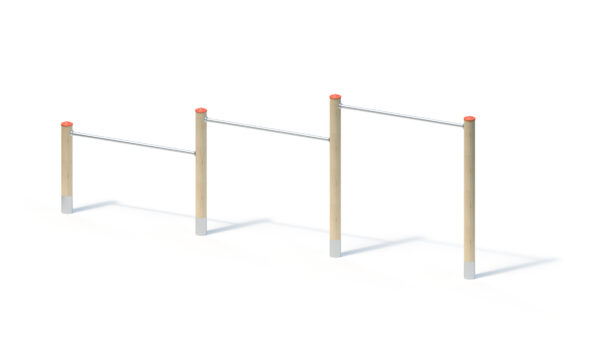

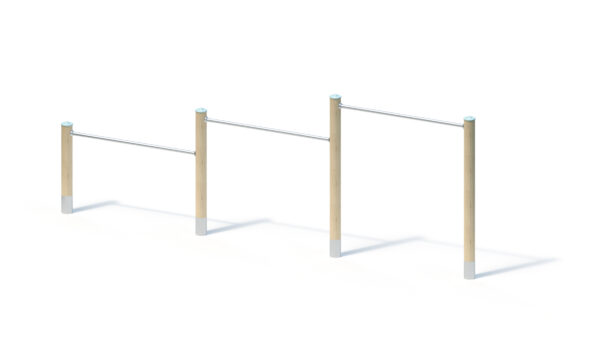

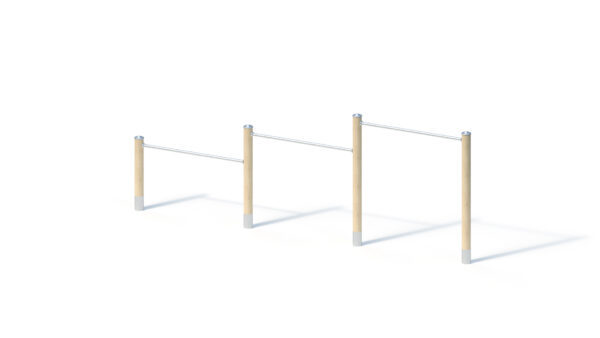

Triple chin-up bars (0,90/1,30/1,70)
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 6 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Mindestraumlänge ? | 8,10 m |
|---|---|
| Mindestraumbreite ? | 3,45 m |
| Mindestraumhöhe ? | 1,85 m |
| Gerätelänge ? | 4,95 m |
| Gerätebreite ? | 0,00 m |
| Gerätehöhe ? | 1,85 m |
| Freie Fallhöhe ? | 1,72 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 87.00 kg |
| Schwerstes Einzelteil ? | 22.00 kg |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.6m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data
Length: 4.95 m

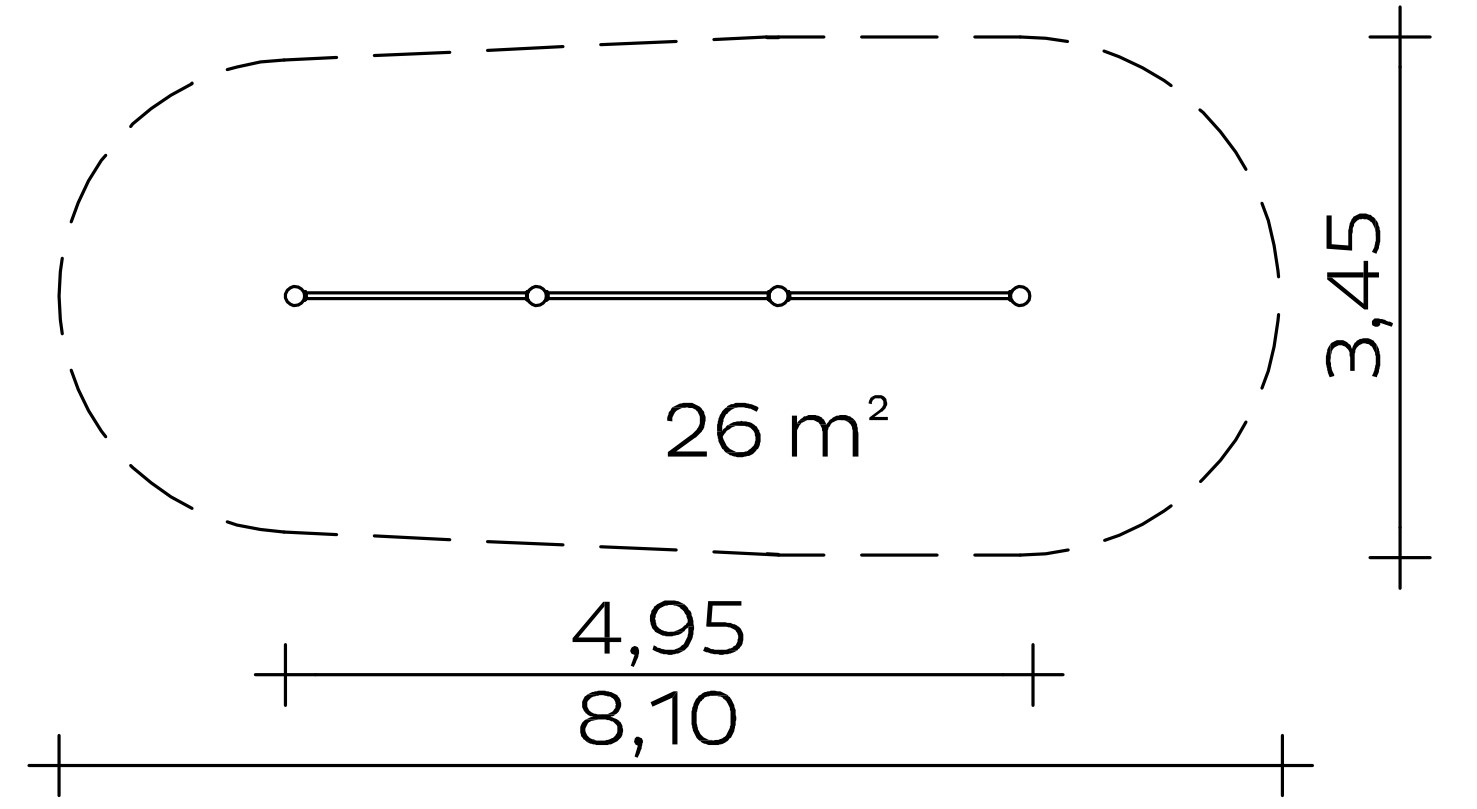

Minimum space: 8.10 x 3.45 m (26 m²)
Total height: 1.85 m
High bar height: 0.90 / 1.30 / 1.70 m
Weight: 22 kg heaviest individual part
87 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
Horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, torsion-resistant
Metal components: Stainless steel 1.4301
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 units 0.50 x 0.60 x 0.50 m
Concrete volume: 0.60 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
1,72 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 053121700
