Combi slide (2,40)

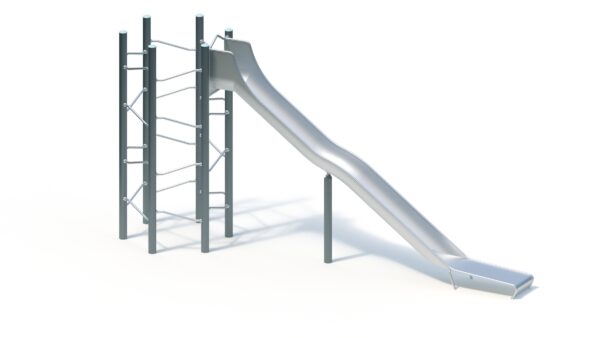

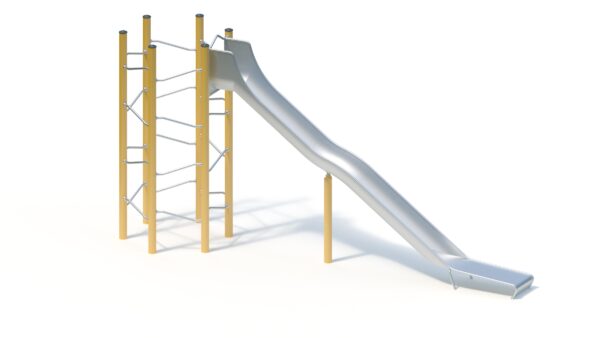

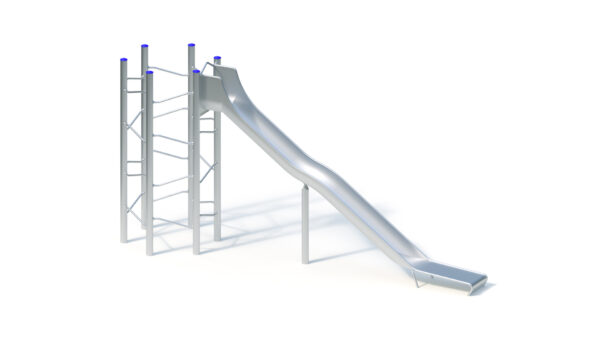

Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 8 Personen |
| Aktivitäten ? | Climbing, Slide |
Technical data
| Mindestraumlänge ? | 11,15 m |
|---|---|
| Mindestraumbreite ? | 6,70 m |
| Mindestraumhöhe ? | 3,40 m |
| Gerätelänge ? | 6,70 m |
| Gerätebreite ? | 1,75 m |
| Gerätehöhe ? | 3,35 m |
| Freie Fallhöhe ? | 2,95 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 410.00 kg |
| Schwerstes Einzelteil ? | 165.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.4m x 0.4m x 0.6m) Quantity: 1 (0.9m x 0.75m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 3.35 m
Floor area: 1.75 x 6.70 m

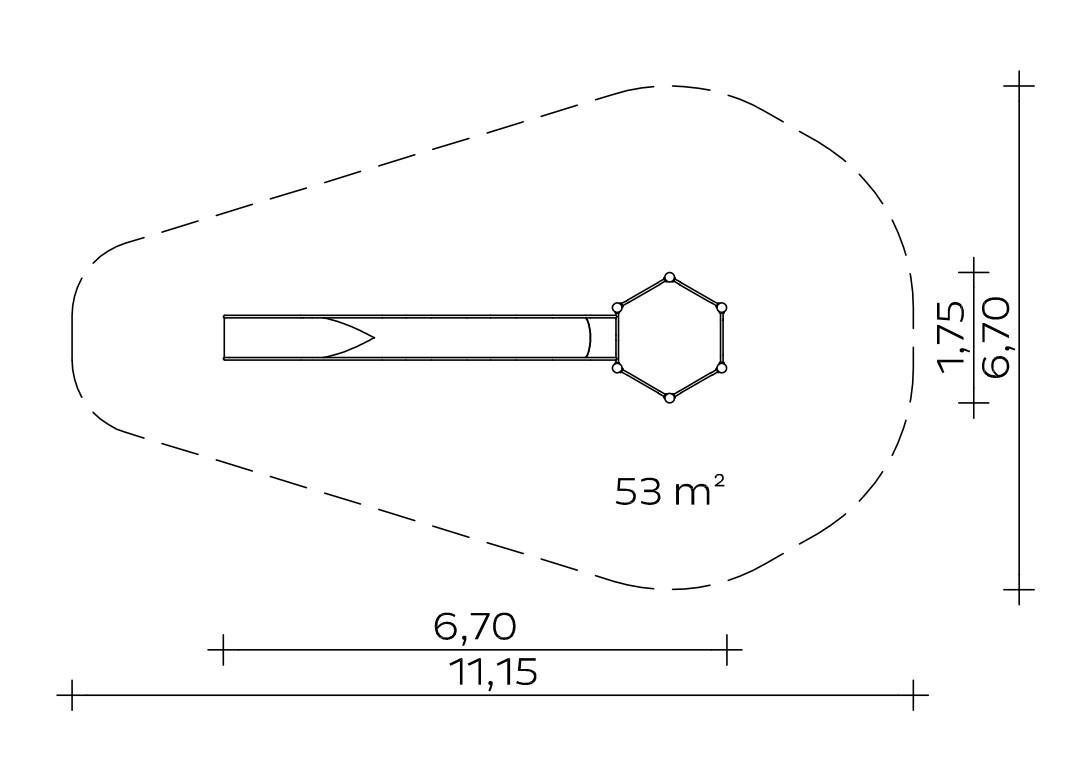

Minimum space: 6.70 x 11.15 m (53 m²)
Seat height: 2.50 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section, including K&K slope slide support posts for the wave area and fastening flange, each made of stainless steel.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 0.90 x 0.75 x 0.40 m
Concrete volume: 0.60 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
2,95 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Item number: 041166500
