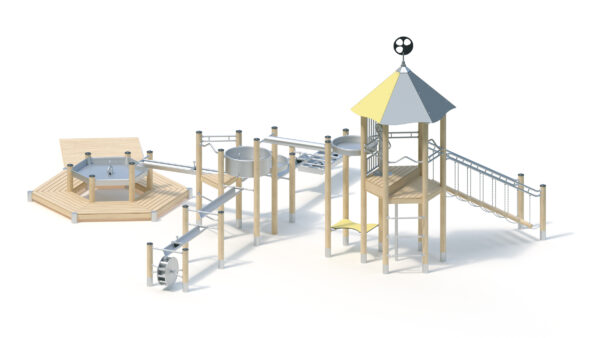

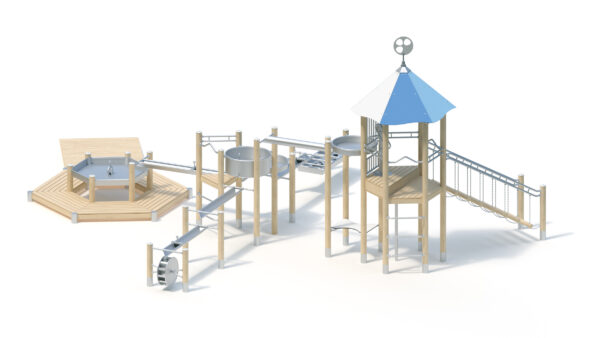

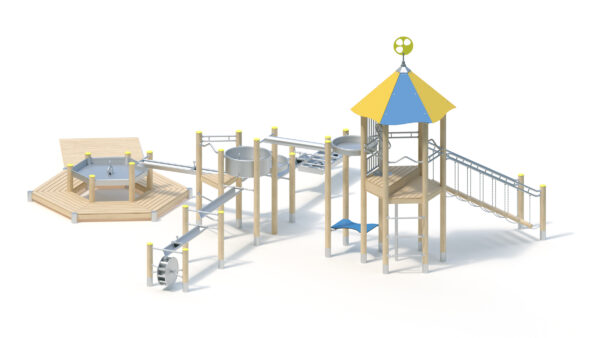

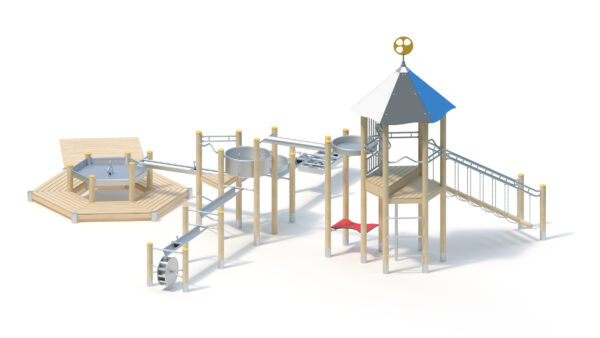

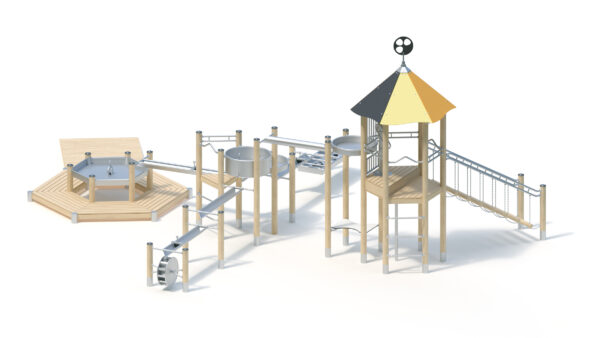

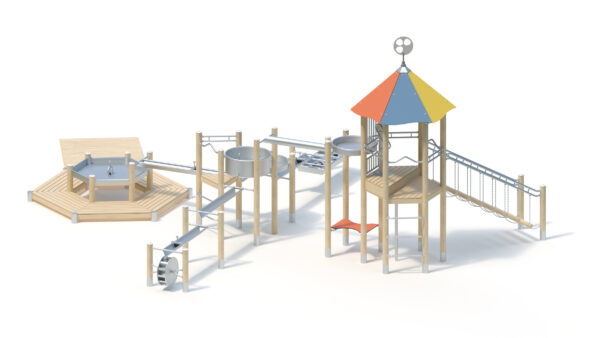

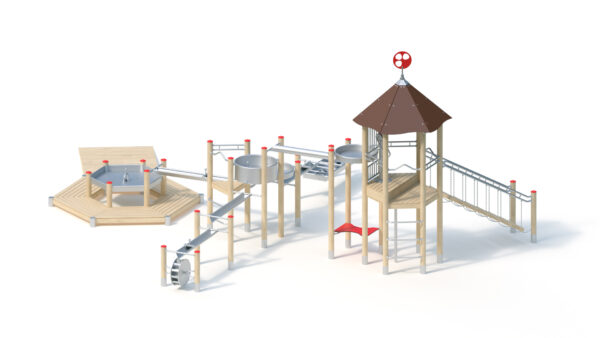

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Water play structure
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 45 persons |
| Activities ? | Manual activity |
Technical data
| Device length ? | 11,55 m |
|---|---|
| Device width ? | 8,40 m |
| Device height ? | 4,80 m |
| Free fall height ? | 1,80 m |
| Platform heights | - |
| Total weight ? | 1885.00 kg |
| Heaviest single item ? | 140.00 kg |
| Minimum room length ? | 14,55 m |
| Minimum room width ? | 11,40 m |
| Minimum room height ? | 4,80 m |
Assembly & Foundations
| Assembly time ? | 10,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 4.80 m

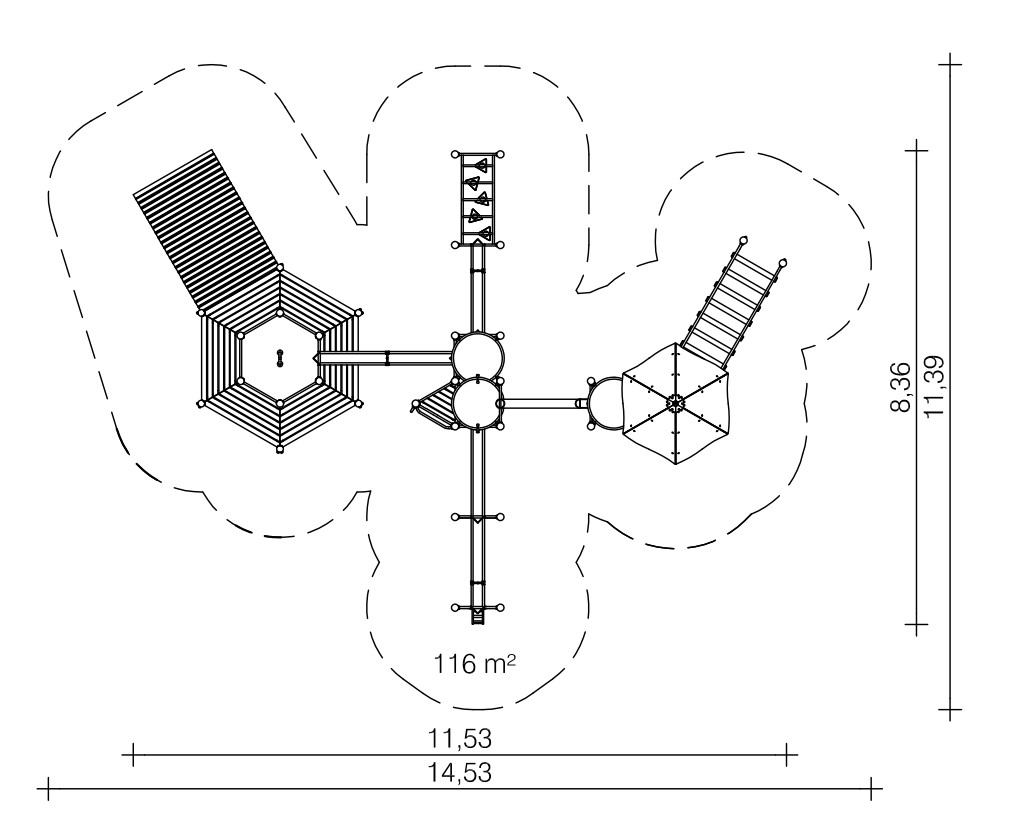

Floor area: 8.40 x 11.55 m
Minimum space: 11.40 x 14.55 m (116 m²)
Platform height: 0.20/1.15/1.60/1.80 m
Weight: 140 kg heaviest individual part
1885 kg in total
Support post
Posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Posts that are flush with the platform are covered with welded-on stainless steel discs.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floors
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump pedestal also with profiled stainless steel sheet and prepared for installation of the valve combination included in this water feature. The valve combination will be located directly below the pump platform. An additional shaft for the valve combination is therefore not required.
Attachments
- Ramp 2.40 m x 1.60 m, gradient 0.10 m, made of profiled boards 95 x 30 mm
- Climbing rungs (cranked) made of stainless steel tube, Ø 33.7 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing 0.80 m/ made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Table 0.80 x 0.80 m, made of coloured, highly weather-resistant HPL laminate, 15 mm
- Tent roof, 6 x 0.80 m / pitch 45°, made of coloured, highly weather-resistant HPL laminate panels, 13 mm, with wind chimes; attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Wobbly staircase, 0.80 m x 2.40 m on tandem crossbeam, walkway posts made of robinia Ø 10 cm, fine-linked stainless steel railing chains
Water pump article no. 0-33130-001
Suction pipe connection 1 ¼ inch (pipe diameter min. ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period, sealing cover („winterisation plate“) for the remaining lower part of the pump is supplied. Suitable for mounting on a solid surface such as a platform provided by the customer
Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (art. no. 0-33190-000) is required.
If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).
Please also observe the framework data specified in the installation instructions (distances, cable diameters, etc.); these are available on request from K&K or directly as a PDF at www.kaiser-kuehne.com.
Valve combination article no. 0-33190-000A (installed below the platform floor)
Device for connecting the water pump directly to a pressurised water pipe.
Incl. fine filter for cleaning the water of suspended matter, dirt particles etc. to prevent the diaphragm valves from becoming contaminated and thus prevent malfunctions.
The valve combination should be installed and connected by a specialised installation company.
Patio tray 1 drain
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with 1 water drainage opening, sheet thickness: min. 2 mm / pipe Ø 38 mm.
Water pipe 0.80 x 1.60 m
Base area: 0.80 m x 1.60 m
Stainless steel tube Ø 154 mm
Welded stainless steel construction with 1 bevelled water drain and 1 inlet opening, sheet thickness: min. 2 mm / pipe Ø 154 mm.
Water reservoir
Base area: Ø 0.68 m
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm/pipe Ø 33.7 mm.
Water channel 1.60 m, 3 pieces
Welded stainless steel construction 0.80 m x 1.60 m, sheet thickness: min. 2 mm / pipe Ø 38 mm. With connection for support posts, with stepless incline for installation for the required gradient for the water inlet and outlet. Sloped outlet.
Storage flap, 3 pieces
freely positionable, stainless steel handle, rubber blade with fabric insert. Clamping part for fastening to tube Ø 38 mm
Waterwheel
Base area: 0.60 x 0.80 m
Height: 0.90 m
Wheel: Ø 0.60 m
Welded stainless steel construction with post connection, prepared to accommodate the water channel. 12 blades, folded flat at the front and enclosed by side walls. Sheet thickness min. 2 mm. Wheel bearings with roller bearings.
Patio tray 2 drains 90°/ 180°
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with 2 water drain pipes offset by 90°, sheet thickness: min. 2 mm / pipe Ø 38 mm.
Water channel 2.40 m
Welded stainless steel construction 0.80 m x 2.40 m, sheet thickness: min. 2 mm / pipe Ø 38 mm. With connection for support posts, with infinitely variable incline for installation for the required gradient for the water inlet and outlet. Sloped outlet.
Maxi table 6 x 0.80 m with water valve
Base area: 1.40 x 1.70 m
Height: 0.80 m
Hexagonal stainless steel construction with lockable rubber cone closure for stowing, regulating or diverting water. Sheet thickness: min. 2 mm
Whirling table 0.80 x 1.60 m
Welded stainless steel construction with 5 adjustable HPL prisms as flow obstacles. Sheet thickness min. 2 mm, pipe Ø 33.7 mm or Ø 30 mm
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
37 units 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
Concrete volume: 2.44 m³
Assembly time
2 fitters 10 hours each
(without foundation without water connection)
Free fall height
1,80 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
manual activities.
Item number: 034670703
