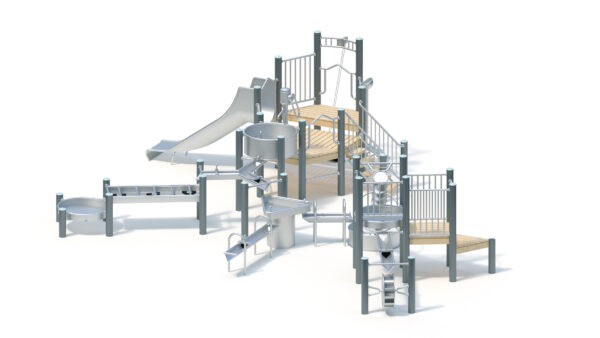

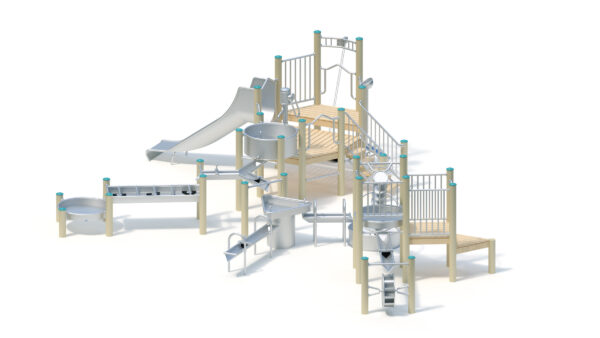

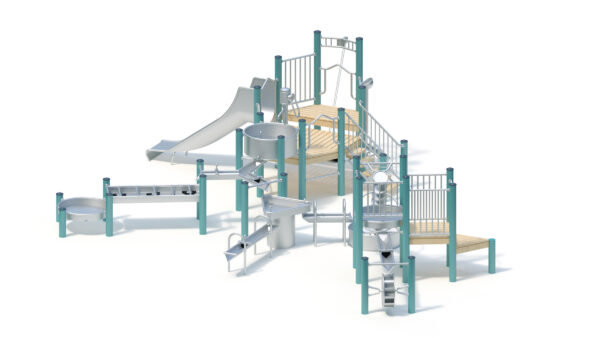

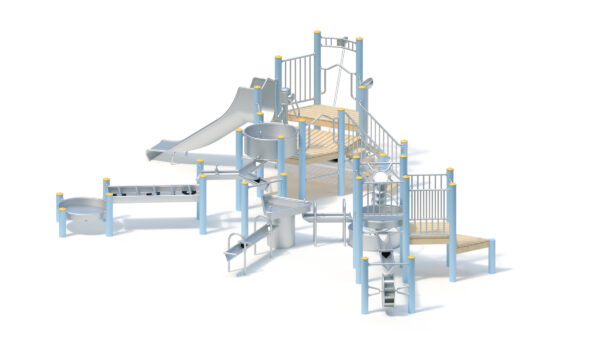

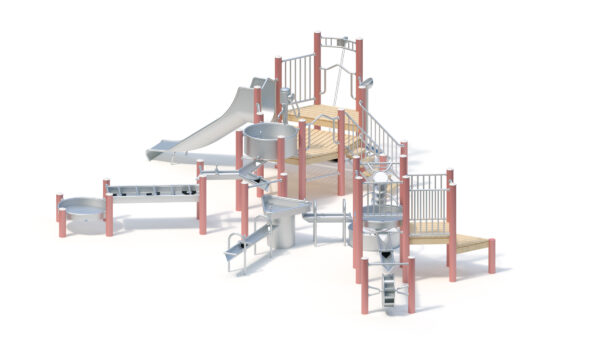

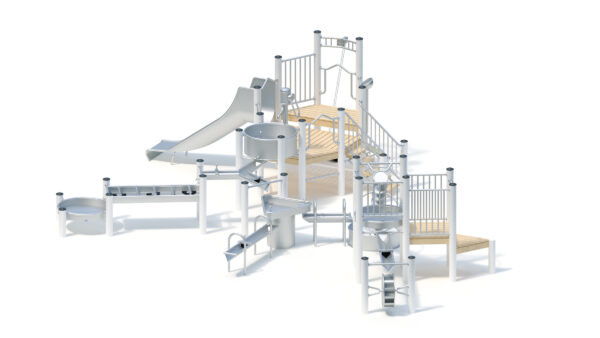

Technical data
Total height: 2.30 m

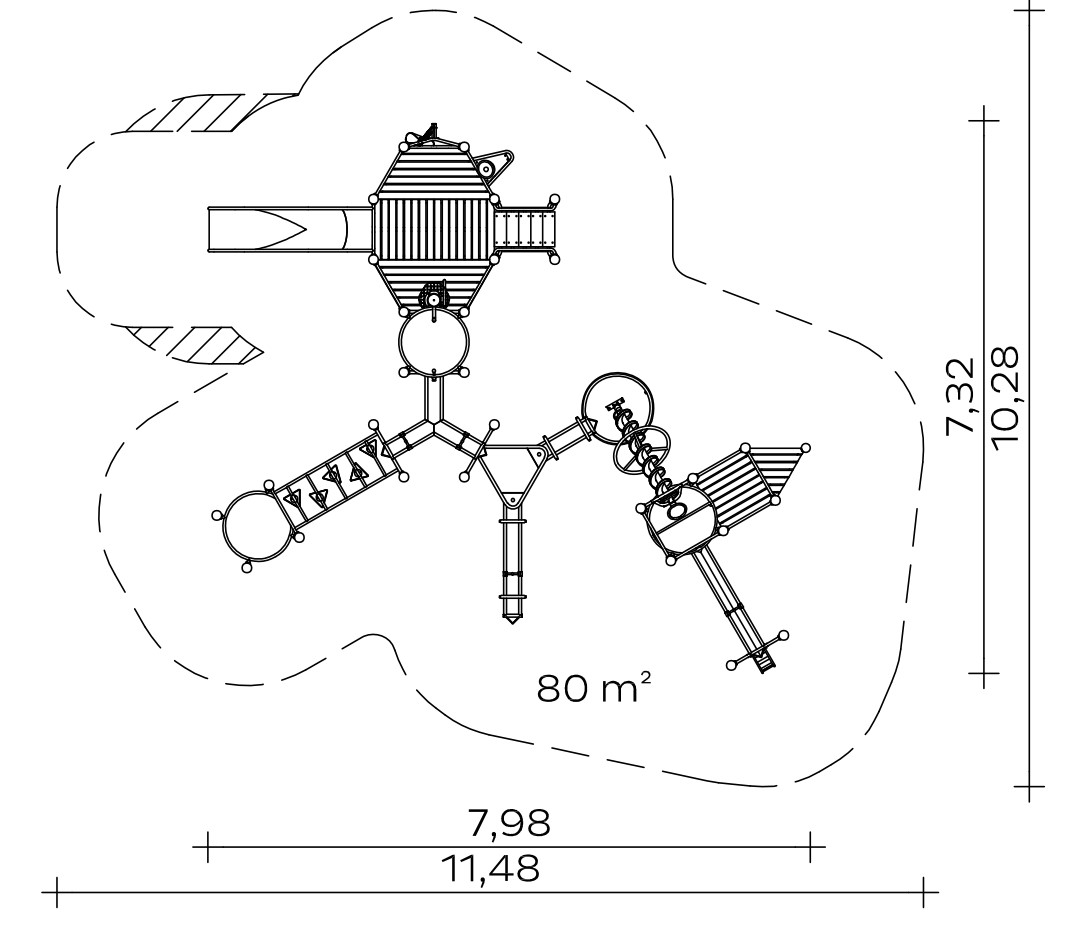

Floor area: 7.32 x 7.98 m
Minimum space: 10.28 x 11.48 m
Platform height: 0.60/0.80 m
Weight: 75 kg heaviest individual part
1316 kg in total

Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Posts that are flush with a platform are covered with welded-on discs made of stainless steel.

Platform floor
Platform floor made of 30 mm thick boards and 45 x 100 mm squared timber joists all round. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump platform also with profiled stainless steel sheet.

Attachments
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of stainless steel tube, Ø 33.7 x 2 / 20 x 2 mm, one-piece welded construction
- Sand lift with rubber transport container and 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Sand pouring pipe without closure on hemisphere with welded-on stainless steel ring
- Sand slide made of stainless steel tube with HPL laminate panel
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rung made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
- Access railing, roll-preventing, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and balustrade tubes arranged vertically on both sides
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section

Water pump with pump swivel
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed during the frost period. Cover („winterisation plate“) for the remaining lower part of the pump is supplied.
Suitable for mounting on a solid surface such as a platform provided by the customer
Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required.
Please also observe the framework data specified in the installation instructions (distances, cable diameters, etc.); these are available on request from K&K or directly as a PDF at www.kaiser-kuehne.com.
If the water supply is intentionally interrupted temporarily (timer or similar), a vacuum will build up in the pipework system if the pump is operated again, which will cause the pump swivel to kick back. It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock part number 1040639).

Water reservoir
Base area: Ø 0.86 m
Welded stainless steel construction with a water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm/tube Ø 38 mm, for connection to posts

Y-channel
Y-shaped water channel with one inlet and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm including 2 storage flaps, freely positionable, stainless steel handle, rubber blade with fabric insert

Whirling table
Welded stainless steel construction with five adjustable HPL prisms as flow obstacles. Sheet thickness: min. 2 mm, pipe Ø 33.7 / Ø 30 mm

Water distributing table (0,75)
Total height: 0.90 m
Welded stainless steel construction with two water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring. Matching ring foundation and moulded stones for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) available at an extra charge.

Patio tray with drain pipe
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with water drainage opening. Sheet thickness: min. 2 mm / tube Ø 38 mm. Connection to posts.

Water channel 0.80 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm, bevelled outlet.
Additional elevation(s) during installation enable the required gradient for the water inlet and outlet to be infinitely variable.

Water channel 1.60 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm, bevelled outlet.
Additional elevation(s) during installation enable the required gradient for the water inlet and outlet to be infinitely variable.
Including storage flap, freely positionable, stainless steel handle, rubber blade with fabric insert

Conveyor basin solitary
Welded stainless steel construction with mounting device for the base bearing of the water spiral. Sheet thickness: min. 2 mm / tube Ø 38 mm.
Water drainage opening closed by cheese head screw. Anchored to the flange ring. Matching ring foundation and moulded stones for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) available at an extra charge.

Water spiral with handwheel and crank drive at the top
Length: 2.00 m
Diameter: 0.25 m
Handwheel diameter: 0.80 m
Welded stainless steel construction with roller bearings, screw-on foot bearing

Modular catch basin
Welded stainless steel construction for water absorption with drain pipe. Sheet thickness: min. 2 mm / pipe Ø 38 mm,

Water channel 1.60 m, post connection
Welded stainless steel construction 0.80 m x 1.60 m, sheet thickness: min. 2 mm / pipe Ø 38 mm, bevelled outlet
Including storage flap, freely positionable, stainless steel handle, rubber blade with fabric insert

Water wheel, post connection
Wheel: Ø 0.60 m
Welded stainless steel construction with post connection, for water absorption from a water channel. 12 blades, folded flat at the front and enclosed by side walls. Plate thickness 2.5 mm. Wheel bearings with roller bearings.

Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

Foundations (client-provided)
29 units 0.40 x 0.40 x 0.40 m
1 piece 0.75 x 0.40 x 0.40 m
4 units 0.30 x 0.30 x 0.40 m
Concrete volume: 2.2 m³

Free fall height
1,00 m

Suitable for
Children aged 3 and over,
public playgrounds etc.,
Manual activities

Item number: 034410500
