Technical data
Total height: approx. 2.00 m

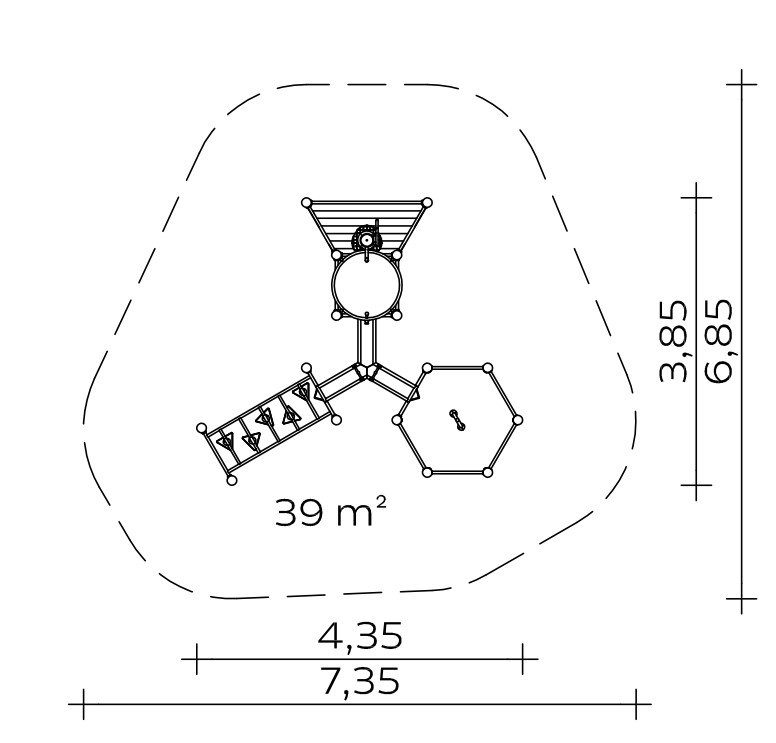

Floor area: approx. 3.85 x 4.35 m
Minimum space: approx. 6.85 x 7.35 m (39 m²)
Platform height: 0.80 m

Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.

Platform floors
Platform floor made of 30 mm thick boards and 45 x 100 mm squared timber joists all round. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump platform also with profiled stainless steel sheet.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rungs made of stainless steel tube, Ø 38 x 2.5 mm

K&K water pump article no. 0-33130-001
Suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period, sealing cover

Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (art. no. 0-33190-000) is required.

If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).

Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne-play.com.

K&K water reservoir
Base area: Ø 0.68 m
Welded stainless steel construction with a water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness: min. 2 mm/pipe Ø 33.7 mm.

K&K Y-channel
Y-shaped water channel with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm.
Including 2 storage flaps, freely positionable, stainless steel handle, rubber blade with fabric insert.

K&K whirling table 0.80 m x 1.60 m
Welded stainless steel construction with 5 adjustable HPL prisms as flow obstacles. Sheet thickness min. 2 mm, pipe Ø 33.7 mm or Ø 30 mm.

K&K maxi table 6 x 0.80 m with water valve
Base area: 1.40 x 1.70 m
Height: 0.80 m
Hexagonal stainless steel construction with lockable rubber cone closure for damming, regulating or diverting water. Sheet thickness: min. 2 mm.

Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
16 pcs. 0.40 x 0.40 x 0.40 m
Concrete quantity: 1 m³

Assembly time
2 fitters 3 hours each.
(without foundation, without water connection)

Free fall height
1,15 m

Suitable for
Children aged 4 and over,
public playgrounds etc.,
Manual activities

Item number: 034160500
