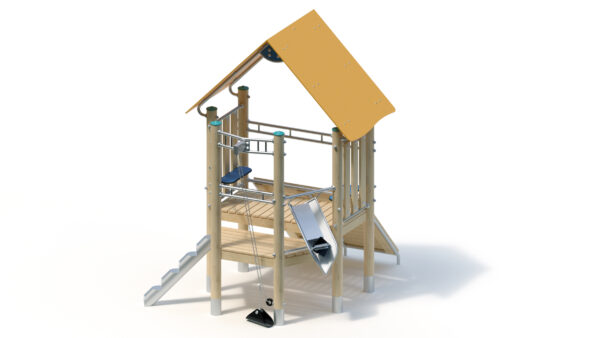

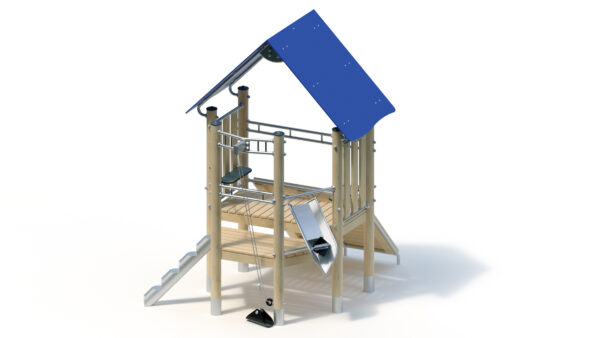

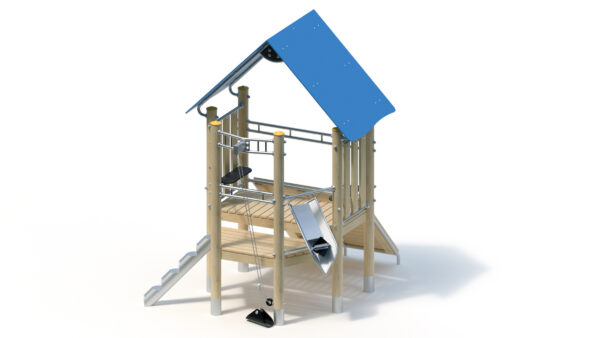

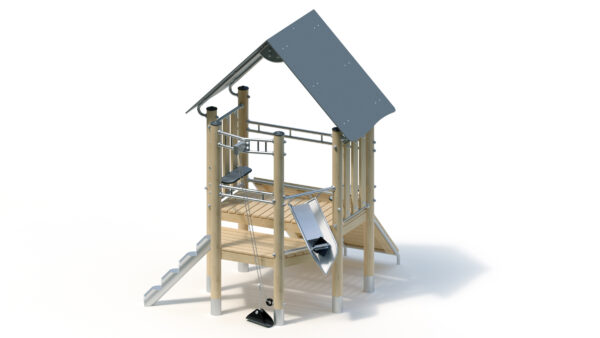

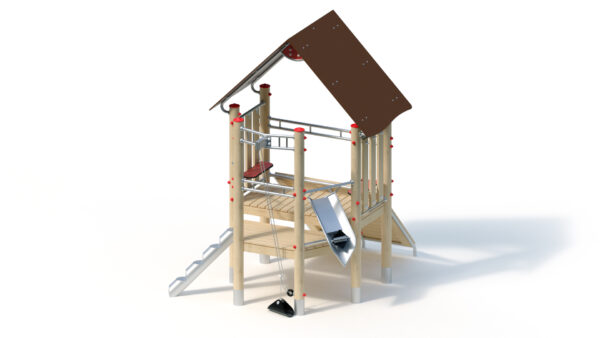

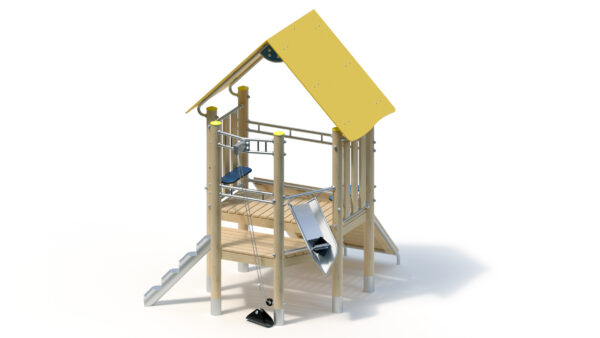

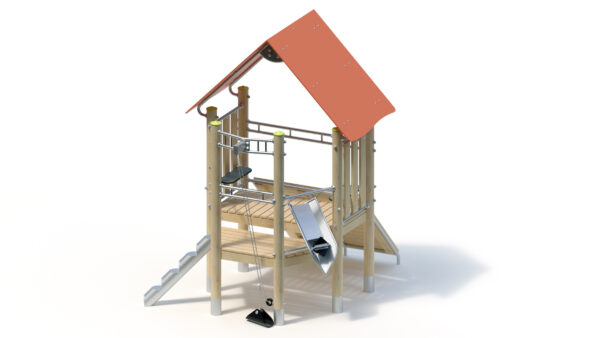

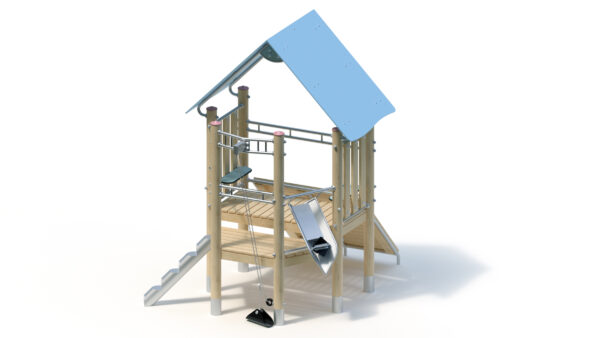

The 3D model is for spatial reference only. The colours may not match the selected variant.

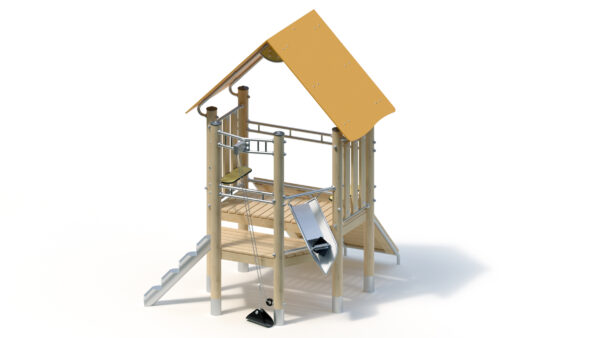

Combi sandworks
Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 13 people |
| Activities ? | Climbing, Manual activity, Social activity |
Technical data
| Minimum space length ? | 5,85 m |
|---|---|
| Minimum space width ? | 5,40 m |
| Minimum space height ? | 3,25 m |
| Equipment length ? | 2,90 m |
| Equipment width ? | 2,45 m |
| Equipment height ? | 3,25 m |
| Free-fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 525.00 kg |
| Heaviest single part ? | 100.00 kg |
Assembly & Foundations
| Assembly time ? | 6,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 4 (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 3.25 m
Floor area: 2.45 x 2.90 m
Minimum space: 5.40 x 5.85 m (27 m²)
Platform height: 0.80/1.00 m
Weight: 100 kg heaviest individual part
525 kg in total
Support post
Posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps, colour: red.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Climbing post made of stainless steel tube Ø 159 x 3 mm, tread surface made of profiled stainless steel sheet
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Step channel with rubber sand wheel with fabric insert
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
4 units 0.30 x 0.30 x 0.40 m
Concrete volume: 0.53 m³
Assembly time
2 fitters 6 hours each
(without foundation)
Free fall height
1,00 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
manual/movement activities.
Item number: 031570702
