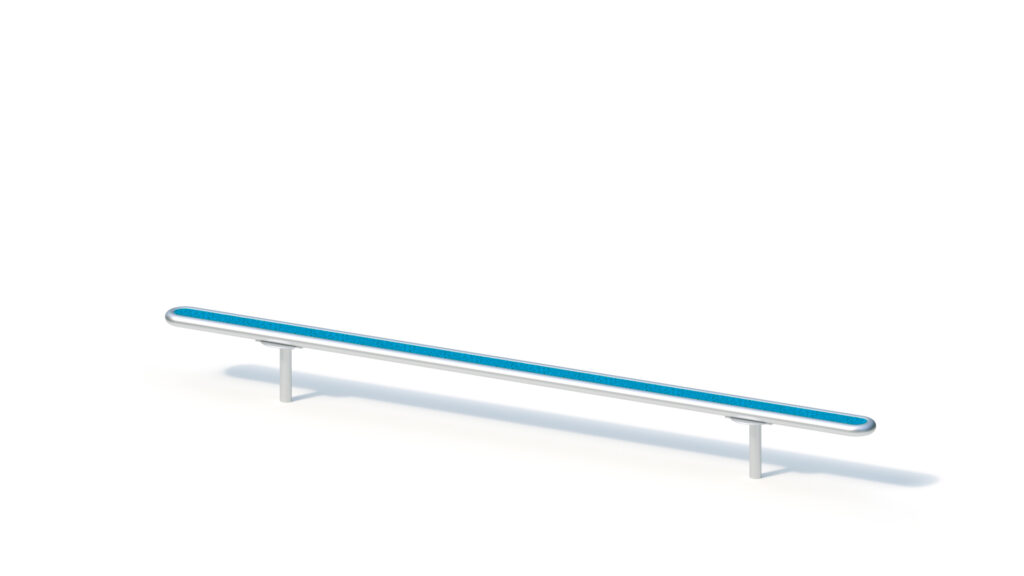

Balance exerciser - Kaiser & Kühne

Classic

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

-

Total length ? The measurement indicating the length of the playground equipment.

3,16 m

Total width ? The measurement indicating the width of the playground equipment.

0,21 m

Total height ? The measurement indicating the height of the playground equipment.

0,32 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

6,16 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

3,21 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

0,32 m

Assembly time ? The time required by qualified individuals to assemble the product.

No specification

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

No specification

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

35,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

0,32 m

Platform heights

-

Foundations

2 pcs.

0,40 x 0,40 x 0,40 m
Volume: 0,06 m3

Age group ? The specific age group for which the product was developed.

2+
Number of users ? The number of individuals who can use the product simultaneously.

5
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Activities ? The various tasks or actions that can be performed with the product.

balancing, sporting activity
Product groups ? The categories of similar products.

Balancing Equipment

Variants finder

Classic

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

This kaiser & kühne product enables:

Product downloads:

Technical data
Area: 3,16 x 0,21 m
Minimum space: 6,16 x 3,21 m (18 m²)
Balancing level: 0,32 m
Weight: 35 kg as a whole

Balancing framework: stainless steel
Surfacing of exerciser made from rubber granulate, colour on choice according to RAL colour chart

Please note
The device is optionally available as permanently installed public playground equipment (certified according to EN 1176) or as permanently installed outdoor fitness equipment (certified according to EN 16630).
If it is placed as fitness equipment, information on function and safety must be provided in close proximity. This can be done by means of an optionally available station signboard.

For a use as fitness equipment
Safety and stretching rail (item no. 0-57038-000) at extra charge upon request.

Foundations (on site)
2 pcs. 0,40 x 0,40 x 0,40 m
concrete amount: 0,13 m³

Approximate assembly values
delivery as a whole

Free height of fall
0,32 m

Appropriate for
children from the age of 3 years up,
public playgrounds etc.,
physical activity
