Play Structures

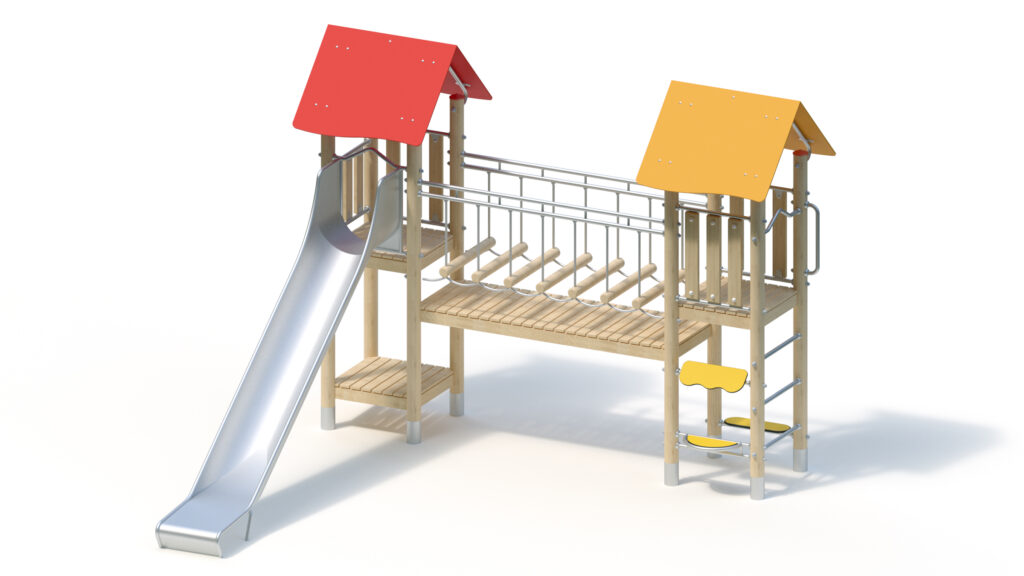

Play structure 0-22134-703

Age group ? The specific age group for which the product was developed.

4+
Number of users ? The number of individuals who can use the product simultaneously.

15
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Activities ? The various tasks or actions that can be performed with the product.

sliding, balancing, motion activity
Product groups ? The categories of similar products.

Play Structures

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

Total length ? The measurement indicating the length of the playground equipment.

4,55 m

Total width ? The measurement indicating the width of the playground equipment.

4,40 m

Total height ? The measurement indicating the height of the playground equipment.

3,45 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

7,97 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

7,30 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

3,45 m

Number of installers ? The number of qualified individuals required for product assembly.

2 Pers.

Assembly time ? The time required by qualified individuals to assemble the product.

8 h

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

100,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

730,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

1,70 m

Platform heights

0,40 m, 1,20 m, 1,60 m

Foundations

8 pcs.

0,40 x 0,40 x 0,40 m
Volume: 0,06 m3

1 pc.

0,75 x 0,40 x 0,40 m
Volume: 0,12 m3
