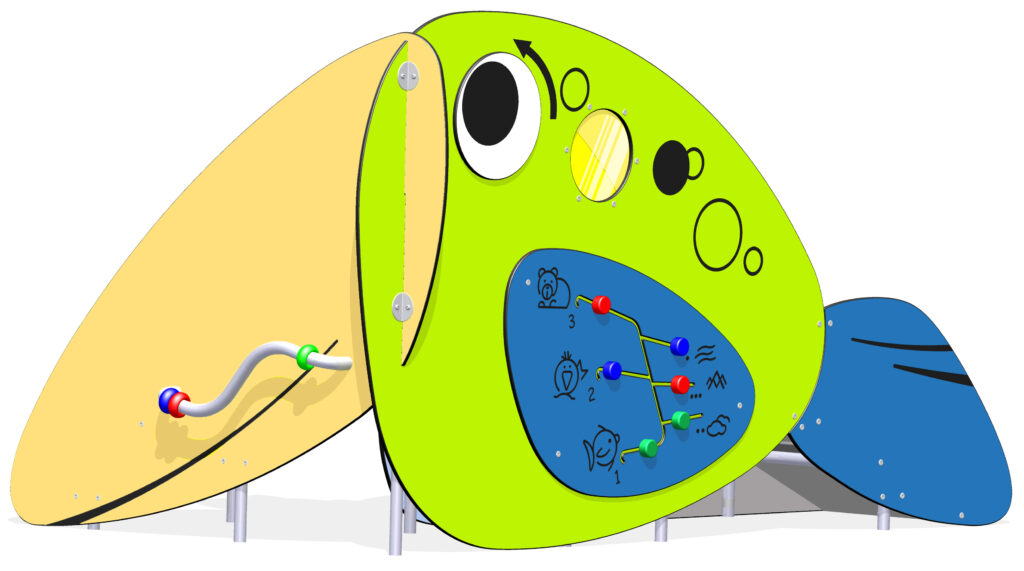

Small Playground Equipment

Technical data
Area: 1,60 x 2,70 m
Minimum space: 4,60 x 5,70 m (22 m²)
Total height: 1,50 m
Platform height: 0,58 m
Weight: 40 kg heaviest single component
210 kg as a whole

Attachment parts
– tubular stainless steel supports Ø 33,7 x 2 mm
– platform, climb up ramp and lateral panels from highly weather-resistant HPL panels, 13 mm
– stairs from highly weather-resistant HPL panels, 25 mm
– stainless steel sliding surface of 3 mm thickness
– eye and flower from highly weather-resistant HPL panels, 13 mm (white), attachment by means of POM bearing disc
– wing from highly weather-resistant HPL panel, 13 mm (royal blue), with slidable stainless steel toy bricks (red, yellow, green)
– Polycarbonate inspection glass
– slidable toy balls: corrugated stainless steel tube Ø 38 x 2 mm with three Polypropylene ring-shaped balls (red, green and blue)

At extra charge, for playing enhancement, there are various replaceable features on choice: Cockpit, Cog wheels, Mirror, Sliding puzzle, Worm wheel or Effect disc.

Please keep in mind, that the K&K Minizoo provides the attachment of one of the features. With placing the order, the type of feature must be defined.

Metal components: stainless steel

Foundations (on site)
usually, pounding is sufficient
(With loose ground: 5 pcs. 1,00 x 0,20 x 0,10 m = 0,02 m³)
concrete amount: 0,1 m³

Approximate assembly values
2 mechanics 6 hours each + lifting gear
(without creating foundations)

Free height of fall
0,58 m

Appropriate for
children from the age of 1 to 6 years,
public playgrounds etc.,
manual/social activity
