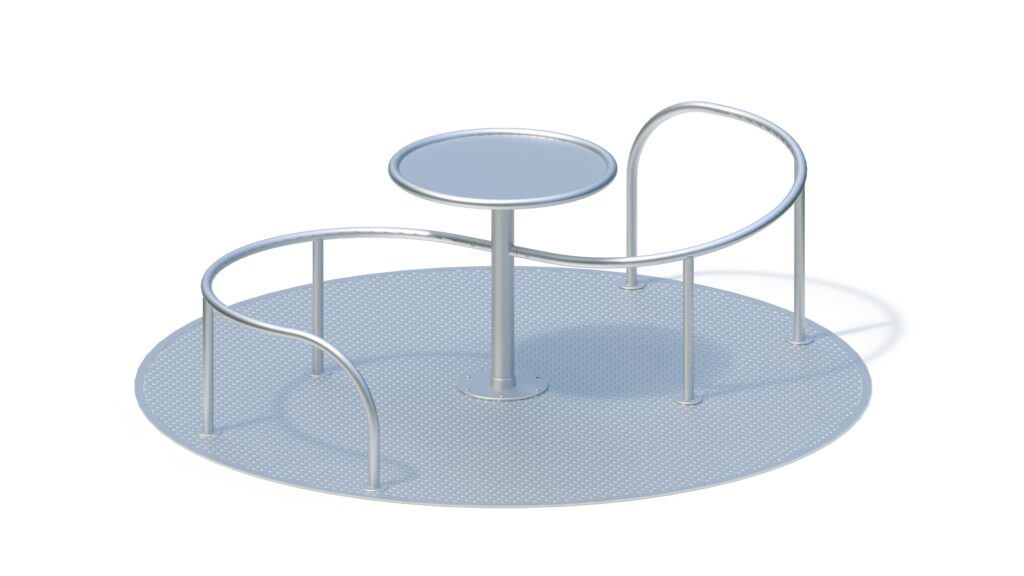

Big Skyflyer - Kaiser & Kühne

Classic

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

-

Total length ? The measurement indicating the length of the playground equipment.

1,71 m

Total width ? The measurement indicating the width of the playground equipment.

1,71 m

Total height ? The measurement indicating the height of the playground equipment.

2,10 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

7,71 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

7,71 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

2,10 m

Number of installers ? The number of qualified individuals required for product assembly.

2 Pers.

Assembly time ? The time required by qualified individuals to assemble the product.

1 h

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

105,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

180,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

0,45 m

Platform heights

-

Foundations

1 pc.

1,40 x 1,40 x 0,70 m
Volume: 1,37 m3

Age group ? The specific age group for which the product was developed.

8+
Number of users ? The number of individuals who can use the product simultaneously.

7
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Activities ? The various tasks or actions that can be performed with the product.

motion activity
Product groups ? The categories of similar products.

Carousels

Variants finder

Classic

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

This kaiser & kühne product enables:

Product downloads:

Technical data
Area: Ø 1,71 m
Minimum space: Ø 7,71 m (47 m²), falling space thereof: Ø 5,71 m (25 m²)
Total height: 2,10 m
Weight: 105 kg heaviest individual component
180 kg as a whole

– stanchion from galvanised steel pipe with base plate
– stainless steel wheel handle, rotating at 15 degrees inclination
– pivot bearing: multiple roller bearing, axis mounted to tamper-proof concealed housing from stainless steel
– anchorage by means of concreted foundation ring made from galvanised steel

Foundation (on site)
1 pc. 1,40 x 1,40 x 0,70 m
concrete amount: 1,37 cbm

Approximate assembly values
2 mechanics 1 hour each
(without creating foundations)

Free height of fall
0,45 m

Please note
The soil characteristics of the impact area surrounding the equipment must have an appropriate level of shock absorption corresponding to a free height of fall of at least 600 mm (according to EN 1176-5).

Appropriate for
children from the age of 10 years up,
public playgrounds etc.,
physical activity

Carousels

Big Skyflyer 0-43512-000

Classic
