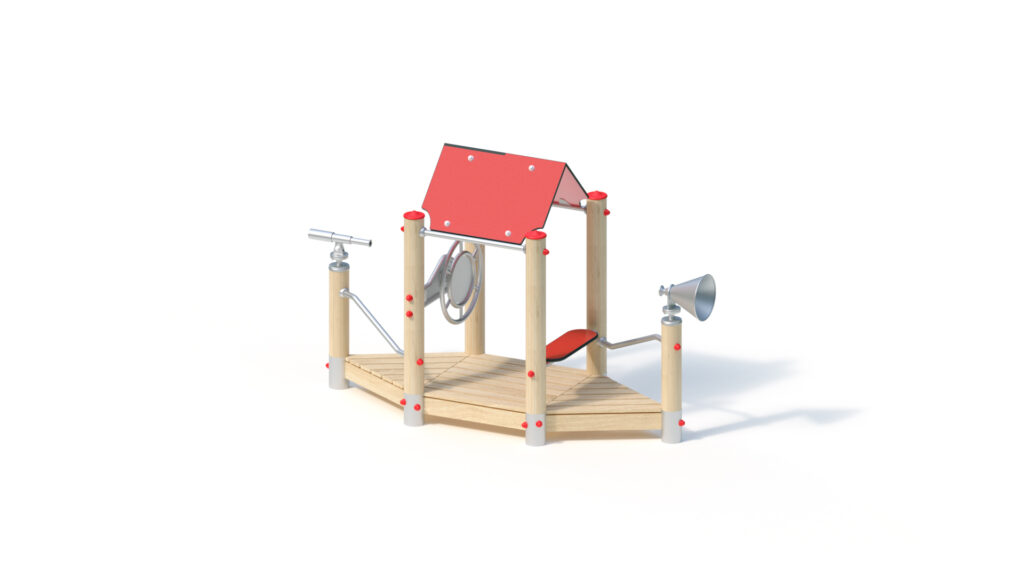

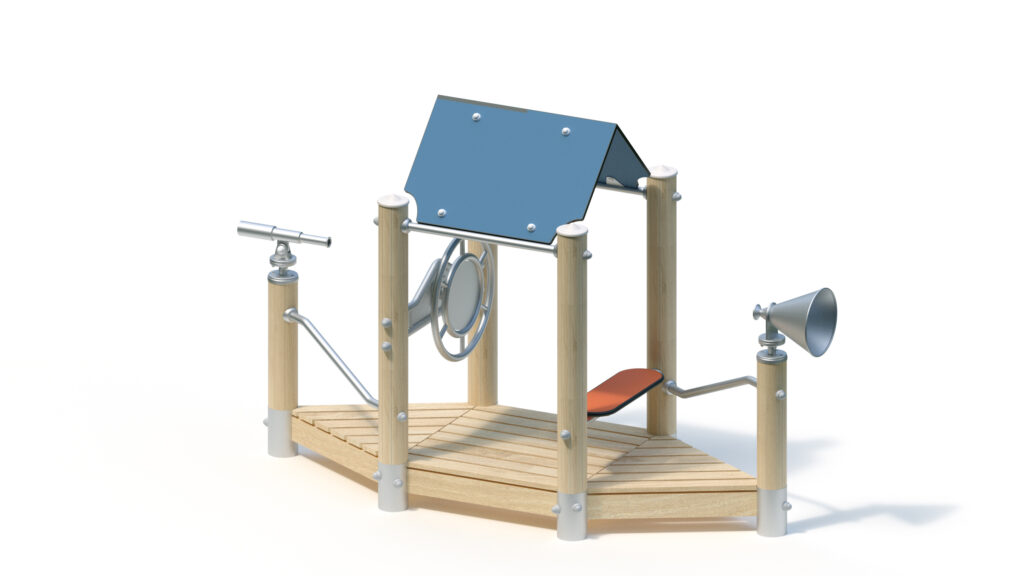

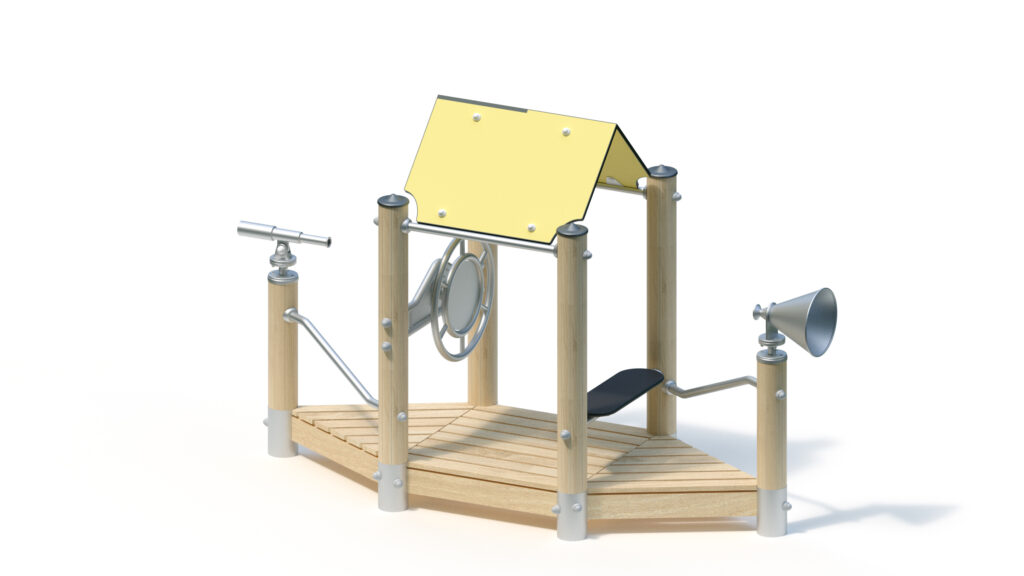

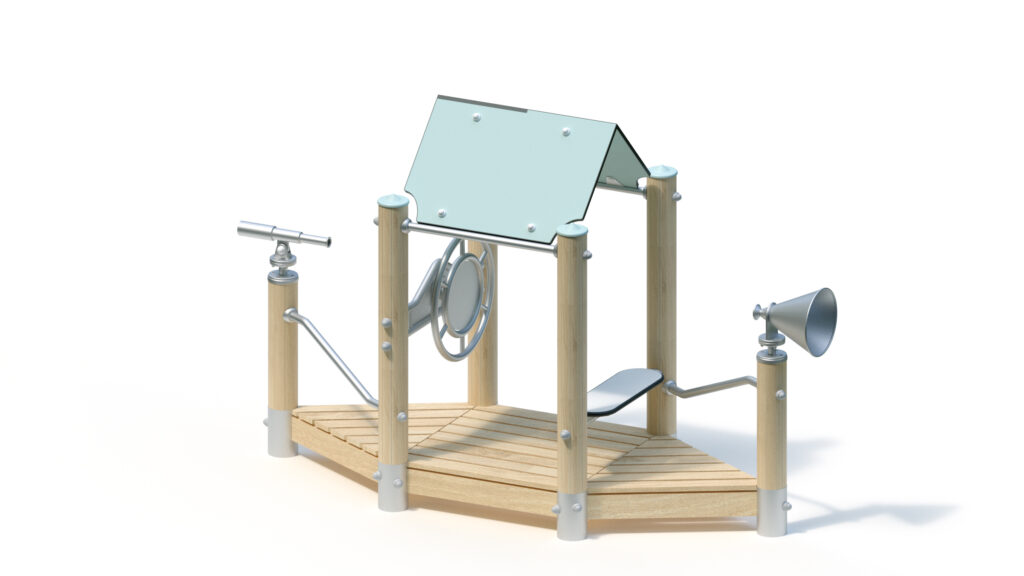

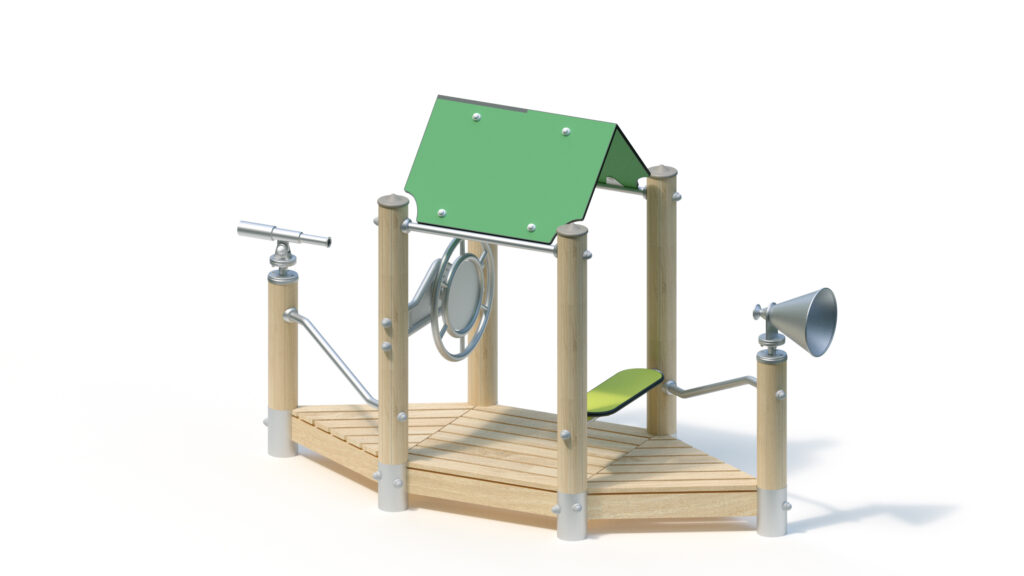

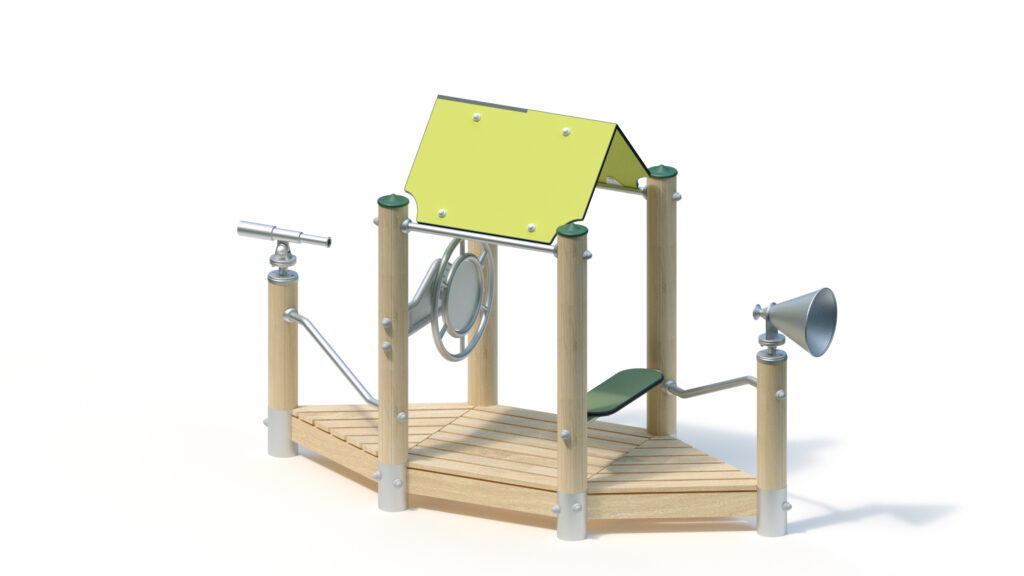

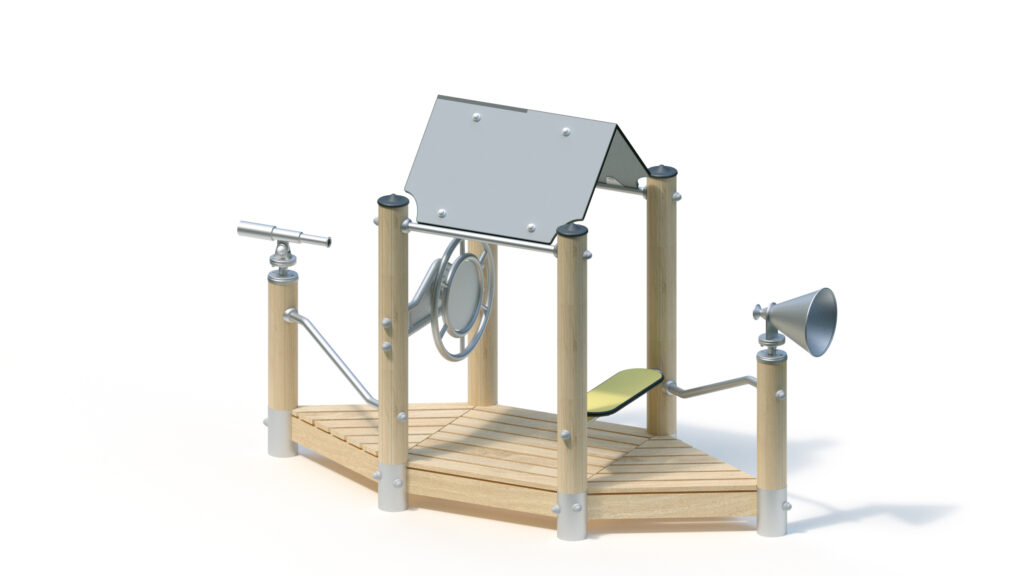

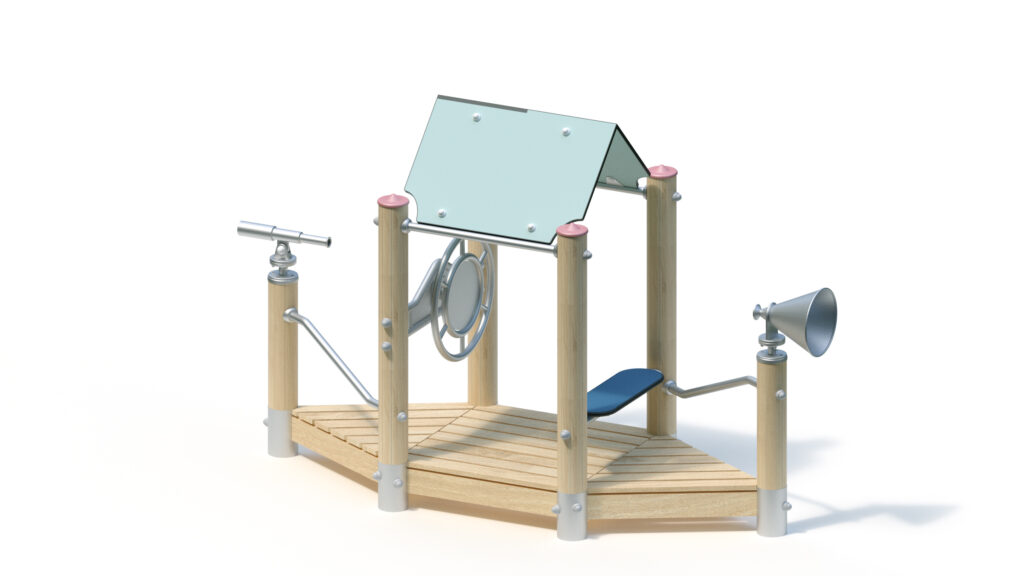

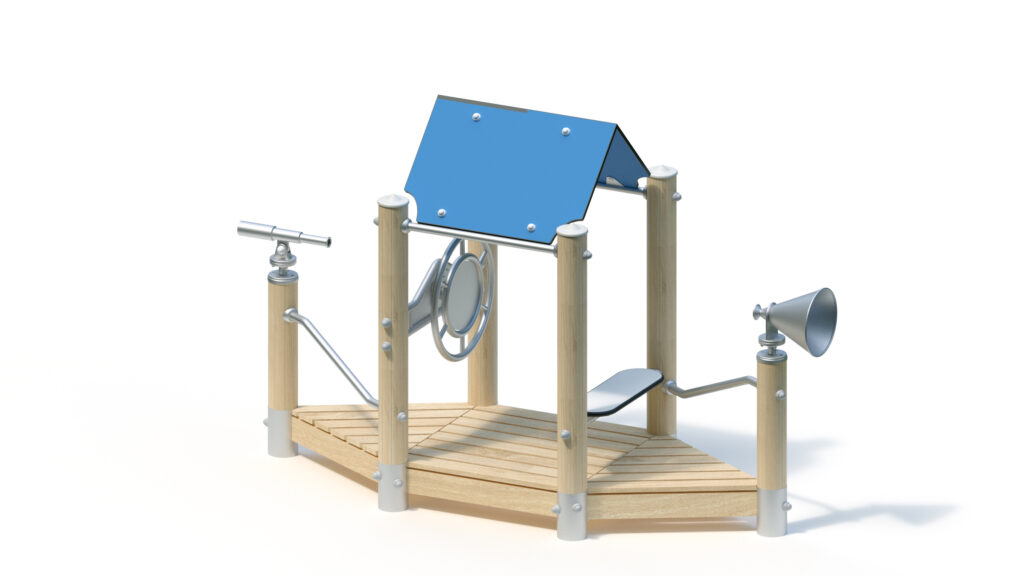

Play Structures

Technical data
Area: 0,95 x 2,65 m
Minimum space: 3,95 x 5,65 m (18 m²)
Total height: 1,65 m
Platform height: 0,20 m
Weight: 30 kg heaviest single component
200 kg as a whole

Posts
Posts made from stainless steel tubes Ø 120 x 3 mm, covered by non-detachable protective stainless steel caps

Platforms
Platforms from boards of 30 mm thickness and all-round square-shaped joists 45 x 100 mm. Dried timber from Robinia, planed, milled and free from decay. Force-fitting fastening through specific stainless steel brackets with end-to-end bolt assembly.

Attachment parts
– saddle roof, 45° inclination, made from highly weather-resistant coloured HPL panels, 13 mm thickness, fastening to stainless steel frame Ø 33,7 x 2 mm
– stepped handrail from stainless steel tubes, Ø 33,7 x 2 mm
– seat made from highly weather-resistant coloured HPL panel, 20 mm thickness
– rotating snap-in steering wheel made from stainless steel, low wear, double roller bearing, inner and outer ring from steel tubes Ø 30 x 2 mm, 6 spokes from steel tubes Ø 20 x 2 mm
– telescope with horizontal rotation by 360°, adjustable in height
– megaphone with horizontal rotation by 360°

Metal components: stainless steel
Robinia timber is furnished with water-repellent, breathable protective coating. Besides protection from moisture, that treatment reduces crack formation. Thanks to a specific fastening adaptor, forces arising from the modular attachment parts are directly derived into the posts. Tamper-proof connections thanks to screws with security socket.

Foundations (on site)
6 pcs. 0,40 x 0,40 x 0,40 m
concrete amount: 0,38 m³

Approximate assembly values
2 mechanics 2 hours each
(without creating foundations)

Free height of fall
0,50 m

Appropriate for
children from the age of 2 years up,
public playgrounds etc.,
social/physical activity
