Actio

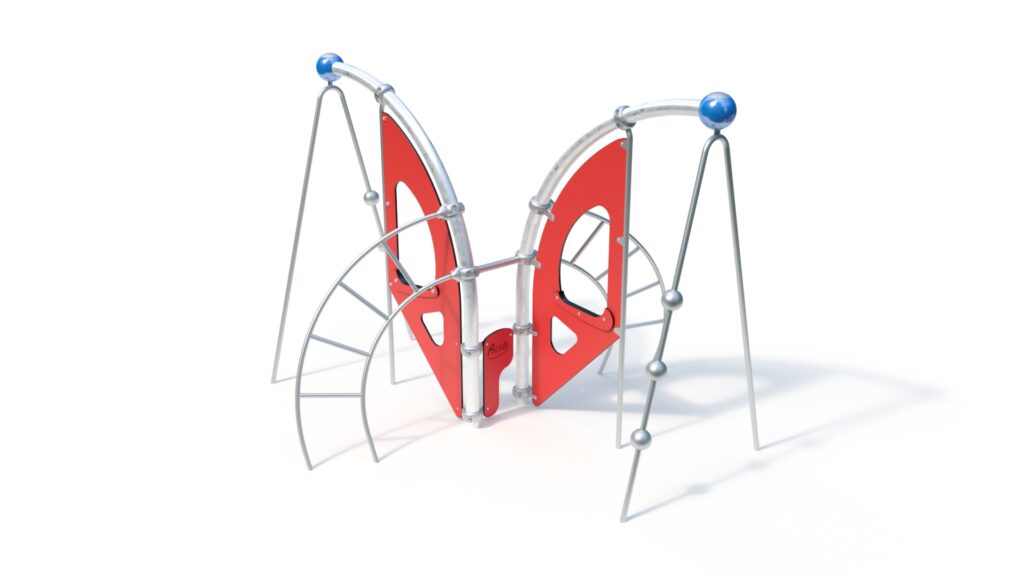

Actio 232 0-27232-001

Classic

Ice Palace

Aloha

Beach

City

Coral

Jungle

Mermaid

Nature

Ocean

Pirate

Safari

Sky

Sun

Sunny Day

Sweden

Technical data
Space occupied by equipment:
Minimum space: 4,19 x 3,46 x 2,93 m
Impact area: 7,67 x 6,46 x 2,93 m
Total height: 2,93 m
Free height of fall:2,86 m
Weight: 67 kg heaviest single piece
257 kg as a whole

Arc 90°
– bent tube from hot-dip galvanised steel, Ø 114 x 3,6 mm (powder coating on choice, according to RAL colour chart)
– sphere from aluminium, Ø 250 mm, powder coating on choice, according to RAL colour chart (see below-mentioned positions)

Spring Slide
– welded construction from stainless steel tubes Ø 42,4 mm
– top: screw-type connection to Actio structural element
– bottom: embedding in cast-in-place concrete

Monkey Rings
– combination of rings made from stainless steel tubes Ø 38 mm
– 1x flat/1x spatially twisted
– 7 mm stainless steel chain suspension and connection and universal joint
– independantly rotatable
– top: screw-type connection to Actio structural element
– bottom: deflection limited by a chain with a screw-type ground connection to a concrete-cast foundation anchor

Actio panel
– coloured highly weather-resistant HPL panel (20 mm thickness) including labelling “Actio”, red similar to RAL 2002
– connection by means of clamps from aluminium (powder coating on choice, according to RAL colour chart)

Bow Ladder
– welded, helical construction from stainless steel tubes Ø 38 mm
– bow-shaped, skewed ladder
– top: screw-type connection to Actio structural element by means of aluminium clamps (powder coating on choice, according to RAL colour chart)
– bottom: embedding in cast-in-place concrete

Foundations (on site)
1 pc. 1,70 x 1,00 x 0,50 m
2 pcs. 0,90 x 0,40 x 0,50 m
2 pcs. 0,60 x 0,60 x 0,50 m
concrete amount: approx. 1,6 m³

Approximate assembly values
2 mechanics 3 hours each
(without creating foundations)

Appropriate for
children from the age of 6 years up,
public playgrounds etc.
physical activity

For more information please contact us
